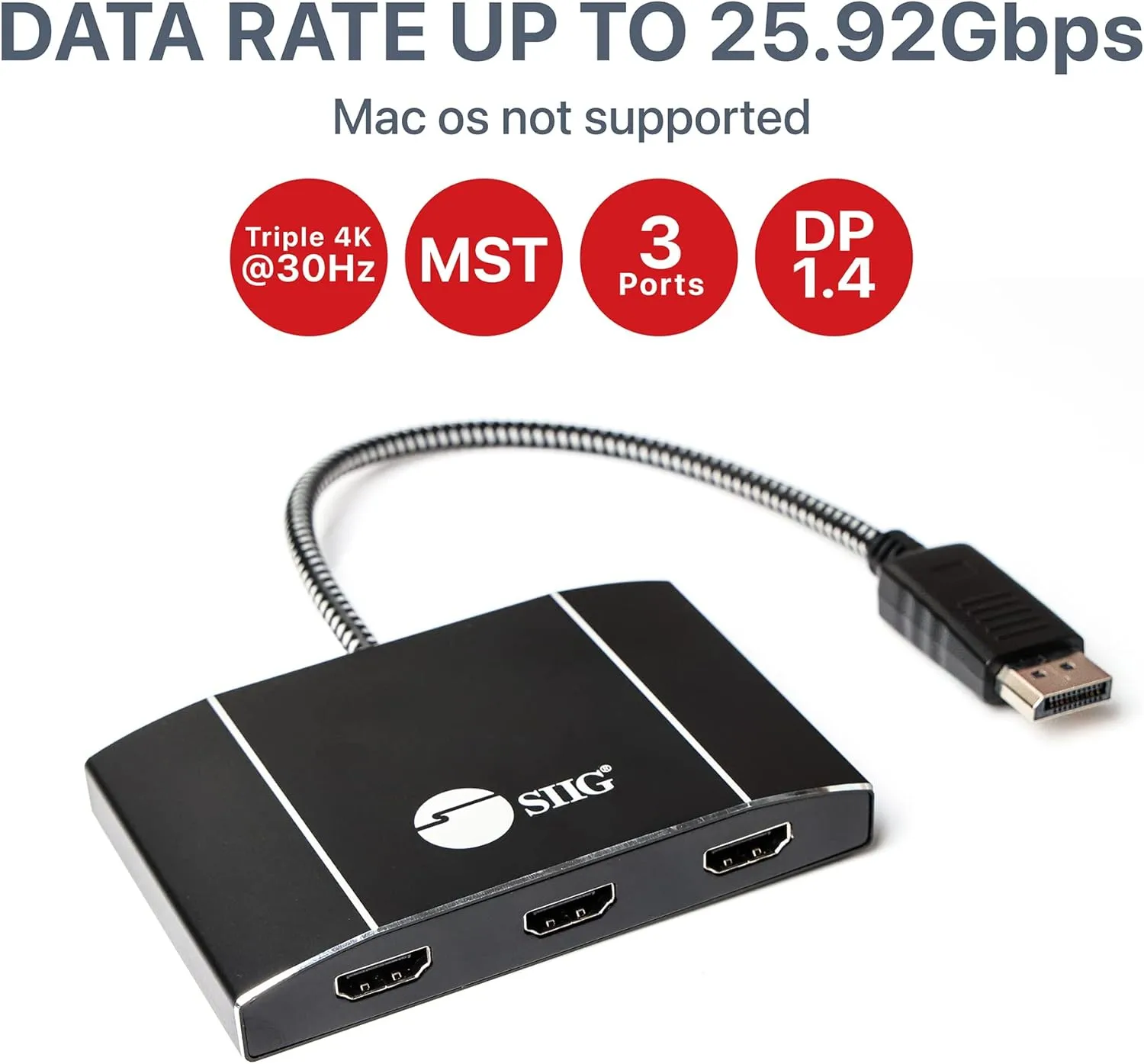

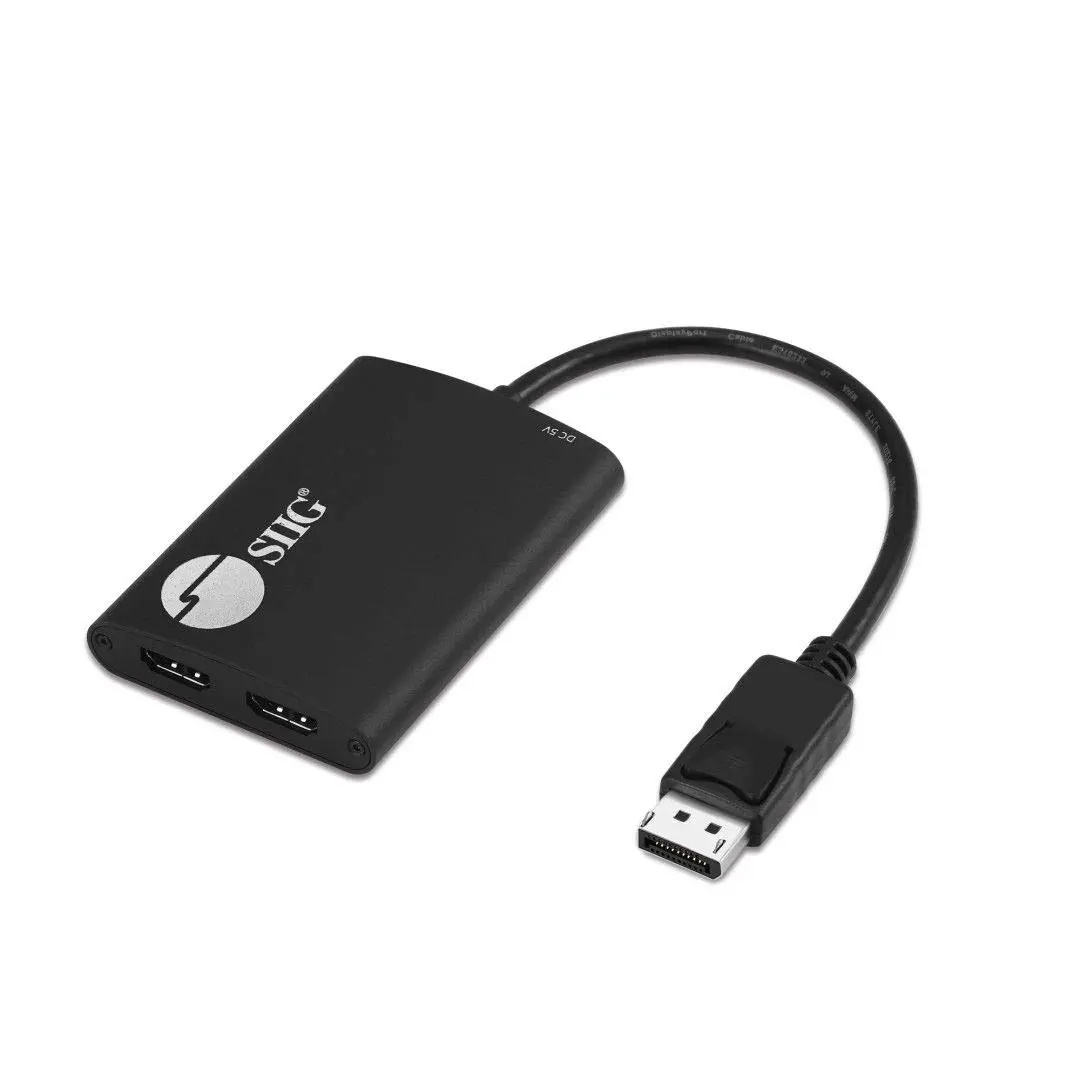

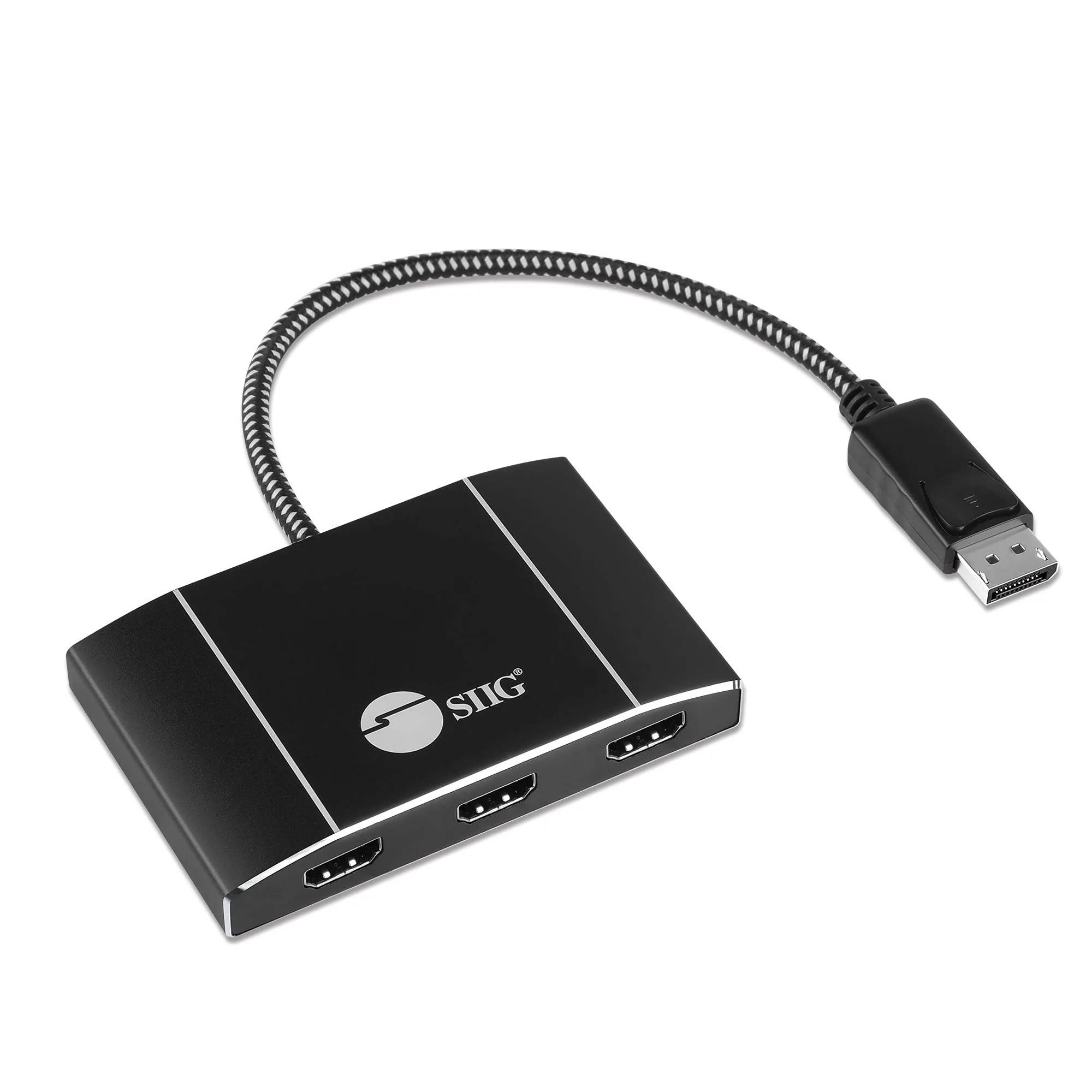

SIIG DisplayPort MST Hub Splitter (Multi-Stream Transport)
Customize

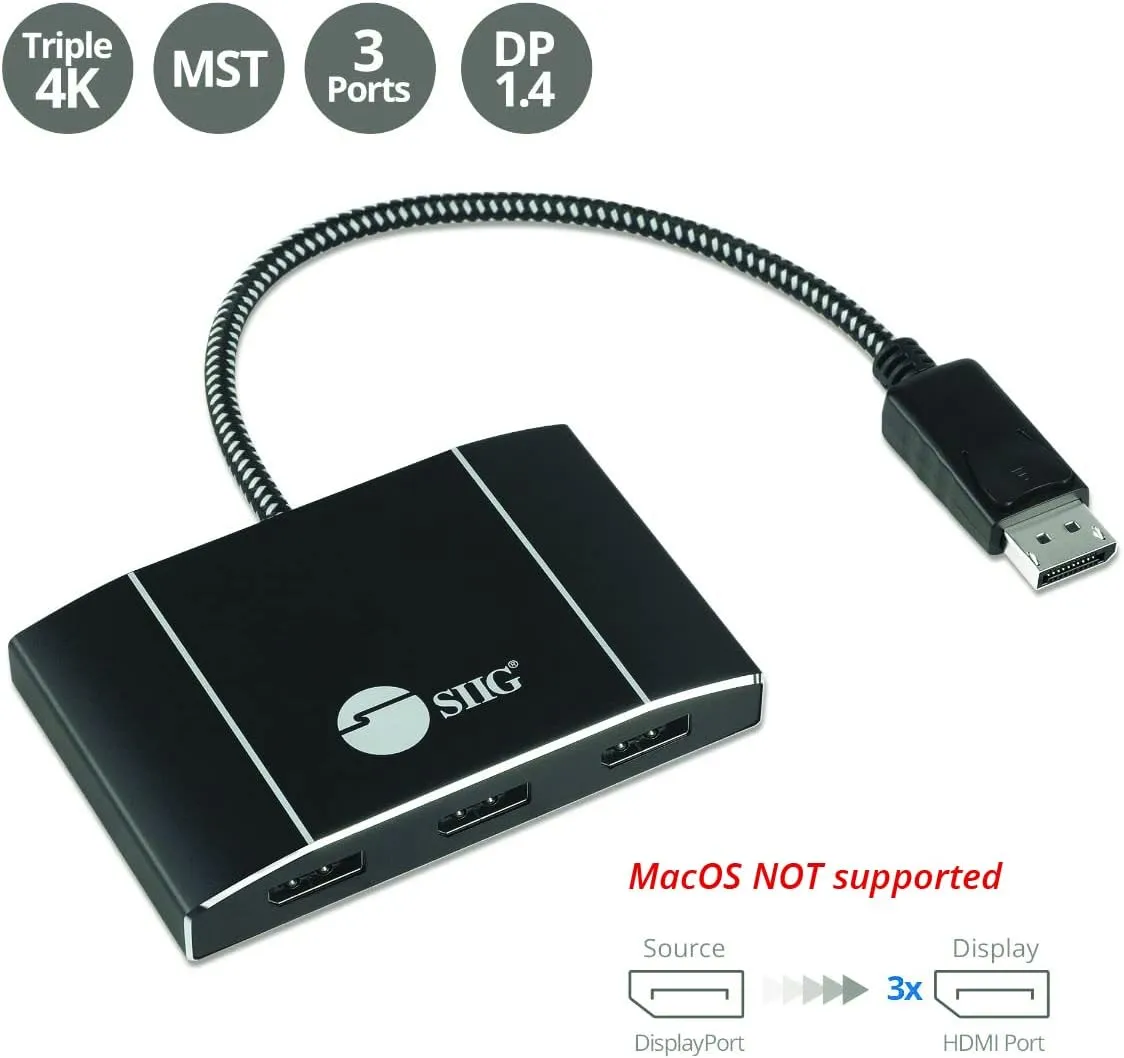

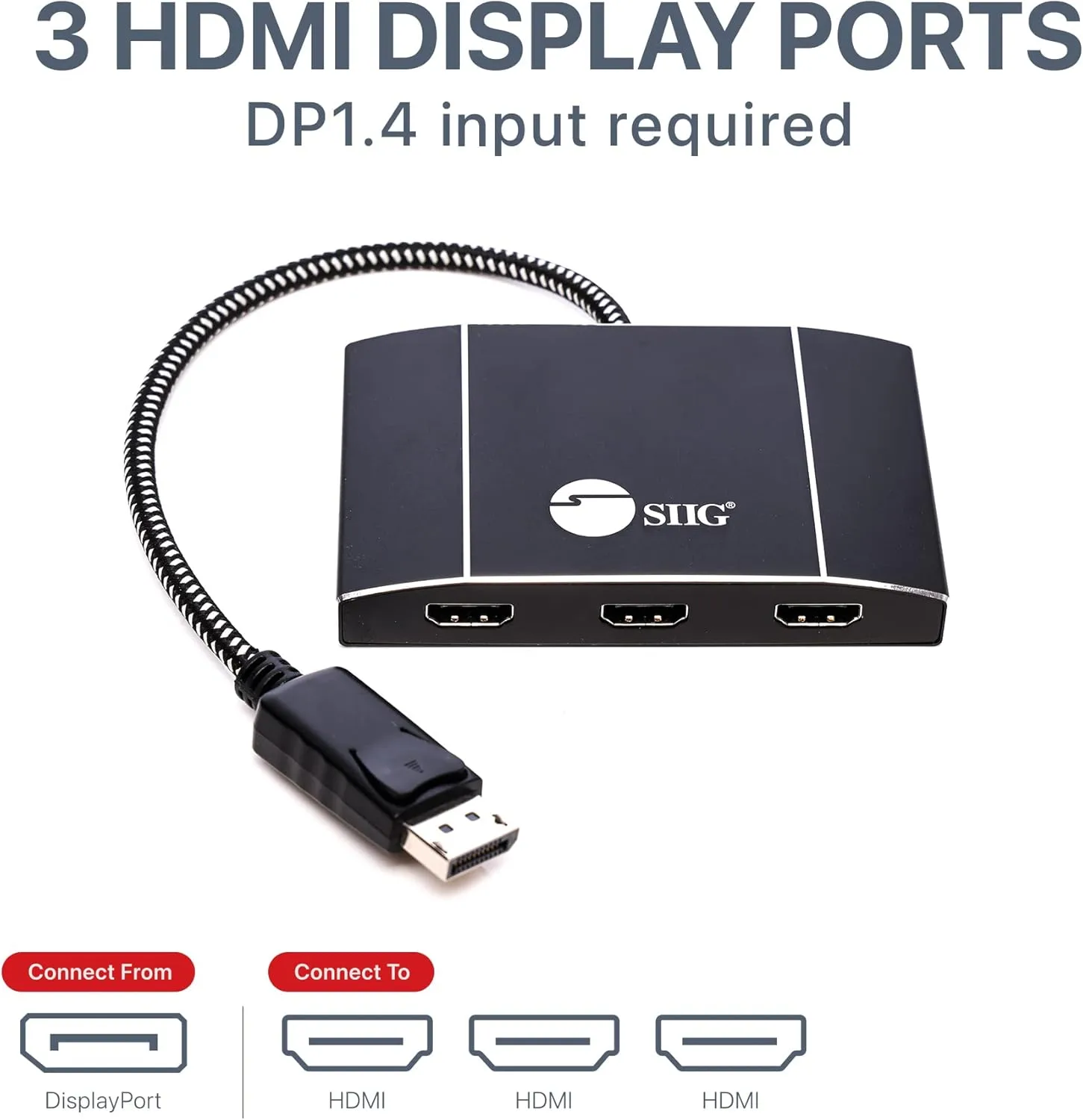

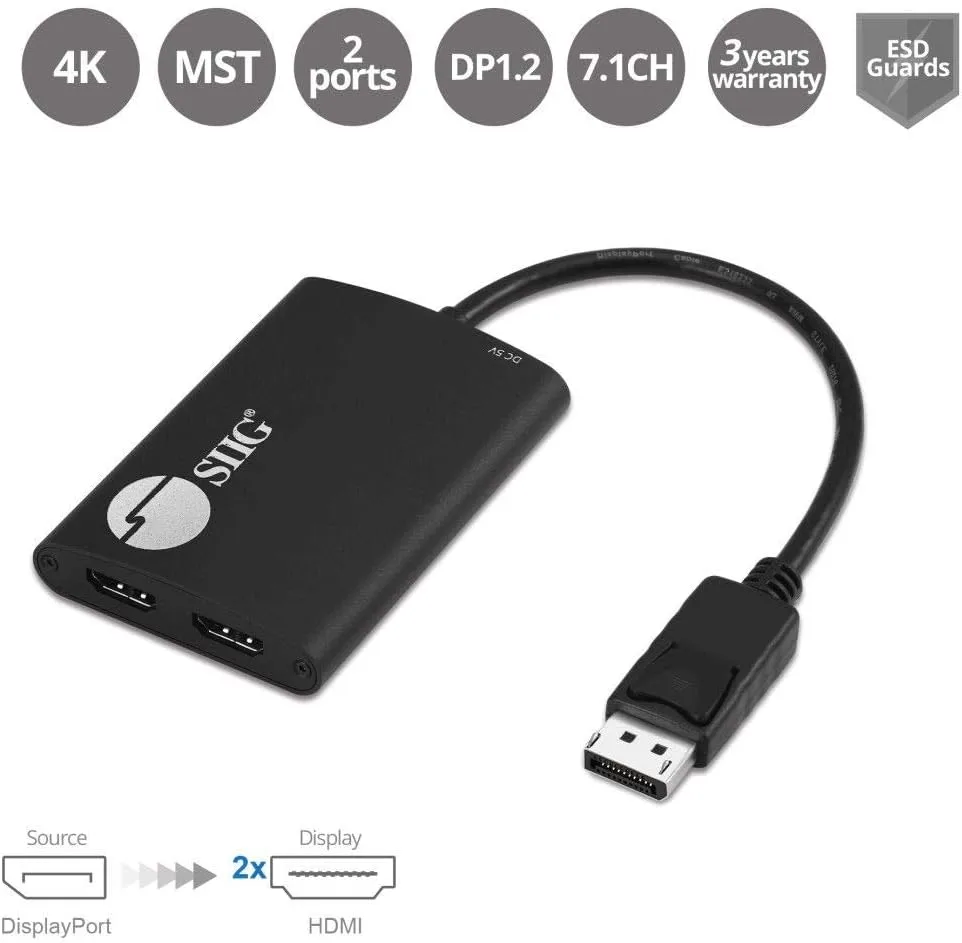

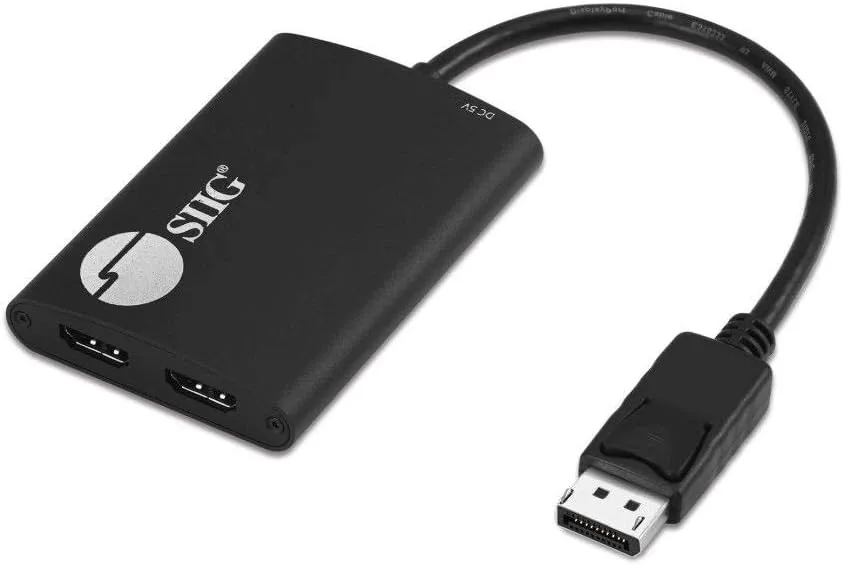

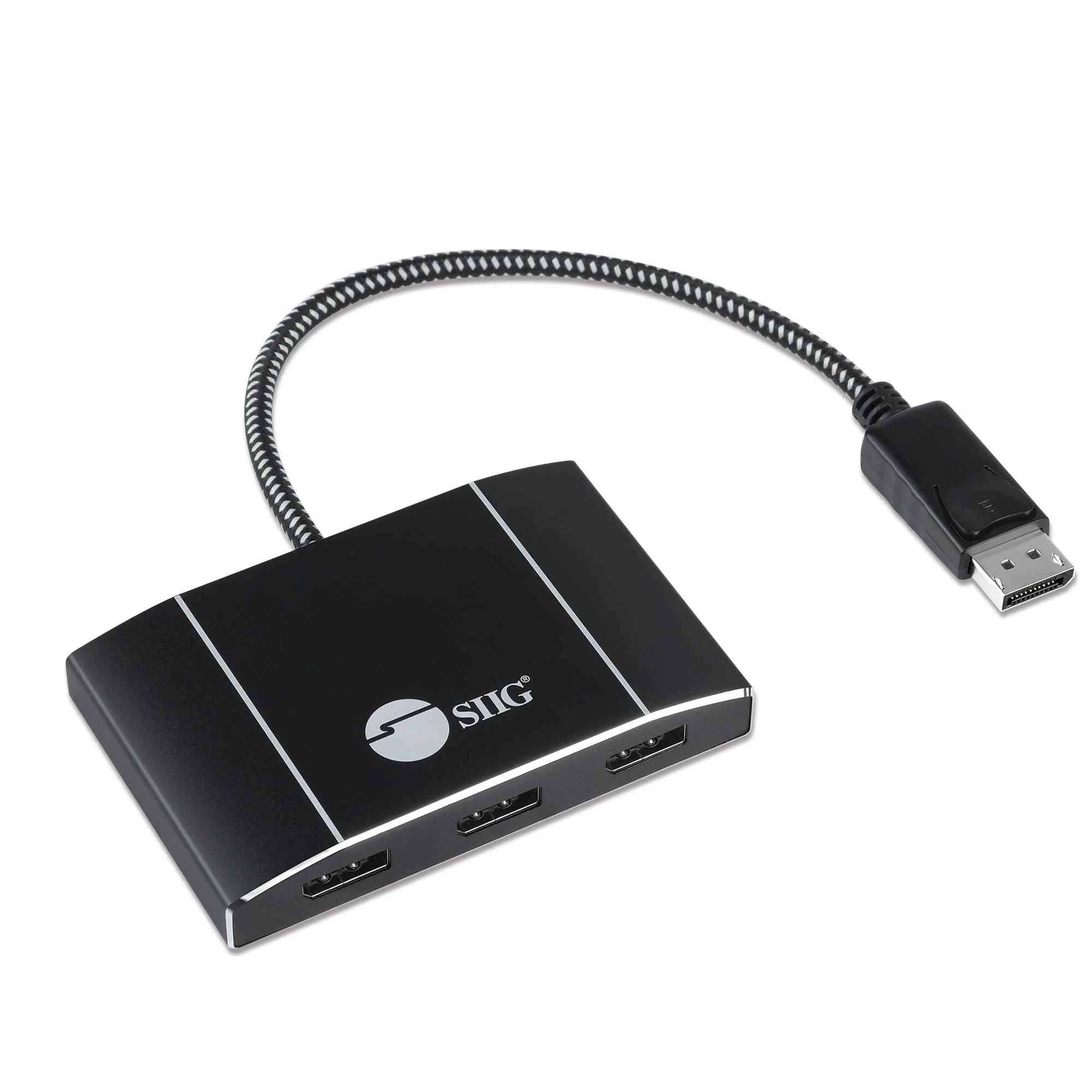

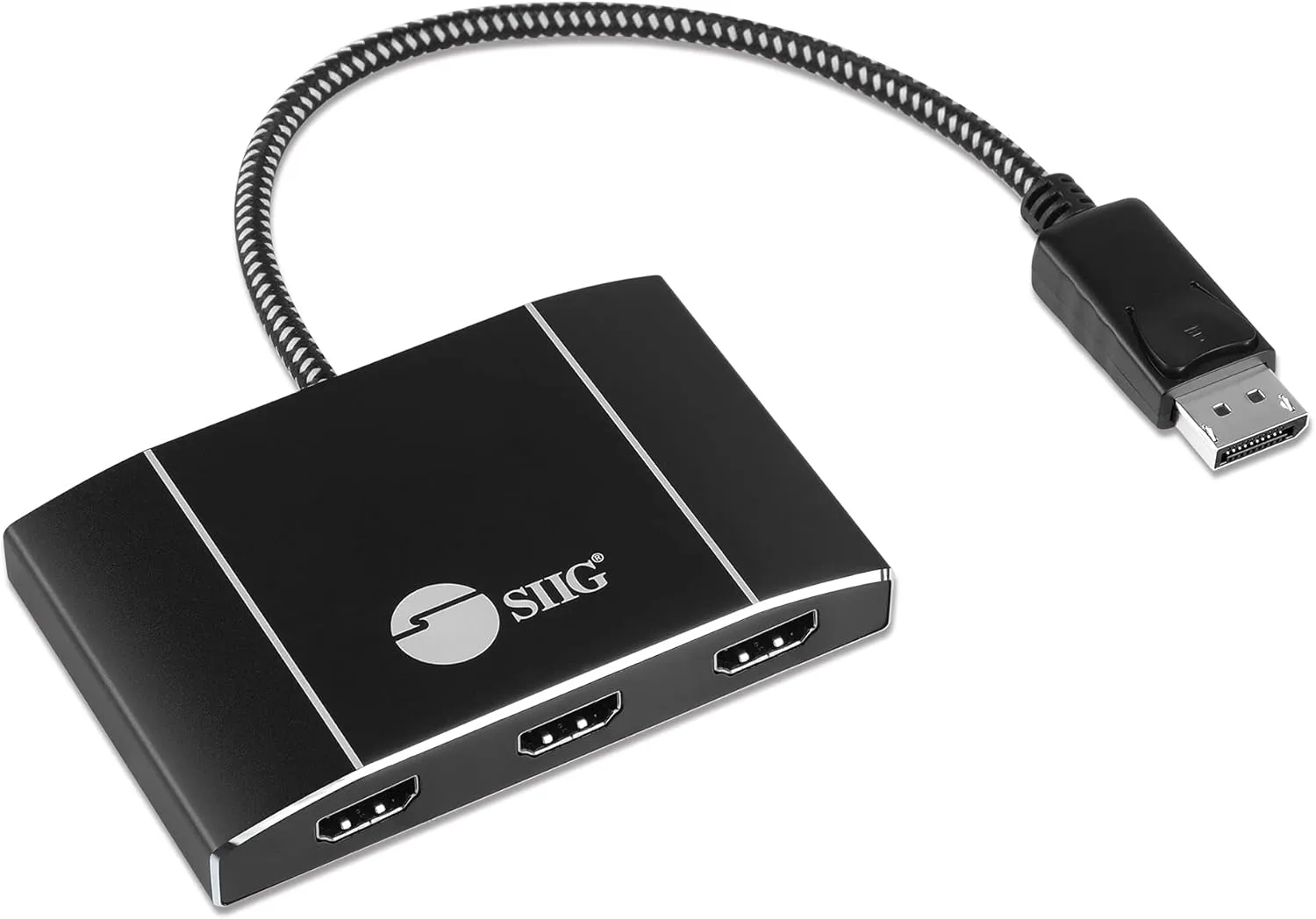

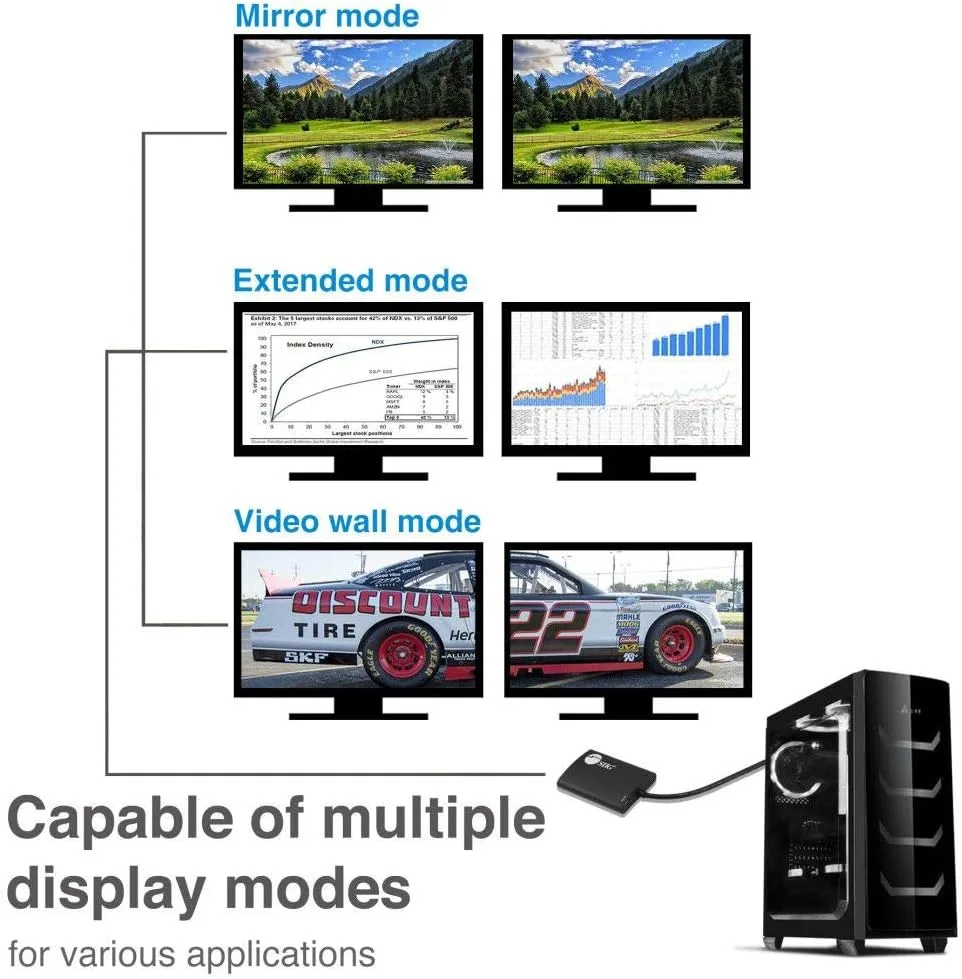

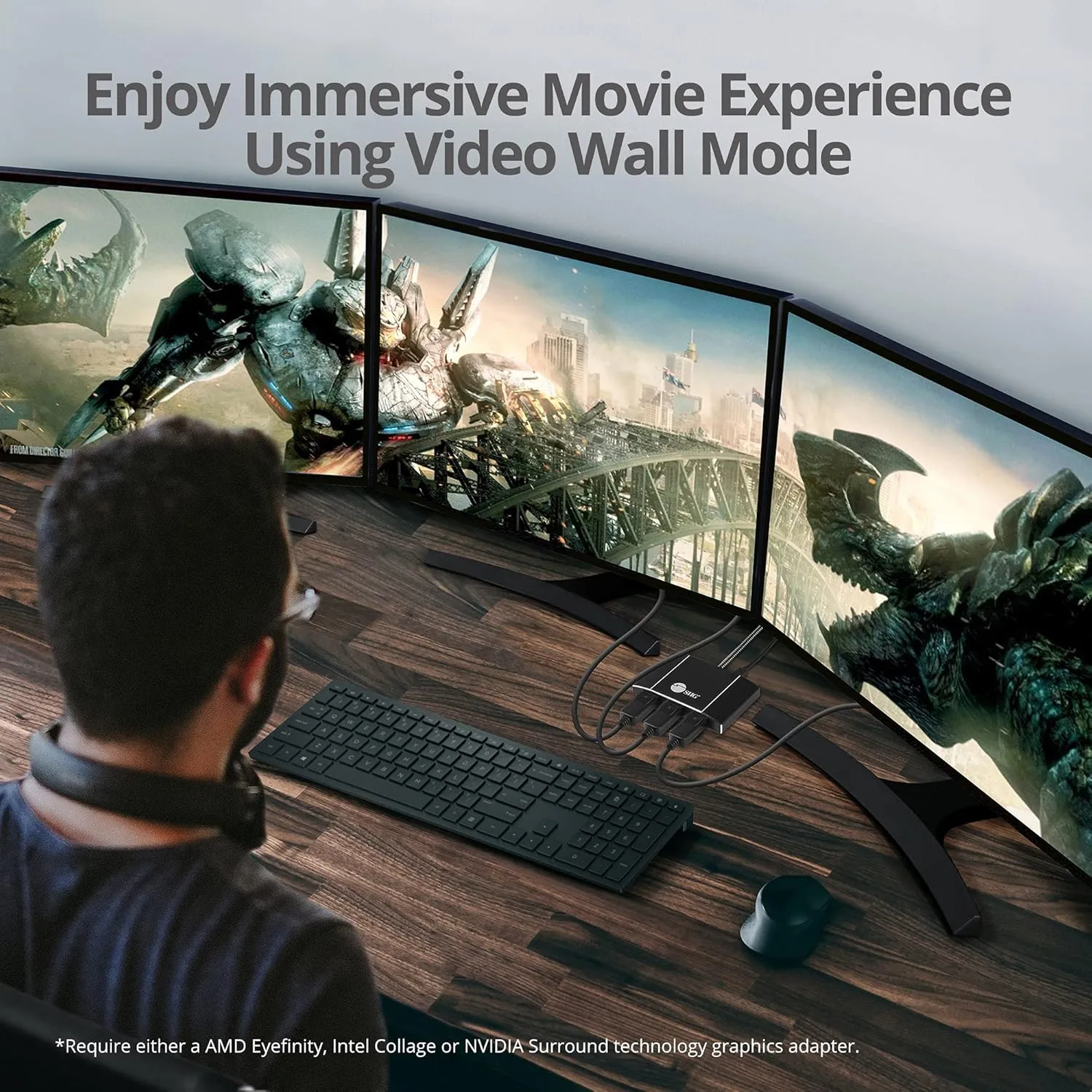

The SIIG DisplayPort MST Hub Splitter family uses Multi-Stream Transport (MST) to convert a single DisplayPort output into multiple display outputs (HDMI or DisplayPort) for multi-monitor setups. Models are available for DisplayPort 1.4 and DisplayPort 1.2 configurations to support high-resolution setups, 4K and HDR displays, and HDCP 2.2 where applicable. Common features across the family include Mirror, Extend and Panoramic Video Wall modes for productivity and video wall applications, USB-powered operation (USB 3.0 bus power recommended), and plug-and-play operation on Windows. Some models include micro USB power input or a reset button to re-detect displays. Note that macOS support is limited on these MST hubs (mirror only on some models or not supported on others).
Specifications:
| Product Details | |
| Country of Origin | China |
| Item model number | CE-DP0P11-S1 |
| Specific Uses For Product | Monitor |
| Sizing & Dimensions | |
| Height | 0.67 inches |
| Length | 2.64 inches |

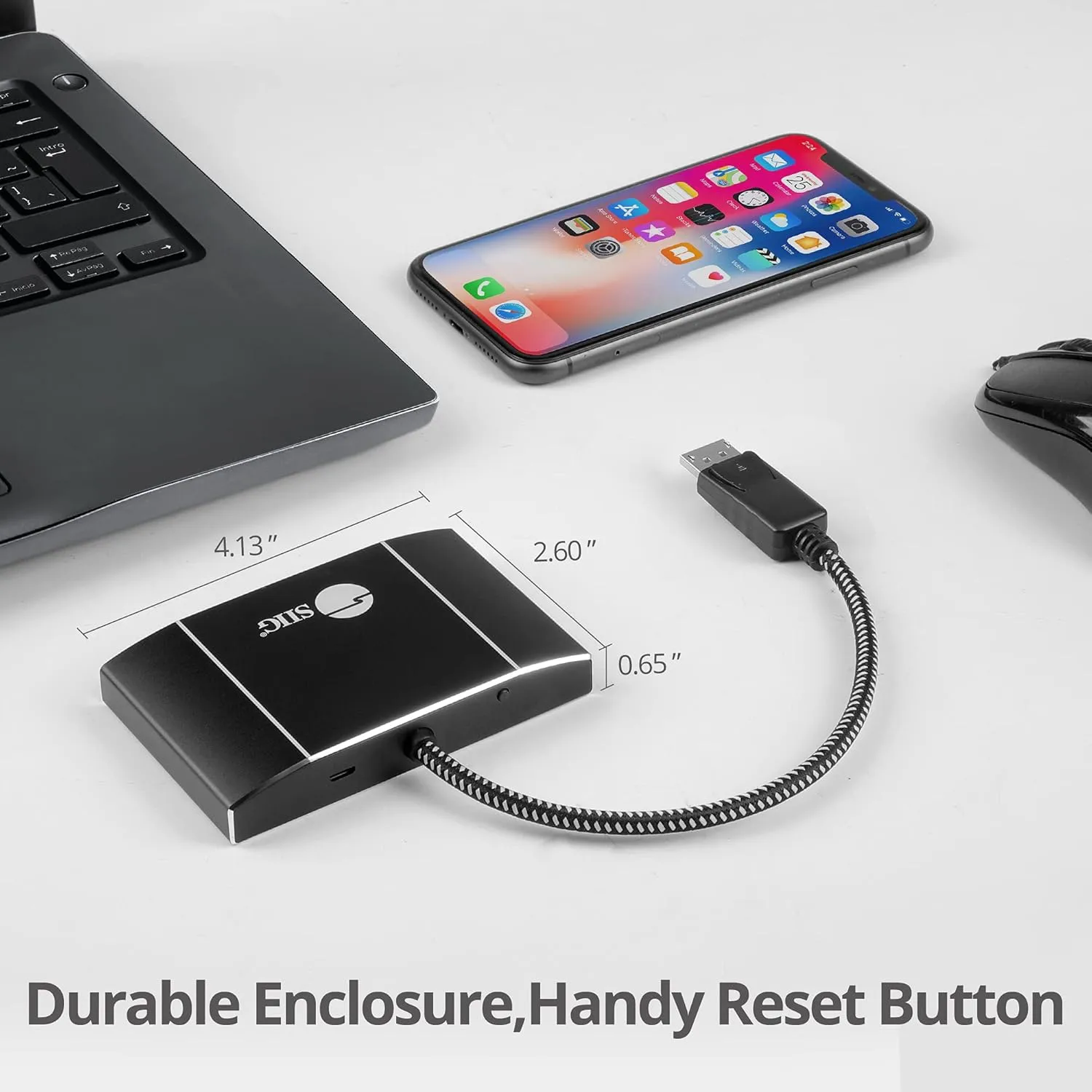

| Product Dimensions | 2.64 x 4.14 x 0.67 inches |
| Product Dimensions (H) | 0.67 inches |
| Product Dimensions (L) | 2.64 inches |
| Product Dimensions (W) | 4.14 inches |
| Weight | 6.7 ounces |
| Width | 4.14 inches |
| Technical Specifications | |

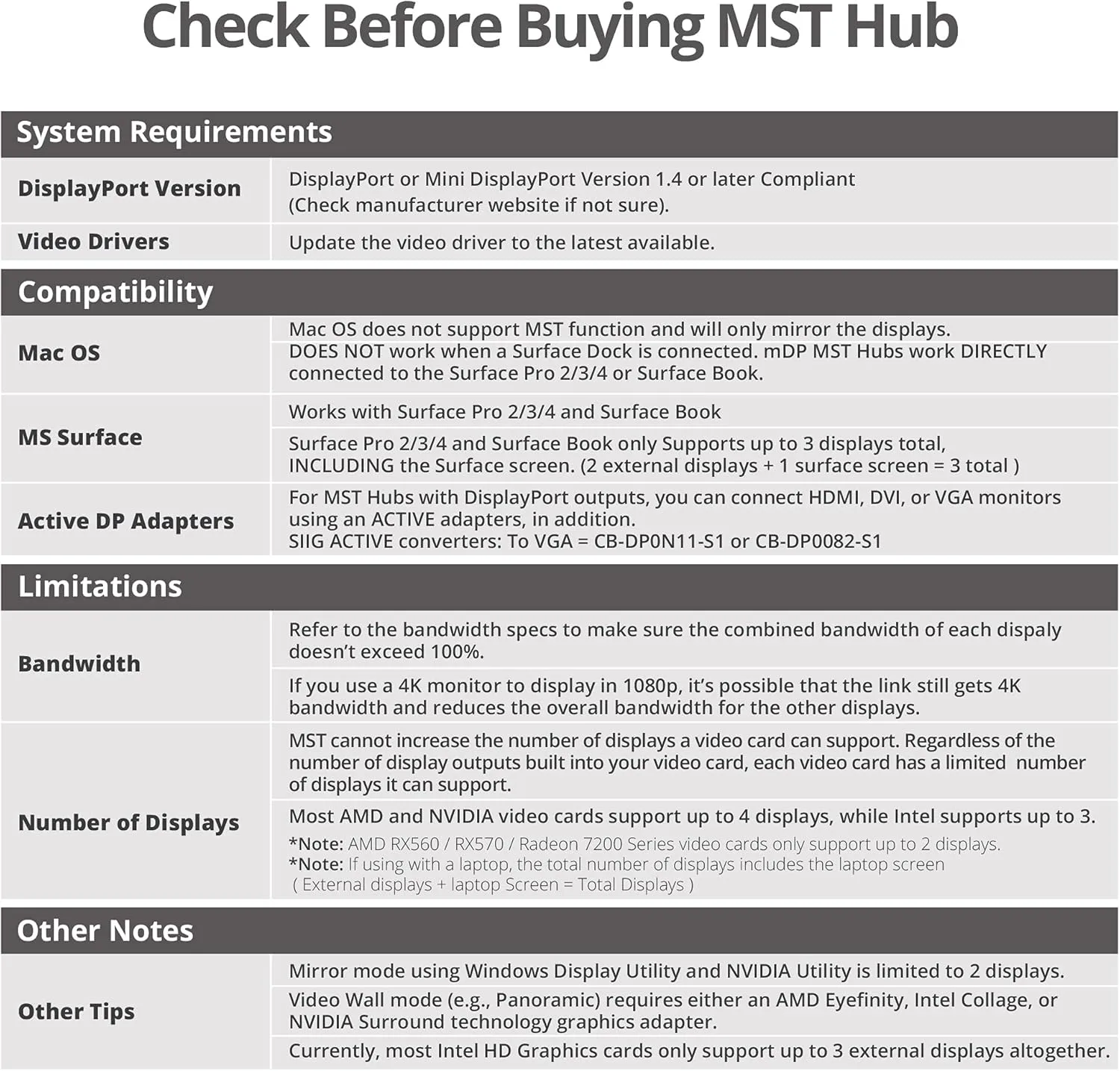

| Compatibility Notes | Requires DisplayPort 1.4 GPU/Graphics card; No support for MacOS |
| Power Requirement | Requires USB bus power from a USB 3.0 port |

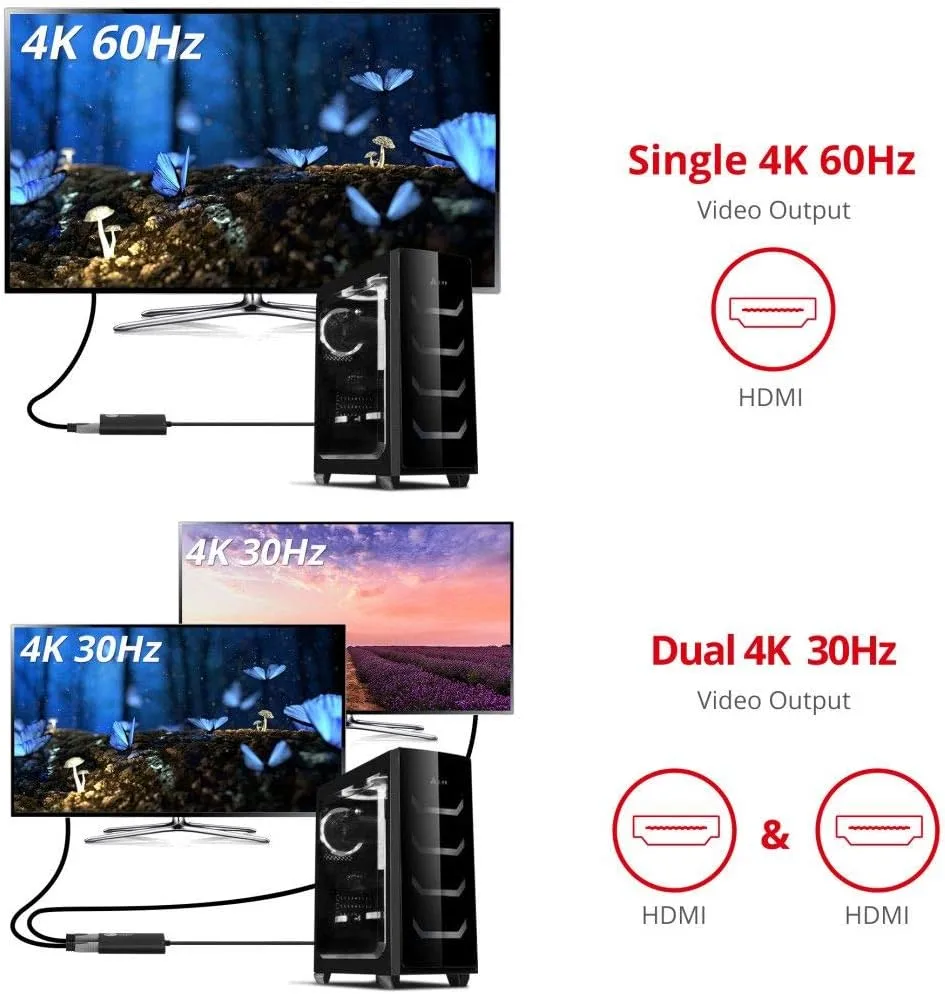

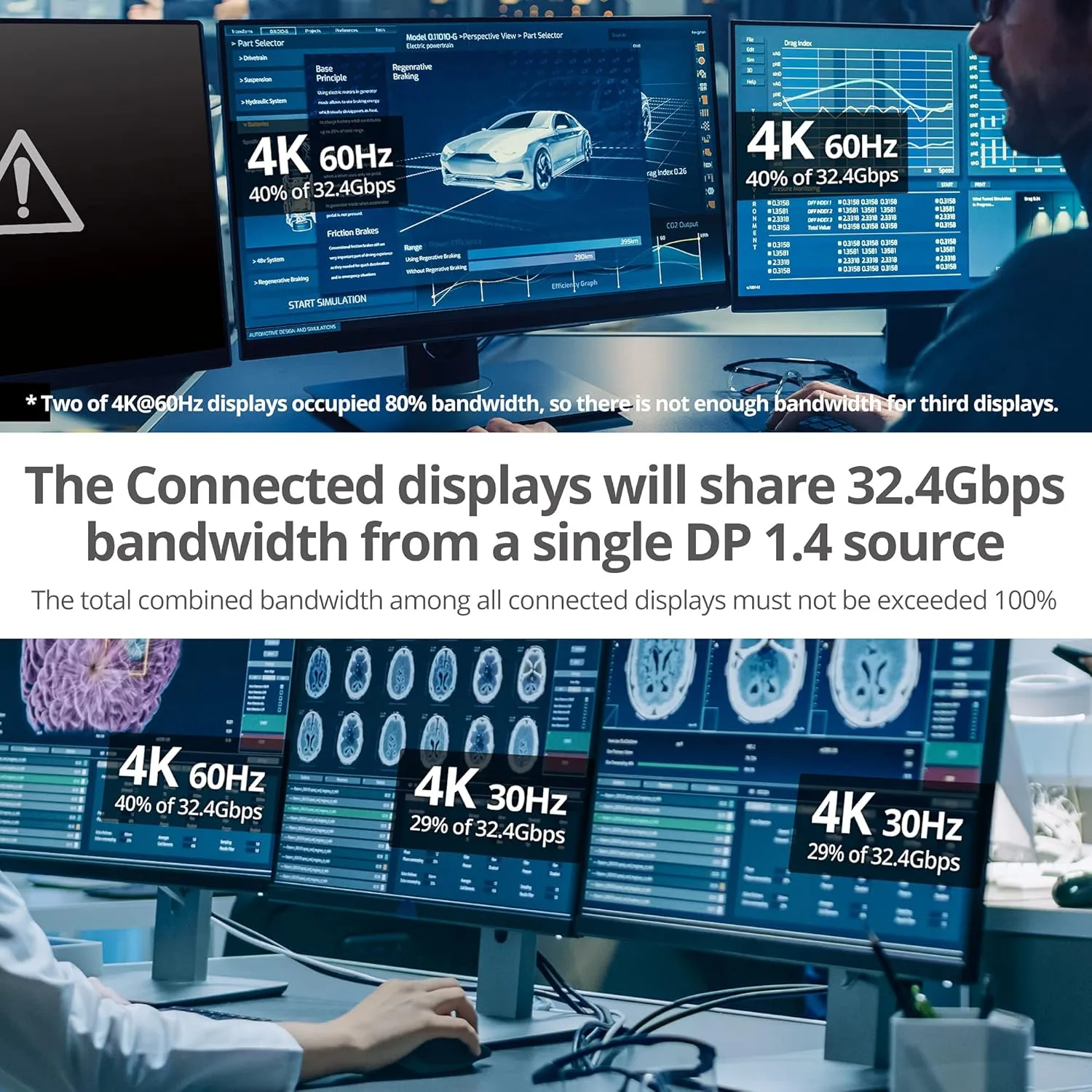

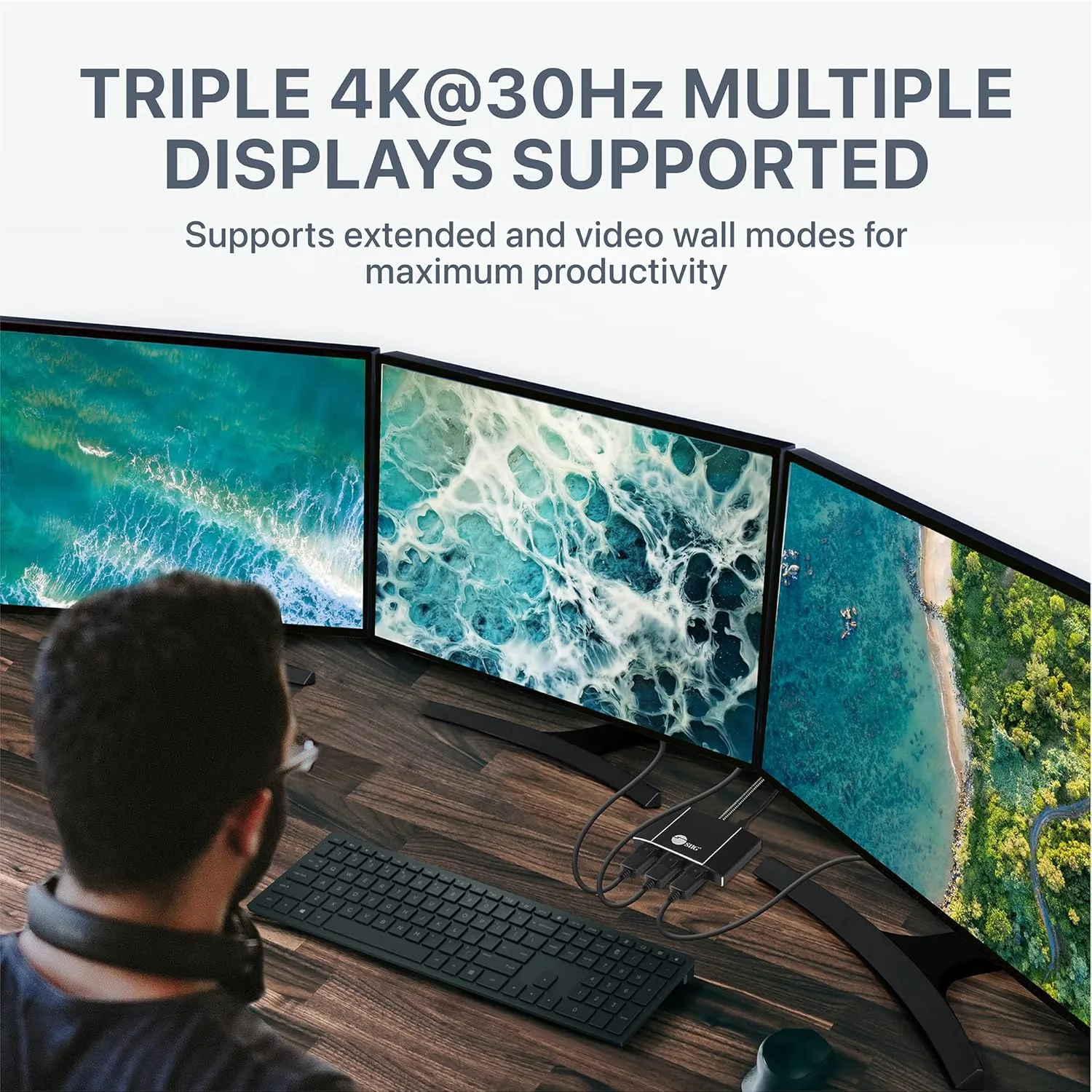

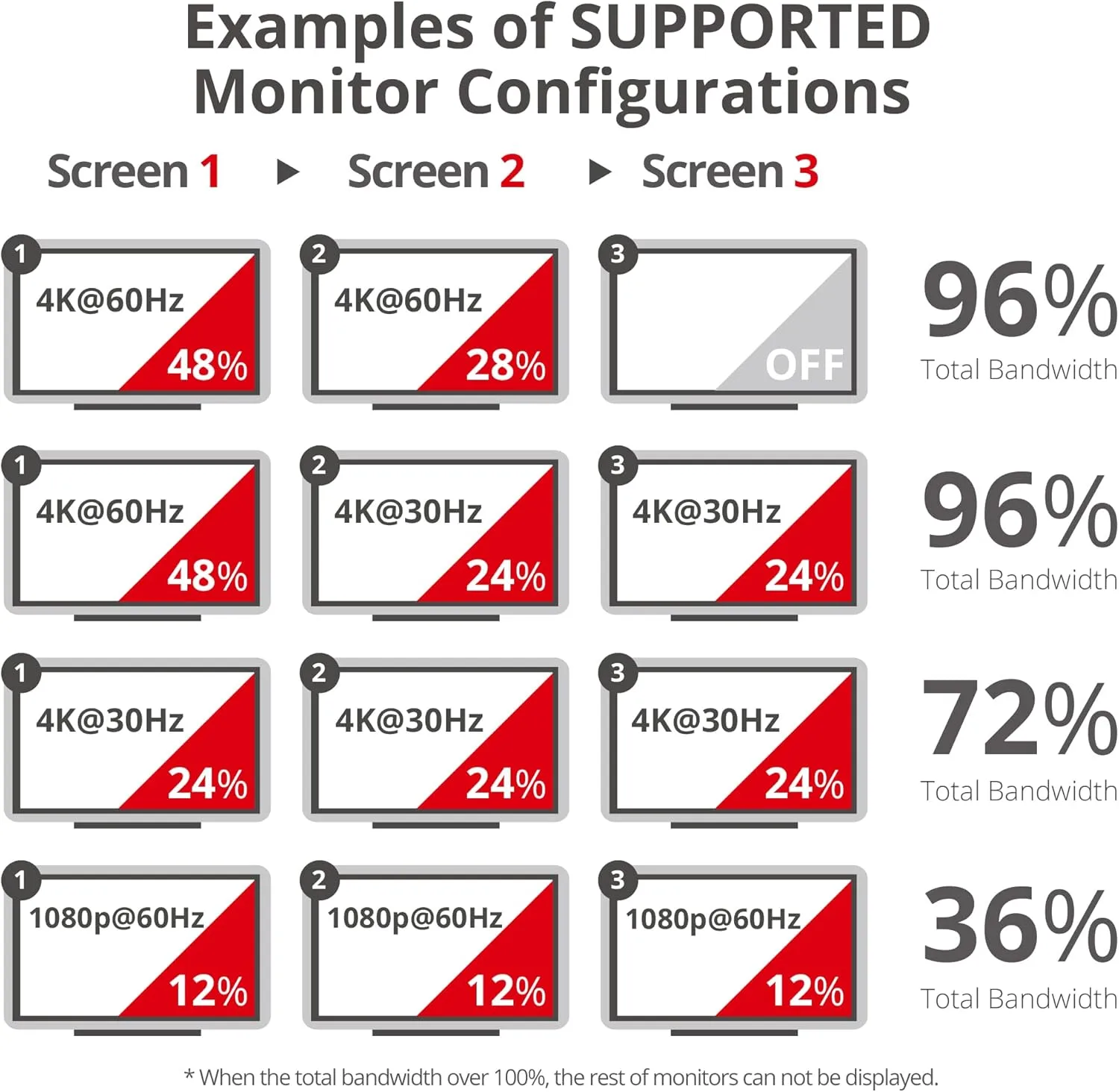

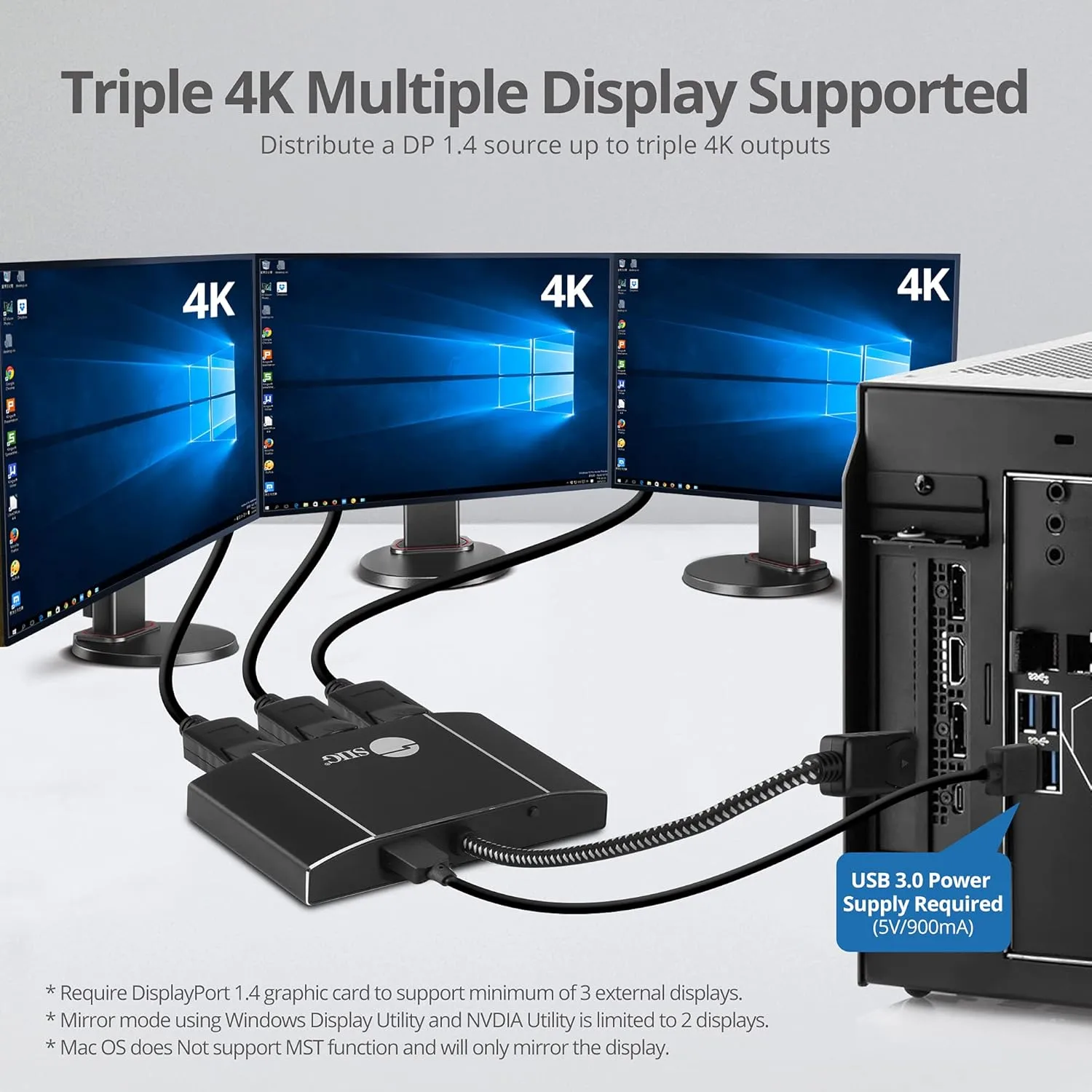

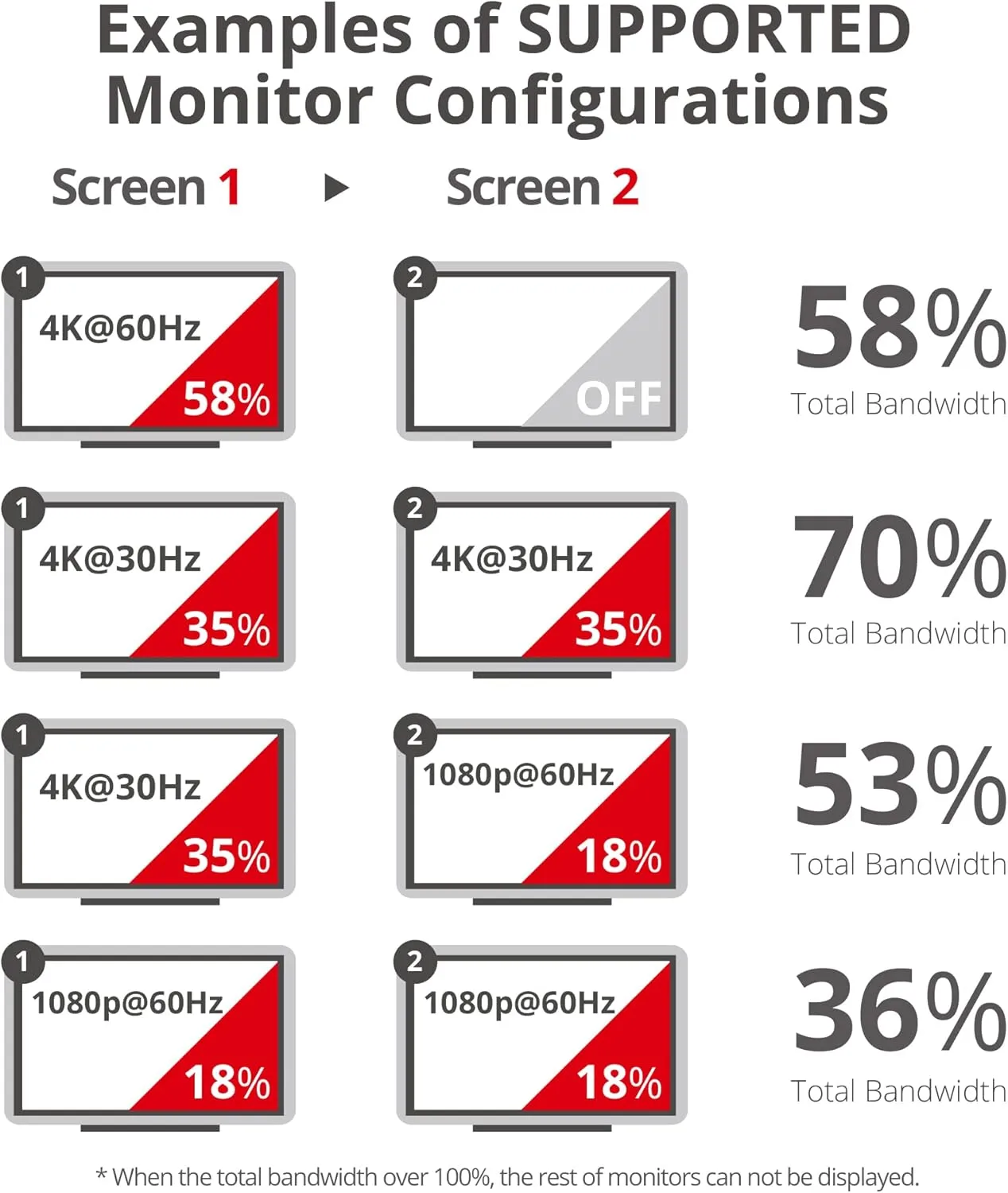

| Supported Resolutions | One UHD 8K@30Hz; two 4K@60Hz; three 4K@30Hz or combinations within 32.4Gbps |

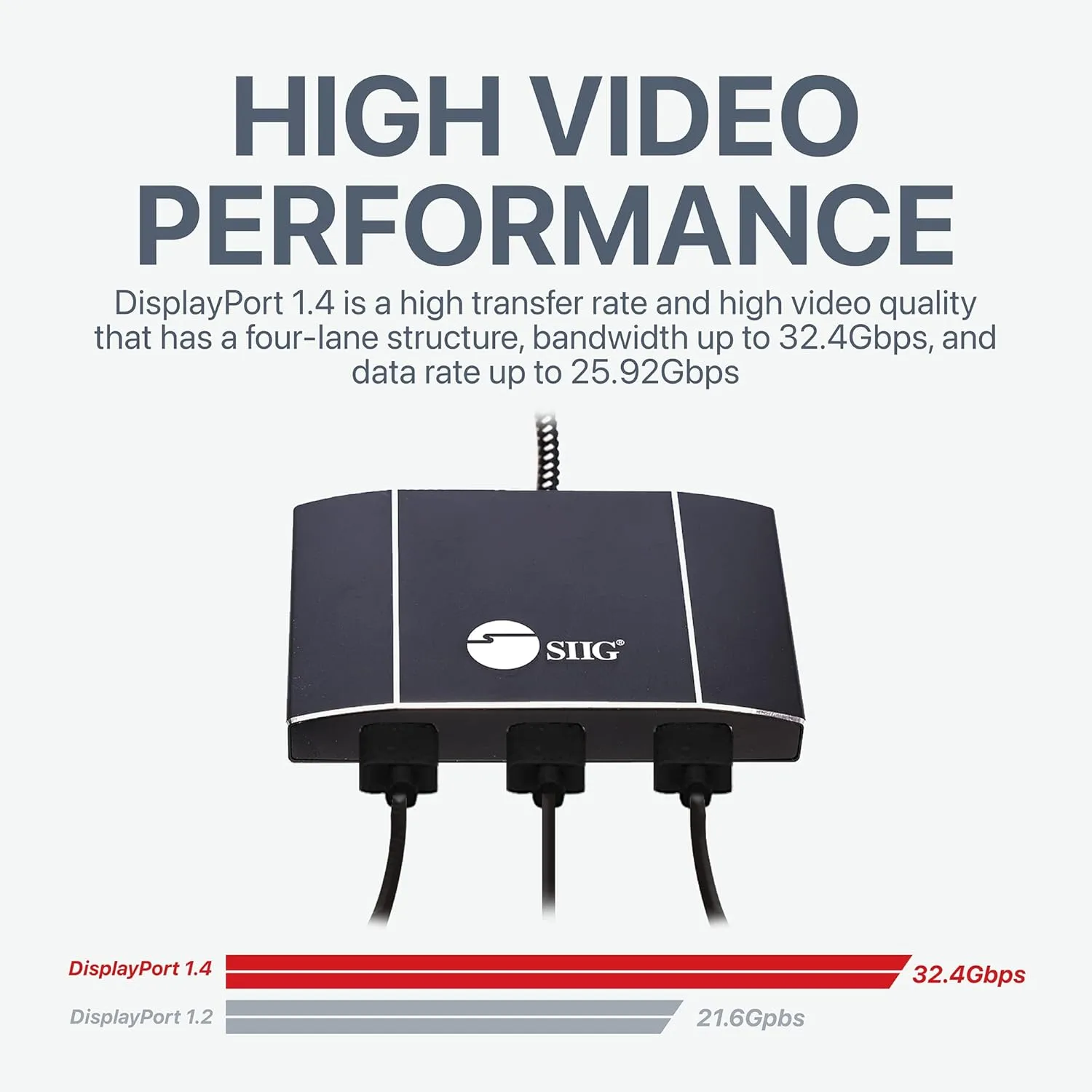

| Total Bandwidth | 32.4Gbps (max) |
