Blue Sea Systems BusBar Family (Common, Mini, Maxi) & Covers

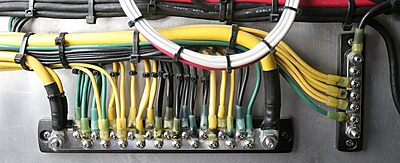

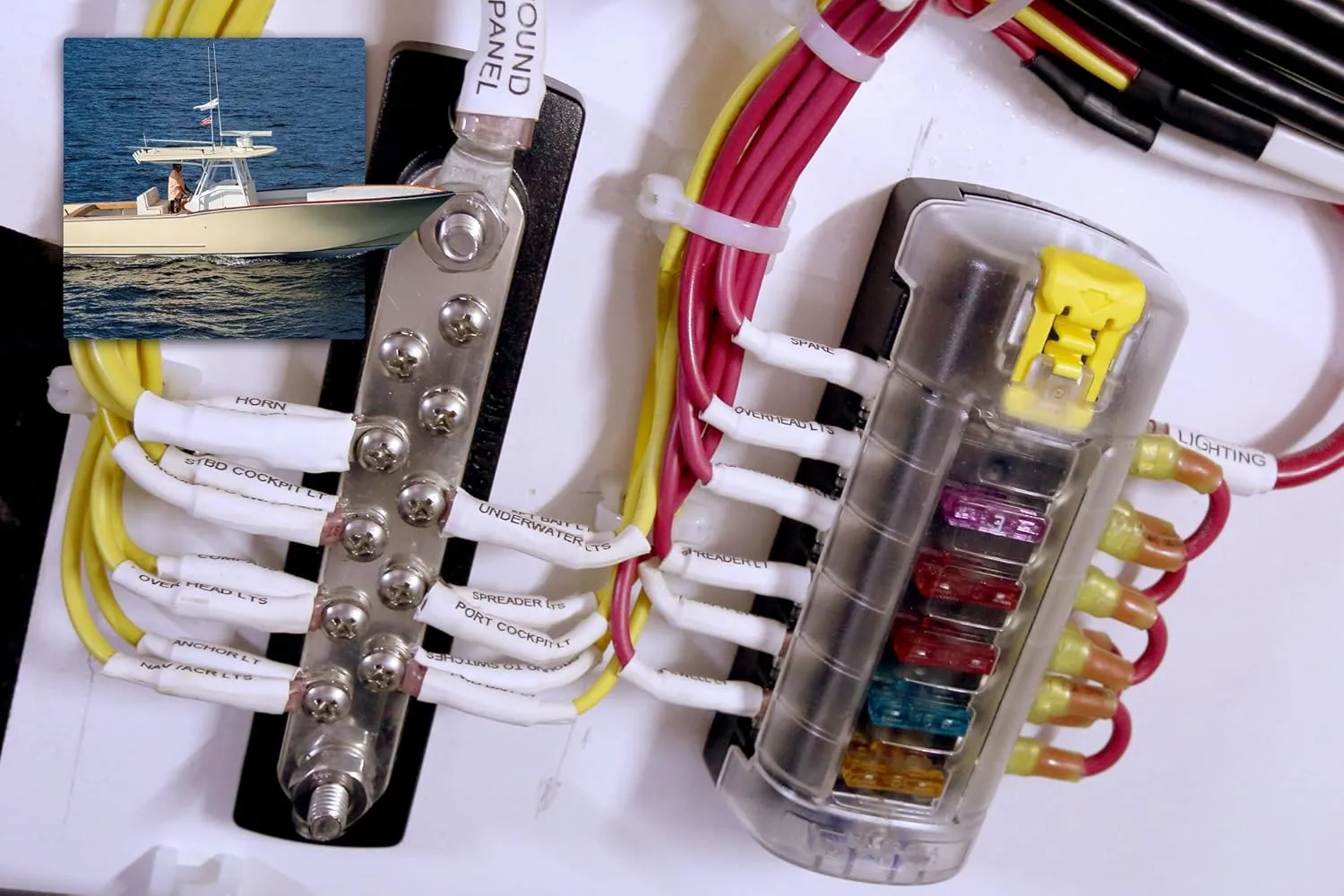

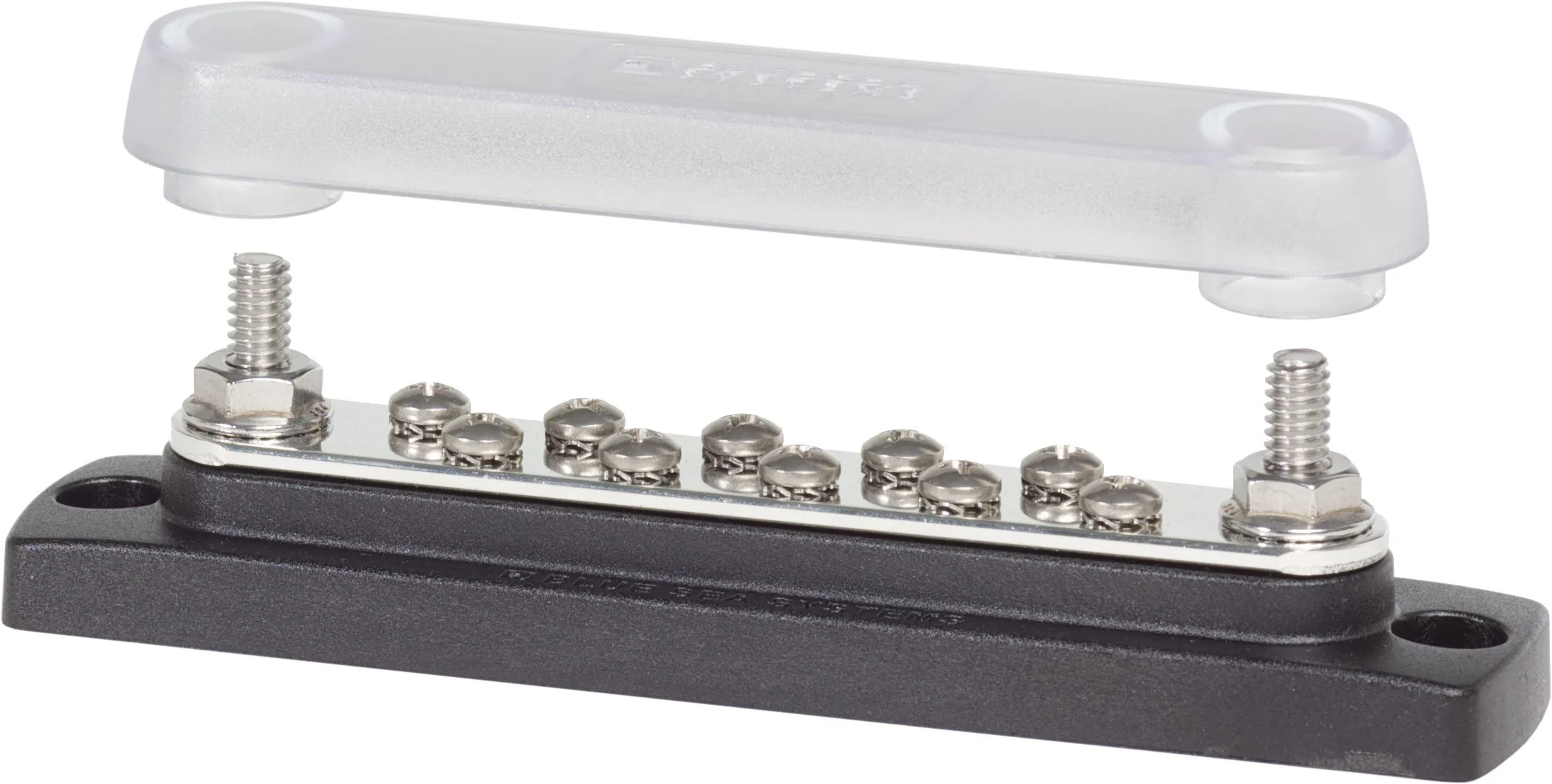

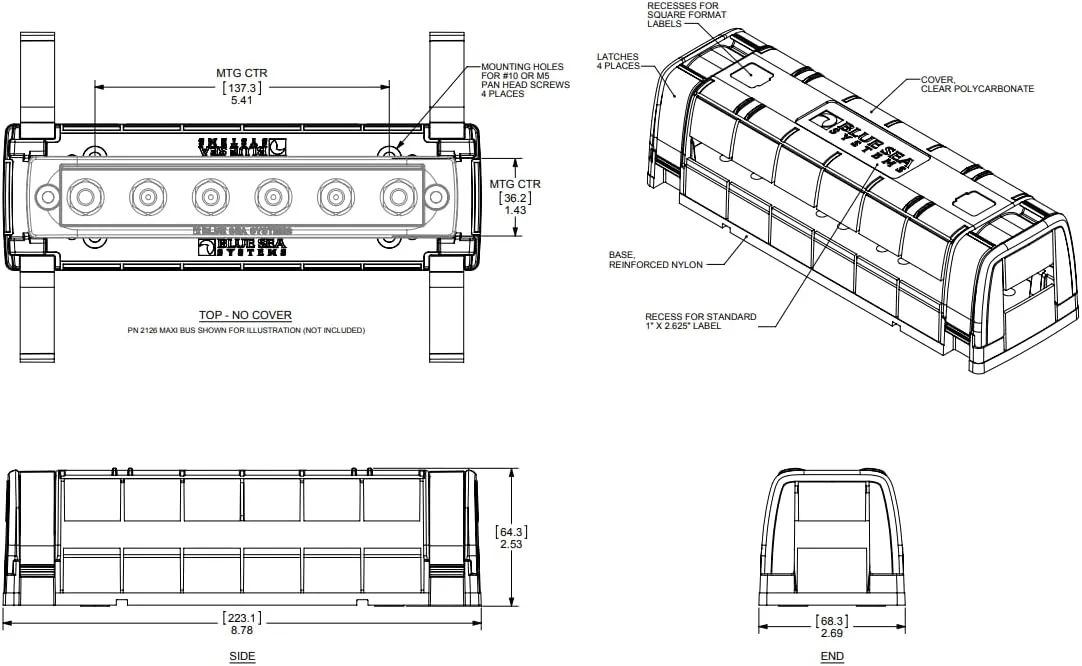

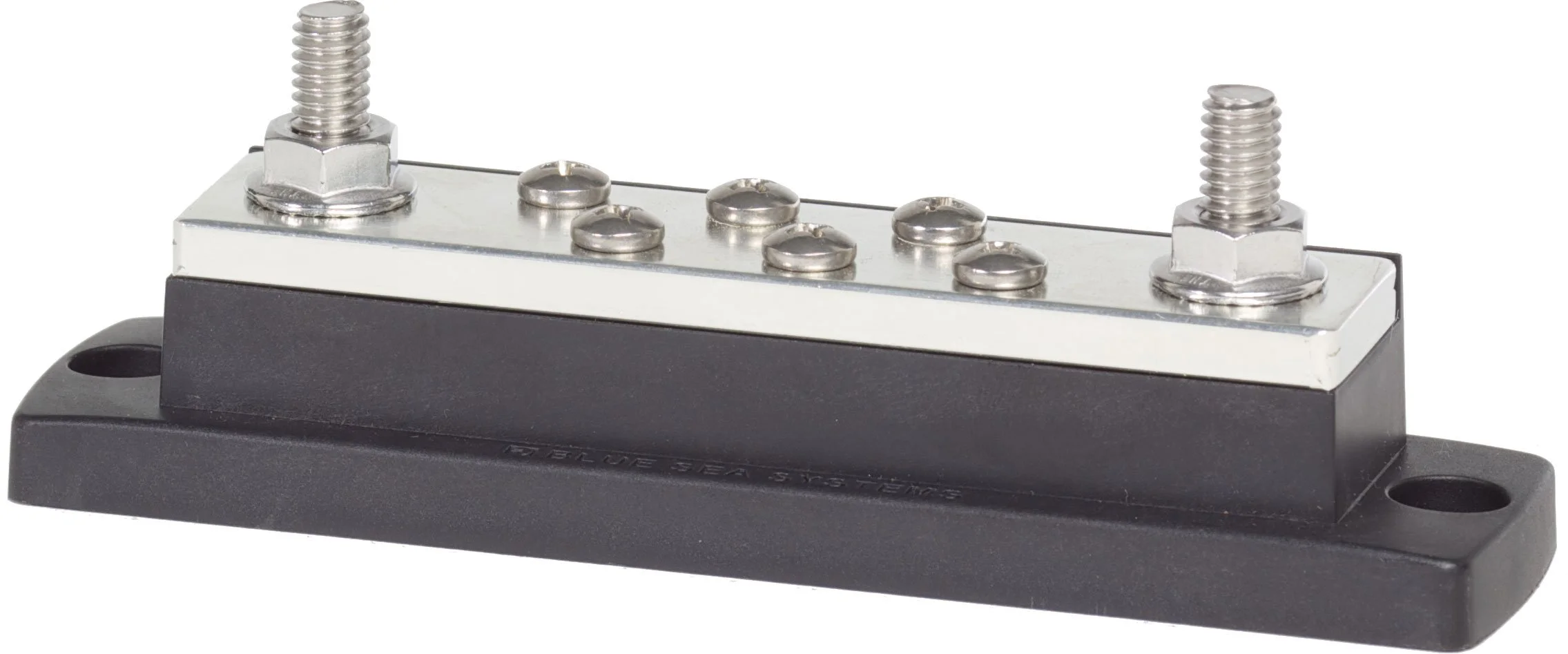

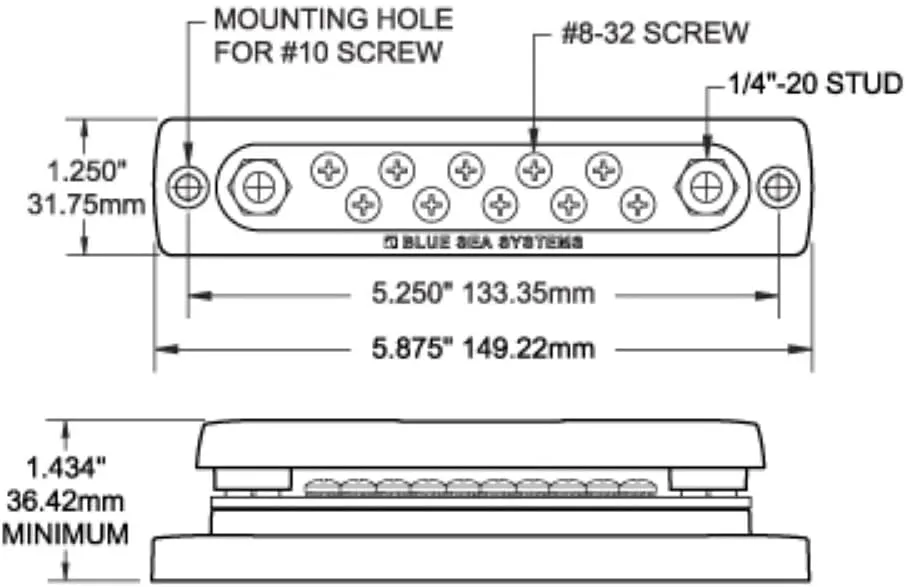

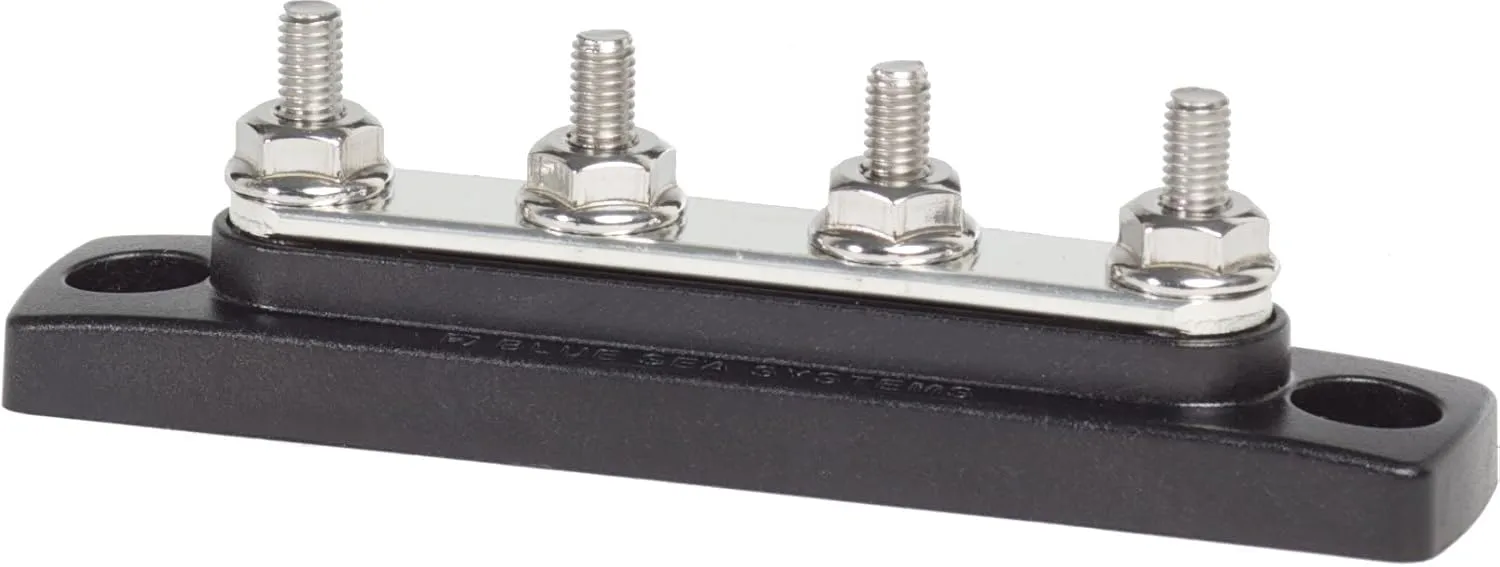

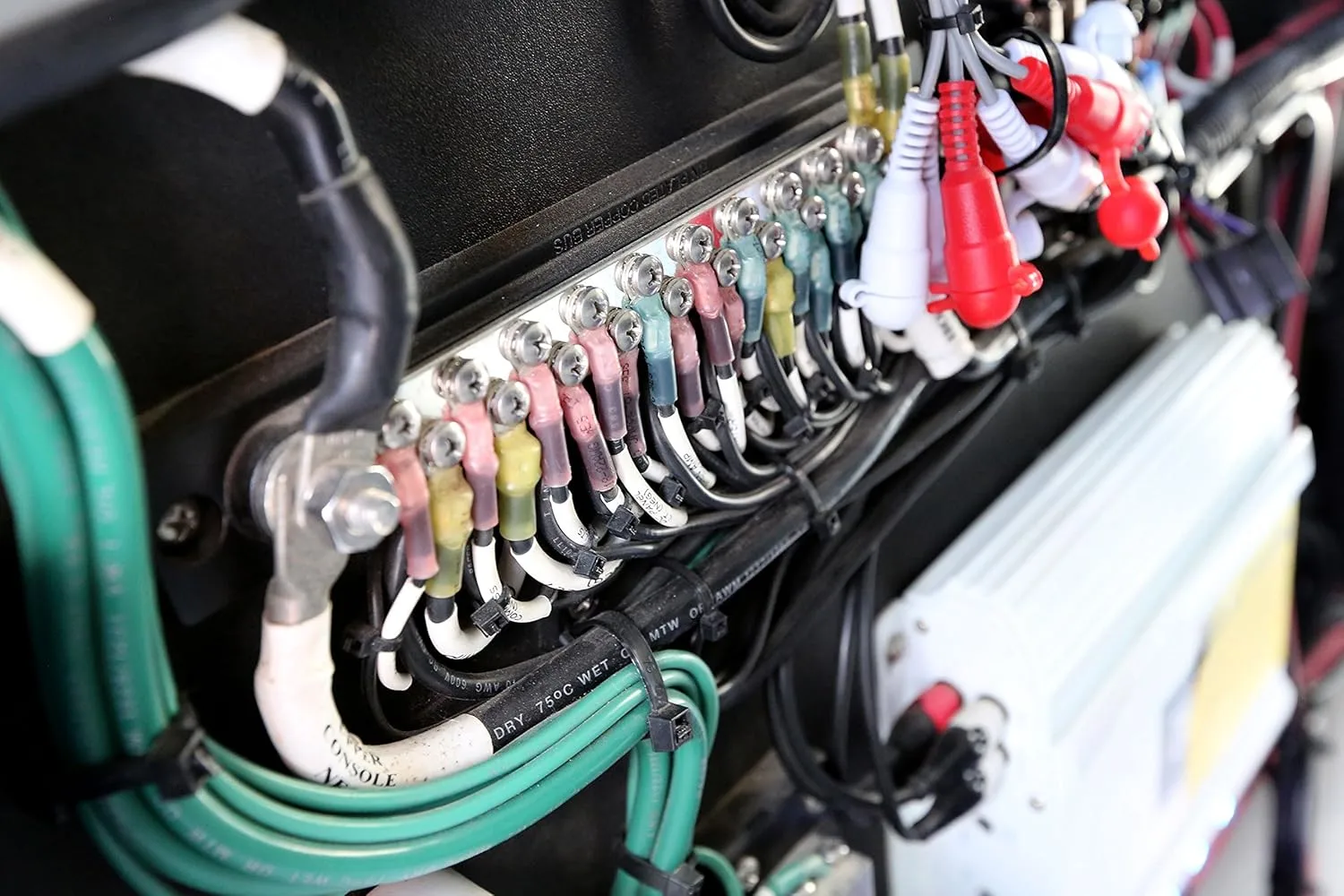

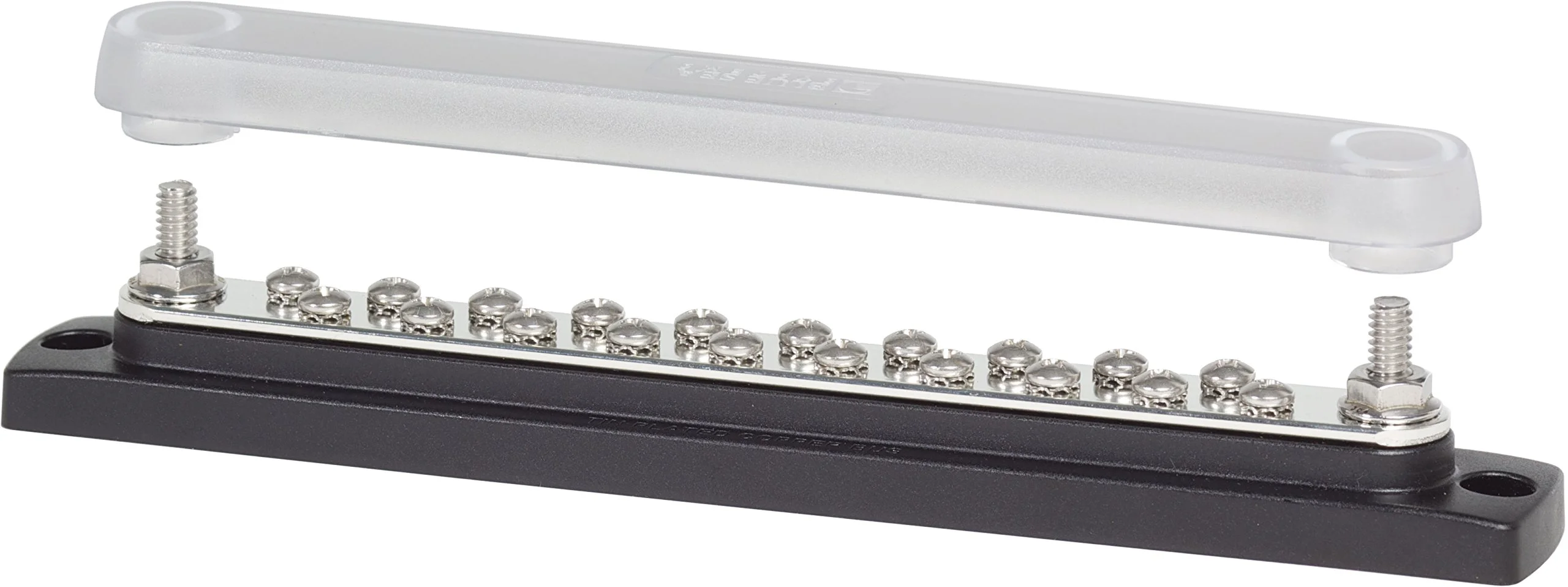

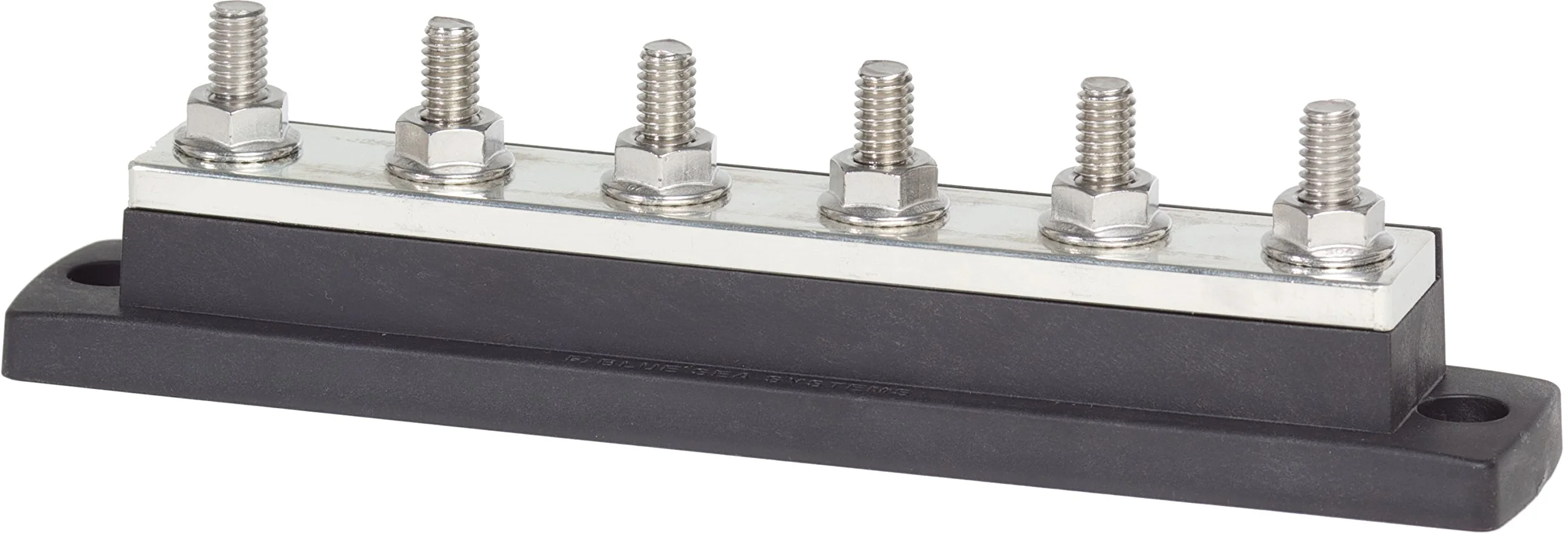

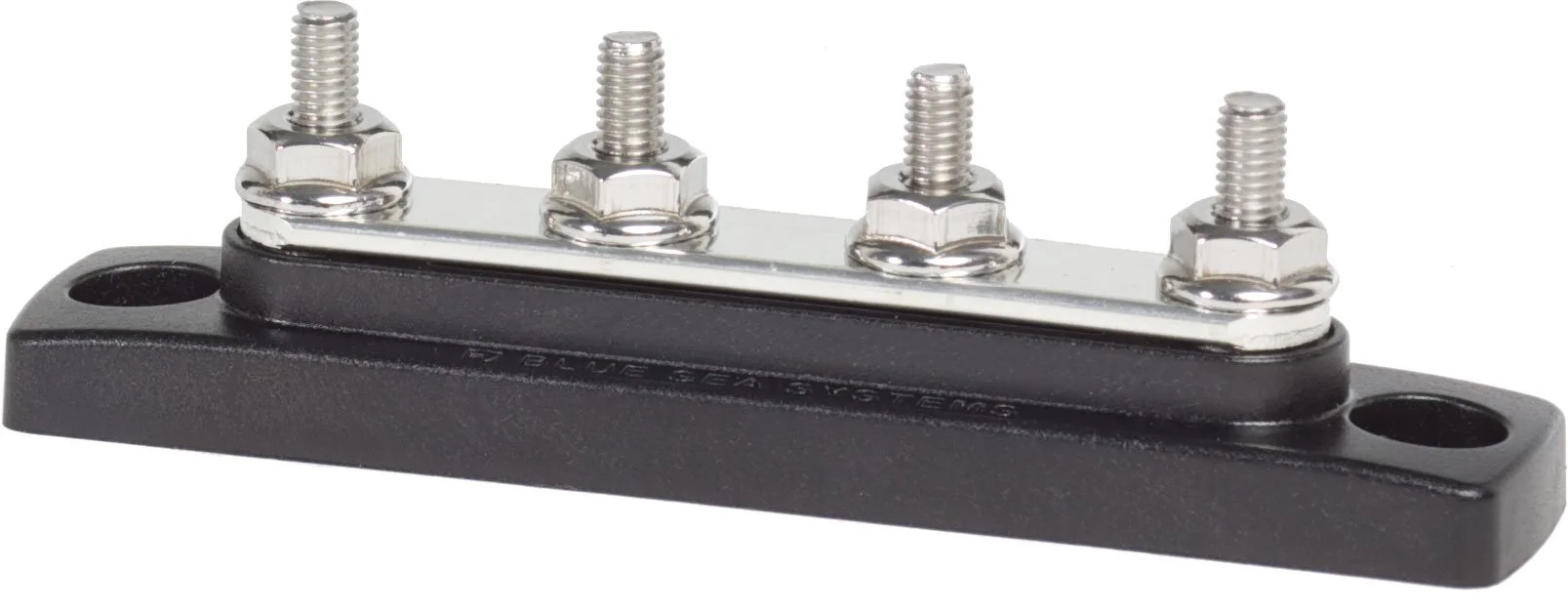

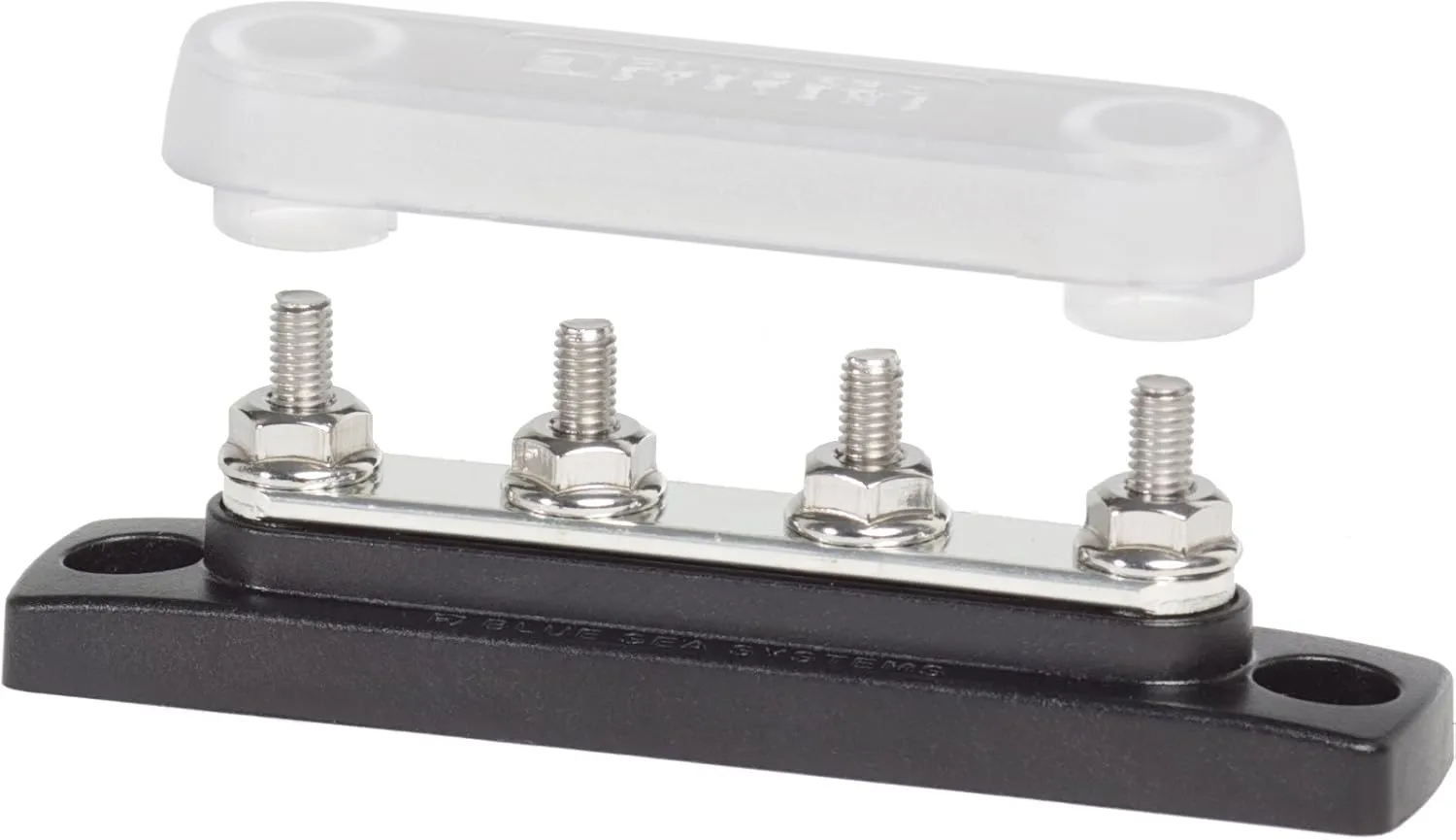

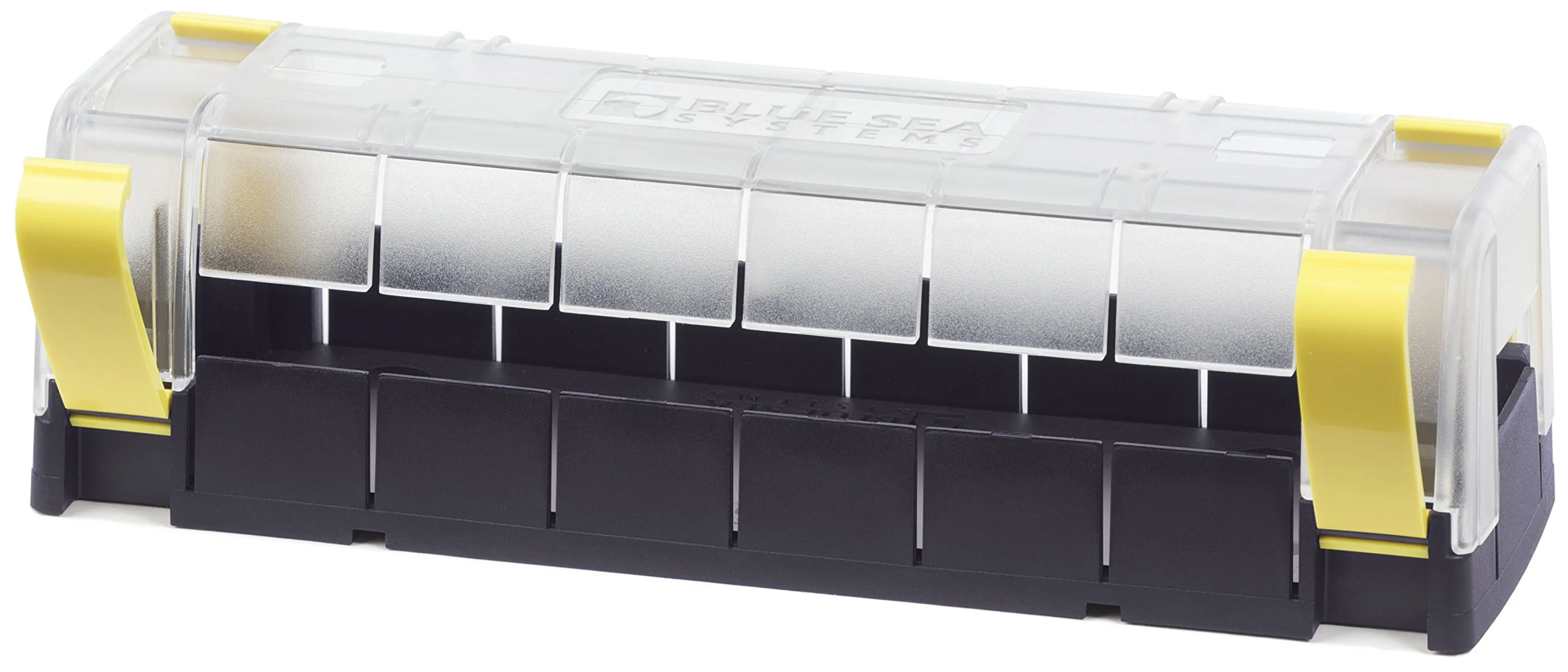

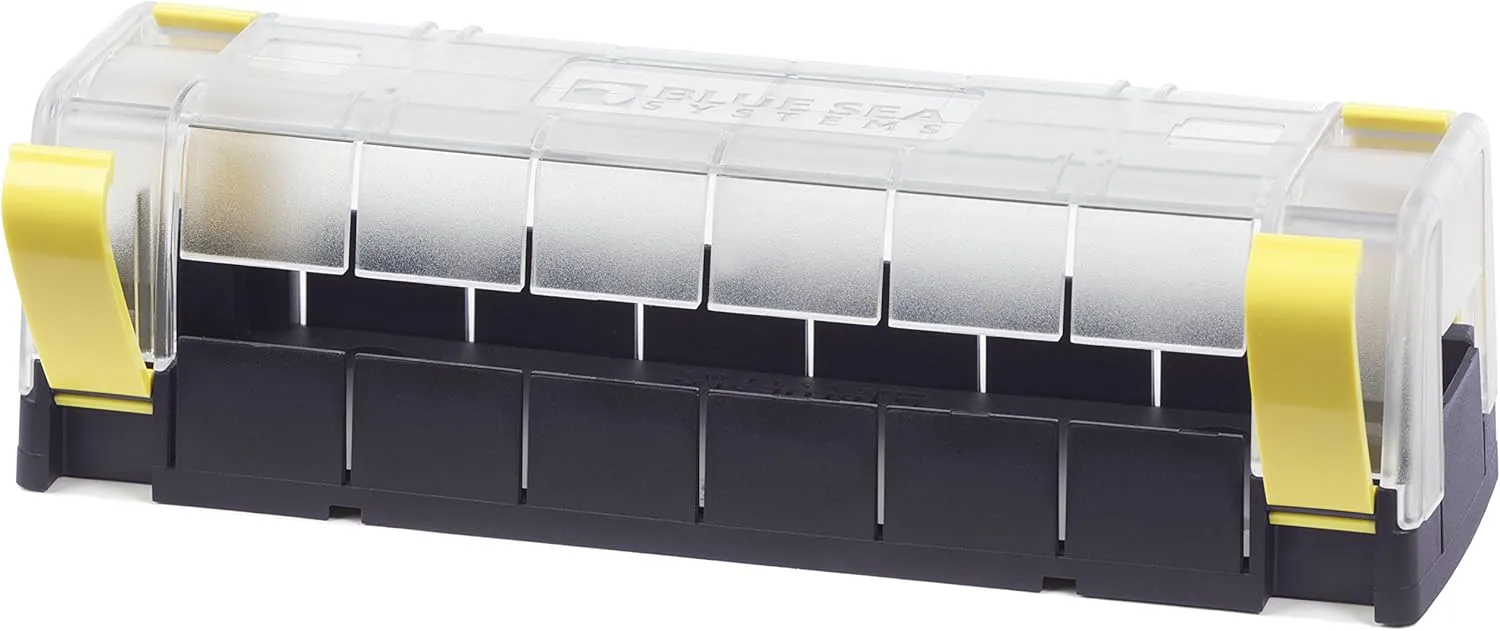

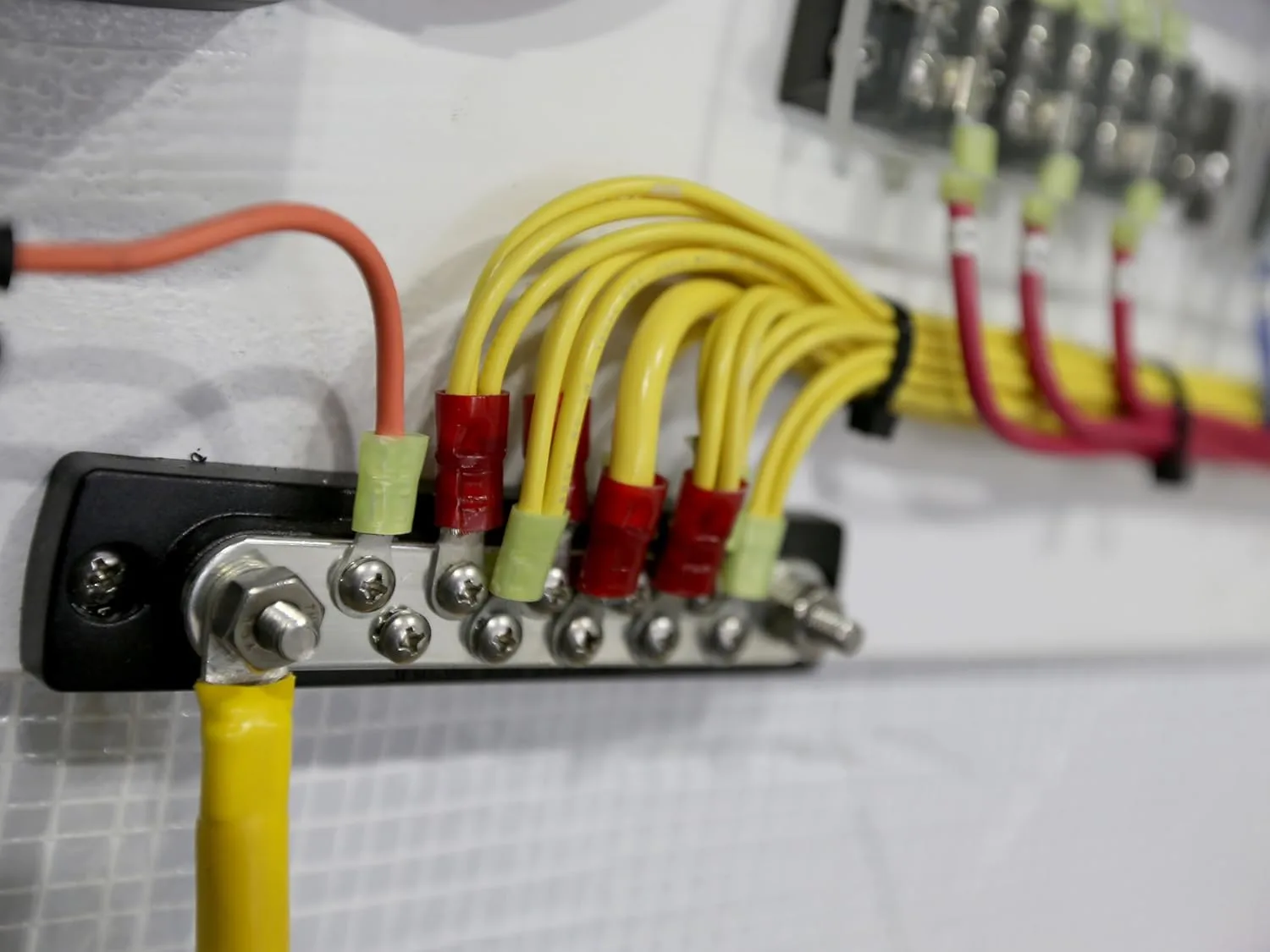

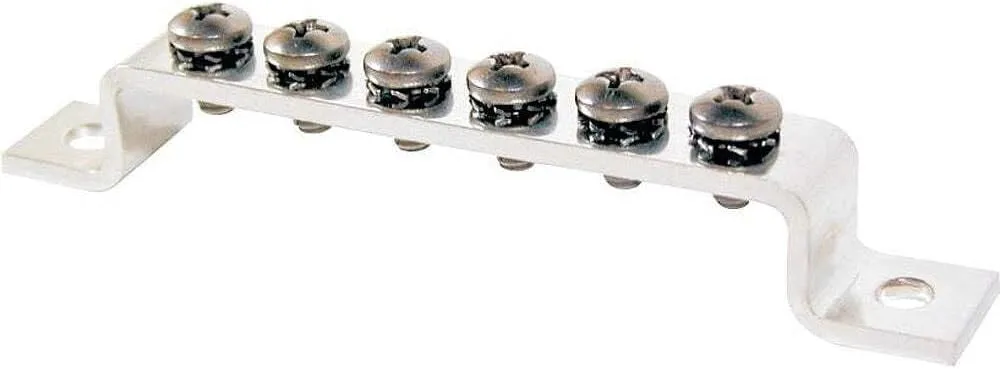

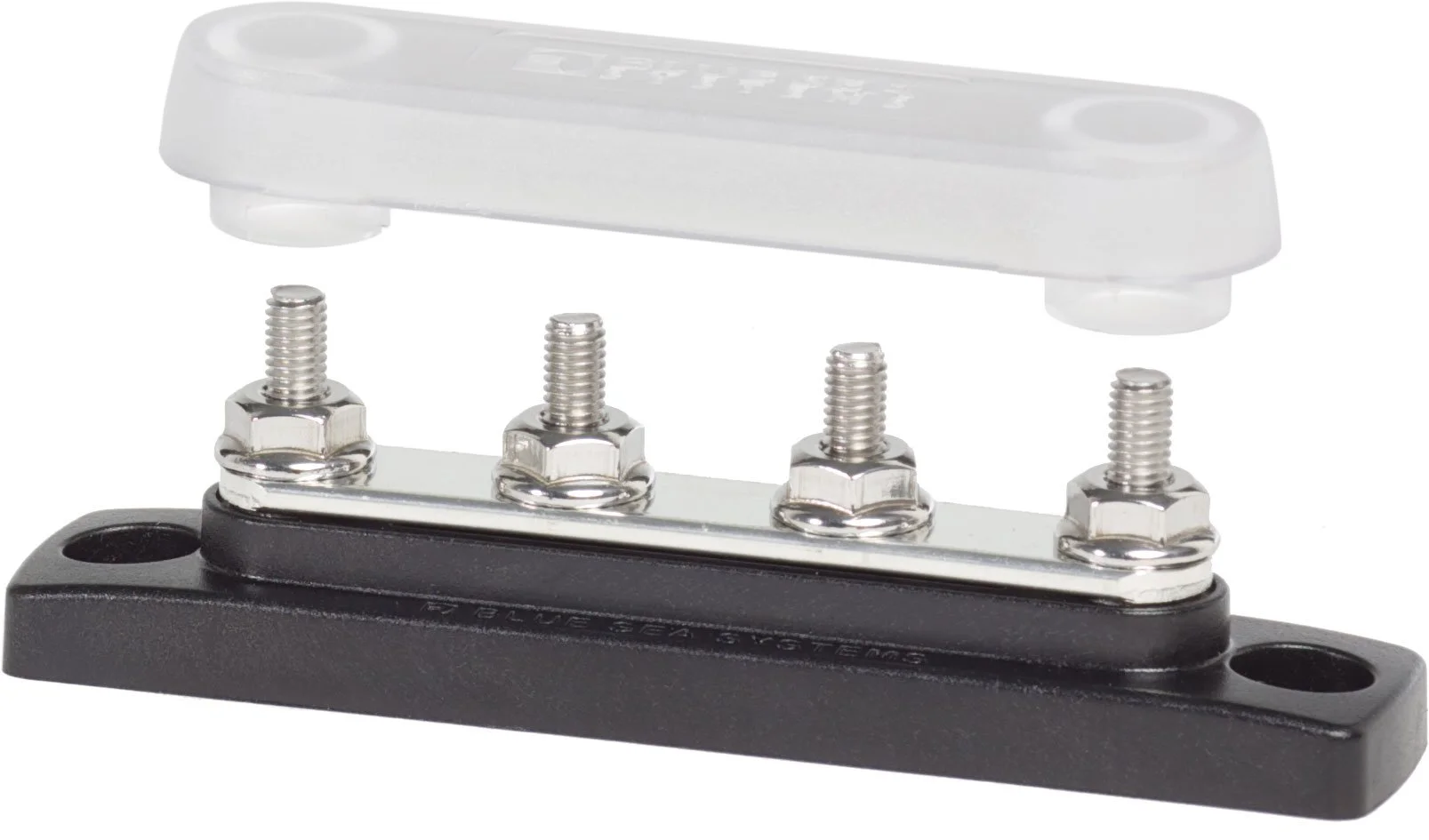

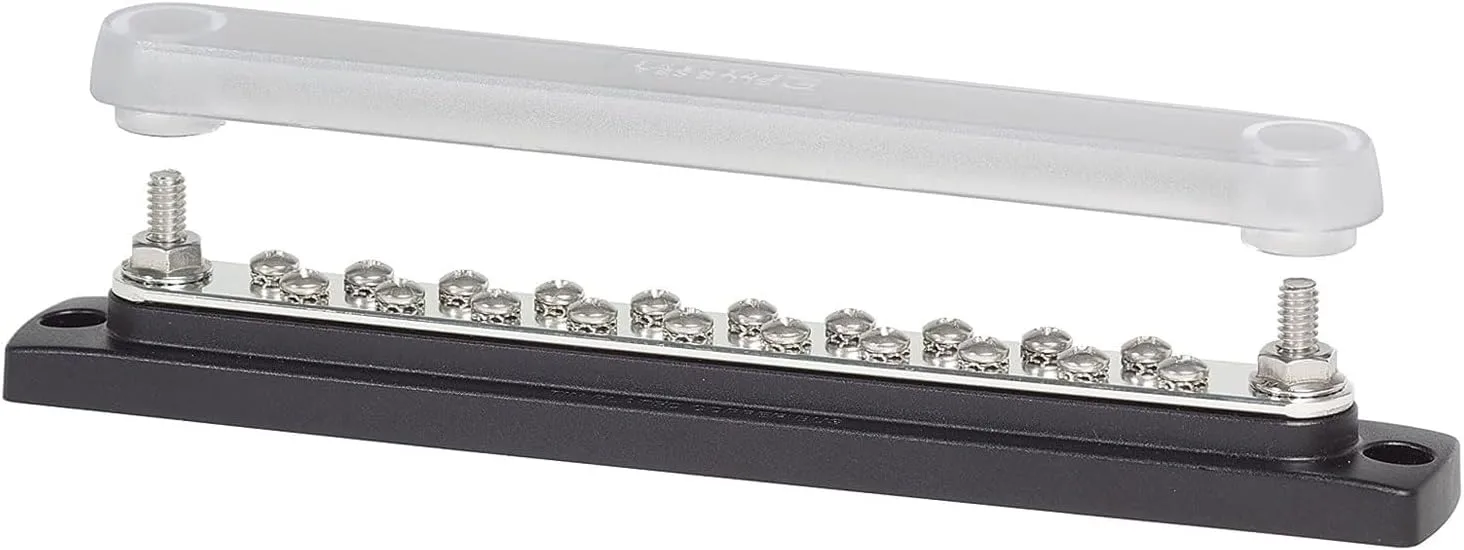

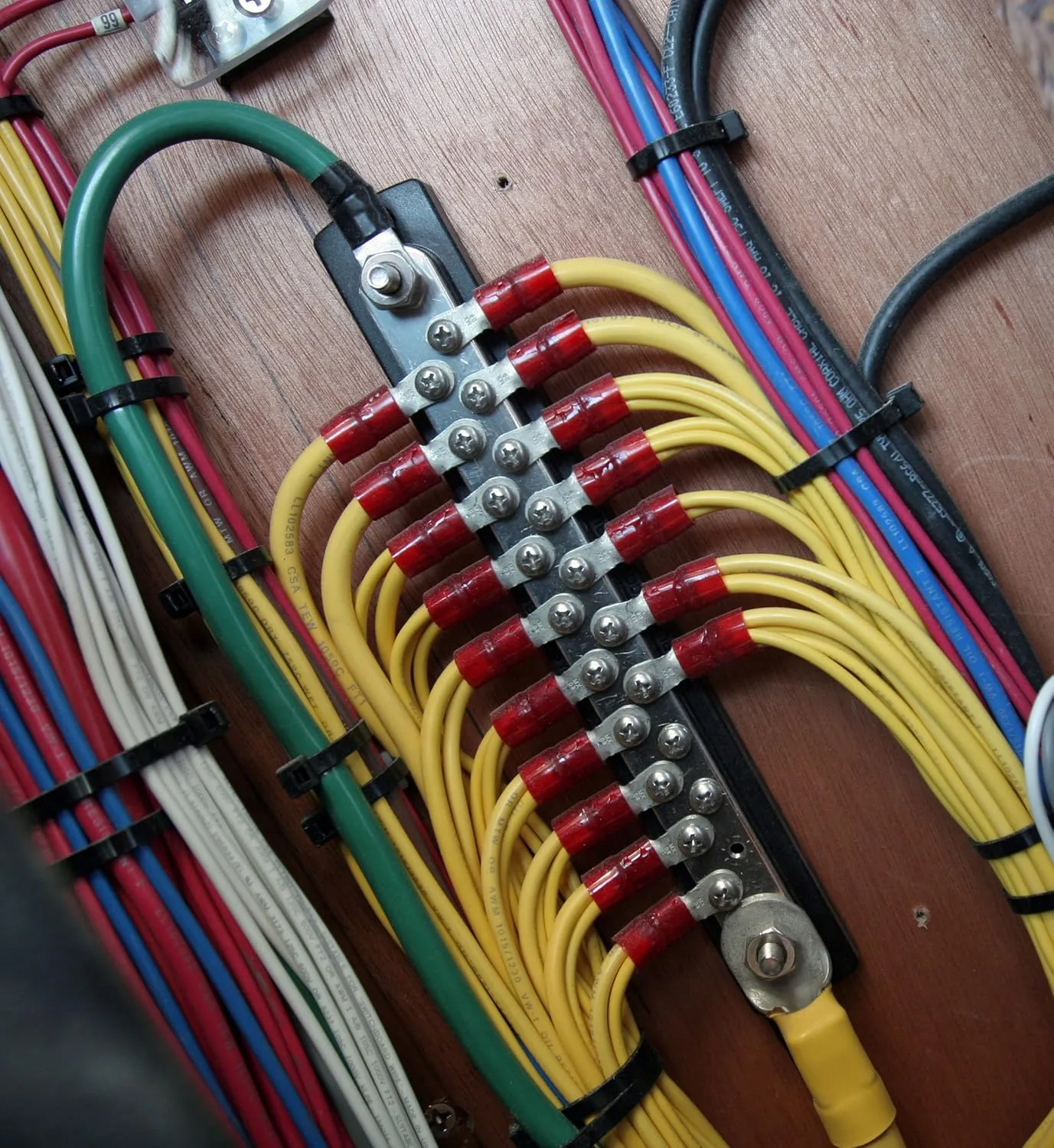

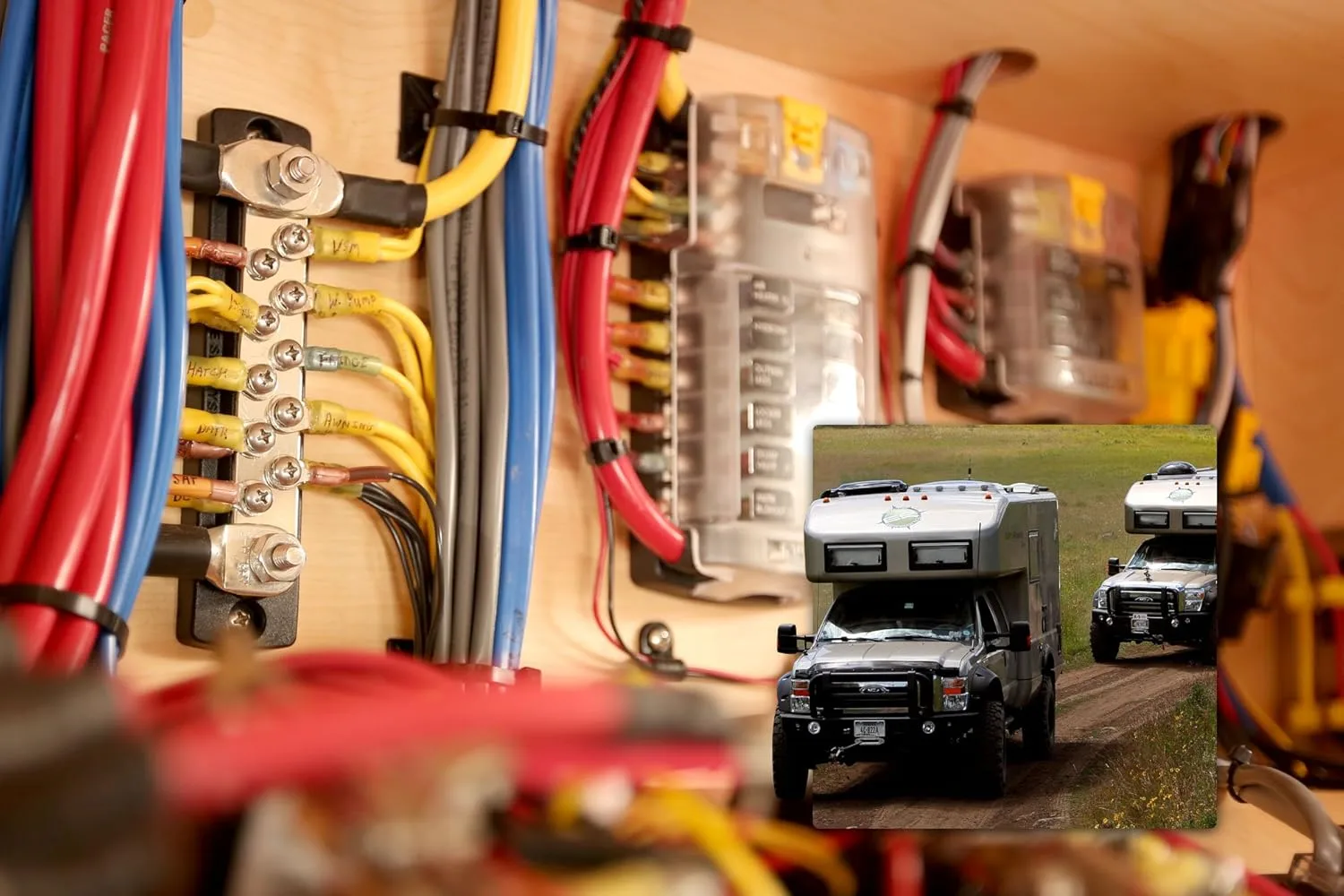

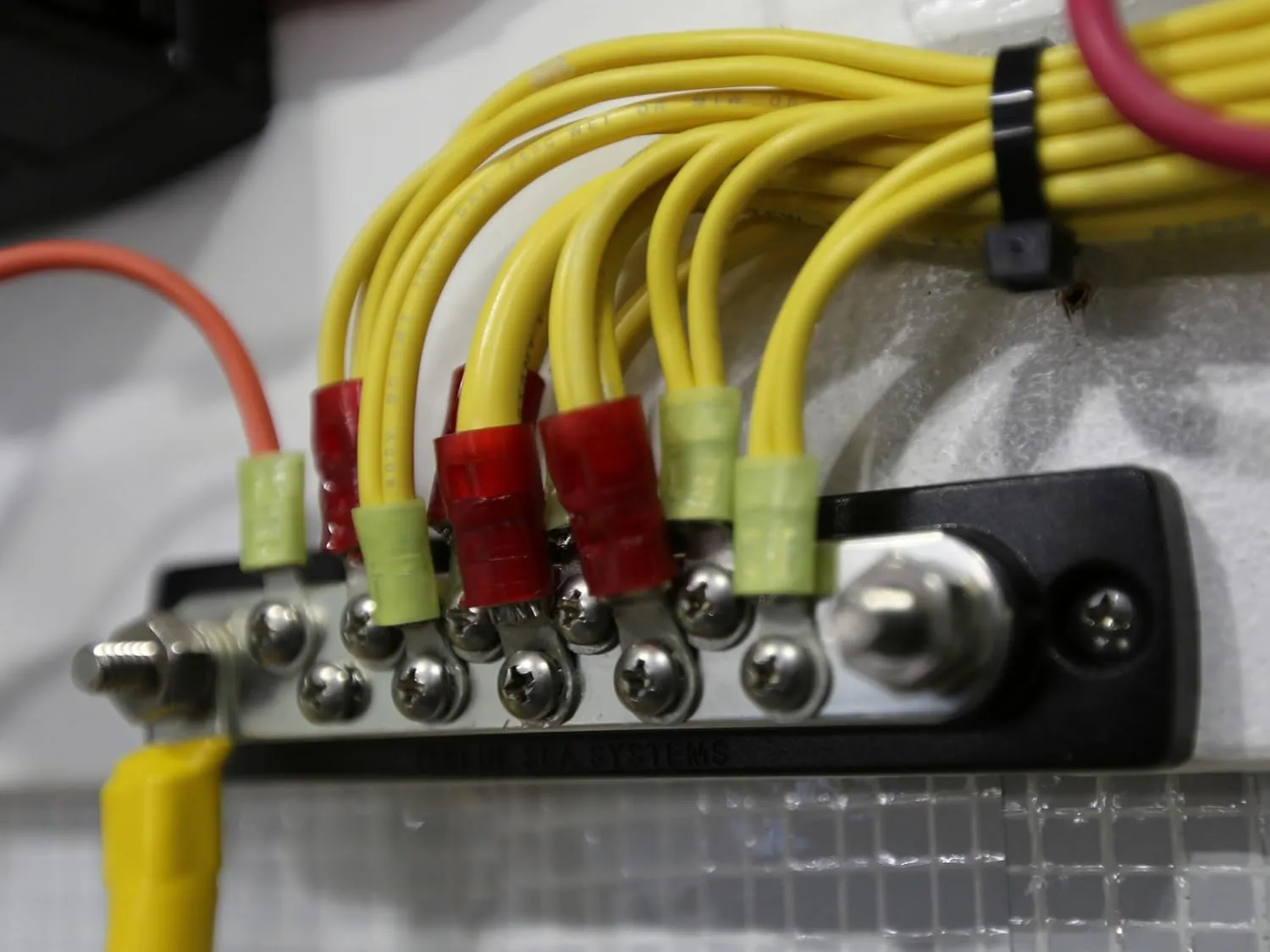

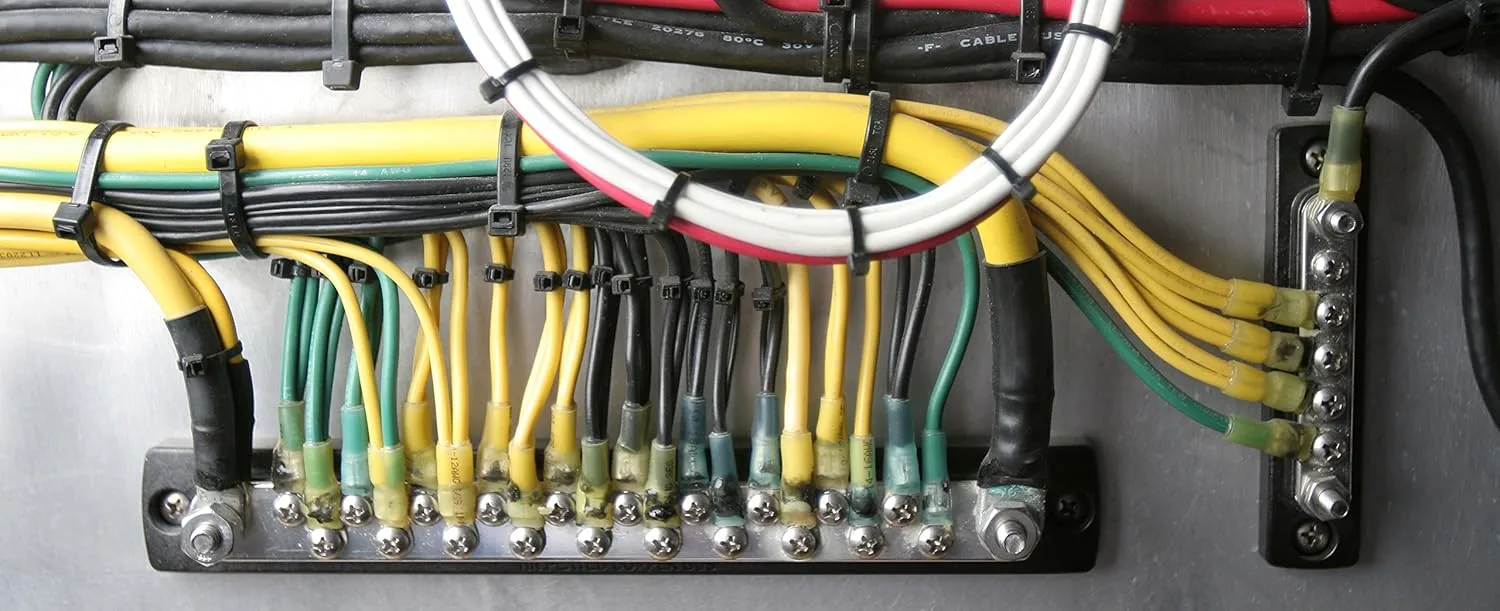

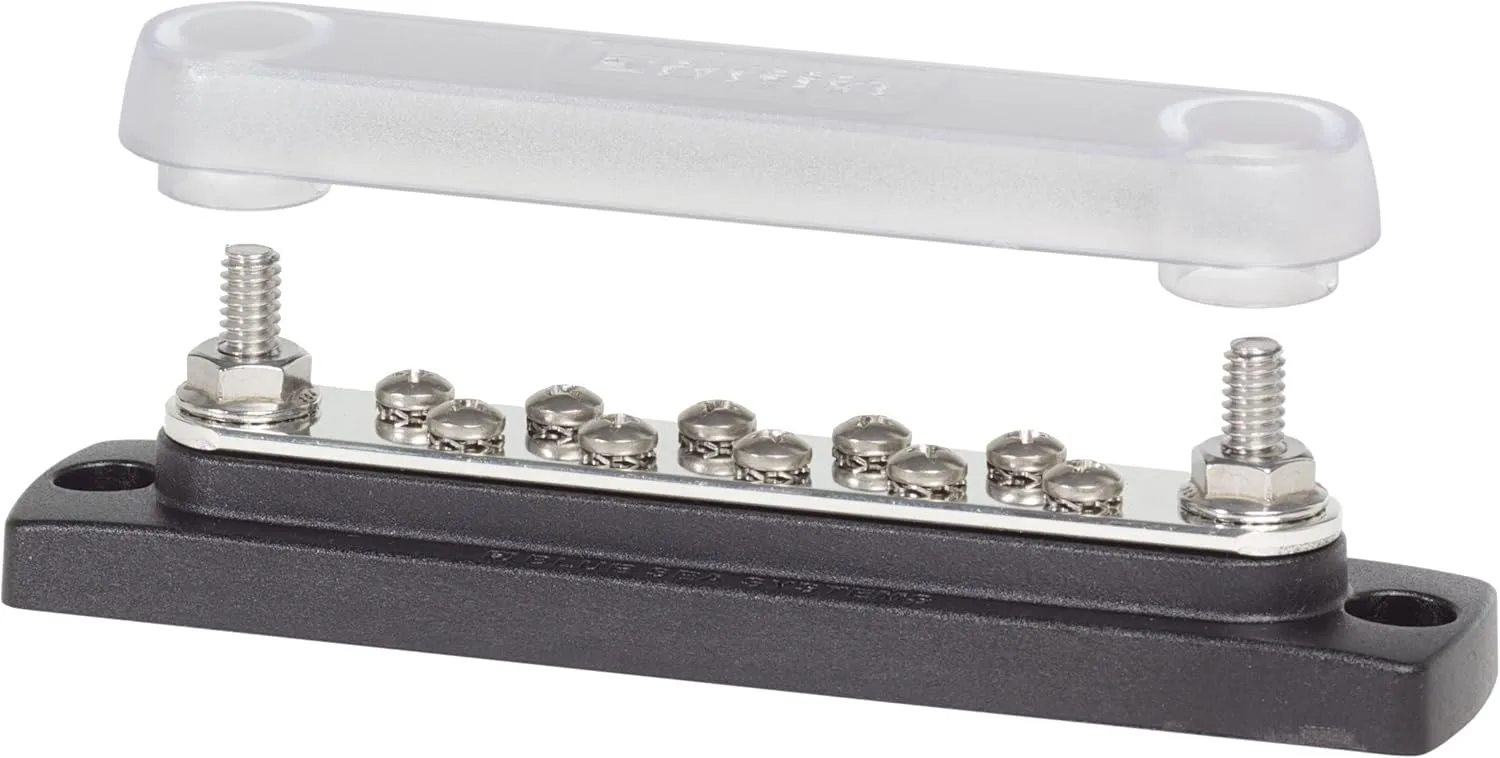

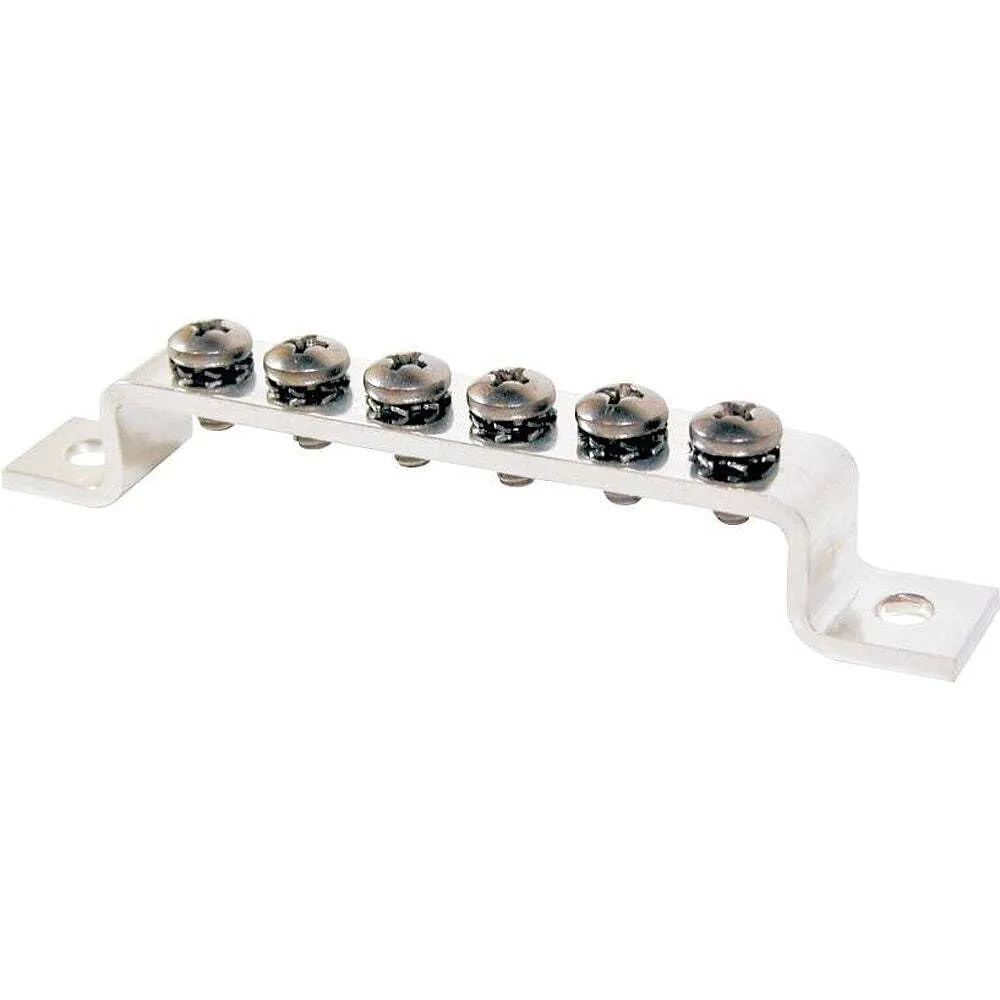

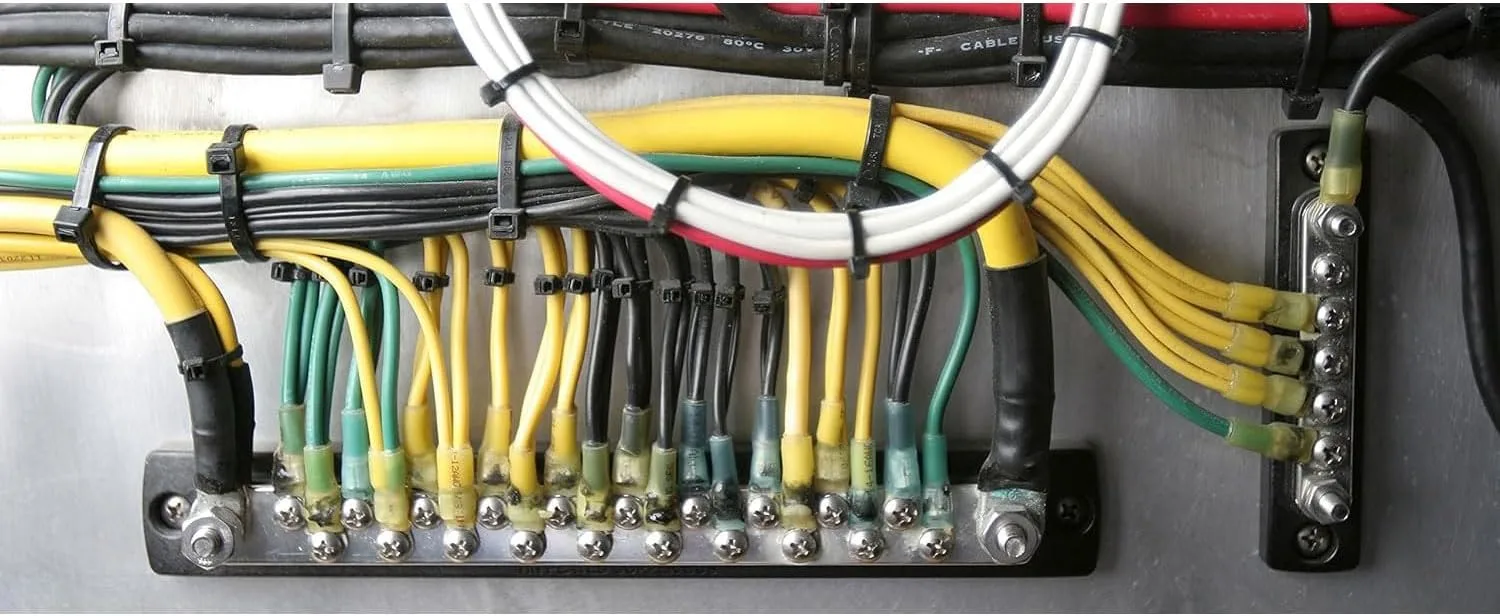

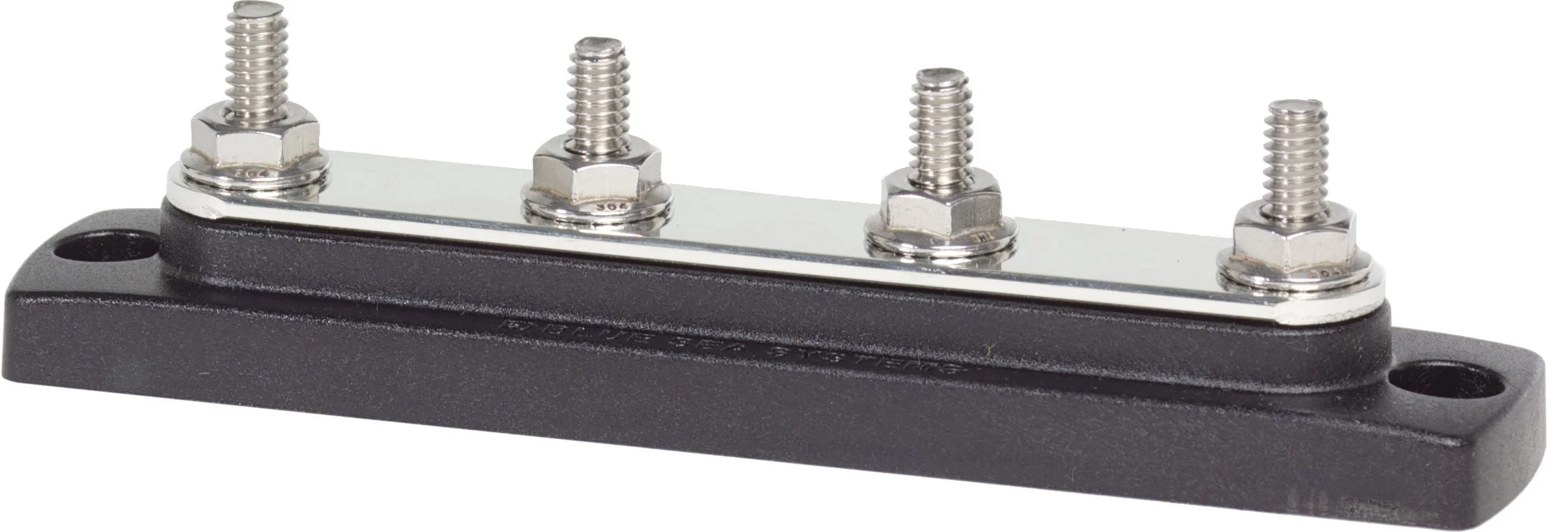

This Blue Sea Systems product family includes Common BusBars, MiniBus and MaxiBus designs plus compatible insulating covers. All busbars use tin-plated pure electrical copper (CDA 110/UNS11000) for maximum conductivity and corrosion resistance, and employ reinforced polycarbonate or glass-reinforced polycarbonate bases rated UL 94‑V0. Hardware across the family includes stainless steel studs and screws for high torque and reliable electrical contact; terminal choices include multiple screw terminal counts and stud sizes (#8-32, #10-24 screws; 1/4"-20, 5/16"-18, #10-32 studs as shown in variants). Design features such as raised bus access, recessed mounting holes to reduce accidental shorts, captive/star lock washers and pressed-on bus elements simplify installation and reduce small parts. Clear polycarbonate, ABS or reinforced nylon insulating covers are available for many models and include press-on attachment or mounting holes; select covers meet ABYC insulation requirements and accommodate related breakers/shunts. Common uses include vehicle, marine and limited-space electrical panels, audio or industrial distribution where organized, low-resistance connections are required. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

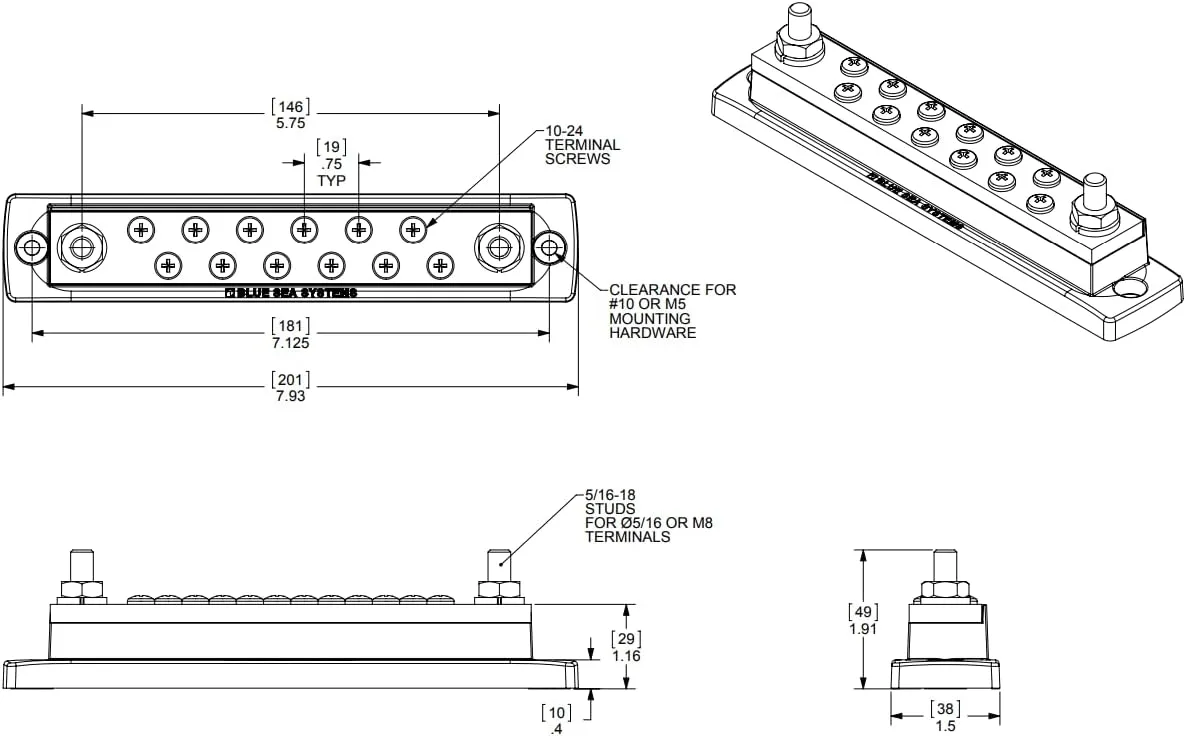

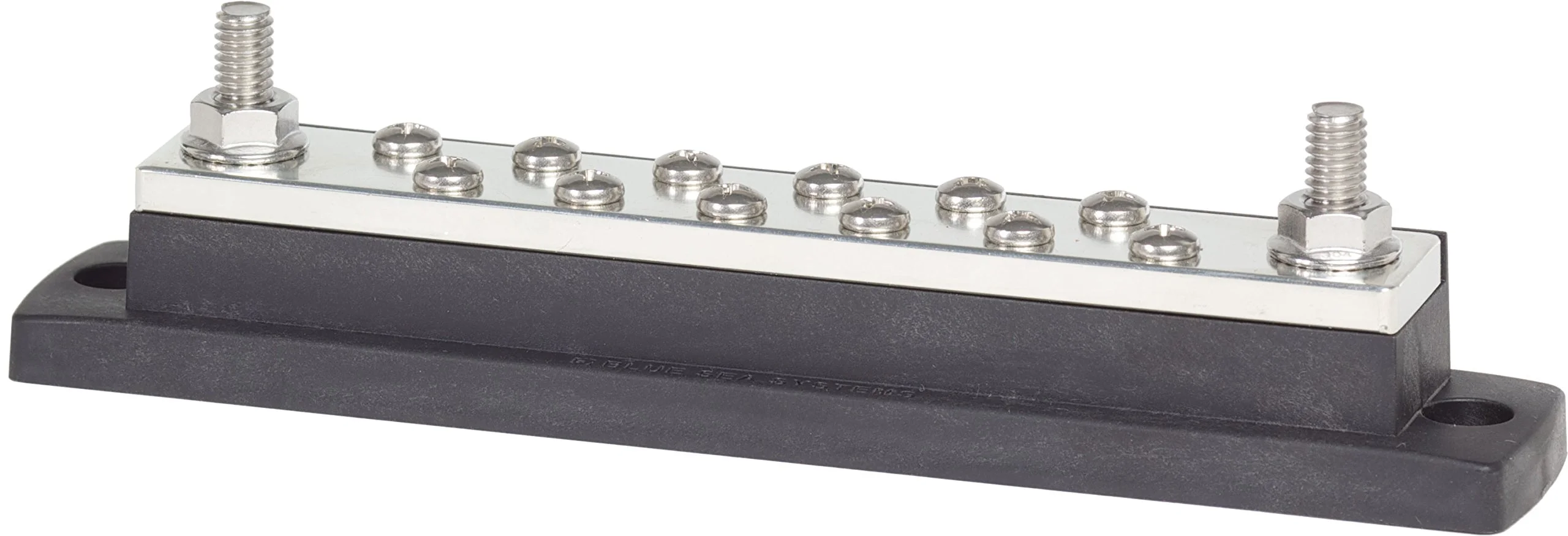

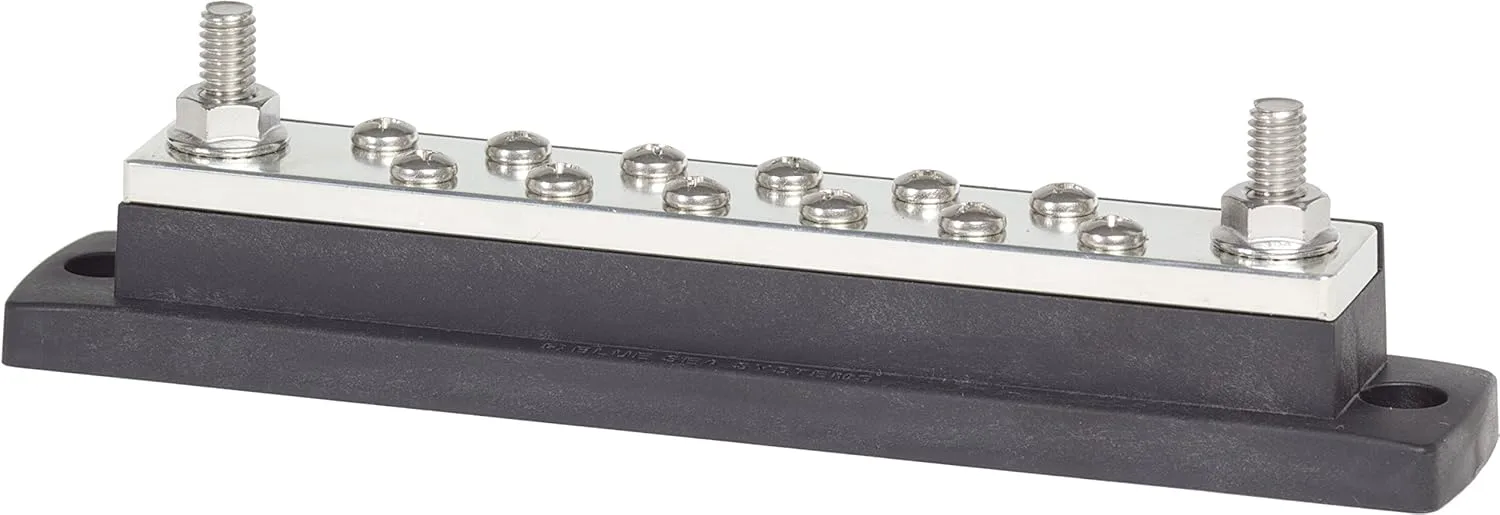

• 250A MaxiBus BusBar with 12 screws (part number 2105)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC
• Terminal Screws: 12 x #10-24, Terminal Studs: 2 x 5/16"-18
• UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws
