Victron Energy BMV-700 Series Battery Monitor with Shunt & Display
Customize

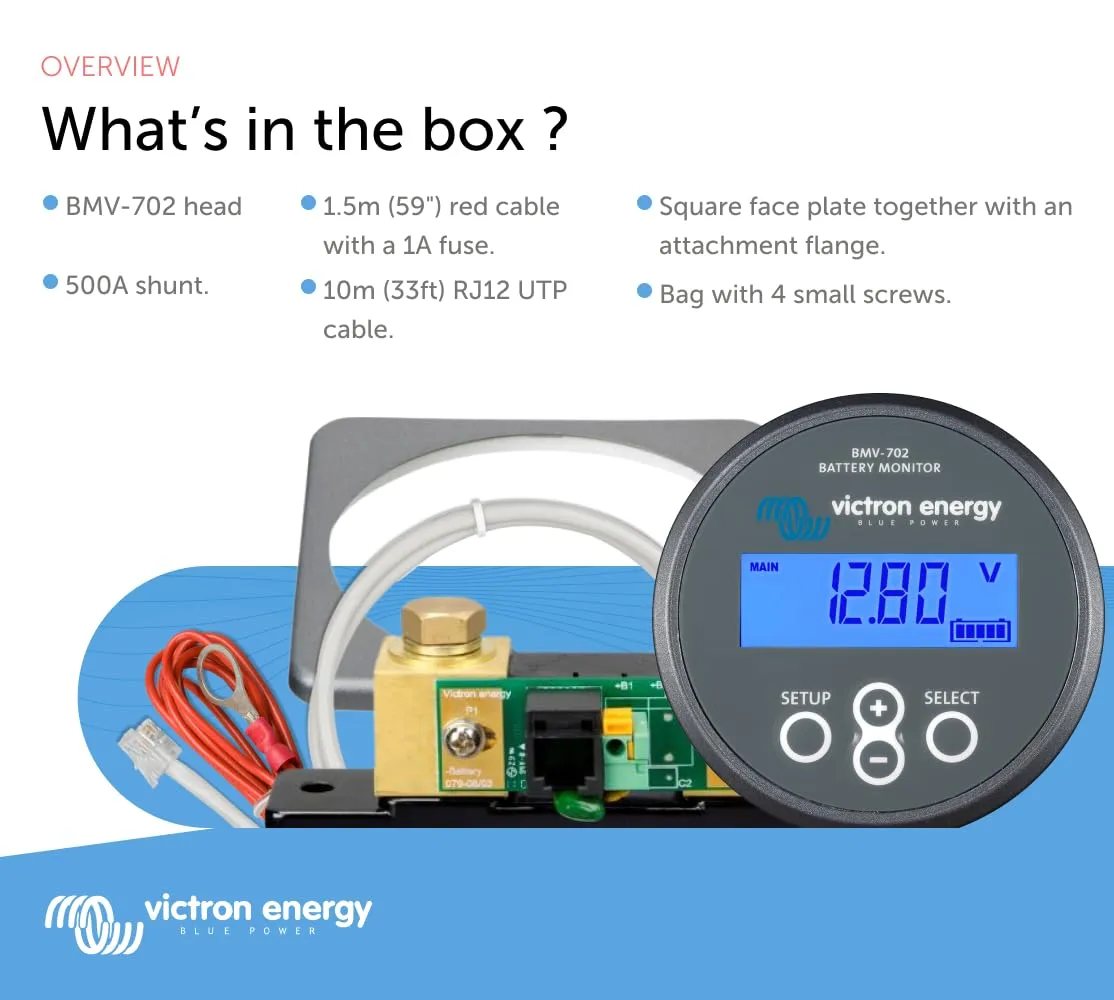

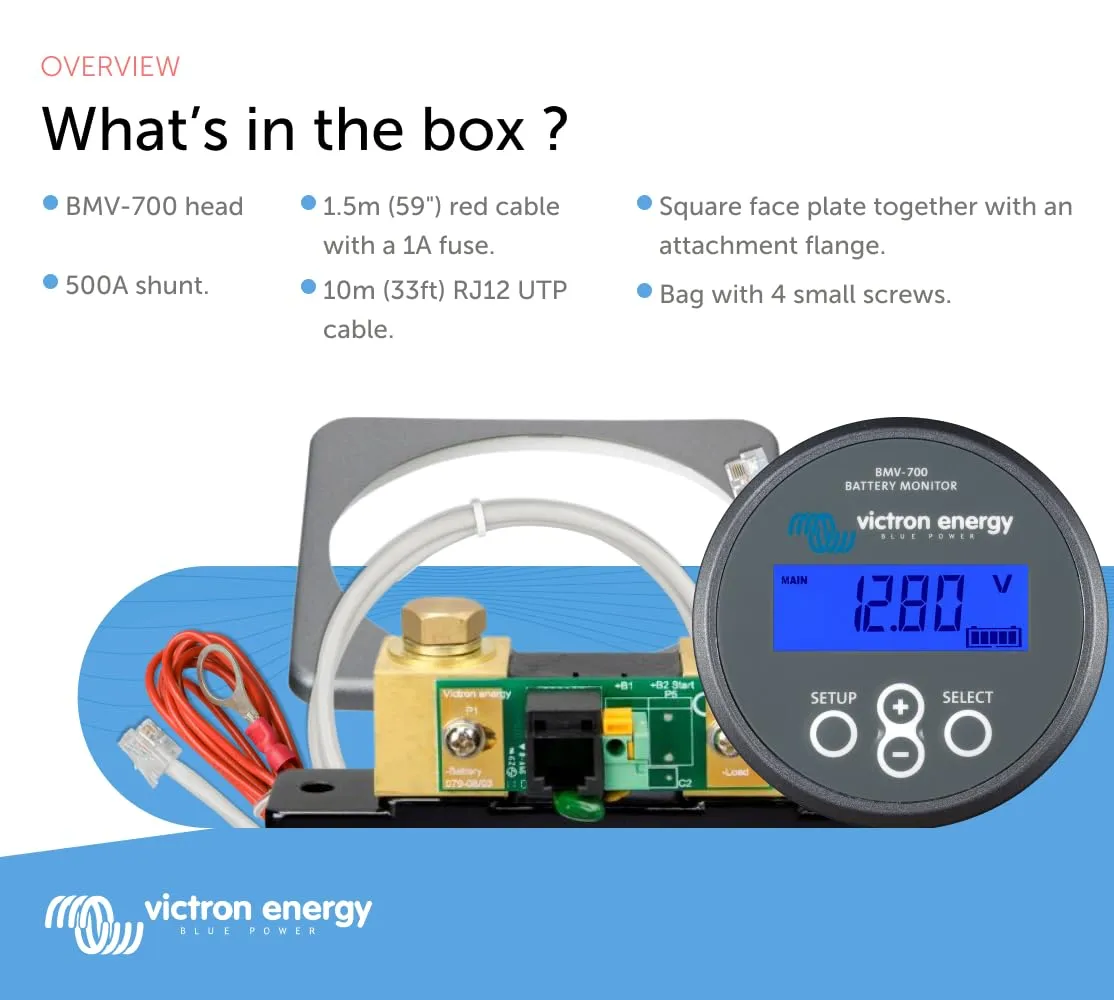

The Victron Energy BMV-700 series is a family of high-precision battery monitors for 6.5–95 VDC systems. Designed to calculate ampere-hours consumed and display state of charge, the series reports battery voltage, current, power (W), ampere-hours and remaining time at the current discharge rate. Standard inclusions across the series are a 500 A quick-connect shunt and connection kit, RJ12 shunt connection, programmable visual and audible alarms, a programmable relay for load or generator control, VE.Direct communication and the ability to store a wide range of historical events for usage and battery health evaluation. The monitors offer shunt selection capability up to 10,000 A, high current measurement resolution (10 mA) and low current consumption, and they are compatible with VictronConnect (Bluetooth/VE.Direct dongle options referenced).
- Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation. Because of the high voltage application, the shunt is housed in a special enclosure

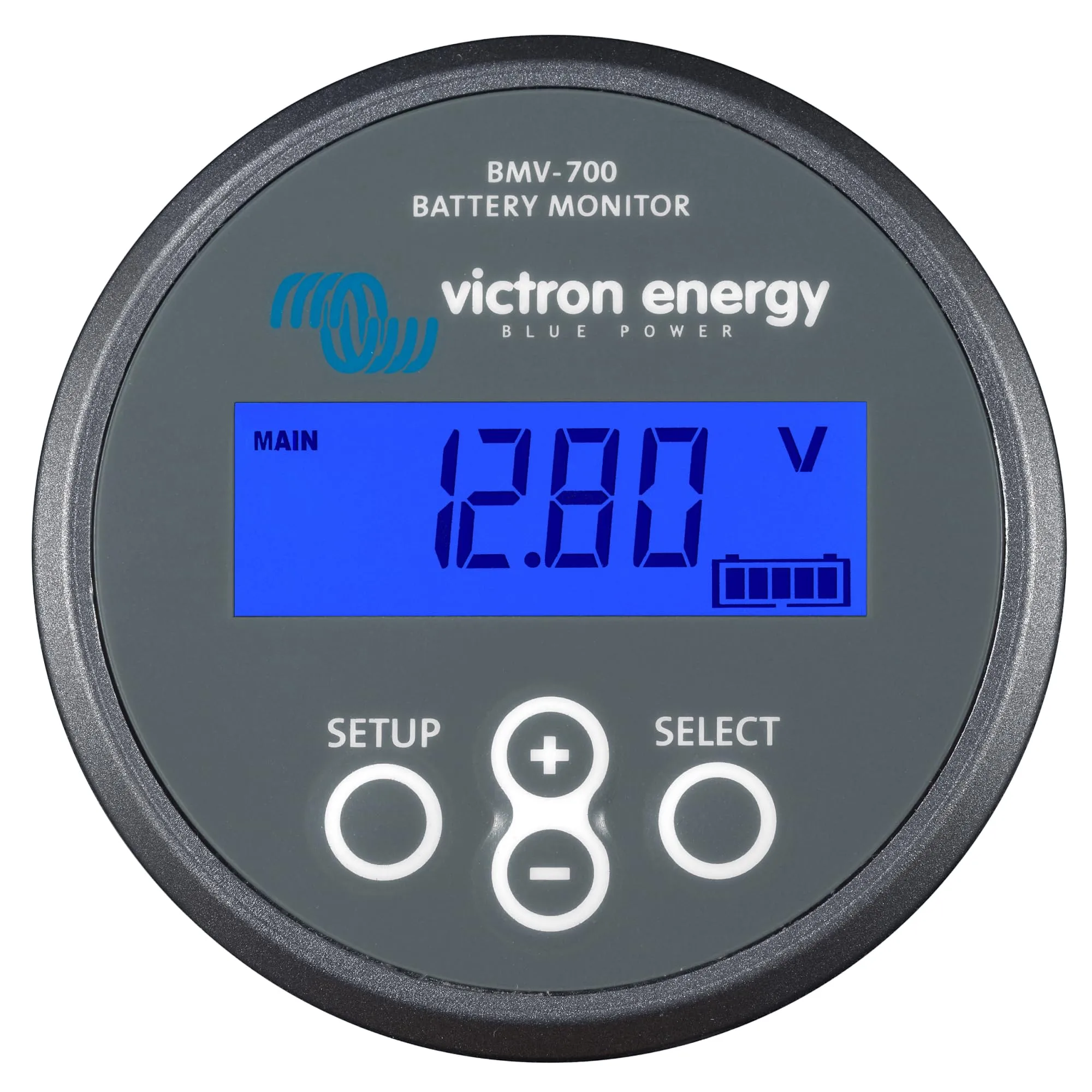

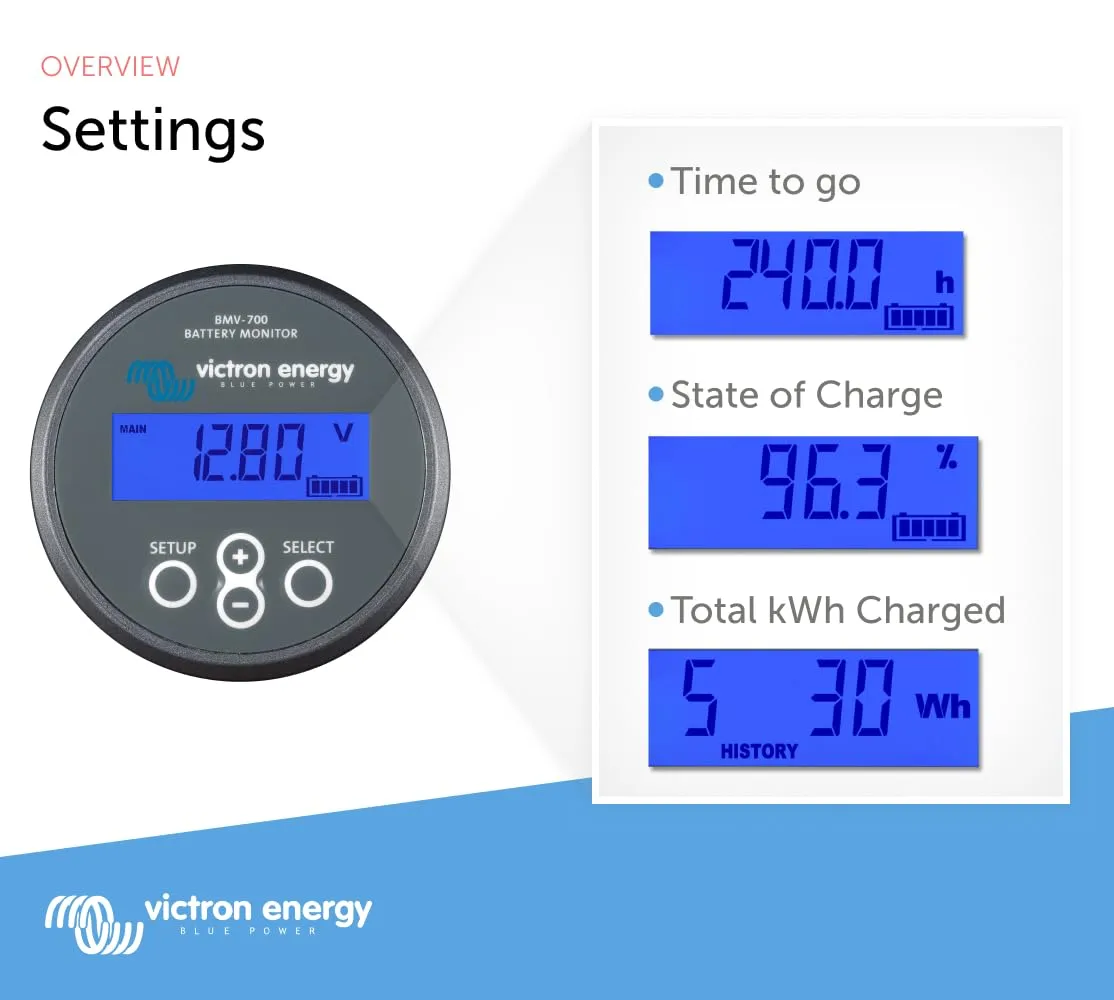

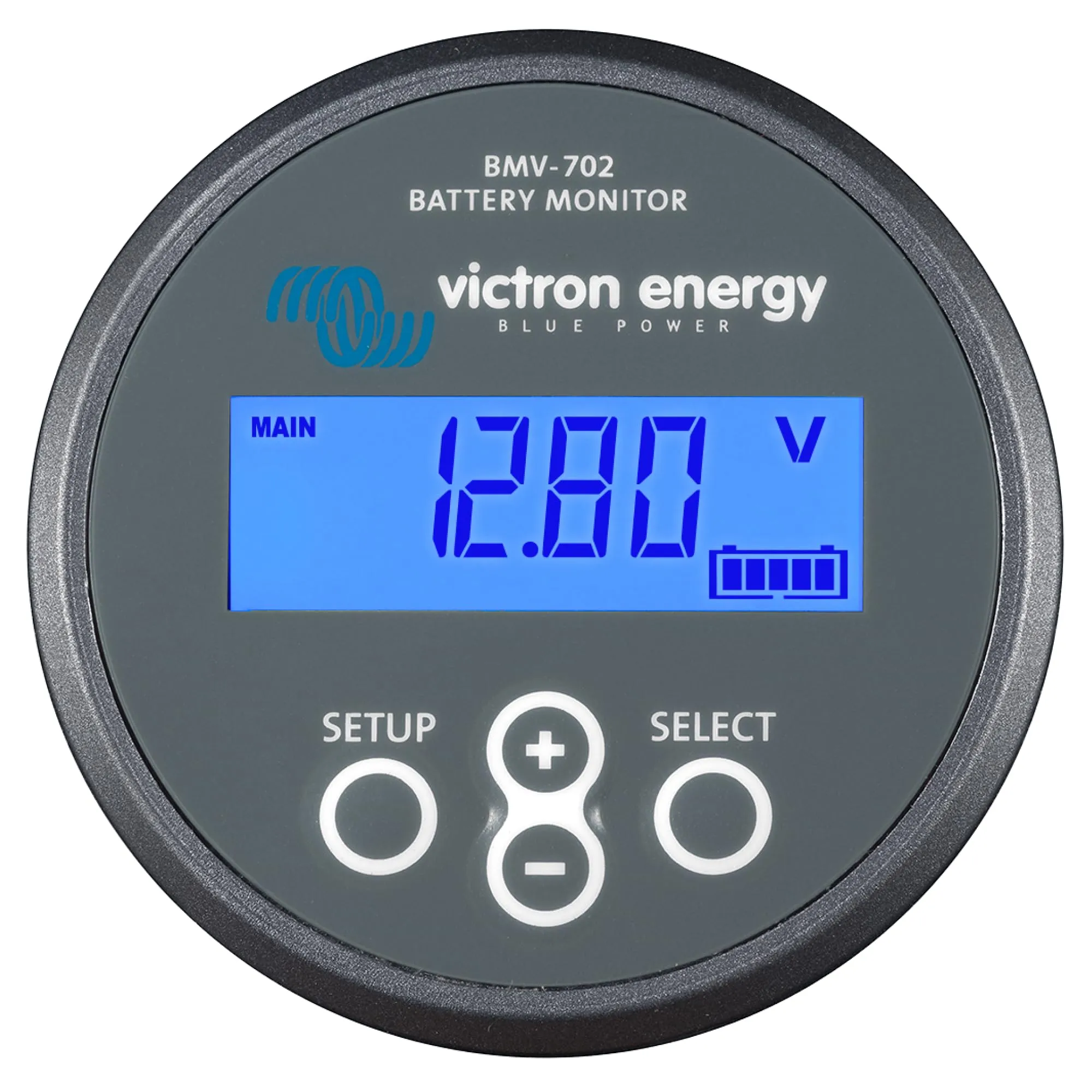

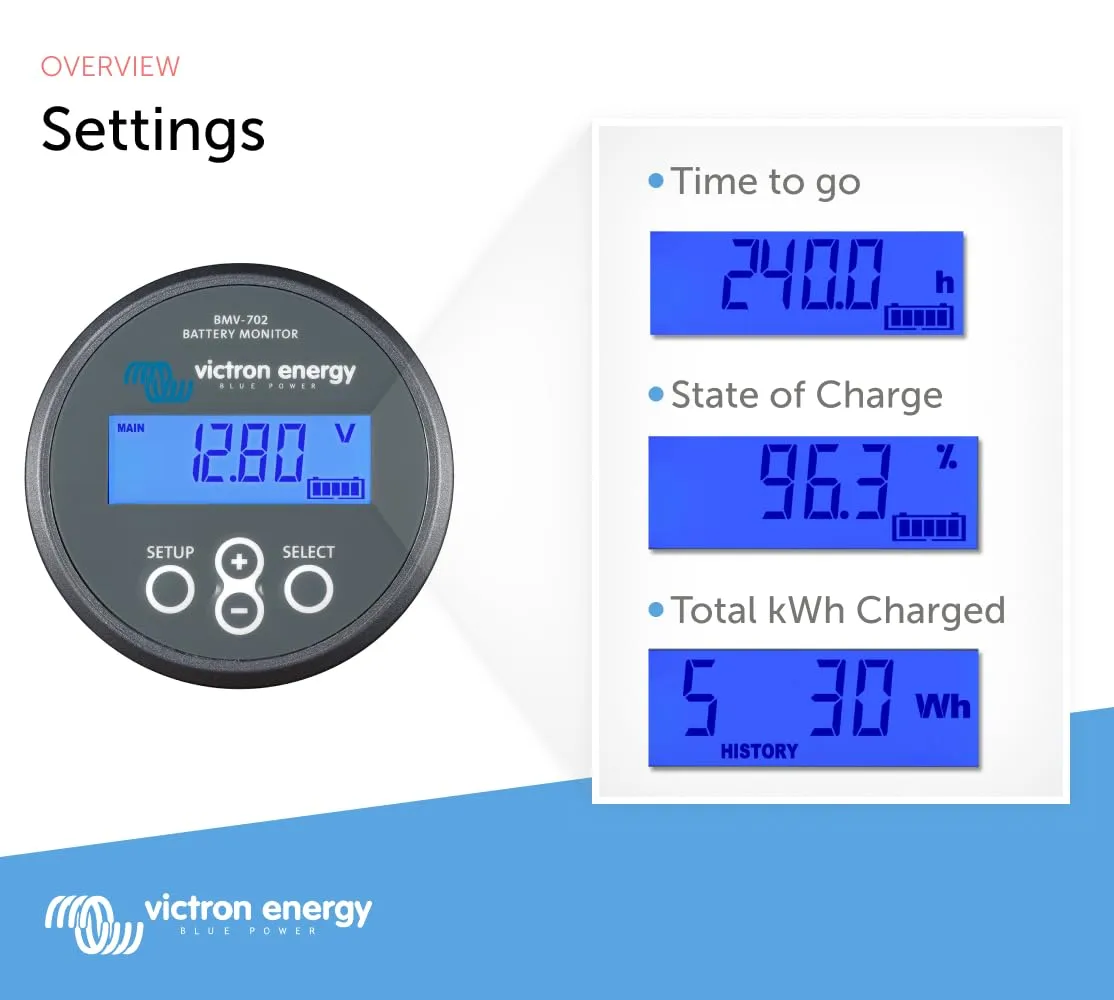

- WITH DISPLAY: Displays % State of Charge, Voltage, Current, Energy/Time remaining, and more. Easy to Program for initial setup.

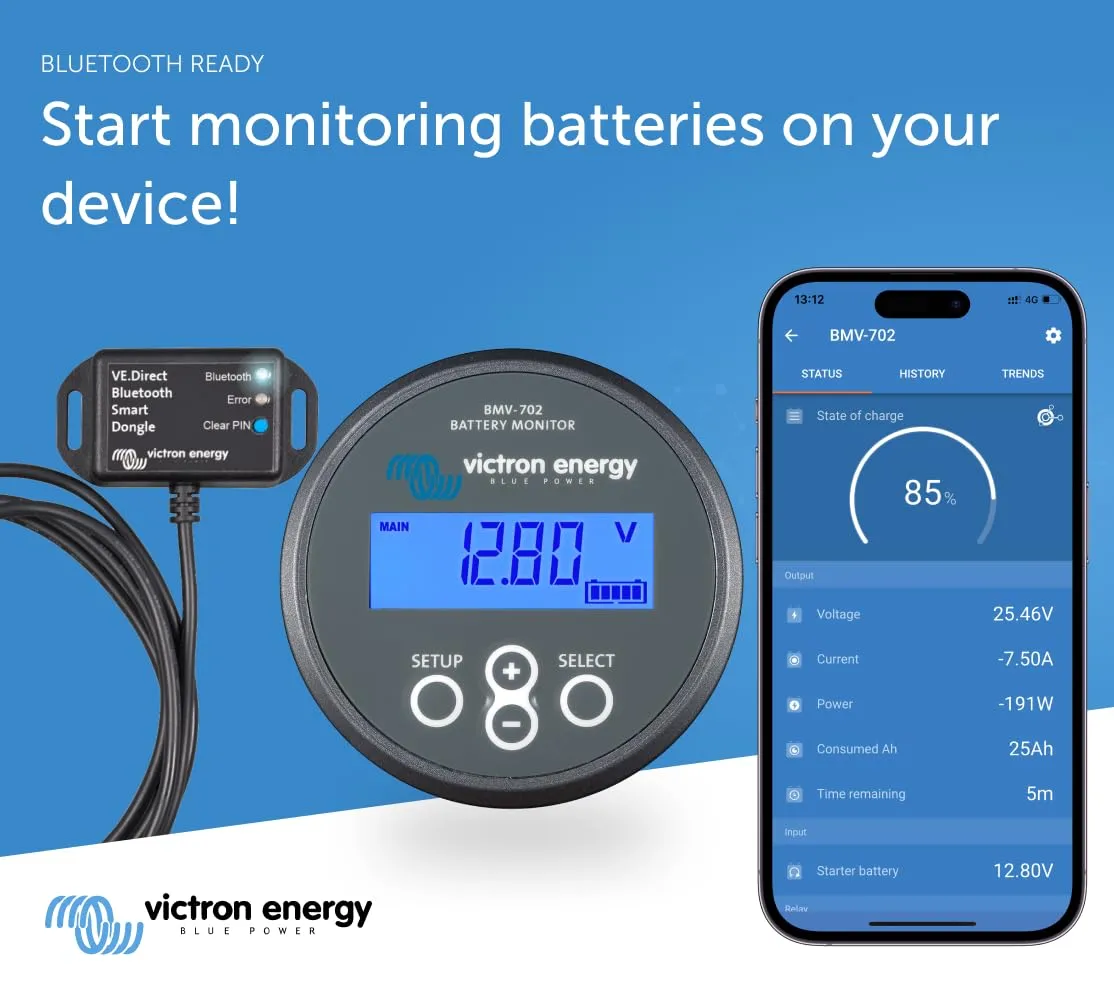

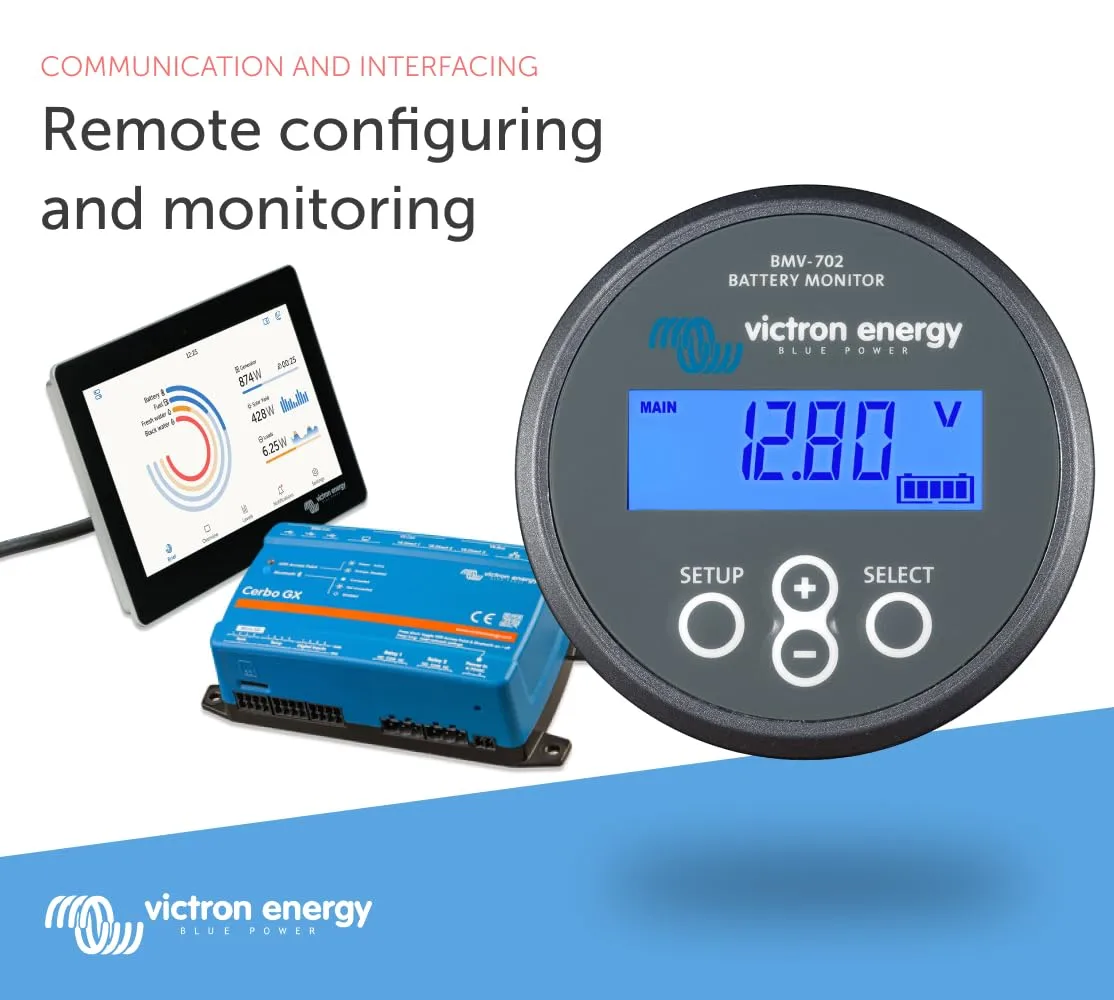

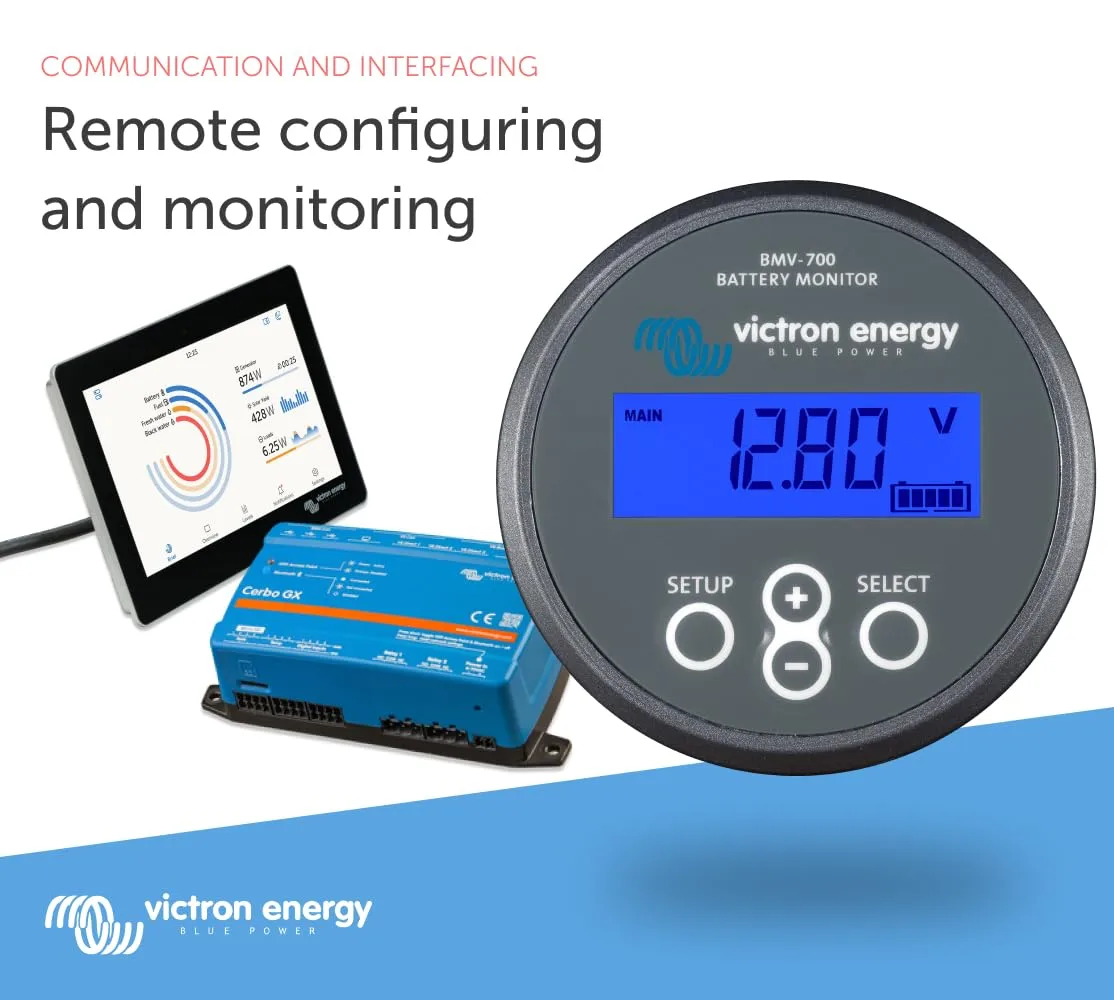

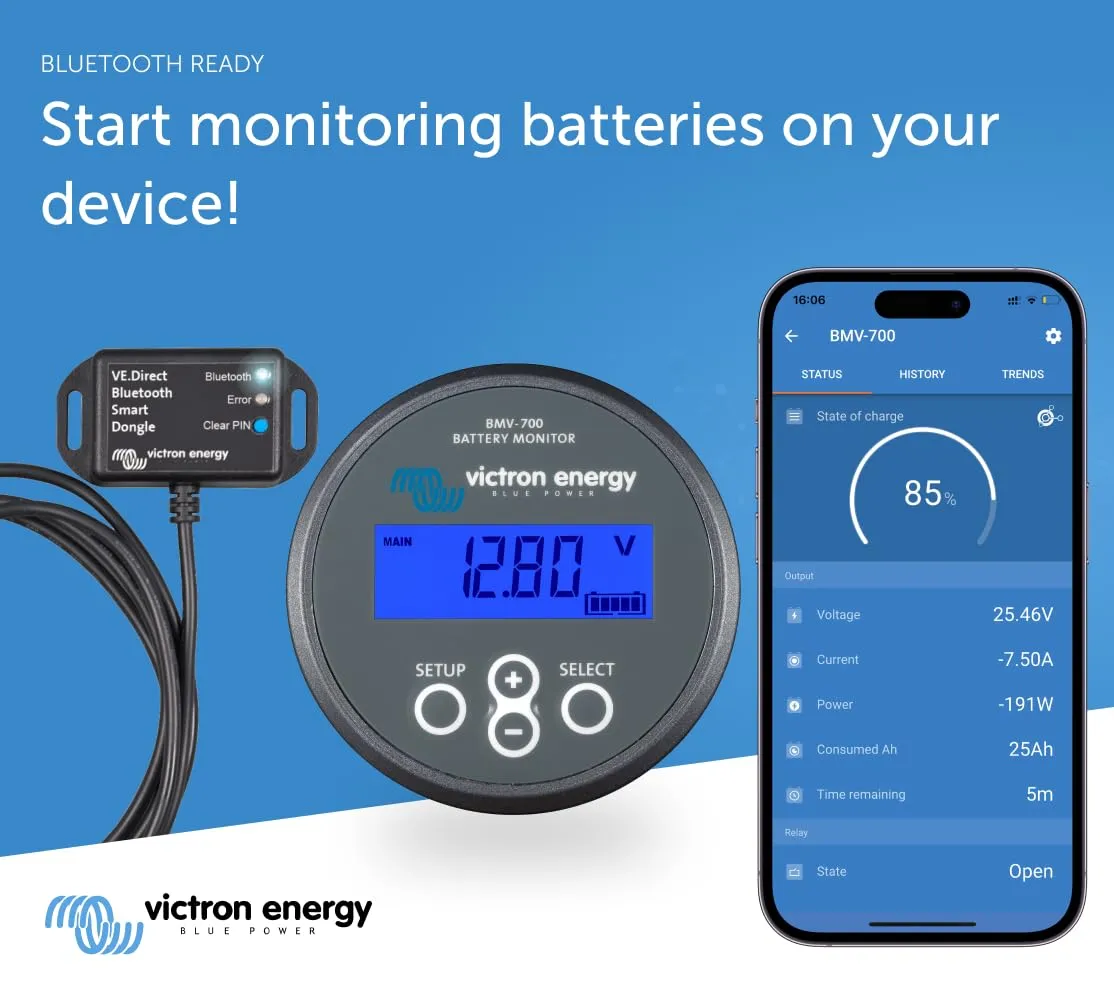

- CONNECTIVITY: Use a VE.Direct Bluetooth Smart dongle (sold separate) to monitor on smartphones and tablets. Or, connect to a GX device via VE.Direct cable (sold separate) and monitor anywhere in the world with VRM
- FEATURES RELAY: Victron Energy BMV-700 features a relay that can be programmed to control other devices (such as a battery protect or generator)
- COMPREHENSIVE BATTERY MONITORING: The Victron Energy BMV-700 Battery Monitor tracks various parameters for battery systems with voltage ranges from 6.5 to 95 VDC
Specifications:
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Item model number | ENG-VT-00006 |
| Sizing & Dimensions | |
| Height | 0.79 inches |
| Length | 26.77 inches |
| Product Dimensions | 26.77 x 11.02 x 0.79 inches |
| Weight | 1.98 pounds |
| Width | 11.02 inches |
