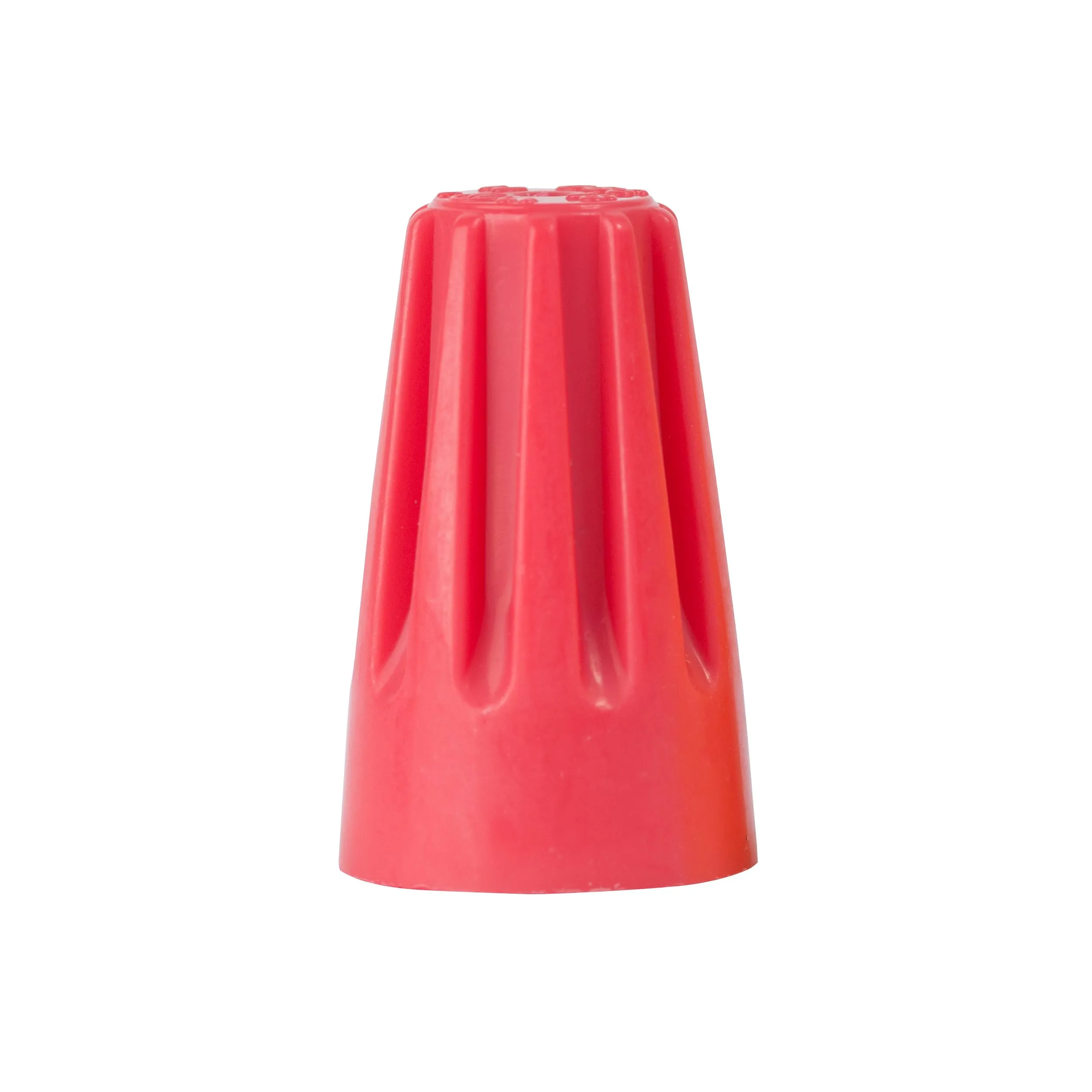

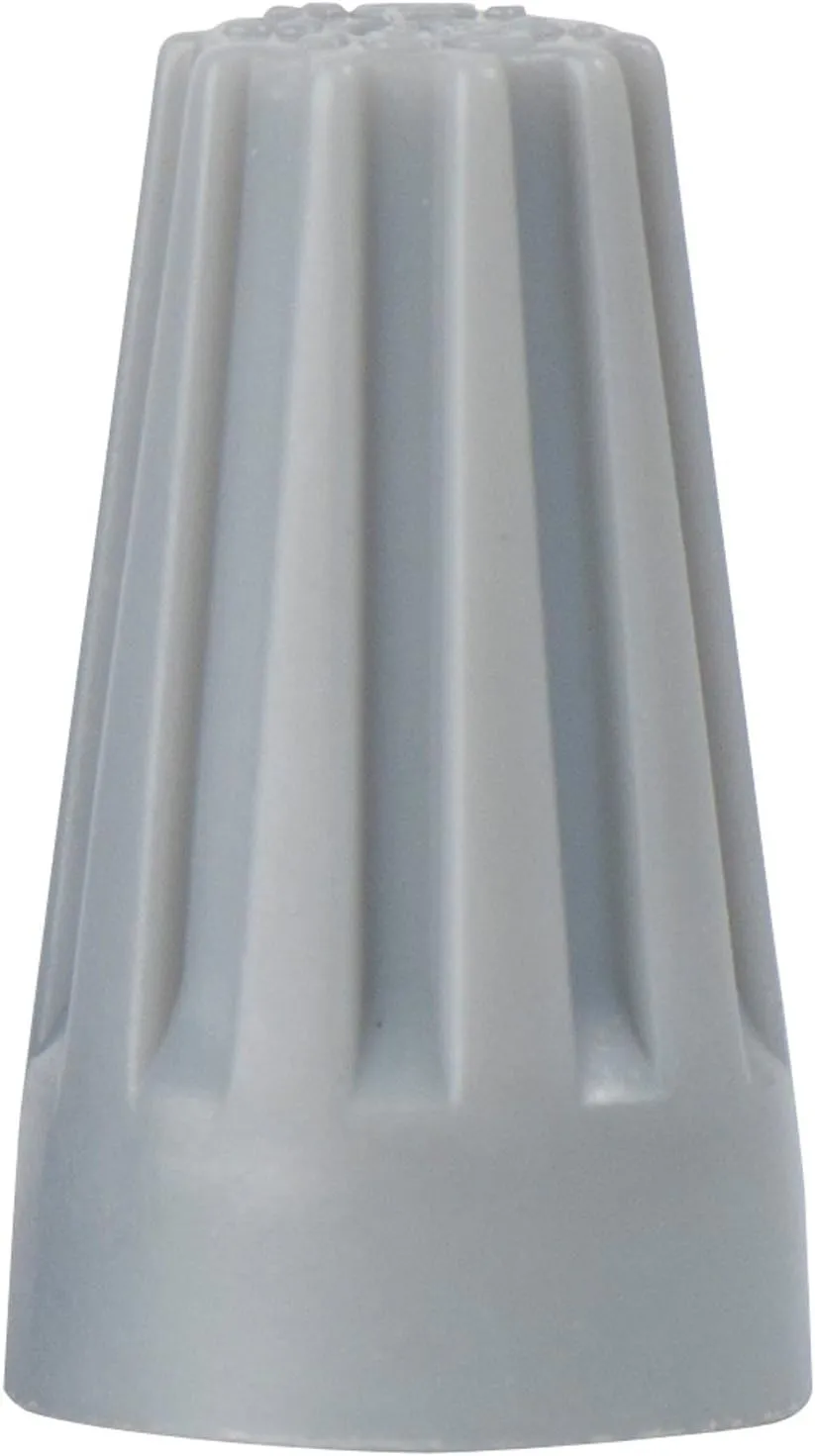

Gardner Bender WireGard Screw-On Wire Connectors, 100 Pack
Customize
Gardner Bender WireGard screw-on wire connectors are sold in 100-count packs and are color-coded for easy size selection. They feature a tight square-wire spring and copper contact material for positive copper-to-copper continuity, and tighten without ratcheting while remaining removable for re-use. The tough, flame-retardant thermoplastic (ABS) shell shields connections from weather, resists heat distortion up to 105°C (221°F), and resists chemical action from hydrocarbons and dilute acids/alkalis. WireGard connectors are UL-listed and rated to 600V max, providing reliable performance in residential and commercial electrical applications. Gardner Bender is an industry-leading manufacturer of electrician’s tools and supplies, and these connectors are designed for secure, reusable electrical connections.
- Flame retardant properties resists heat distortion up to 105-degrees Celsius, 221-degrees Farenheit
- Resists chemical action from hydrocarbons, dilute acid or alkaline solutions
- Tough, thermoplastic shell shields against environmental extremes, smooth surface eliminates porosity and cracking
- Makes quick, secure connections for positive continuity, tightens without ratcheting, yet removable for re-use
- Color-coded for easy size selection
- WIRE RANGE: 2 #14 (Min) to 2 #10 with 2 #12 (Max)
- UL LISTED: Canadian and U.S. requirements (connections rated at 600V Max for building wiring and rated at 1000V Max in lighting fixtures/luminaries and signs)

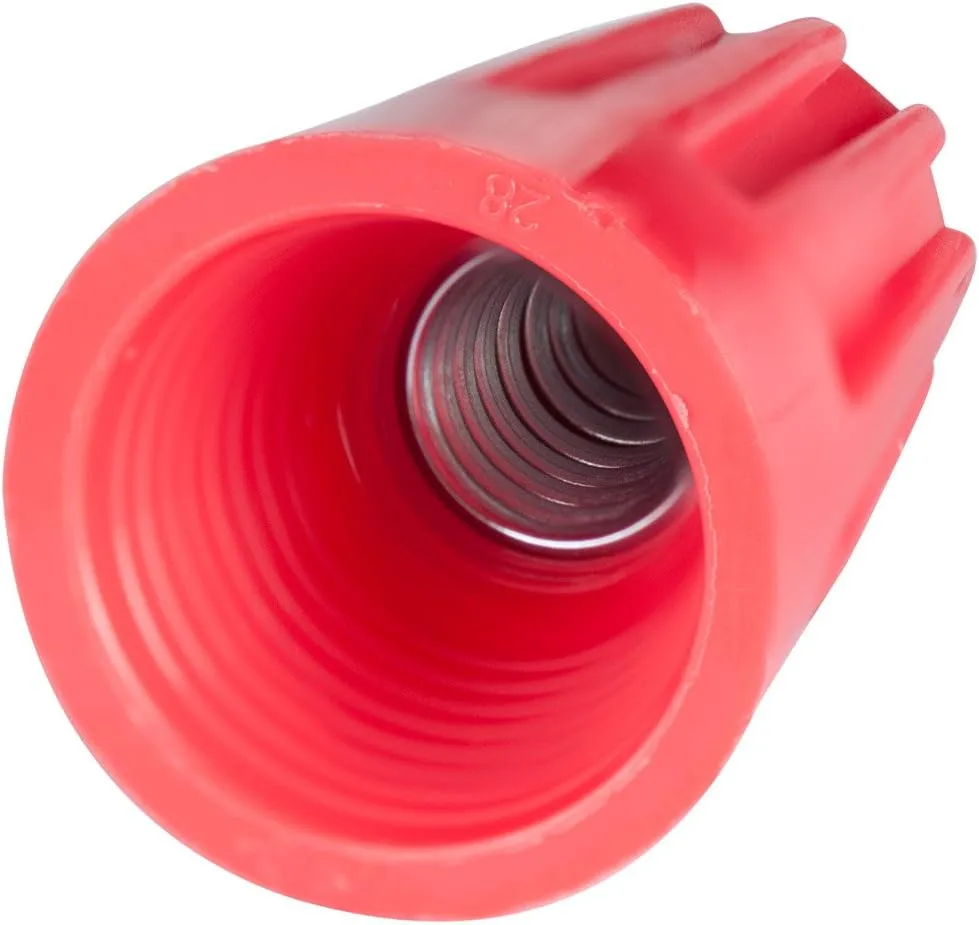

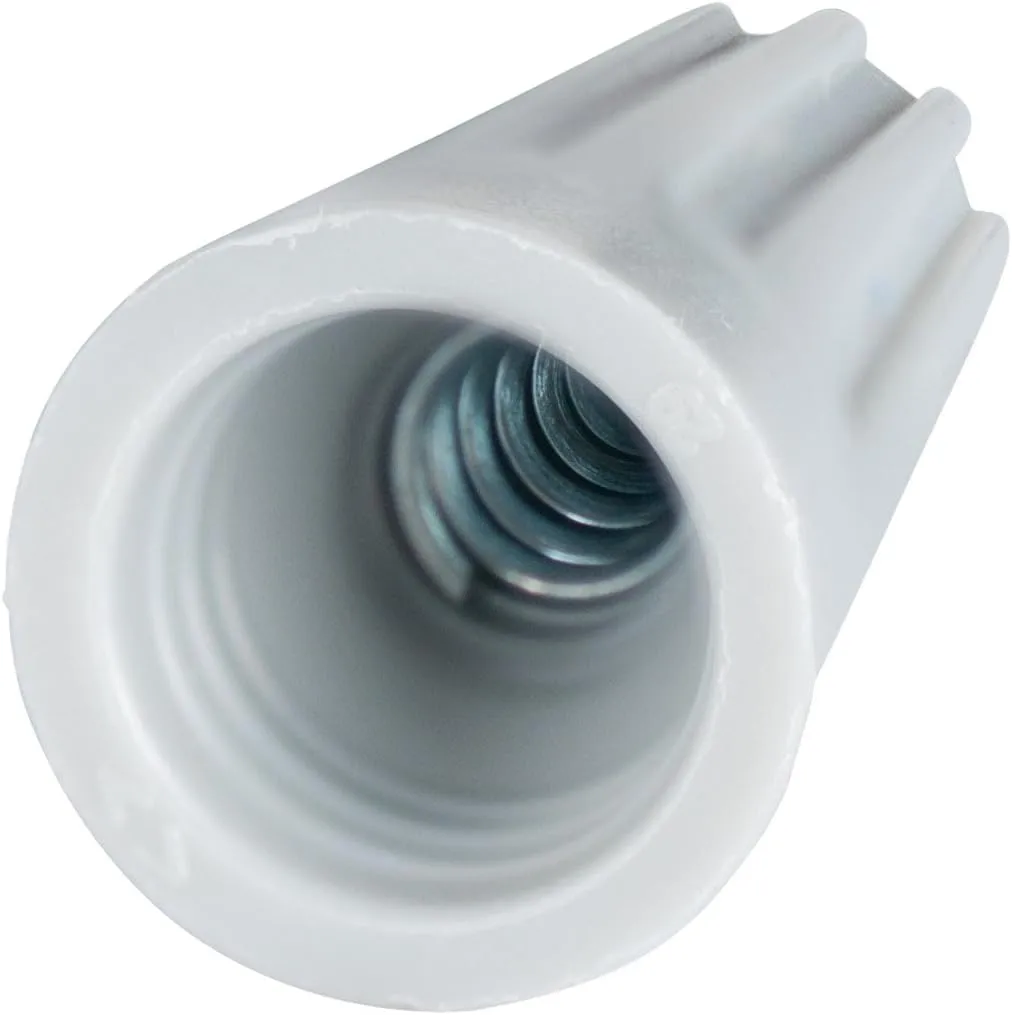

- TIGHT, SQUARE-WIRE SPRING makes quick, secure connections for positive continuity
- FLAME-RETARDANT PROPERTIES resist heat distortion up to 105°C (221°F)
- COPPER TO COPPER Connections - Rated at 600V Max
- INDUSTRY STANDARD color coded for easy size selection
- DESIGNED TO LAST: Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
Specifications:
| Materials & Construction | |
| Contact Material | Copper |
| Insulation Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Details | |
| Batteries Included? | No |
| Batteries Required? | No |
| Connector Type | Screw |
| Included Components | Box of 100 Red Wire Connectors |
| Is Discontinued By Manufacturer | Yes |
| Terminal | Screw Terminal |
| Sizing & Dimensions | |
| Weight | 0.1 ounces |
| Technical Specifications | |
| Maximum Voltage | 600 Volts |
| Measurement System | Inch |
| Number of Items | 100 |
| Specification Met | UL |
| Temperature Rating | 221 degree fahrenheit |
| Unit Count | 100.0 Count |
