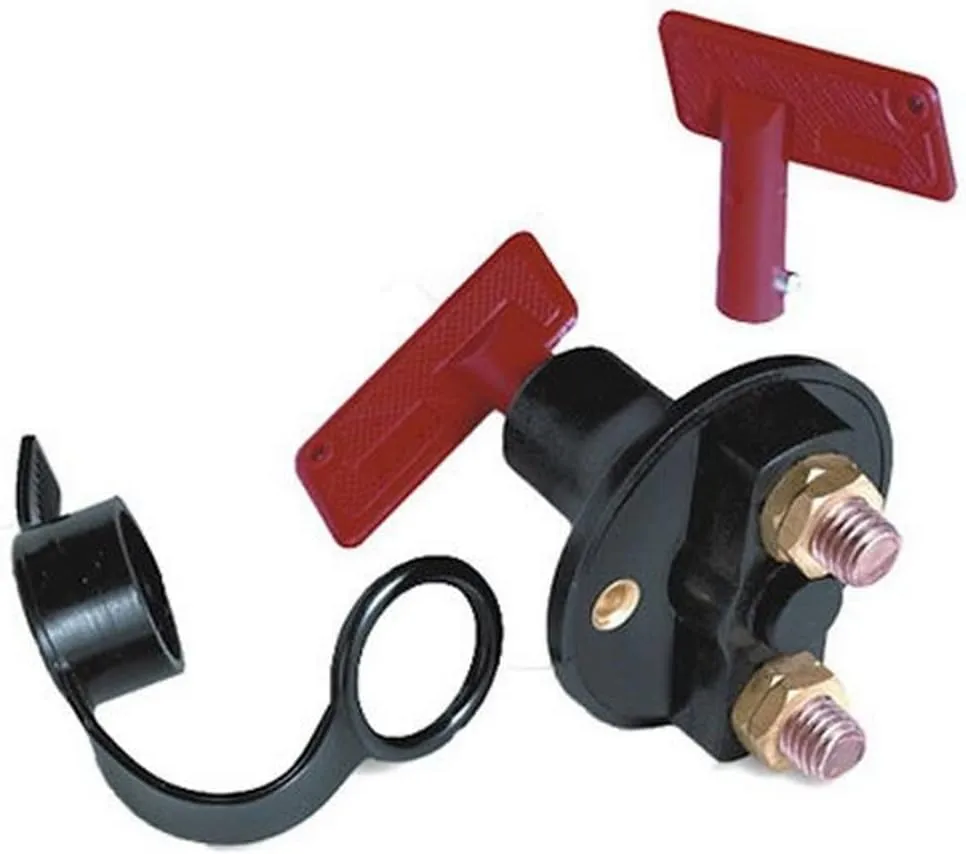

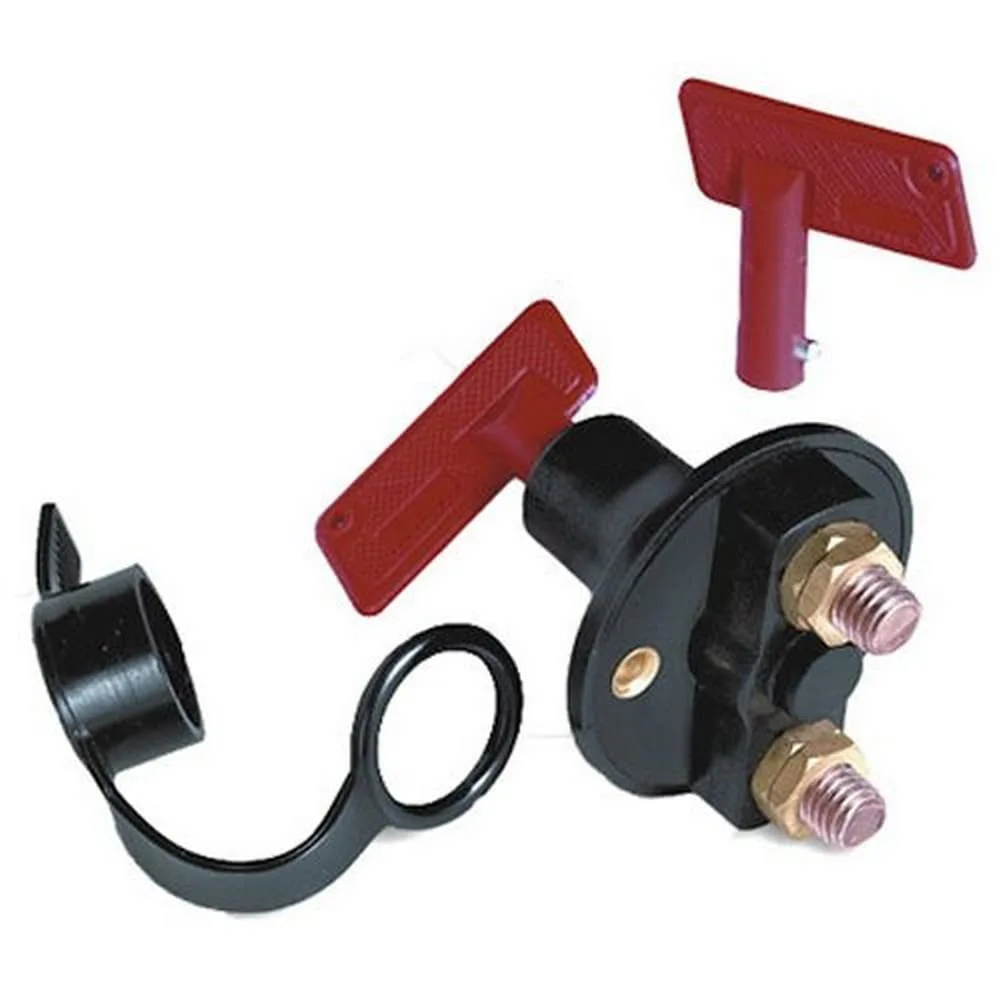

WirthCo 20314 Water Resistant Battery Master Switch - 12V 100A Key Operated
WirthCo 20314 water-resistant, key-operated battery master switch for automotive and marine use. Rated 100A continuous (12V) with high surge capacity; removable key and waterproof cap for secure disconnect.
Non-returnable
$34.94
Customize
UPC
10054203142 Available Quantity
72 GSA Item
No GSA Compliant
Yes Product Details
WirthCo 20314 Battery Doctor Battery Water Resistant Master Switch. Key removable in OFF position. Rated 100 Amps continuous at 12 Volts (1,000 Amp surge at 12V). At 24 volts: 50 Amps continuous (500 Amp surge). Water resistant construction with waterproof cap and removable key; ideal for marine and automotive battery disconnect applications. Includes in-line terminals, two 3/16" diameter mounting holes, 2-1/4" diameter x 2-1/2" deep (1-1/4" deep behind a panel). Operation mode ON-OFF; contact material copper; panel-mount design. Manufacturer part number: 20314. UPC: 010054203142. Suitable for battery disconnect and master switch applications where secure, keyed operation and water resistance are required.
- With extra key, waterproof cap
- At 24-volt: 500-amp surge, 50 Amp continuous
- At 12-volt: 1,000 Amp surge, 100 Amp continuous
- Key is removable in OFF position
- Battery Doctor Battery Disconnect Stop-K Master Switch
- Two 3/16" Diameter Mounting Holes
- 2-1/4" Diameter x 2-1/2" Deep (1-1/4" Deep Behind a Panel)
- Rated 50 Amps Continuous, 250 Amps Surge at 24 Volts
- Rated 100 Amps Continuous, 500 Amps Surge at 12 Volts
- Excellent for Marine or Automotive Use
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper |
| Product Details | |
| Actuator Type | Key |
| Amperage | 100 A |
| Circuit Type | 1-way |
| Connector Type | Female-to-male |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Current Rating | 100 Amps |
| Hole Diameter | 3/16 in |
| International Protection Rating | IP54 |
| Mounting Type | Panel Mount |
| Number Of Connections | 2 |
| Number Of Positions | 2 |
| Operation Mode | ON-OFF |
| Overall Depth | 2.5in |
| Product Dimensions | 6.5 x 2.75 x 2.75 inches |
| Sequence | Battery Knife Switch |
| Switch Type | Water Resistant In-Line Battery Switch |
| Terminal | Screw |
| Unspsc Code | 39121500 |
| Voltage | 12 Volts |
| Wire Connection Type | In-Line Terminals |
| Sizing & Dimensions | |
| Height | 2.75 inches |
| Length | 6.5 inches |
| Weight | 4.8 ounces |
| Width | 2.75 inches |
