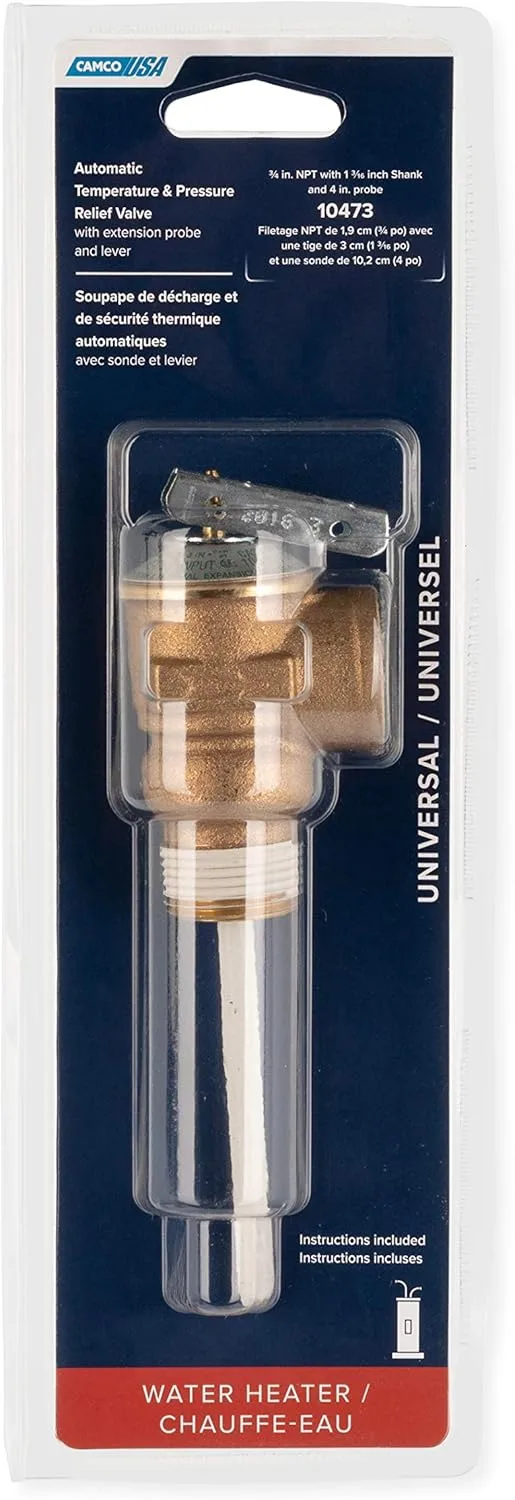

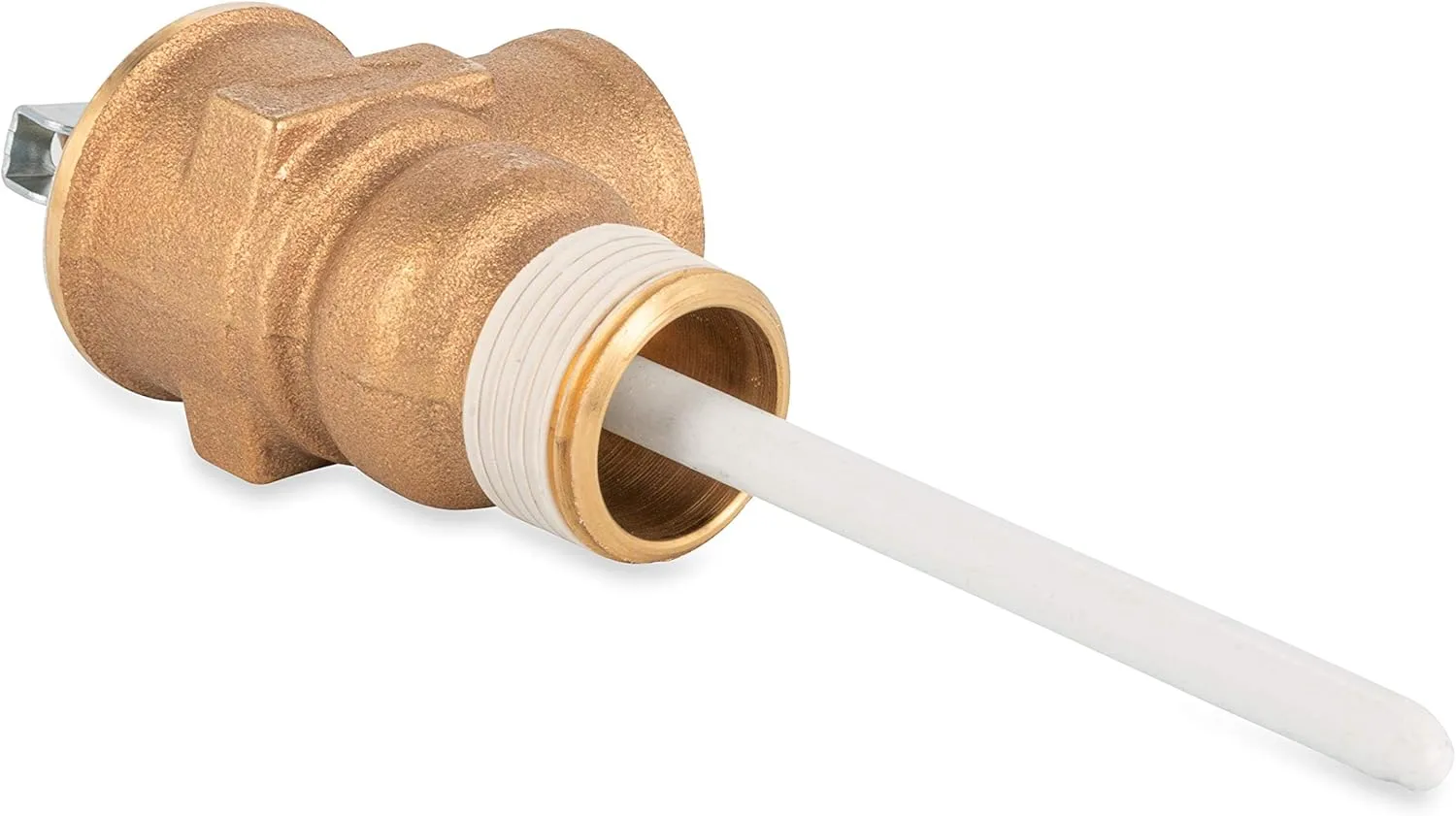

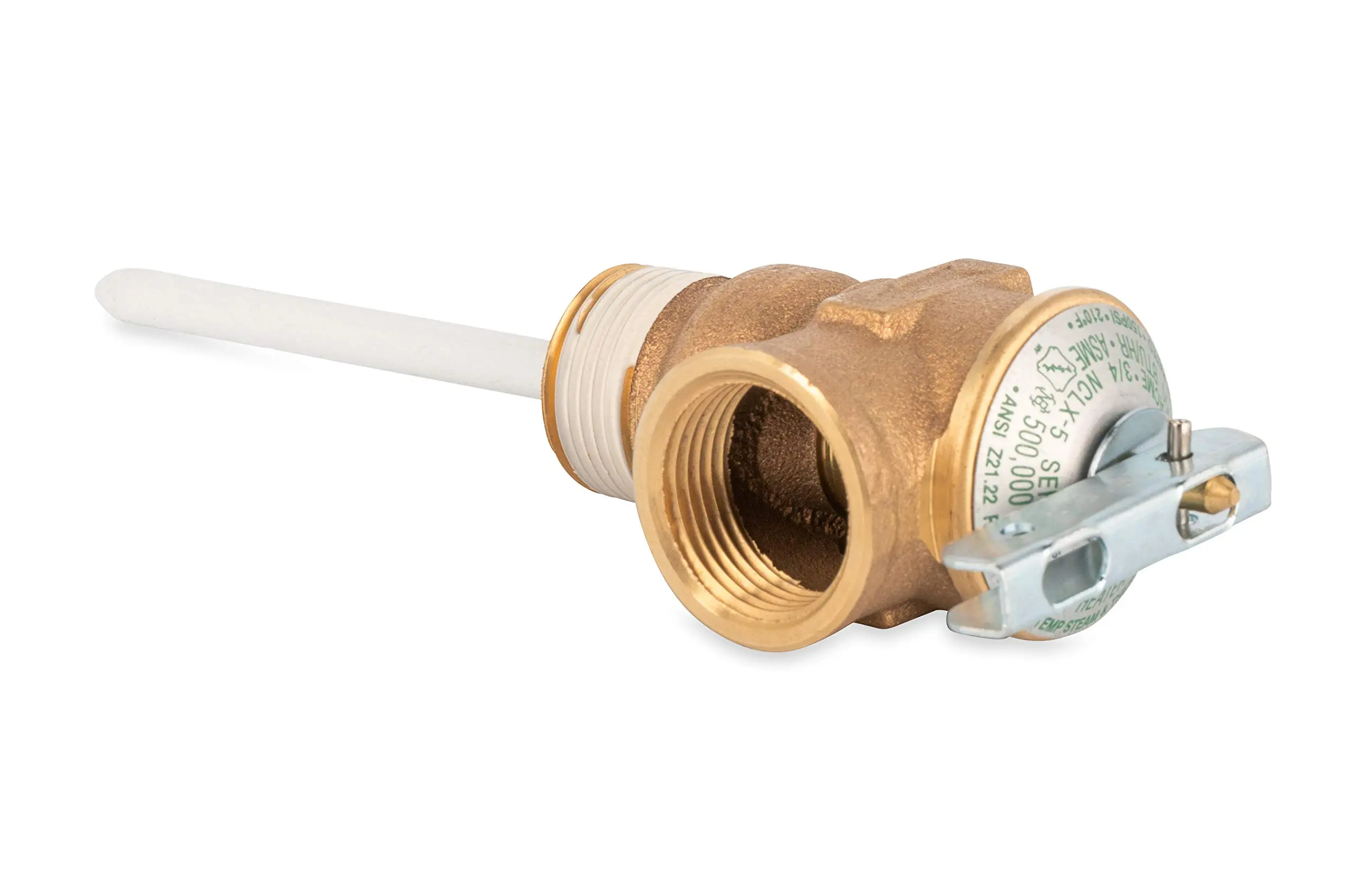

Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever (10473)
Customize
Camco's T&P Relief Valve helps protect your RV or home water heater from excess temperature and water pressure. It features a ¾-inch NPT connection, 1 3/16-inch shank, and 4-inch probe. The extension probe is epoxy-coated to prevent corrosion buildup. This product is constructed of an all-brass body with a stainless steel pressure spring. It is factory set to 150 PSI and 210 Fahrenheit. CSA certified to ANSI Z21.22. Included: (1) Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever. Limited 1 Year manufacturer warranty. Item Dimensions: 11.15 x 3.75 x 1.75 inches. Item Weight: 8.96 ounces. Maximum Operating Pressure: 150 Pound per Square Inch. Connector Type: Threaded. Thread Type: National Pipe Tapered. Thread Size: 0.75 inches. Outlet Connection Type: MNPT. Inlet Connection Size: 0.75 Inches. Specification Met: Furnished with test lever.
- Certification: CSA certified to ANSI Z21.22
- Features: Extension probe is epoxy-coated to prevent corrosion buildup; Construction: All brass body with stainless steel pressure spring
- Factory Setting: 150 PSI/210° Fahrenheit
- Connection: ¾-inch NPT connection allows hookup to RV and home water heaters; Dimensions: 1 3/16-inch shank; 4-inch probe
- Provides Protection: Helps protect your RV or home water heater from excess temperature and water pressure
Specifications:
| Materials & Construction | |
| Color | Gold |
| Outer Material | Brass |
| Product Details | |
| Connector Type | Threaded |
| Exterior Finish | Gold |
| GTIN | 014717104739 |
| Included Components | (1) Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Item Type Name | Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever |
| Material | Brass, Stainless Steel, Epoxy |
| Maximum Operating Pressure | 150 Pound per Square Inch |
| Maximum Pressure | 150 Pound per Square Inch |
| Number of Ports | 1 |
| Outlet Connection Size | 0.75 Inches |
| Outlet Connection Type | MNPT |
| Specification Met | Furnished with test lever |
| Thread Size | 0.75 inches |
| Thread Type | National Pipe Tapered |
| UPC | 014717104739 |
| Valve Type | Pressure Relief Valve |
| Sizing & Dimensions | |
| Height | 1.75 inches |
| Length | 11.15 inches |
| Product Dimensions | 11.15 x 3.75 x 1.75 inches |
| Size | One Size |
| Weight | 8.96 ounces |
| Width | 3.75 inches |
