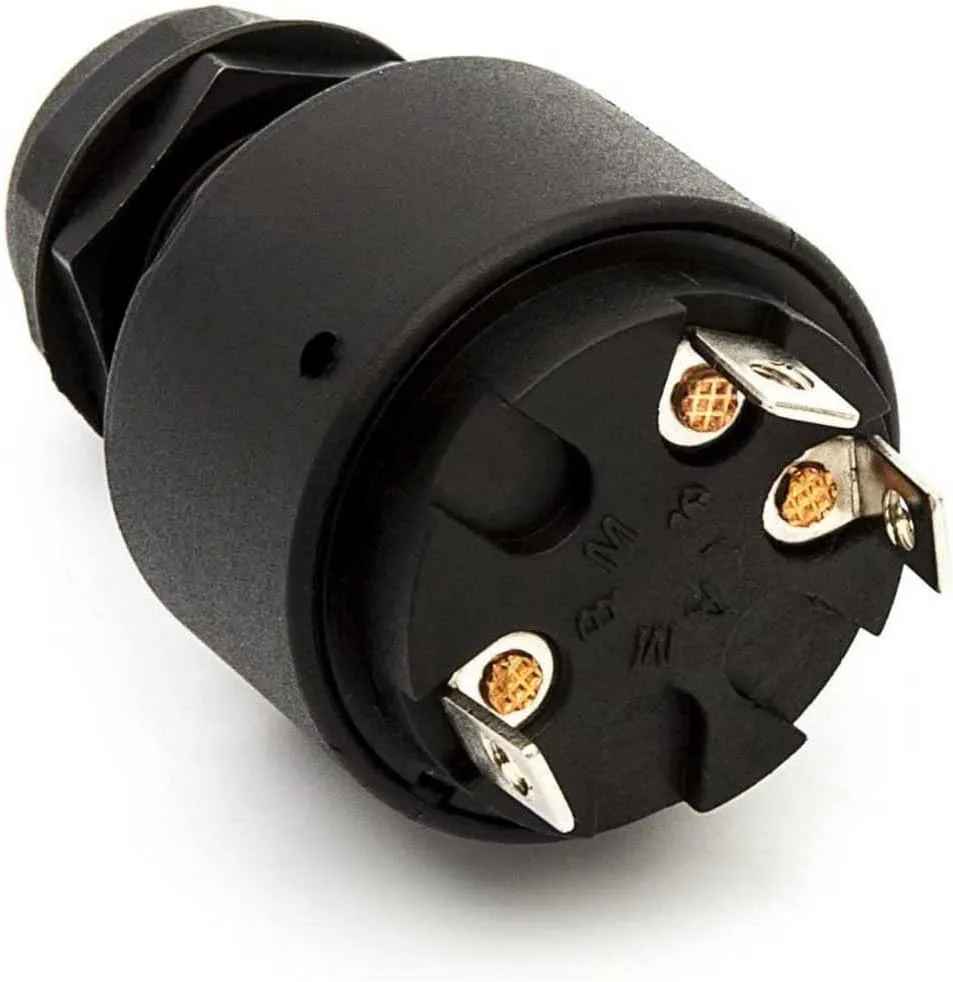

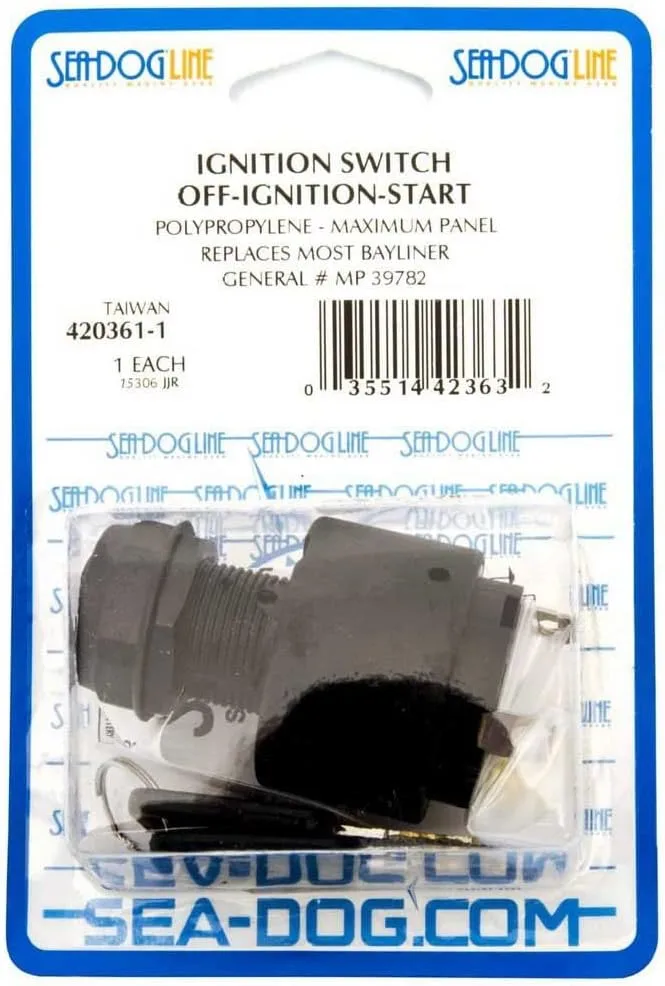

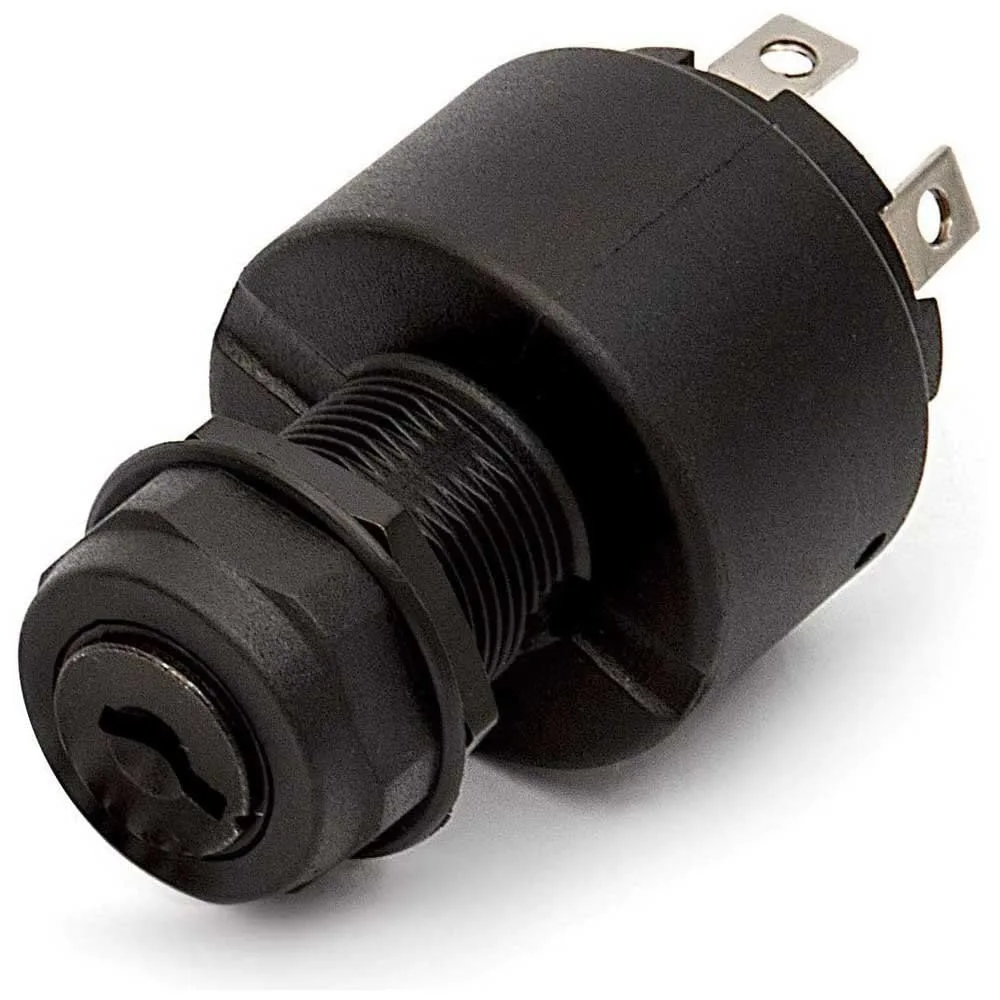

Sea-Dog 420360-1 Three Position Ignition Switch, Off-Ign-Start. Polypropylene construction with screw terminal (3) connections. Panel mount or surface mount design with IP54 protection. Rated 3 Amps and 36 watts. Toggle-style ignition actuator with ON-OFF-ON operation and 3 positions. Connector: Screw Terminal (3 Screws). Contact Type: Normally Open. Includes SEADOG component. Model 3004.4209. Item dimensions: 1.28 x 0.92 x 0.44 inches. Item weight: 4.48 ounces (0.28 pounds). Warranty: LIMITED WARRANTY. Intended as a marine/automotive replacement ignition starter switch.
| Materials & Construction | |
| Color | Black |
| Contact Material | Plastic |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Contact Material | Plastic |
| Included Components | SEADOG |
| Included GTIN | 035514423625 |
| International Protection Rating | IP54 |
| Item Type Model | 3004.4209 |
| Item Type Name | Sea Dog 420360-1 Three Position Ignition Switch, Off-Ign-Start |
| Material Type | Plastic |
| Model | 3004.4209 |
| Number of Items | 1 |
| Specification Met | Ip54 |
| Terminal | Screw |
| Terminal Type | Screw-3 |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 0.44 inches |
| Item Dimensions | 1.28 x 0.92 x 0.44 inches |
| Length | 1.28 inches |
| Product Dimensions | 1.28 x 0.92 x 0.44 inches |
| Product Weight | 0.2800 |
| Weight | 4.48 ounces |
| Width | 0.92 inches |
| Technical Specifications | |
| Actuator Type | Ignition |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminal (3 Screws) |
| Contact Rating | 3 Amps |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Current Rating | 3 Amps |
| Mounting Type | Panel Mount or Surface Mount |
| Number of Positions | 3 |
| Operation Mode | ON-OFF-ON |
| Specification Met | Ip54 |
| Switch Type | Toggle |
| Warranty | LIMITED WARRANTY |
| Wattage | 36 watts |
