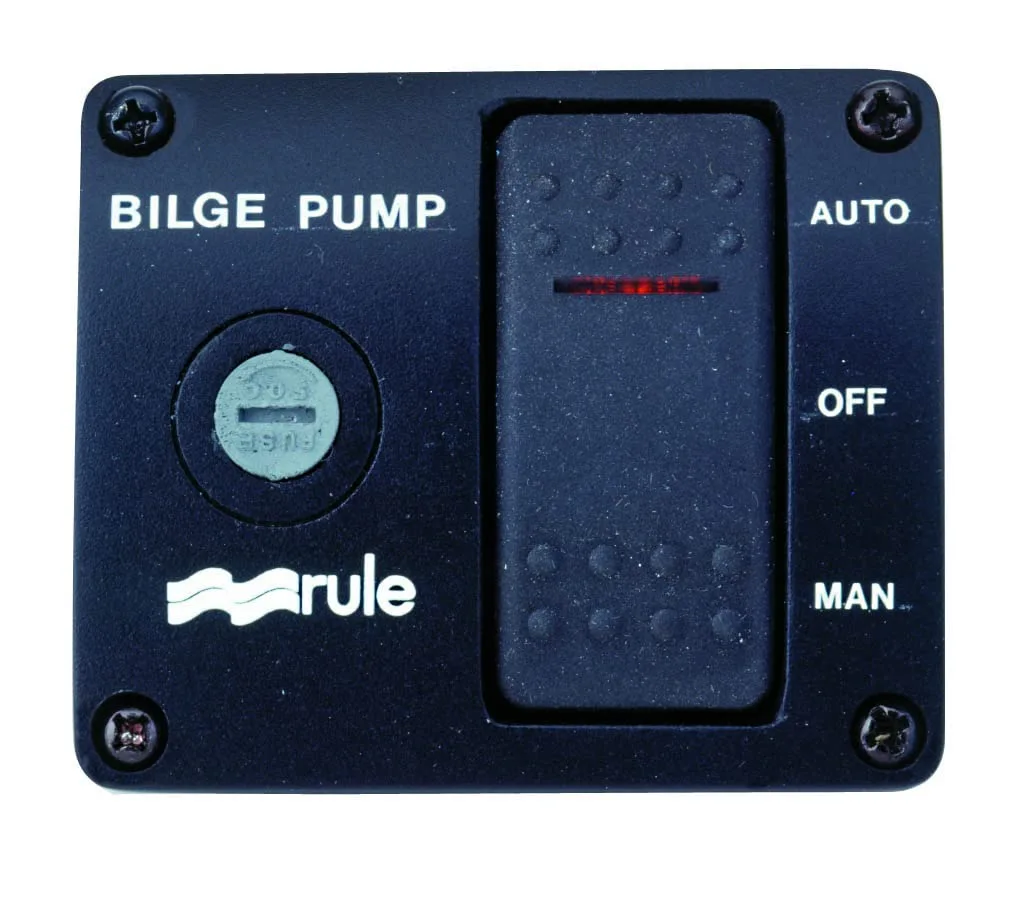

Rule 43 Marine Deluxe Plastic Rocker Panel Switch (12-Volt) - Black
Rule 43 12V lighted rocker panel switch for marine bilge pumps; black plastic panel with built-in fuse, 3-position (automatic, off, manual) and spring-return fail-safe.
$52.99
Customize
UPC
42237084217 Available Quantity
27 GSA Item
No GSA Compliant
Yes Product Details
Rule 43 Marine Deluxe Rocker Panel Switch combines durable marine-grade plastic construction with practical features for bilge pump control. The internally lighted rocker switch offers three positions—automatic, off, and manual—with a fail-safe spring return to off from manual. The unit includes a built-in fuse holder and brass contacts/terminals suitable for marine environments. Rated for 12 Volts and designed for panel mounting, it supports 3-way circuit control and provides a compact mounting footprint. Ideal for controlling pumps equipped with automatic float switches, it ships as a single rocker switch in a panel.
- Fuse is included
- 43 is lighted rocker switch
- Series 3-way panel
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Brass |
| International Protection Rating | IP00 |
| Material | Plastic |
| Material Type | Plastic |
| Specification Met | Ip |
| Product Details | |
| Actuator Type | Rocker |
| Connector Type | Crimp |
| Contact Material | Brass |
| Contact Type | Normally Closed |
| Included Components | Rocker switch in panel |
| Item Type Name | Bilge Pump Switch |
| Model | 43 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Switch Type | Rocker |
| Terminal | Marine |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 5 inches |
| Item dimensions L x W x H | 4 x 3 x 5 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 5 inches |
| Product Weight | 0.15 Pounds |
| Weight | 2.40 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Current Rating | 1 Amps |
| Lower Temperature Rating | 1 Degrees Celsius |
| Number of Positions | 3 |
| Operating Voltage | 12 Volts |
| Operation Mode | Automatic,Off |
| Upper Temperature Rating | 1 Degrees Celsius |
| Wattage | 12 watts |
