Fill-Rite FR610H 115V 15 GPM Fuel Transfer Pump w/Discharge Hose & Manual Nozzle
Customize

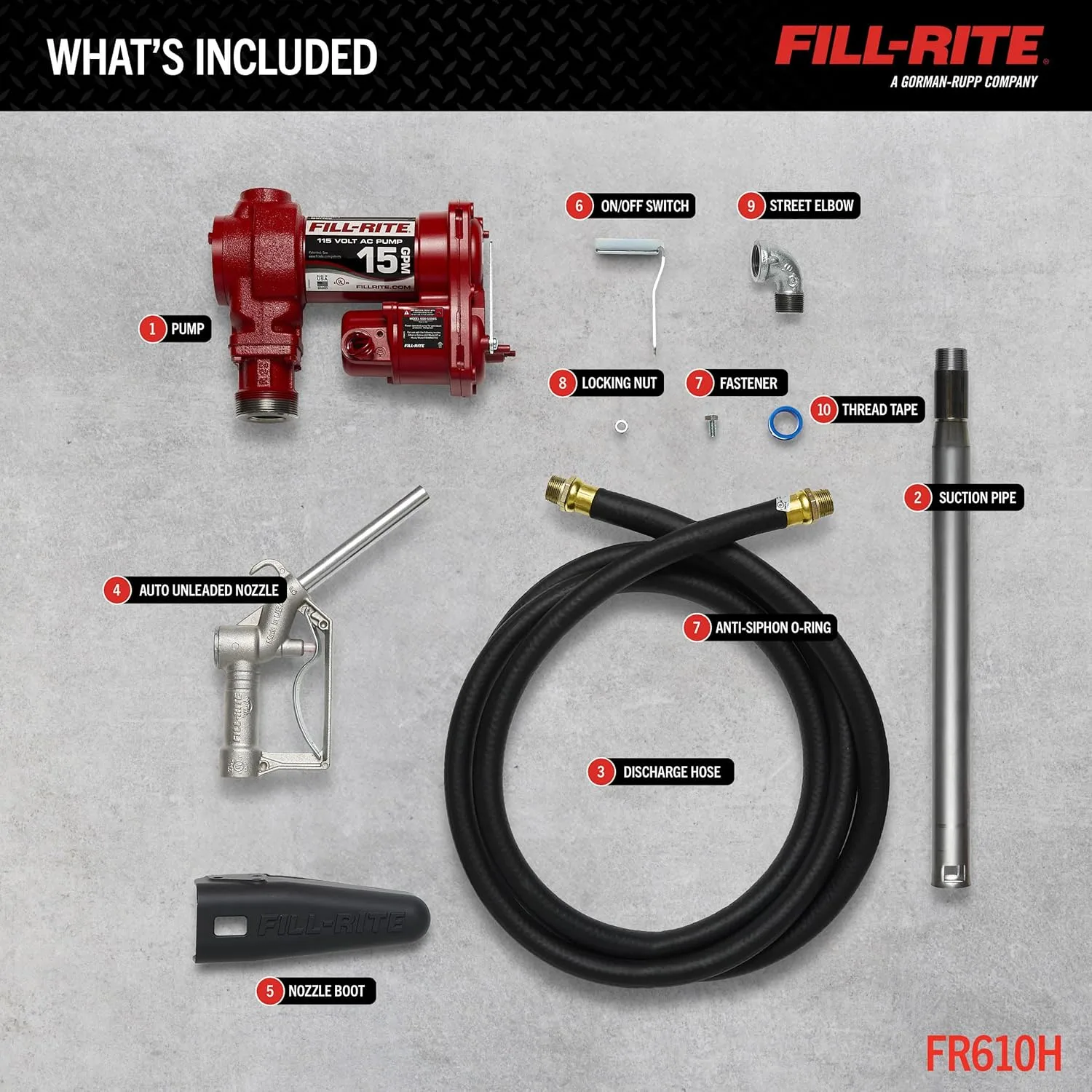

The Fill-Rite FR610H is a heavy-duty, bung-mounted 115V AC fuel transfer pump built with rotary vane technology for consistent flow. Constructed with durable cast-iron and a removable junction box that rotates 180° for easy installation, the FR610H includes a 3/4" x 12' discharge hose, 3/4" manual lockable nozzle, 34" telescoping steel suction pipe, 3/4" street elbow and a roll of PTFE tape. It is suitable for gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15% and biodiesel up to B20. The 1/4-HP explosion-proof motor with ball bearings dispenses up to 15 GPM and features thermal overload protection and a 30-minute duty cycle. Designed for stationary installations with a 2" NPT bung mount, the pump is UL/cUL listed and backed by a limited lifetime warranty.
- STATIONARY APPLICATIONS: Designed for a 115V AC power source and bung mounted transferring from stationary fuel tanks, the 600 series will pull fuel at tank depths of 8 ft. and discharge fuel up to heights of 37 ft.
- CONSISTENT HIGH PERFORMANCE: 600 series Fill-Rite pumps are built with Rotary Vane Technology that maintains a consistent flow performance even as components wear from use
- PROTECTION AGAINST OVERHEATING: Engineered to exceed the industry’s most stringent safety standards, the pump is constructed with thermal overload protection to prevent the motor from overheating during abnormal usage.
- EASY INSTALLATION: The fuel pump has a removable junction box that rotates 180-degrees for ease of electrical wiring and installation in tight spaces.
- DEPENDABLE & DURABLE PUMP: Made with durable cast iron construction to withstand rough operating environments every 600 series pump includes a limit lifetime warranty
Specifications:
| Materials & Construction | |
| Body Material | Cast Iron |
| Material | Cast Iron |
| Product Details | |
| Body Material | Cast Iron |
| Fit Type | Universal Fit |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Female NPT threads |
| Item model number | FR610H |
| Material | Cast Iron |
| Model | FR610H |
| Mounting Type | 2" NPT Bung |
| Operation Mode | Mechanical |
| Outlet Connection Size | 3/4 Inches |
| Outlet Connection Type | FNPT |
| Product Grade | New |
| Special Features | Includes 2" NPT tank adapter, a 3/4"-dia. manual lockable nozzle and 3/4"-dia. x 12'L Buna-N hose., Powerful: The 1/4-HP explosion-proof motor with ball bearings dispenses up to 15 gpm, Safe: Features thermal overload protection, Sturdy Construction: Telescoping suction pipe is corrosion-proof, This heavy-duty Fill-Rite 115V AC Pump is just what you need for stationary installations such as tank and barrel mounts. Pump features a 30-min. duty cycle., UL, cUL listed., Versatile: Use with gas, diesel and other petroleum-based products |
| Specification Met | 30 Minute On/Off Duty Cycle, certified frustration-free |
| Style | Standard Accessories |
| Voltage | 115 Volts |

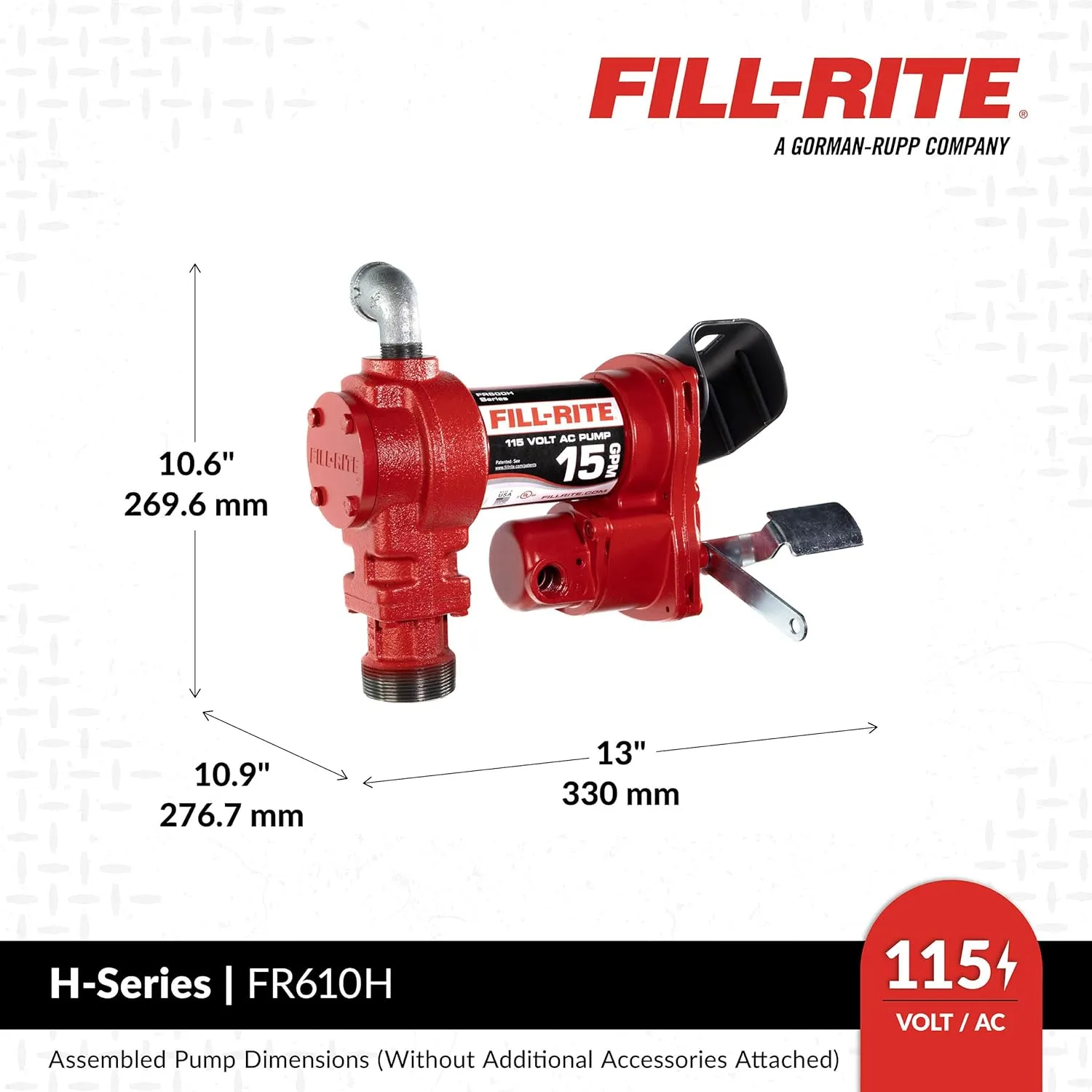

| Sizing & Dimensions | |
| Height | 11 inches |
| Length | 18.5 inches |
| Product Dimensions | 32 x 18.5 x 11 inches |
| Product Weight | 32.0000 pounds |
| Weight | 32 pounds |
| Width | 32 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
| Operation Mode | Mechanical |
| Product Grade | New |
| Voltage | 115 Volts |
