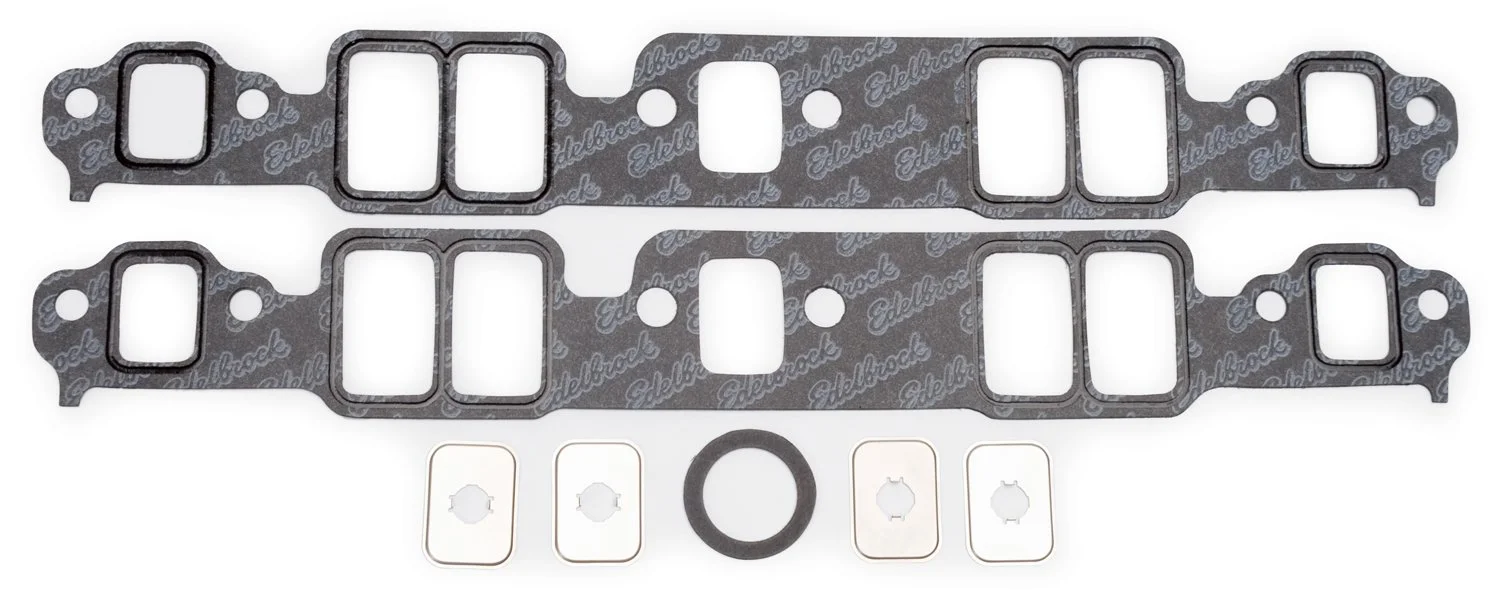

The Edelbrock 7201 Intake Manifold Gasket pair is engineered to provide a precise OEM-style fit for Edelbrock Performer and Performer RPM heads and manifolds. Constructed from a synthetic fiber composite with a steel core and featuring an embossed silicone bead around the ports, these gaskets deliver a positive seal and excellent recovery under load. Impervious to most chemicals including gasoline, alcohol, coolant and oils, they maintain sealing integrity in intermittent operating temperatures up to 400 degrees. Port size measures approximately 1.28" wide x 2.09" high x 0.06" thick. The gasket compresses to fill imperfections on rough flange surfaces for improved flow, simpler installation, and easier removal. Sold as a pair, unit count 1.0 (pair), with a 90-day manufacturer warranty.
- Does not include end seals and silicone sealant is recommended for use instead of end seals
- When compressed, the gasket can expand and fill any imperfections on a sealing surface
- Provides a minimum of 30% recovery under load
- Gasket material provides excellent sealing on rough, irregular flange surfaces
- Perfect sealing assured due to silicone beads around each port opening
Specifications:
| Materials & Construction |
| Material | Synthetic Fiber composite |
| Product Details |
| GTIN | 085347072019 |
| Included Components | Edelbrock |
| Item Type Name | GASKET |
| Shape | Round |
| Unit Count | 1.0 Count |
| UPC | 085347072019 |
| Sizing & Dimensions |
| Height | 0.27 inches |
| Length | 24.52 inches |
| Product Dimensions | 24.52 x 4.48 x 0.27 inches |
| Weight | 0.5 pounds |
| Width | 4.48 inches |
