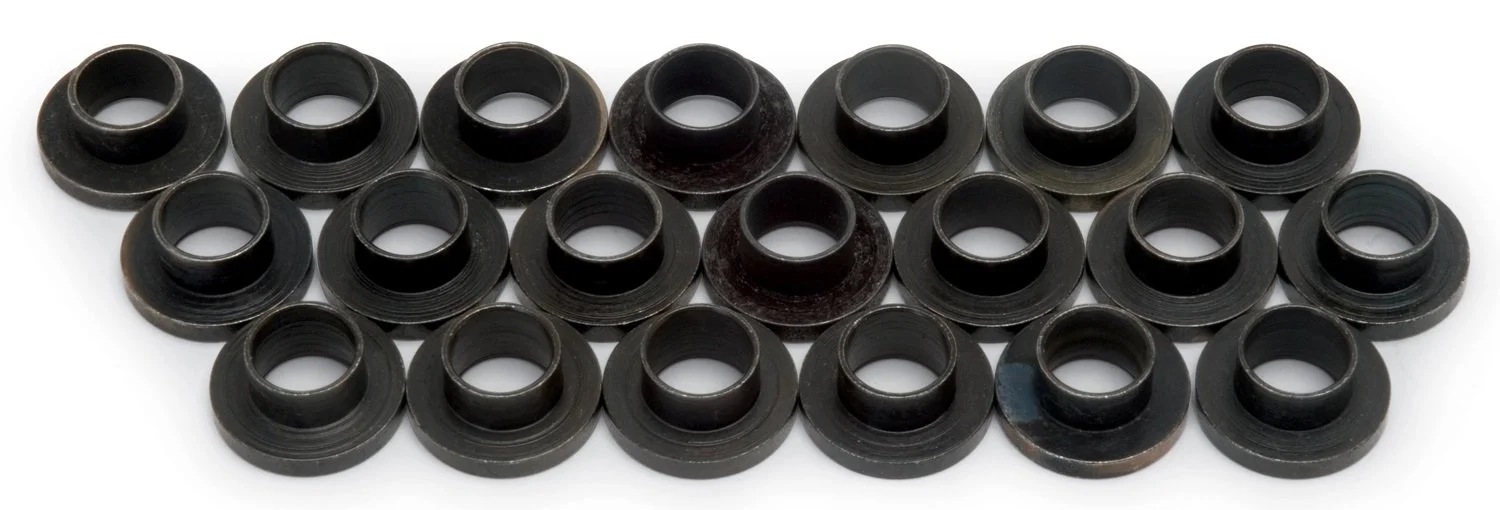

Edelbrock 9680 Head Bolt Bushing Kit - 20 per Pack , Black
Edelbrock 9680 Head Bolt Bushing Kit — set of 20 alloy steel, hardened and chamfered bushings with black zinc finish; designed to replace head bolt washers for stock or aftermarket heads.
Non-returnable
$98.95
Customize
UPC
85347096800 Available Quantity
2 GSA Item
No GSA Compliant
Yes Product Details
The Edelbrock head bolt bushing kits allow you to use stock or aftermarket head bolts with Edelbrock or other aftermarket cylinder heads. They take the place of your head bolt washers and are hardened and chamfered. They are made of steel and come with a rich black zinc finish. The washer has an outside diameter of 0. 500 and an inside diameter of 0. 438. They are available as a set of 20. Package Weight: 90.72 grams. Package Dimensions: 4.06 H x 16.76 L x 14.48 W (centimeters). Fit Type: Vehicle Specific. Included Components: Edelbrock. Warranty Description: 90 Day Manufacturer. Finish Types: Zinc. Material: Alloy Steel. Thread Size: 3/8"-16 UNC. Number of Pieces: 20.
- Package Weight: 90.72 grams
- Country of Origin : United States
- Package Dimensions: 4.06 H x 16.76 L x 14.48 W (centimeters)
- Fit Type: Vehicle Specific
Specifications
Materials & Construction
- Color:Black
- Exterior Finish:Satin
- Finish Types:Zinc
- Material:Alloy Steel
- Material Type:Alloy Steel
- Metal Type:Alloy Steel
Product Details
- GTIN:085347096800
- Included Components:Edelbrock
- Item Type Name:HEAD BOLT BUSHING
- Model:9680
- Number of Pieces:20
- Part Interchange Info:9680
- Part Number:9680
- Set Name:Kit
- Size Name:Stock
- Unit Count:1.0 Count
- UPC:085347096800
Sizing & Dimensions
- Height:1.69 inches
- Length:5.91 inches
- Size:Stock
- Weight:7.76 ounces
- Width:5.19 inches
Technical Specifications
- Compatible Groove Diameter:0.44 Inches
- Fastener Size:3/8 inch
- Fastener Type:Hexagon Bolt
- Head Style:Cylinder
- Head Type:Cylinder
- Item Hardness:Grade 2
- Manufacturer Grade:Grade 2
- Screw Head Style:Cylinder
- Screw Point Style:Flat Point
- Set Screw Thread Type:Unified National Coarse (UNC)
- Thread Class:1A
- Thread Coverage:Partially Threaded
- Thread Size:3/8"-16 UNC
- Thread Style:Right Hand
- Thread Type:Unc
