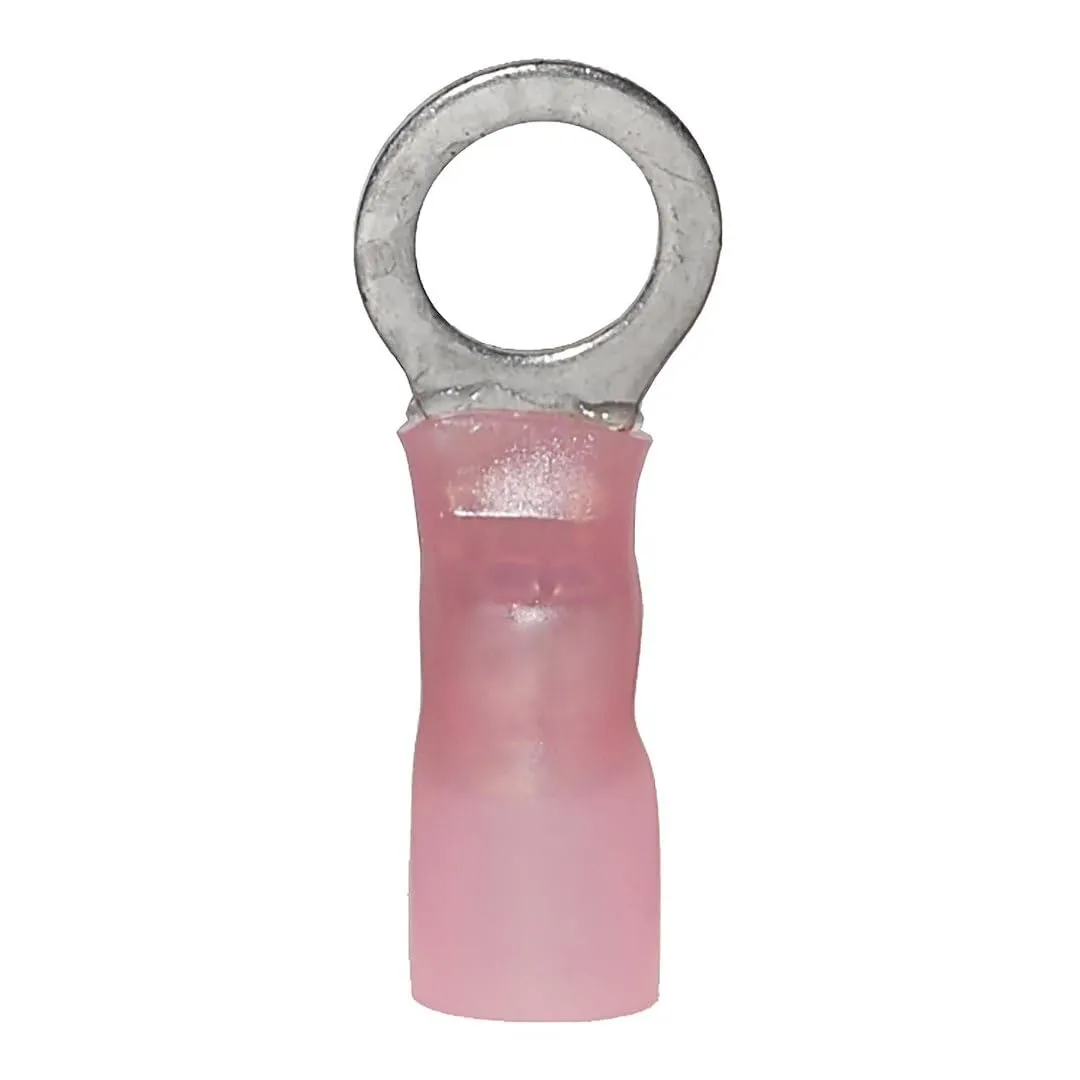

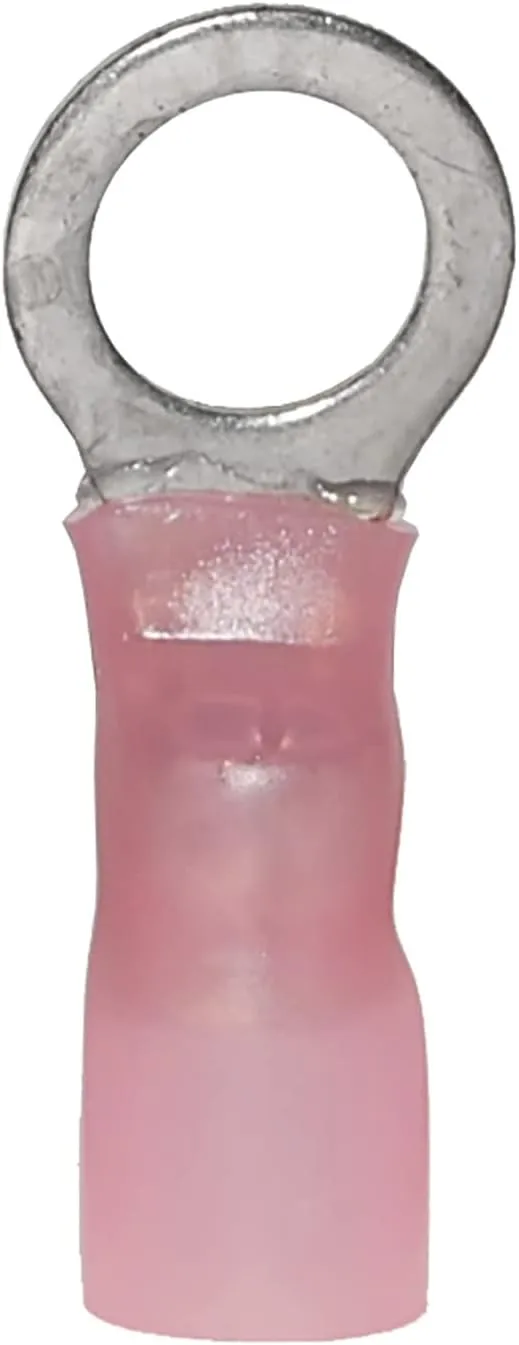

Ancor heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water-tight seal and the ultimate vibration and strain relief. Brazed seam for maximum strength, pure copper contact for maximum current flow, tinned for corrosion resistance. Gauge: 8 AWG. Heat Shrink: Yes. Package Qty: 25. Post Size: 1/2". Type: Ring Terminals. Temperature Rating: 221 degree celsius. UL recognized. Ideal for marine, automotive and industrial wiring applications.
| Materials & Construction | |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Plastic |
| Product Details | |
| Connector Type | Ring |
| Contact Material | Copper |
| Gauge | 8 Awg |
| Global Trade Identification Number | 00091887986617 |
| Heat Shrink | Yes |
| Included Components | Heat Shrink Ring Terminals (25) |
| Insulation Material | Nylon |
| Model Name | Ancor 321725 Heat Shrink Ring Terminal, #8 1/2", 25pc |
| Number of Items | 1 |
| Package Qty | 25 |
| Post Size | 1/2" |
| Size | 25 Pack |
| Specification Met | UL |
| Style | 1/2" Screw |
| Temperature Rating | 221 degree celsius |
| Terminal | Ring Terminal |
| Type | Ring Terminals |
| Unit Count | 1.0 Count |
| UPC | 091887986617 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.38 inches |
| Size | 25 Pack |
| Weight | 5.12 |
| Width | 2.69 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 221 degree celsius |
