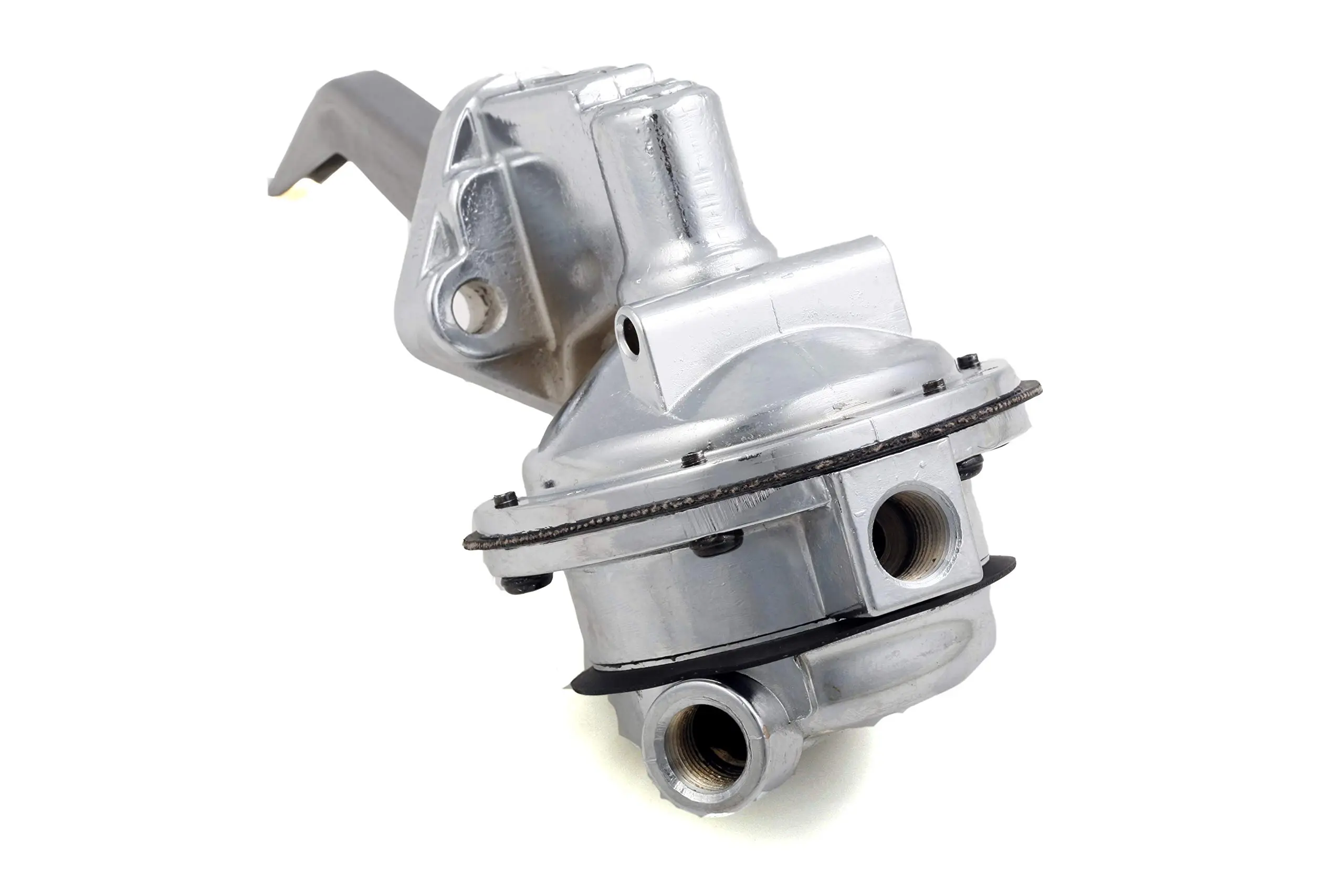

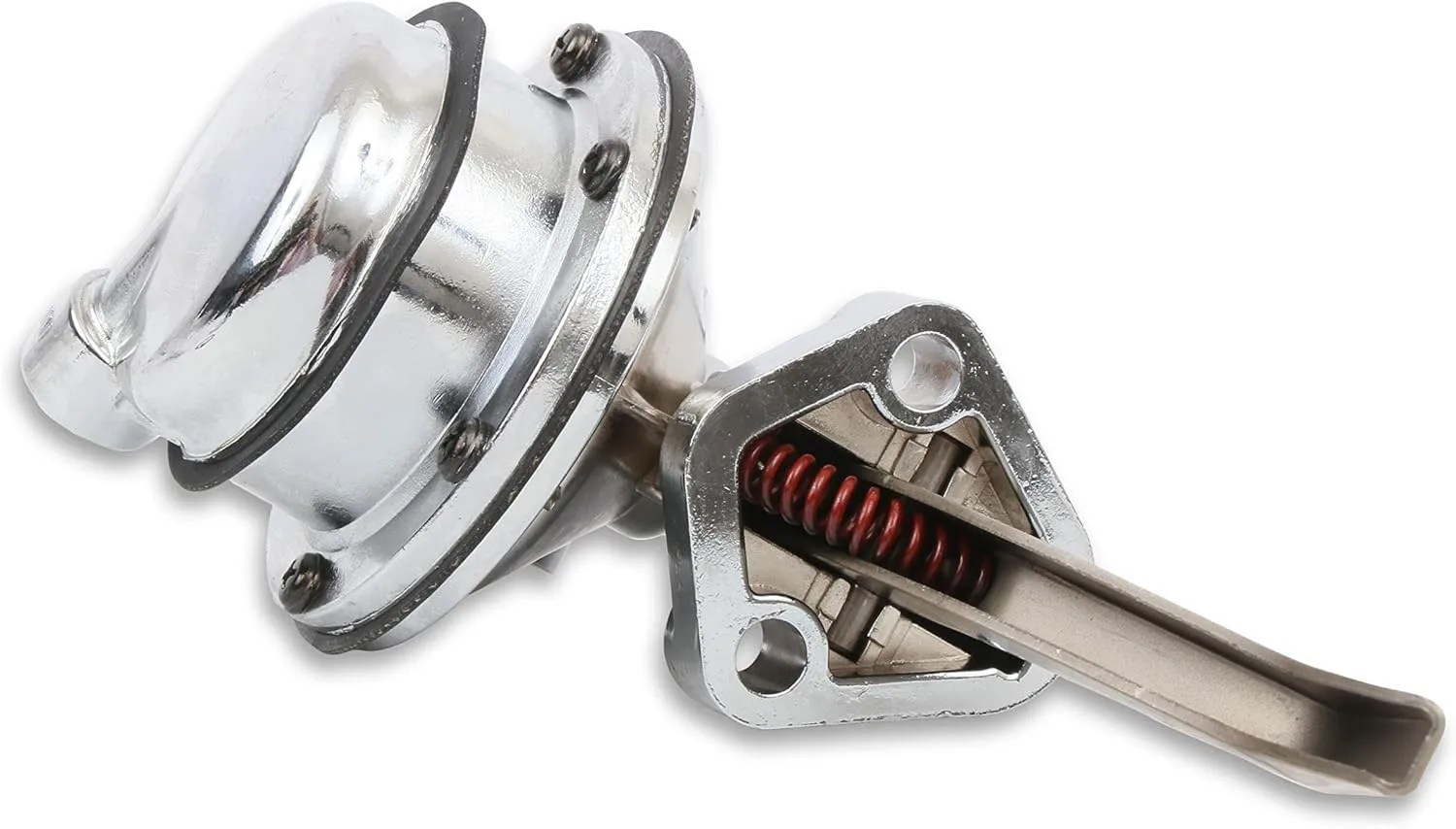

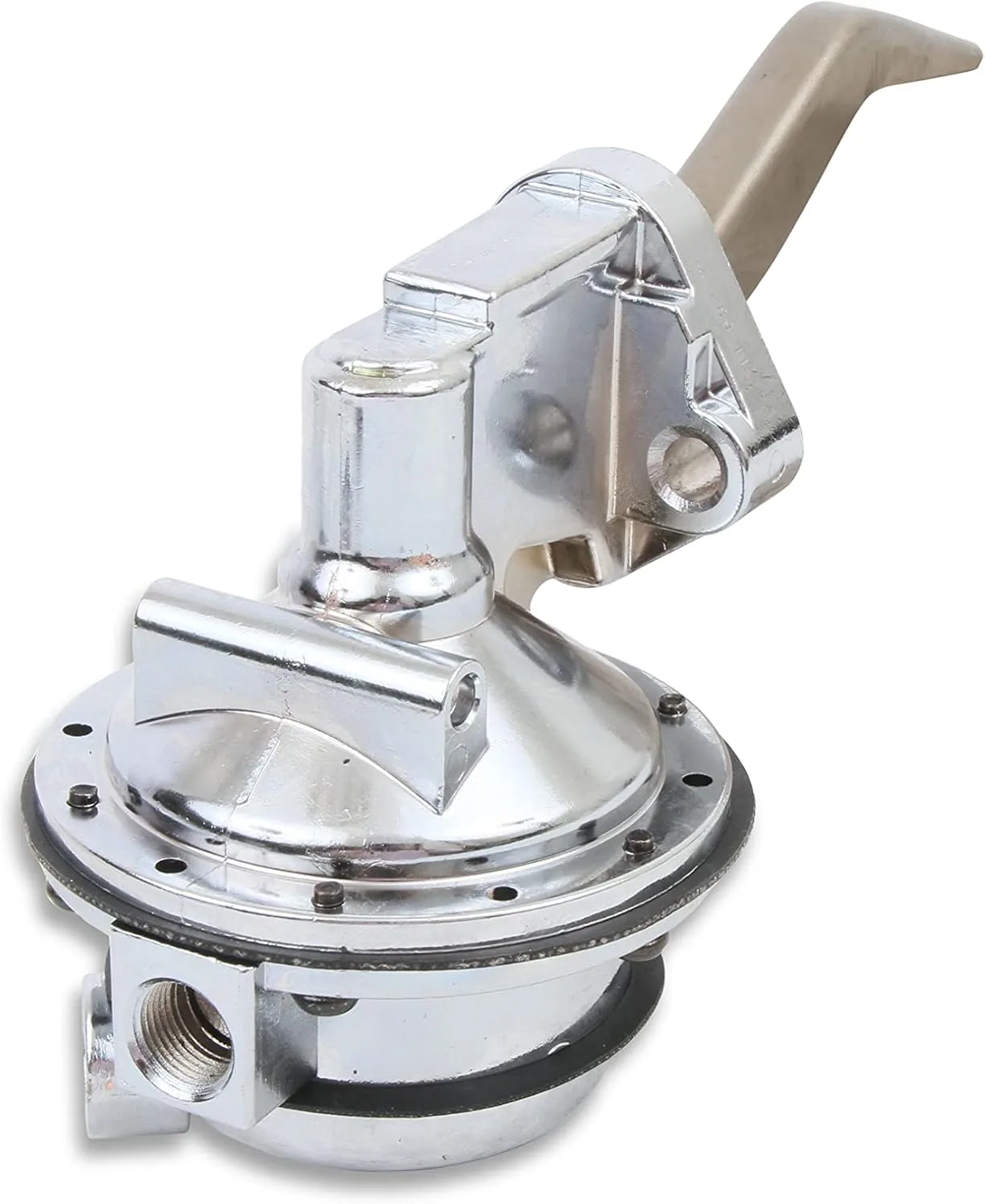

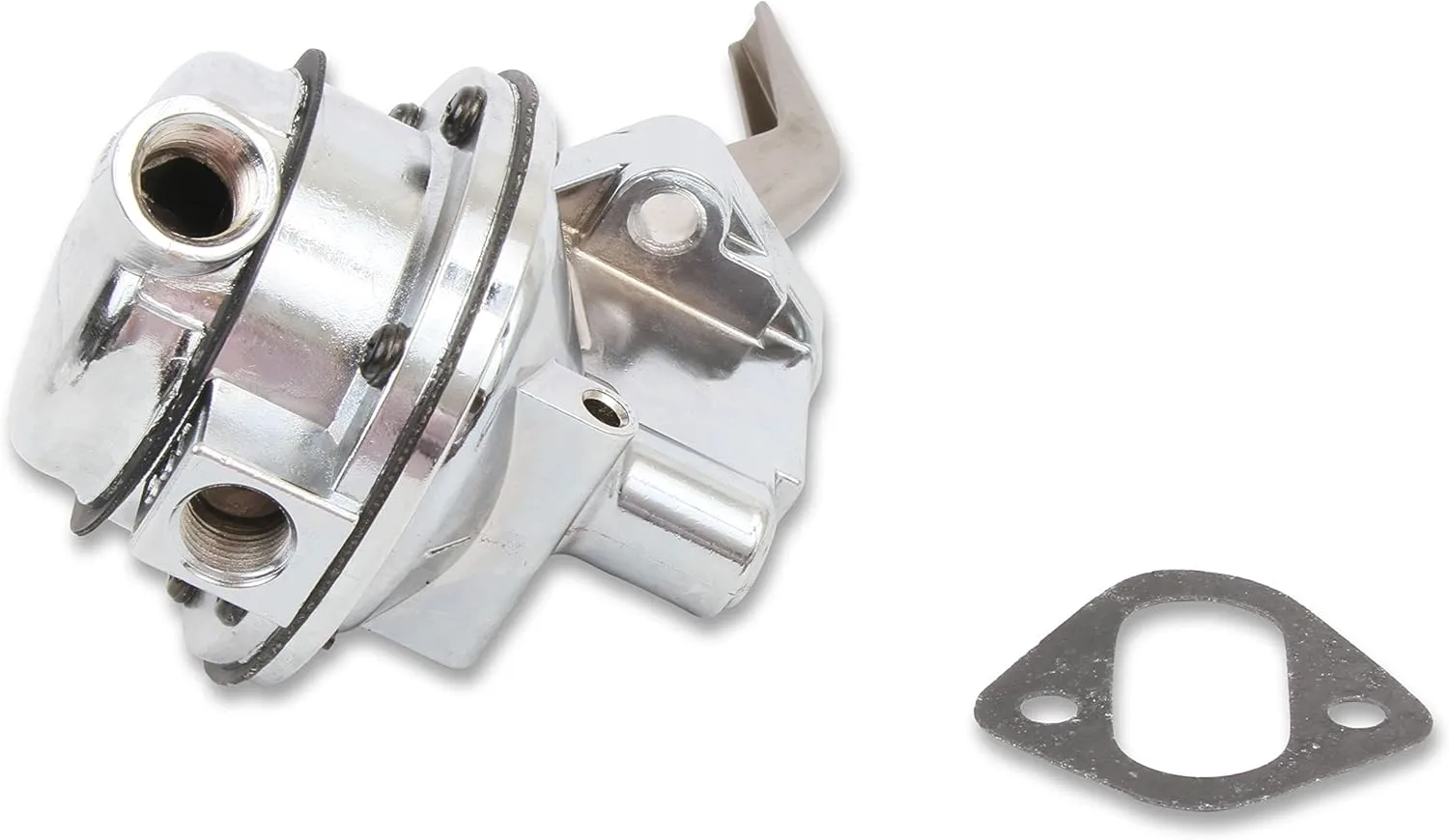

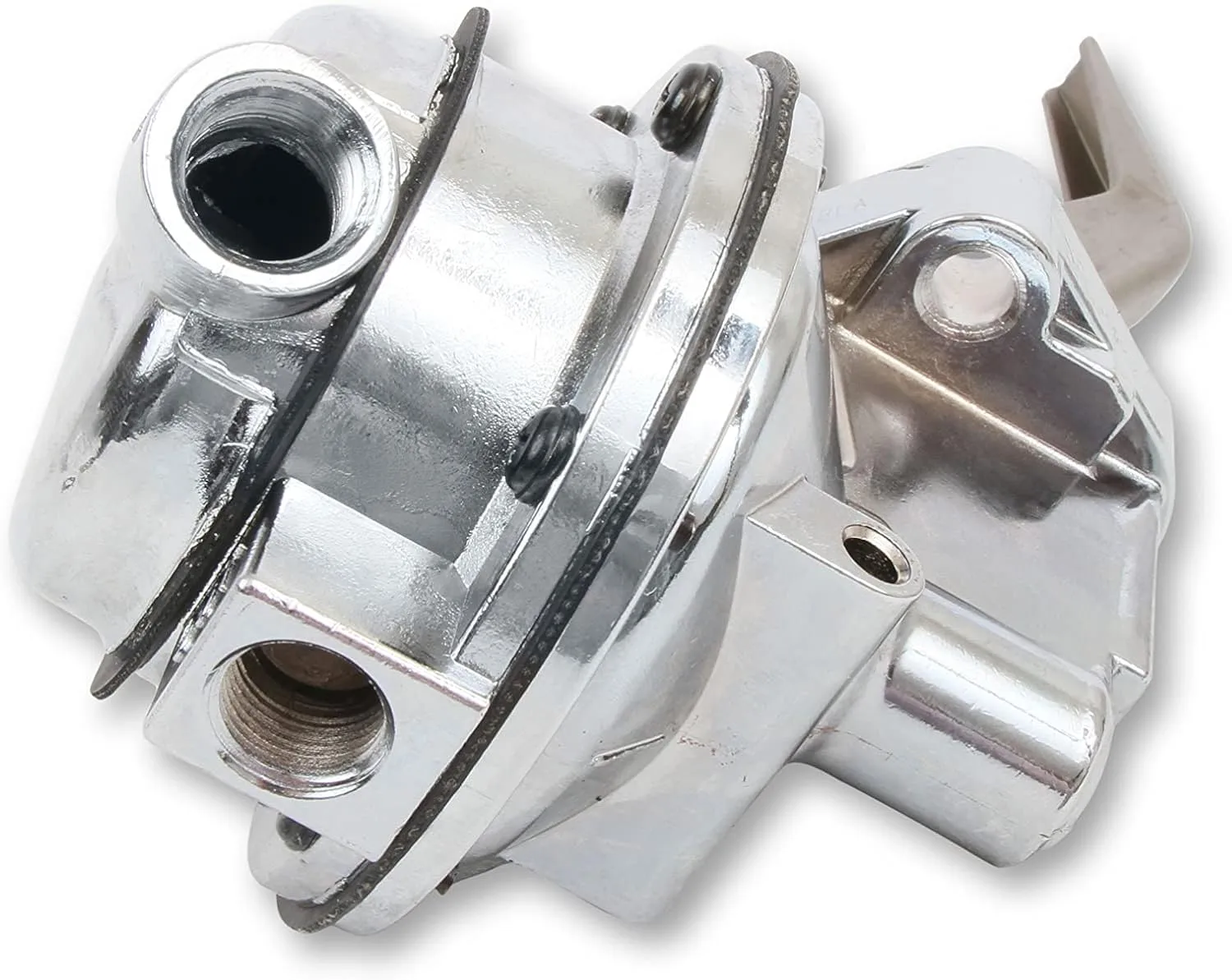

Holley 12-289-11 110 GPH Mechanical Fuel Pump
Holley 12-289-11 mechanical fuel pump, 110 GPH flow, aluminum construction, 6.5–8 psi shutoff, 3/8" NPT female inlet/outlet, tank mount for small block Ford and truck applications.
Non-returnable
$192.95
Customize
UPC
90127483923 Available Quantity
4 GSA Item
No GSA Compliant
Yes Product Details
Holley 12-289-11 mechanical fuel pump delivering 110 GPH free flow for high-output applications. Constructed of aluminum with polished finish for durability and corrosion resistance. Pre-set shutoff pressure 6.5–8 psi. Designed for tank-mount installation and compatible with many truck and small block Ford applications. Includes components as described per item and backed by a 30-day manufacturer warranty. Suitable for gasoline service and continuous high RPM operation; no external fuel pressure regulator required for normal use. Item dimensions: 10.3 x 6.3 x 4.3 inches; item weight approximately 1.69 pounds.
- Heavy duty construction for continuous high rpm operation
- Fuel pressure regulator is not required
- Shutoff pressure pre-set from 6.5 to 8 psi
- Flows 110 GPH free flow
- High output fuel flow
Specifications:
| Materials & Construction | |
| Body Material | Aluminum |
| Material | Aluminum |
| Material Type | Aluminum |
| Product Details | |
| Auto Part Position | Unknown |
| Connector Type | Barb |
| Fit Type | Vehicle Specific Fit |
| Gas Type | Gasoline |
| Included Components | Per Item Description |
| Inlet Connection Type | Hose Barb |
| Manufacturer Warranty Description | 30 Days |
| Mounting Type | Tank Mount |
| Operation Mode | Mechanical |
| Outlet Connection Type | Barb |
| Part Interchange Info | 12-289-11 |
| Product Grade | New |
| Product Style | Gerotor |
| Specification Met | Emissions Compliance |
| Unit Count | 1.0 Count |
| Vehicle Service Type | Truck |
| Sizing & Dimensions | |
| Height | 4.3 inches |
| Item Dimensions | 10.3 x 6.3 x 4.3 inches |
| Item dimensions L x W x H | 10.3 x 6.3 x 4.3 inches |
| Length | 10.3 inches |
| Product Dimensions | 10.3 x 6.3 x 4.3 inches |
| Weight | 1.69 pounds |
| Width | 6.3 inches |
| Technical Specifications | |
| Manufacturer Warranty Description | 30 Days |
| Product Style | Gerotor |
| Specification Met | Emissions Compliance |
