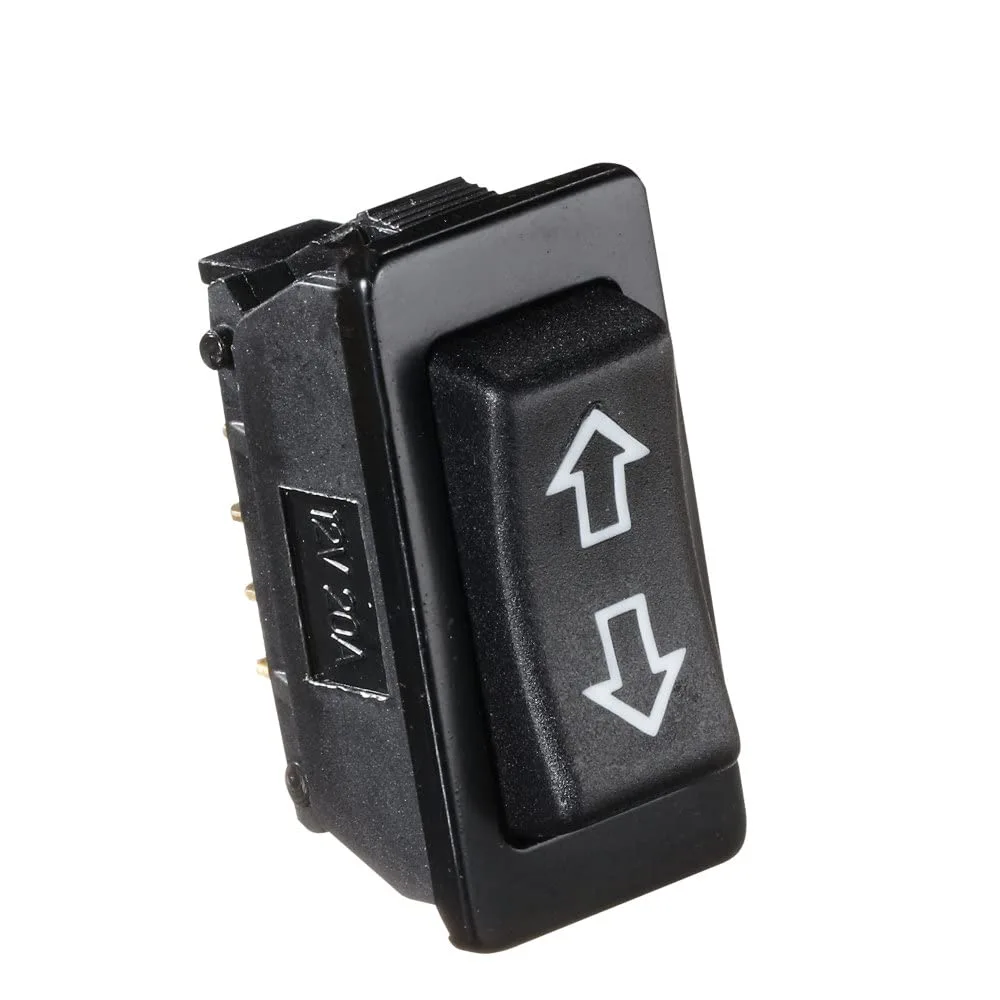

RV Designer S125 Rocker Switch 20 Amp Continuous 40 Amp Peak Black
Customize
The RV Designer S125 Rocker Switch is a panel-mount rocker switch designed for RV and automotive replacement applications. Model S125 features an ABS (Acrylonitrile Butadiene Styrene) housing with copper contact material, a rocker actuator, blade terminals and a crimp connector type. It is marketed as a 20 Amp continuous / 40 Amp peak rated switch (marketing/packaging), operates at 12 Volts, and includes 5 terminals with a recommended cutout of 1.52 inches. The switch measures approximately 4.81 x 1.25 x 2.66 inches (L x H x W) and has an item weight of 0.06 pounds. Additional specifications include IP00 protection rating, CE specification met, single position rocker actuator, panel mount installation, 1-way circuit type, ON-OFF operation mode, and an operating wattage listed as 240 watts. The product typically ships as a single unit and includes the rocker switch component. Suitable for replacement or upgrade installations in RVs and other automotive applications.
- Black
- Cutout: 1.52

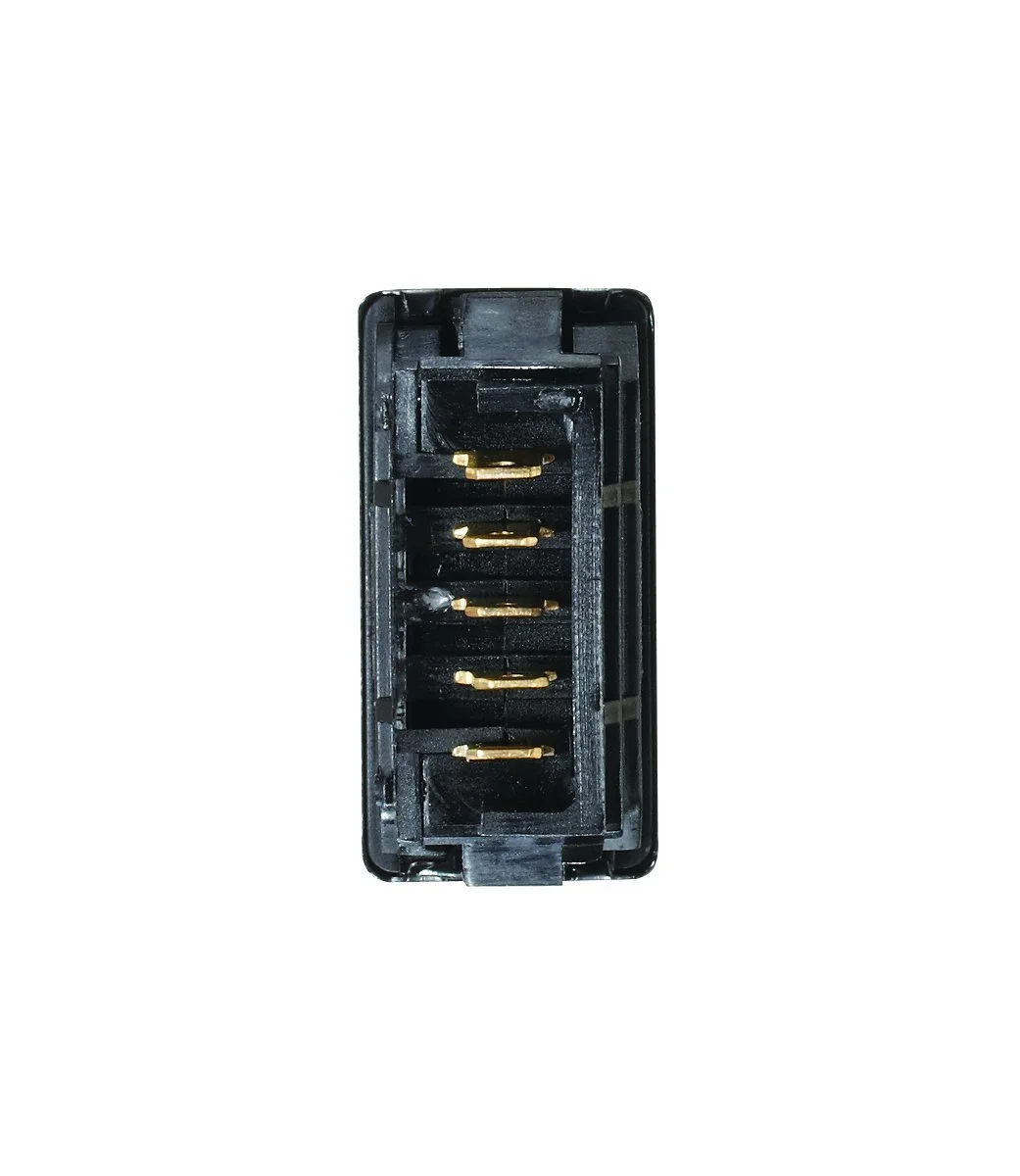

- 5 Terminals
- Brand: RV Designer Collection
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Copper |
| Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Included Components | Rocker Switch |
| Item Type Name | RV Designer Collection S125 Rocker Switch 20A 5 Pin Black |
| Model | S125 |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Terminal | Blade |
| Wattage | 240 watts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 1.25 x 2.66 inches |
| Weight | 0.96 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Current Rating | 1 Amps |
| International Protection Rating | IP00 |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Specification Met | CE |
| Switch Type | Rocker |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
