Blue Sea Systems 7725 Safety HUB Fuse Block 100 RBS
Blue Sea Systems 7725 Safety HUB fuse block—panel-mount copper construction that consolidates up to seven fused circuits. 200A current rating, ideal for marine 12V electrical systems.
Non-returnable
$193.35
Customize
UPC
632085077259 Available Quantity
4 GSA Item
No GSA Compliant
Yes Product Details

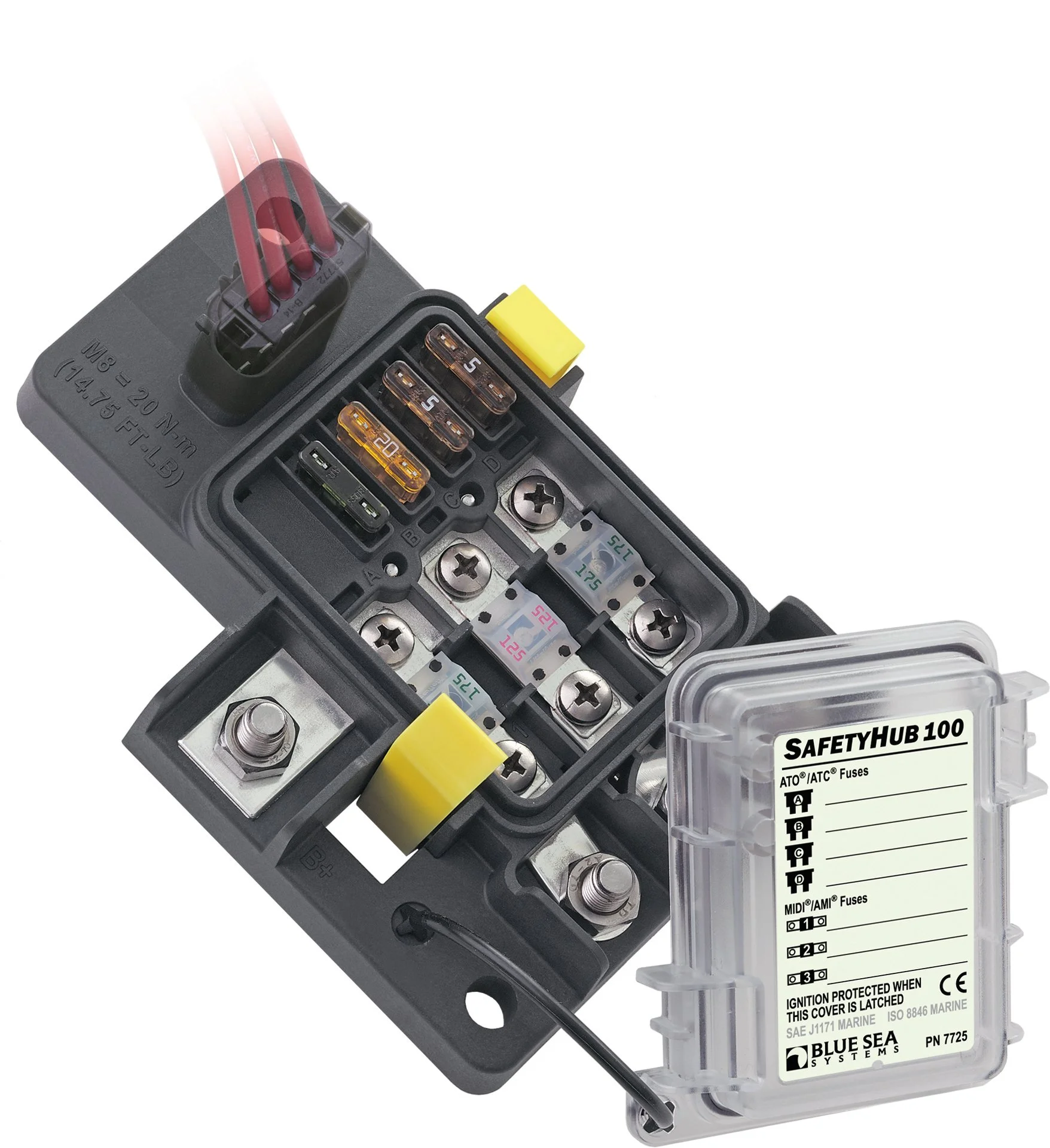

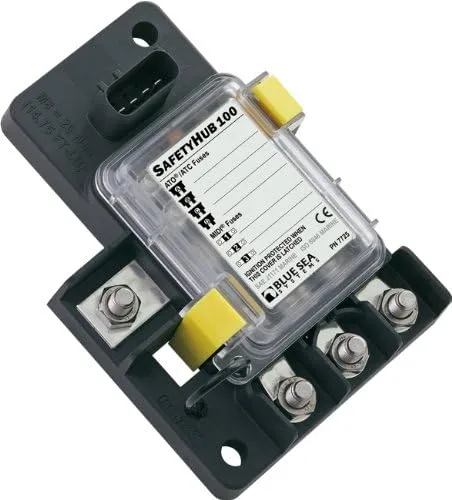

Blue Sea Systems 7725 Safety HUB Fuse Block 100 RBS (Safety Hub 100) combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats and reduces wiring connections while consolidating up to seven fused circuits. The unit includes three high-amp MIDI/AMI fuses and four ATO/ATC fuses suitable for a range of circuits including panel feeds, windlasses, stereo amplifiers, bilge pumps, alarms and clock memory. Constructed with copper components and designed for panel mounting, the 7725 Safety HUB meets industry standards for 12v, 24v, and 32v electrical systems. Unit Count: 1. Included Components: SAFETY HUB FUSE BLOCK 100 RBS. Warranty: LIMITED WARRANTY.
- Combines an ignition protected fuse block and an integrated connecting plug
- Three 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses and stereo amplifiers
- Four 1A-200A ATO/ATC fuses- ideal for circuits including bilge pumps, alarms and clock memory
- Safe for use on gasoline powered boats, reduces wiring connections and consolidates up to seven fused circuits
Specifications:
| Materials & Construction | |
| Color | black |
| Material | Copper |
| Material Type | Copper |
| Product Details | |
| Included Components | SAFETY HUB FUSE BLOCK 100 RBS |
| Item Dimensions | 3.9"W x 2.2"H |
| Item Type Name | SAFETY HUB FUSE BLOCK 100 RBS |
| Model | 7725 |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 4.3 inches |
| Length | 11.5 inches |
| Weight | 3.2 pounds |
| Width | 9.0 inches |
| Technical Specifications | |
| Connector | Screw |
| Connector Type | Screw |
| Current Rating | 200 Amps |
| Mounting Type | Panel Mount |
| Number Of Contacts | 7 |
| Number Of Poles | 7 |
| Number of Positions | 7 |
| Specification Met | Meets Industry Standards for 12v, 24v, and 32v Electrical Systems |
| Voltage | 12 Volts |
| Warranty & Misc | |
| Specification Notes | Meets Industry Standards for 12v, 24v, and 32v Electrical Systems |
