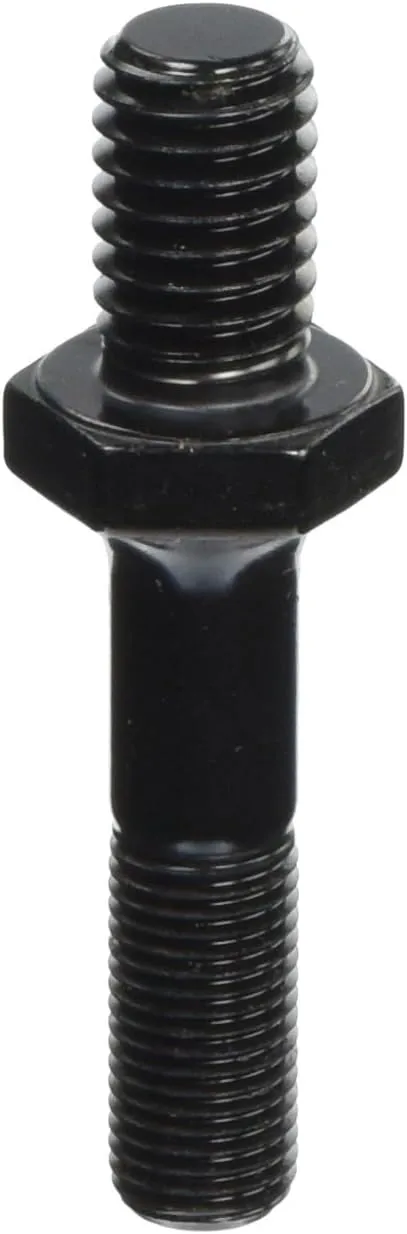

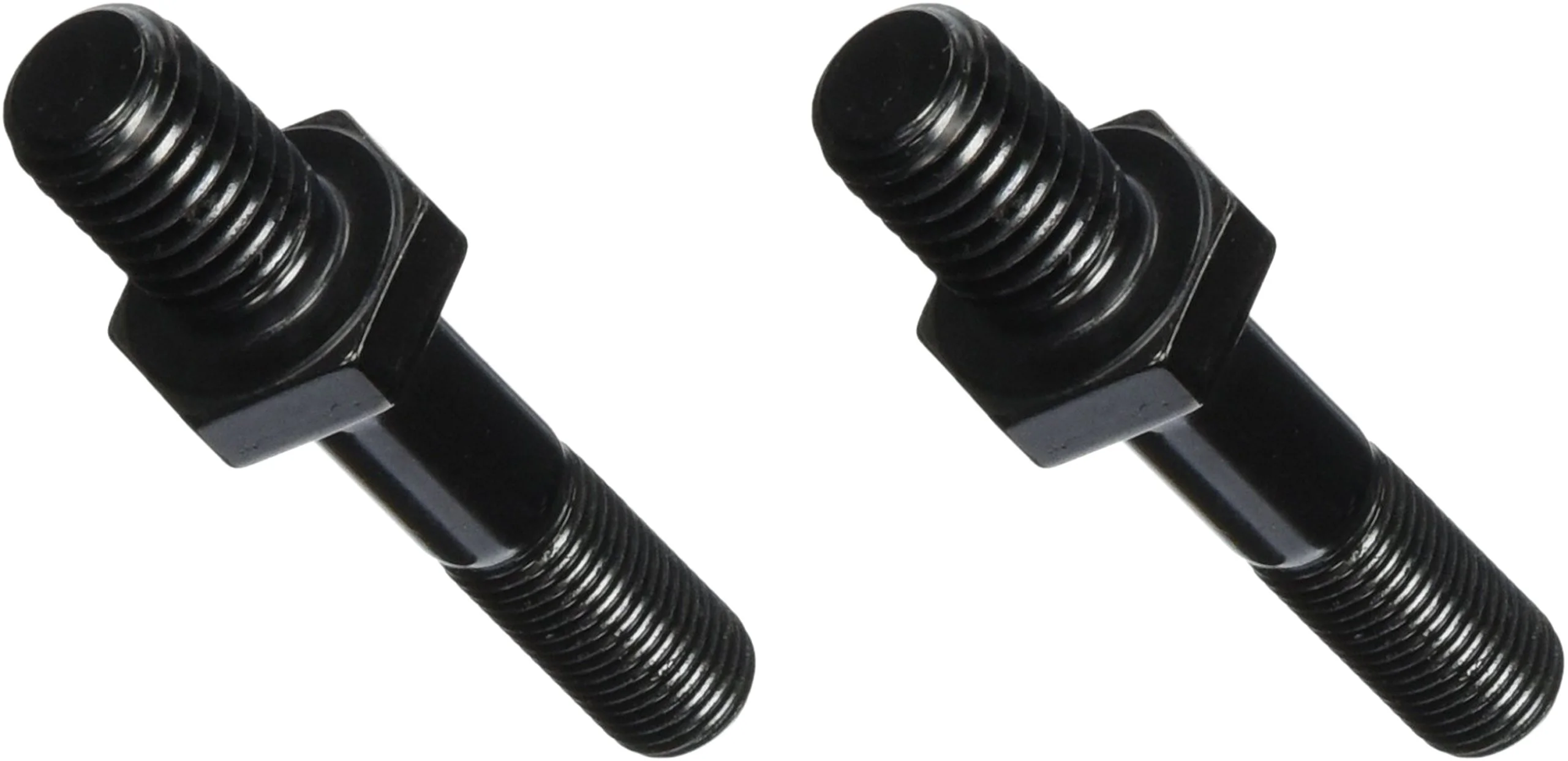

ARP Rocker Arm Stud, High Performance Series, 7/16-14 Base, 3/8-24 Top, 1.750 in, Pair
Customize
ARP Rocker Arm Stud, High Performance Series, 7/16-14 in Base Thread, 3/8-24 in Top Thread, 1.750 in Effective Stud Length, Chromoly, Universal, Pair. Designed for use with ARP's patented Perma-Loc adjusters, not OEM-style self-locking nuts. Stud dimensions are: 1.750 overall stud height, .700 screw-in thread depth, .800 adjuster thread depth, 3/8-24 shank diameter and thread, and 7/16-14 base diameter and thread. Made from 8740 chrome moly forgings and heat treated to 180,000 psi; excellent for E.T. Bracket Racing, limited rule oval track competition, and street use. Lengths are exact, designed to provide positive seating every time. Manufactured to high tolerances so they run-in straight and true, and the extra-large radius base offers greater resistance to flex.
- Designed for use with ARP's patented Perma-Loc adjusters, not OEM-style self-locking nuts
- Stud dimensions are: 1.750 overall stud height, .700 screw-in thread depth, .800 adjuster thread depth, 3/8-24 shank diameter and thread, and 7/16-14 base diameter and thread
- Made from 8740 chrome moly forgings and heat treated to 180,000 psi; excellent for E.T. Bracket Racing, limited rule oval track competition, and street use
- Lengths are exact, designed to provide positive seating every time
- Manufactured to high tolerances so they run-in straight and true, and the extra-large radius base offers greater resistance to flex
Specifications:
| Materials & Construction | |
| Compatible Groove Diameter | 0.38 Inches |
| Material | Alloy Steel |
| Material Type | Alloy Steel |
| Product Details | |
| Exterior Finish | Painted |
| Fastener Size | 7/16-14 |
| Fastener Type | Stud Bolt |
| Finish Types | Black |
| Head Style | Oval |
| Included Components | Hardware - Singles |
| Item Type Name | Hardware - Singles |
| Number of Pieces | 2 |
| Part Interchange Info | 134-7121 |
| Screw Head Style | Oval |
| Set Name | Pair |
| Size Name | Stock |
| Thread Coverage | Fully Threaded |
| Thread Style | Right Hand |
| Thread Type | Unc |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 4 x 0.75 inches |
| Product Weight | 0.2100 pounds |
| Size | 1.750 in effective stud length |
| Weight | 3.36 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Grade Rating | Class 8.8 |
| Item Hardness | Grade 12.9 |
| Maximum Shear Strength | 180,000 psi |
| Thread Class | 3A |
| Warranty | Manufacturer warranty |
