Atwood 91230 White Dual Panel Switch Kit
Customize

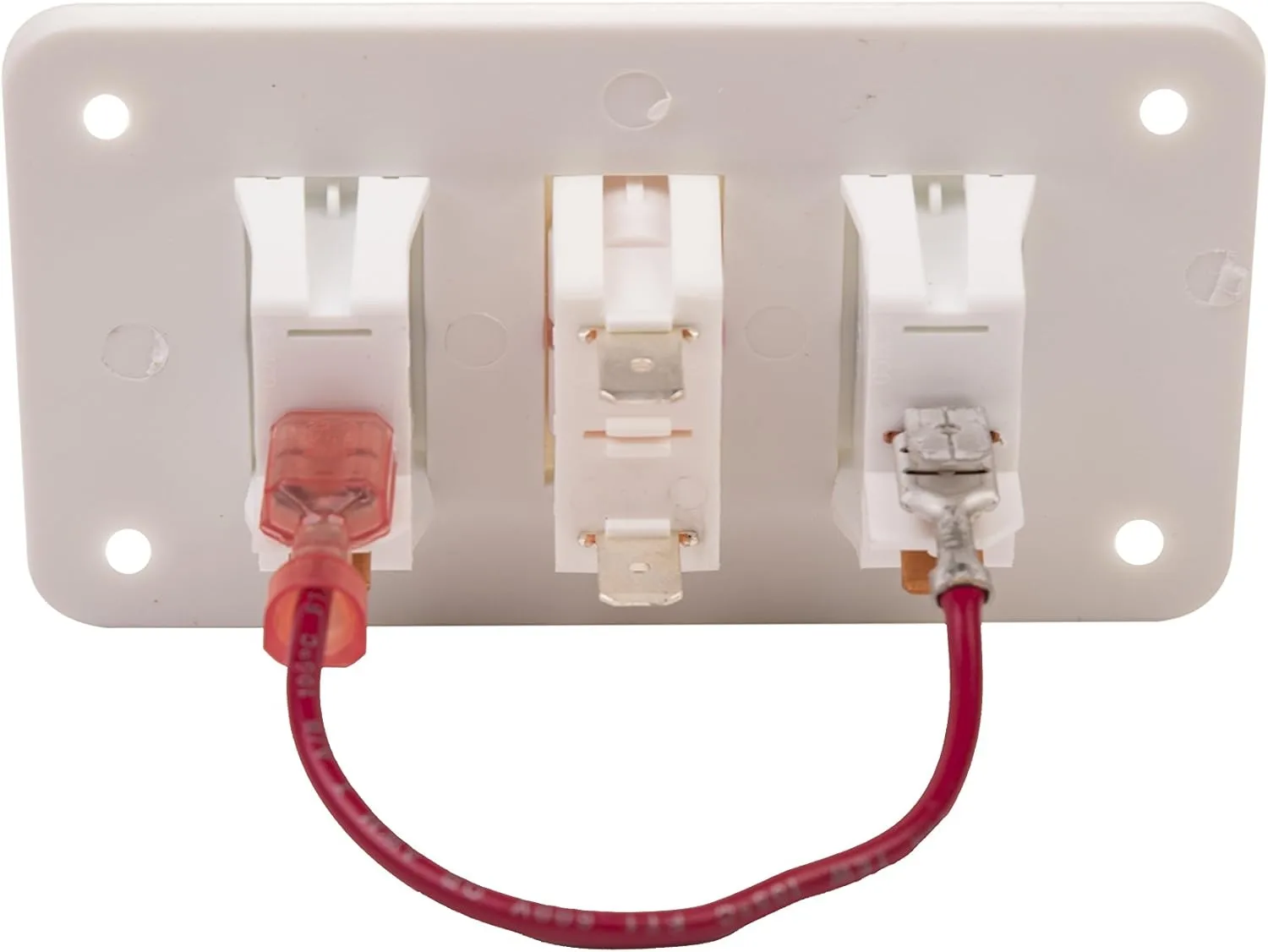

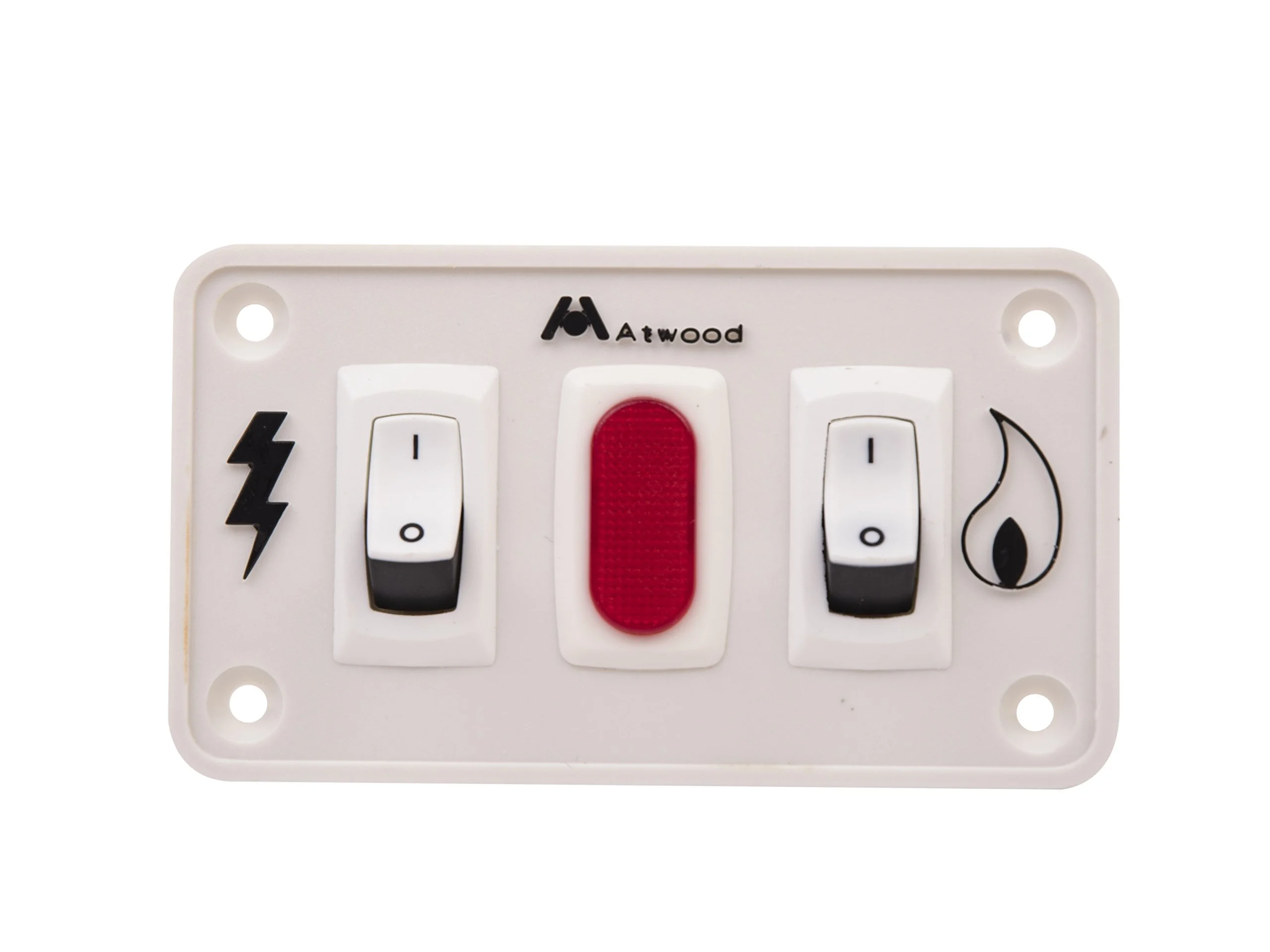

The Dometic/Atwood 91230 White Dual Panel Switch Kit is a compact, RV-grade electronic switch assembly designed for interior furniture and hardware applications. Engineered for reliability in recreational vehicles, the kit features a white ABS (Acrylonitrile Butadiene Styrene) housing, push-button switch operation, screw terminals for secure wiring, and contact materials of copper, brass, and silver. Rated at 120 Volts AC and 1 Amp, it supports 2-way circuit configurations and touch control methods with compatibility for X-10 connectivity. The kit includes the Atwood Mobile Products 91230 switch panel, mounting hardware for wall installation, and meets certifications such as CSA, ETL, FCC, UL, and cULus. With compact item dimensions (4 x 2.25 x 2 inches) and a lightweight design, this dual switch panel is suited to RV interior installations where dependable, low-current switching is required. EU spare parts availability is 5 years. Package dimensions are approximately 13.97 cm x 19.812 cm x 5.08 cm (5.50 x 7.80 x 2.00 inches) and package weight is about 0.2 pounds.
- package weight :0.2lbs
- country of origin :United States
- Package dimensions :13.97 cm L x19.812 cm W x5.08 cm H
- Product type :ELECTRONIC SWITCH
Specifications:
| Materials & Construction | |
| Color | White |
| Connector Type | Screw |
| Contact Material | Copper, Brass, Silver |
| Material | Acrylonitrile Butadiene Styrene |
| Material Type | Acrylonitrile Butadiene Styrene |
| Terminal | Screw |
| Product Details | |
| EU Spare Part Availability Duration | 5 Years |
| Global Trade Identification Number | 00692931912301 |
| GTIN | 692931912301 |
| Included Components | Atwood Mobile Products 91230 Kit, Switch Panel Dual White |
| International Protection Rating | IP00 |
| Item Type Name | Atwood Mobile Products 91230 Kit, Switch Panel Dual White |
| Model | 91230 |
| Number of Items | 1 |
| Specification Met | CSA, ETL, FCC, UL, cULus |
| Unit Count | 1.0 Count |
| UPC | 692931912301 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions | 4 x 2.25 x 2 inches |
| Item dimensions L x W x H | 4 x 2.25 x 2 inches |
| Length | 4 inches |
| Package Dimensions | 5.50 x 7.80 x 2.00 inches |
| Weight | 0.64 ounces |
| Width | 2.25 inches |
| Technical Specifications | |
| Actuator Type | Hinge Lever |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Ring |
| Current Rating | 1 Amps |
| Lower Temperature Rating | 1 Degrees Celsius |
| Mounting Type | Wall Mount |
| Number of Positions | 1 |
| Operating Voltage | 120 Volts (AC) |
| Operation Mode | Electronic |
| Switch Type | Push Button |
| Upper Temperature Rating | 1 Degrees Celsius |
