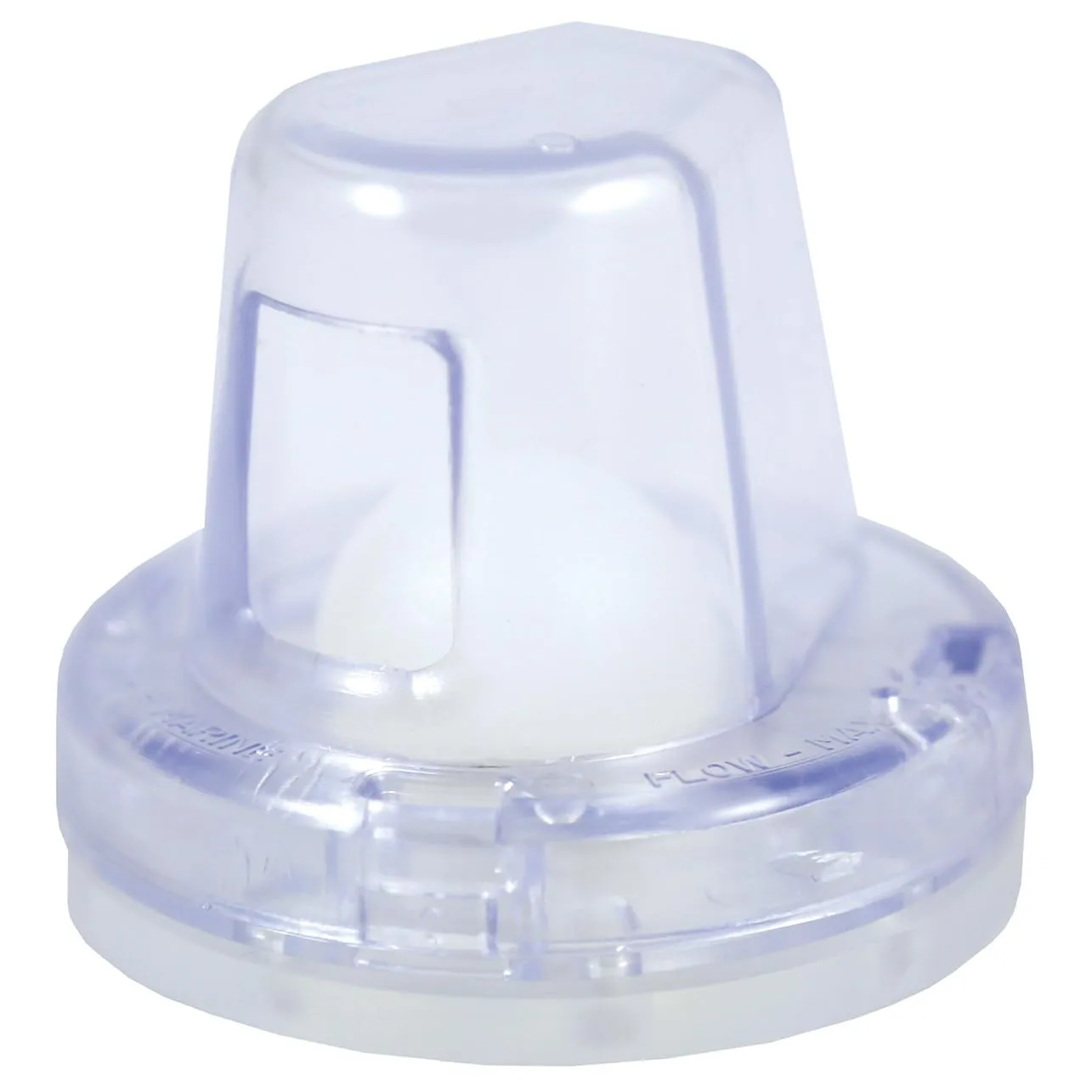

T-H MARINE Flow-Max Boat Self-Bailing 3" dia. x 2.5" h
T-H Marine Flow-Max self-bailing ball scupper for boats — 3" diameter x 2.5" high. Durable plastic construction, easy twist-off cleaning, improved drainage and retro-fit mounting options.
Non-returnable
$15.88
Customize
UPC
733572042610 Available Quantity
11 GSA Item
No GSA Compliant
Yes Product Details
T-H Marine Flow-Max Boat Self-Bailing scupper (Model FMS-1-0-DP) is a self-draining, ball-style scupper designed to keep cockpit and deck areas dry. The neutral buoyancy ball provides a tight seal to prevent backflow while offering a larger exit for up to 70% more drainage than many competitors. Features include a twist-off design for easy cleaning, multiple mounting openings for quick retrofits, and a slotted scupper seal to fit over 1-1/8" motorwell tubes with an included safety screw. Constructed from durable plastic with a machined exterior finish. Ideal for replacing worn flapper scuppers and improving drainage efficiency on small craft. UPC: 733572042610. Manufacturer warranty: 1 Year Manufacturer.
- Installation - scupper seal is slotted to fit over 1-1/8" motorwell tubes and includes a safety screw to keep valve in place - installation will require tapered head screws
- Easy Cleaning - self-draining scupper features a new twist-off design that makes cleaning out excess debris a snap
- Keep Your Cockpit and Deck Dry - boat scupper ball uses neutral buoyancy to ensure a tight seal and eliminate the possibility of water flowing back into the drainage lines
- Improved Drainage - self bailing scupper drain features a larger exit hole that offers up to 70% more drainage than other boat scuppers
- Replace Worn Out Flapper Scuppers - the Flow Max ball scupper features multiple mounting openings to make retrofits quick and easy - no filling holes or re-drilling
Specifications:
| Materials & Construction | |
| Exterior Finish | Machined |
| Material | Plastic |
| Material Type | Plastic |
| Product Details | |
| Connector Type | Threaded |
| Exterior Finish | Machined |
| Global Trade Identification Number | 00733572042610 |
| Included Components | Main component only |
| Inlet Connection Size | 1.25 Inches |
| Inlet Connection Type | Slip Fit |
| Item Type Name | Scupper |
| Manufacturer Warranty Description | 1 Year Manufacturer |
| Number of Ports | 2 |
| Outlet Connection Size | 1.13 Inches |
| Outlet Connection Type | Slip Fit |
| Thread Size | 1.25 inches |
| Thread Type | NPT |
| Unit Count | 1.0 Count |
| UPC | 733572042610 |
| Valve Type | Ball Valve |
| Sizing & Dimensions | |
| Height | 8.75 inches |
| Item dimensions L x W x H | 3 x 4.75 x 8.75 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 4.75 x 8.75 inches |
| Product Weight | 0.23 pounds |
| Size | 3" dia. x 2.5" h |
| Weight | 3.68 ounces |
| Width | 4.75 inches |
| Technical Specifications | |
| Included Components | Main component only |
| Manufacturer Warranty Description | 1 Year Manufacturer |
| Unit Count | 1.0 Count |
