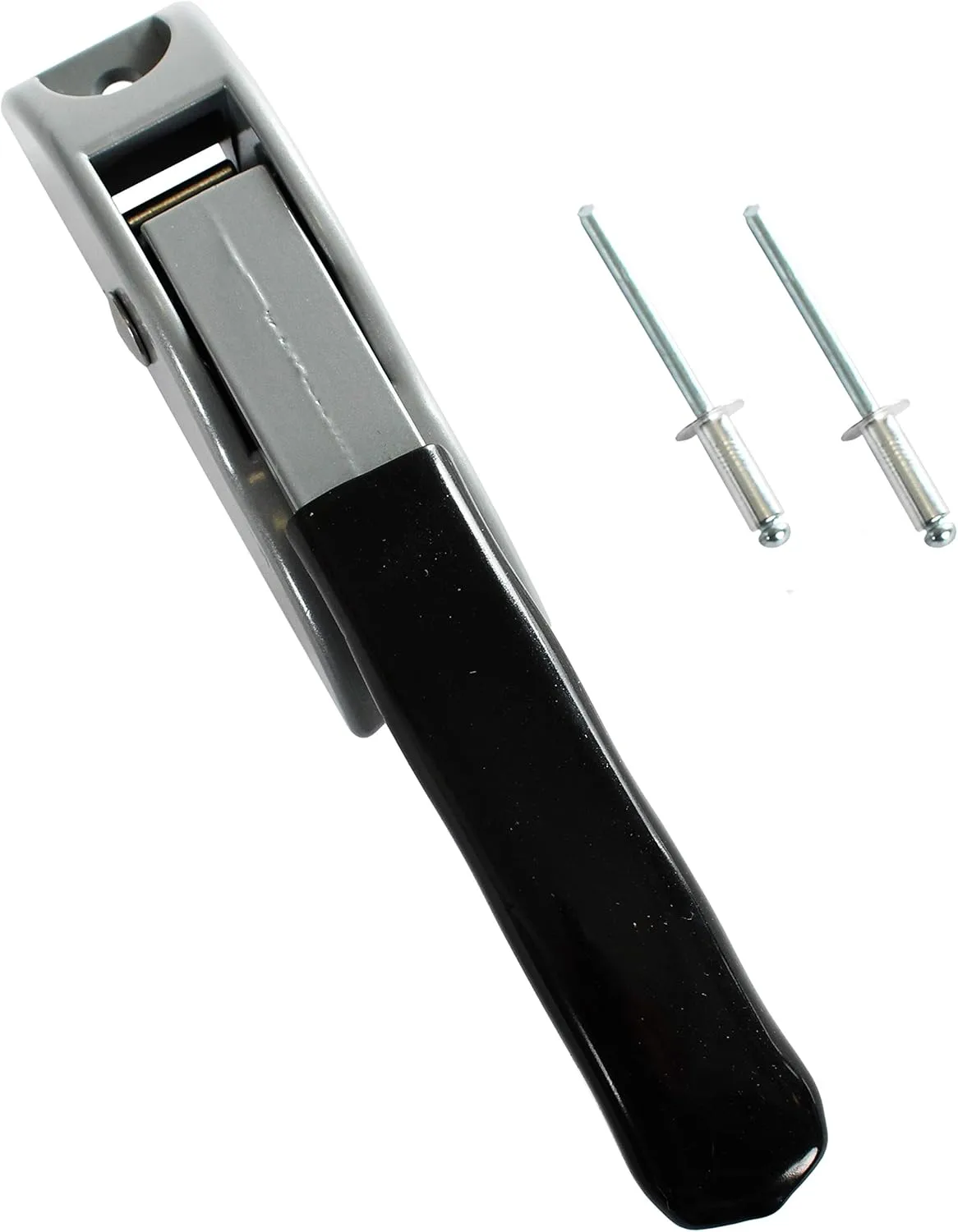

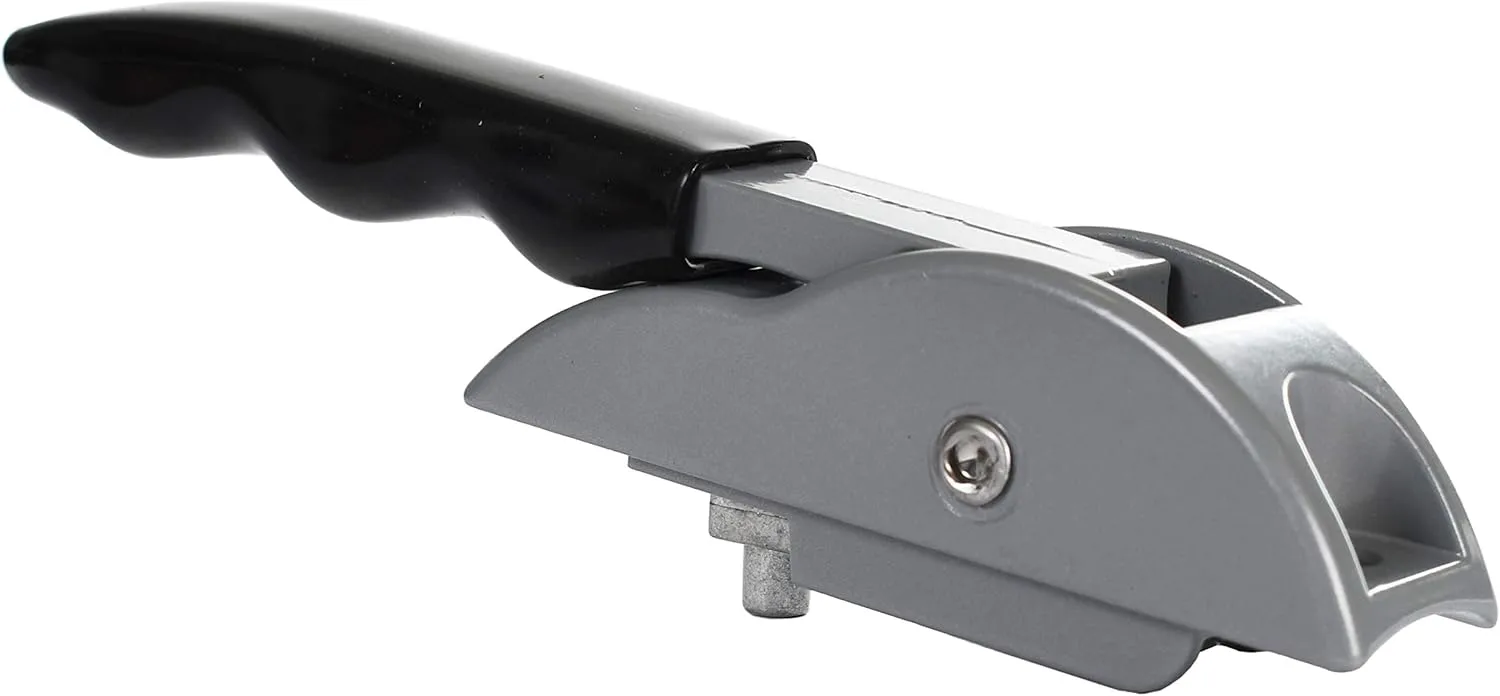

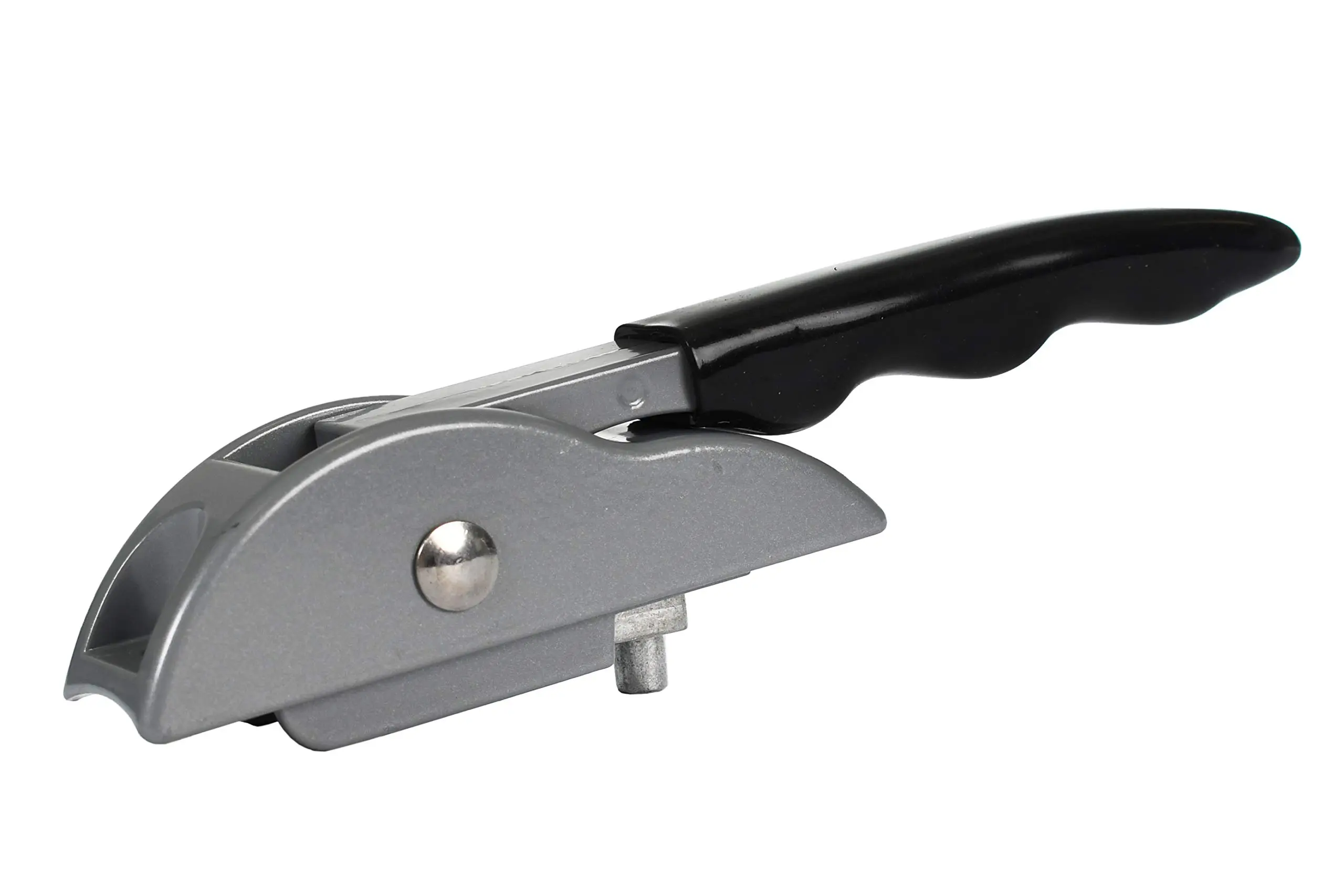

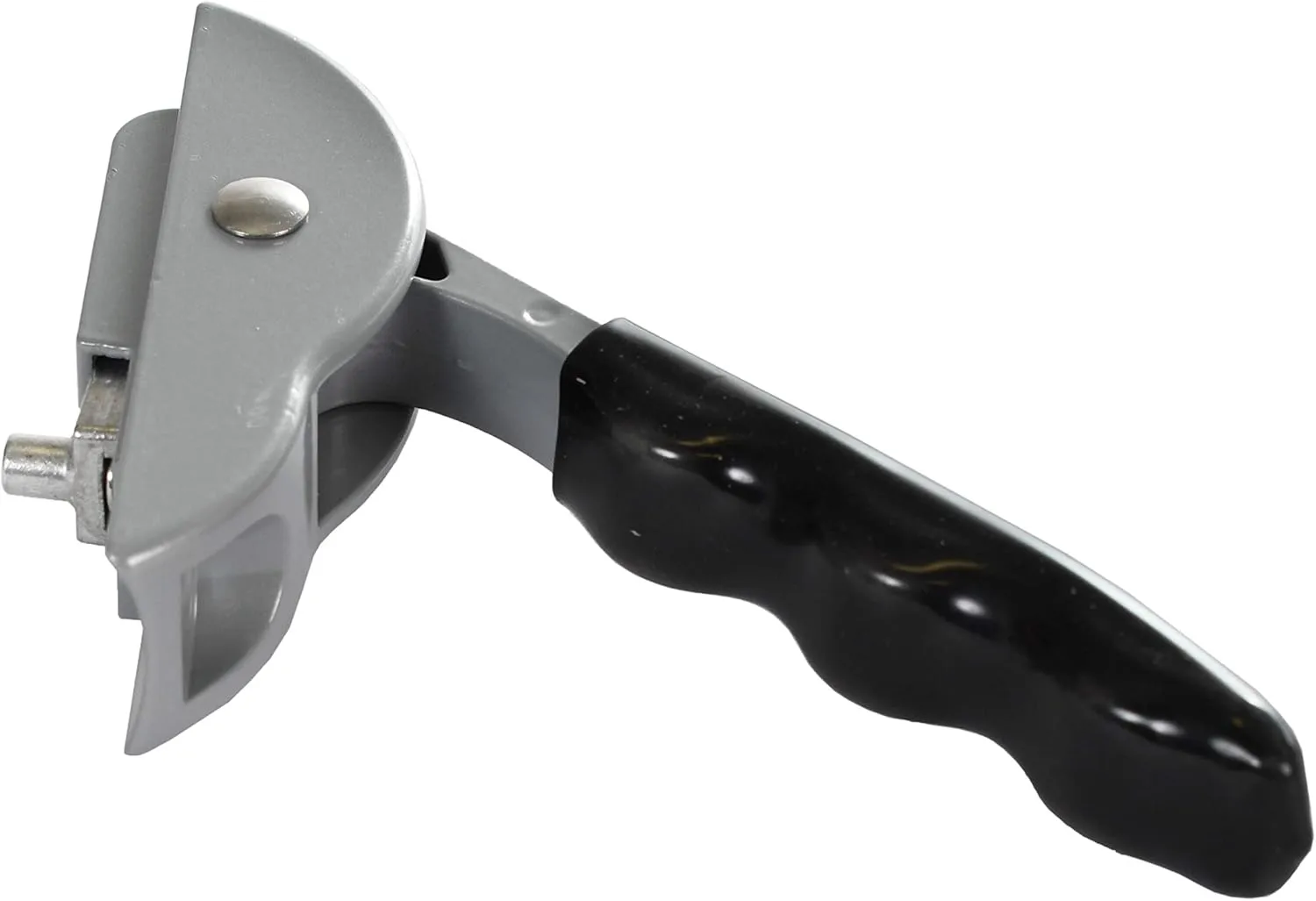

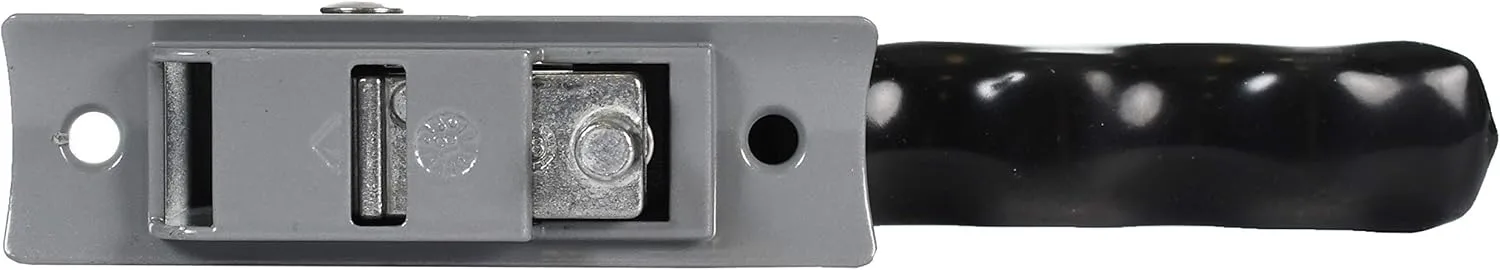

Dometic A&E Awning Lift Handle replacement kit. Contains one lift handle, two 3/16" pop rivets and one hex nut for secure installation. The handle features an ergonomic vinyl-coated grip and painted finish to deter rust and corrosion. Designed to replace lift handles on Dometic and A & E Models 8500 & 9000 manual operation patio awnings. Installation Instructions: 1. Drill out rivets of existing handle using a 3/16" bit or remove screws. 2. Place new lift handle in punched slot of main arm and align rivet holes. 3. Insert rivet through hole in main arm. 4. Place hex nut over rivet shaft and tight against riven shoulder. If nut is not used, rivet will not seat properly for securing. 5. Secure handle by pulling rivet tight with pop rivet gun. 6. Repeat steps 3-5 on second rivet.
| Materials & Construction | |
| Color | Black, Gray |
| Handle Material | Vinyl |
| Material | Vinyl |
| Product Details | |
| Additional Features | Durable |
| Exterior Finish | Painted Vinyl Finish |
| Finish Types | Painted |
| Hand Orientation | Ambidextrous |
| Included Components | Installation Hardware |
| Shape | Rectangular |
| Specific Uses For Product | Awning |
| Style | Modern |
| Sizing & Dimensions | |
| Height | 0.7700 inches |
| Length | 8.0000 inches |
| Product Dimensions | 8 x 4 x 0.77 inches |
| Weight | 1.0000 pounds |
| Width | 4.0000 inches |
| Technical Specifications | |
| Number of Items | 1 |
| Unit Count | 1.0 Count |
