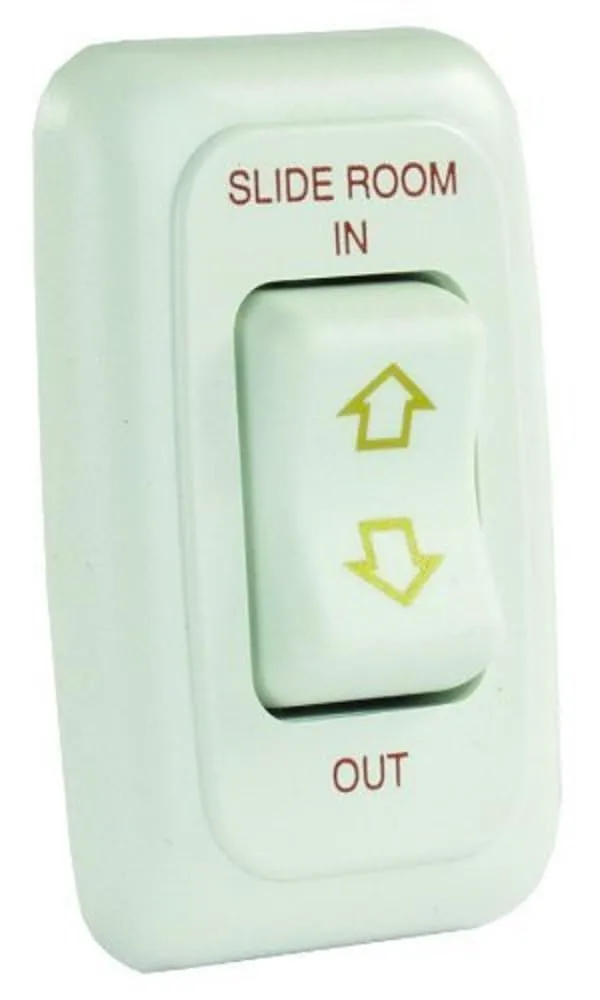

JR Products 12075 White Single Slide-Out Switch Assembly with Bezel
JR Products 12075 white slide-out rocker switch assembly with low-profile bezel — 12V 40A, nylon housing and copper-alloy terminals. Ideal for RV slide-out room control; includes wiring diagram.
Non-returnable
$18.66
Customize
UPC
756815120753 Available Quantity
20 GSA Item
No GSA Compliant
Yes Product Details
JR Products 12075 White Single Slide-Out Switch Assembly with Bezel. 12 Volt 40 Ampere high output slide-out switch designed for reliable RV slide-out control. The pre-printed low profile bezel integrates cleanly with interiors while the large rocker actuator is easy to operate. Switch and housing are constructed of durable nylon for long life; terminals are copper alloy and/or silver plated copper alloy. Rated IP54. Cutout dimensions: 1.85 inch x 1.20 inch. Mounting type: wall mount. Single position rocker switch with clamp connector terminals. Comes with wiring diagram. Model 12075. Item dimensions: 6.38 x 1.5 x 0.09 inches. Item weight: 1.6 ounces. Proposition 65 Warning: True.
- Mom-On/Off/Mom-On
- Preprinted Slide Room plate
- 12V 40 Amp continuous
- White
- Cutout: 1.85” x 1.20”
- Cut out dimensions: 1.85 inch x 1.20 inch
- 12 Volt 40 Amp high output slide-out switch is both durable and attractive
- The pre-printed low profile bezel fits into any decor while the large rocker switch is easy to operate
- Switch and housing are constructed of durable nylon for a long life and the terminals are made of copper alloy and/or silver plated copper alloy
- White, pack of 1
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Copper Alloy, Silver Plated Copper Alloy |
| Material | Nylon, Copper Alloy, Silver Plated Alloy |
| Material Type | Nylon, Copper Alloy, Silver Plated Alloy |
| Terminal | Physical |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Control Method | Touch |
| Model | 12075 |
| Mounting Type | Wall Mount |
| Number of Positions | 1 |
| Operation Mode | Off,Slide |
| Switch Type | Rocker |
| Terminal | Physical |
| Sizing & Dimensions | |
| Height | 0.09 inches |
| Item Dimensions | 6.38 x 1.5 x 0.09 inches |
| Item dimensions L x W x H | 6.38 x 1.5 x 0.09 inches |
| Length | 6.38 inches |
| Product Dimensions | 6.38 x 1.5 x 0.09 inches |
| Weight | 1.6 ounces |
| Width | 1.5 inches |
| Technical Specifications | |
| Current Rating | 40 Amps |
| International Protection Rating | IP54 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Specification Met | Ip54 |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 1 Degrees Celsius |
| Wattage | 480 watts |
