JR Products 12505 Red/White SPST Illuminated On/Off Switch
Customize

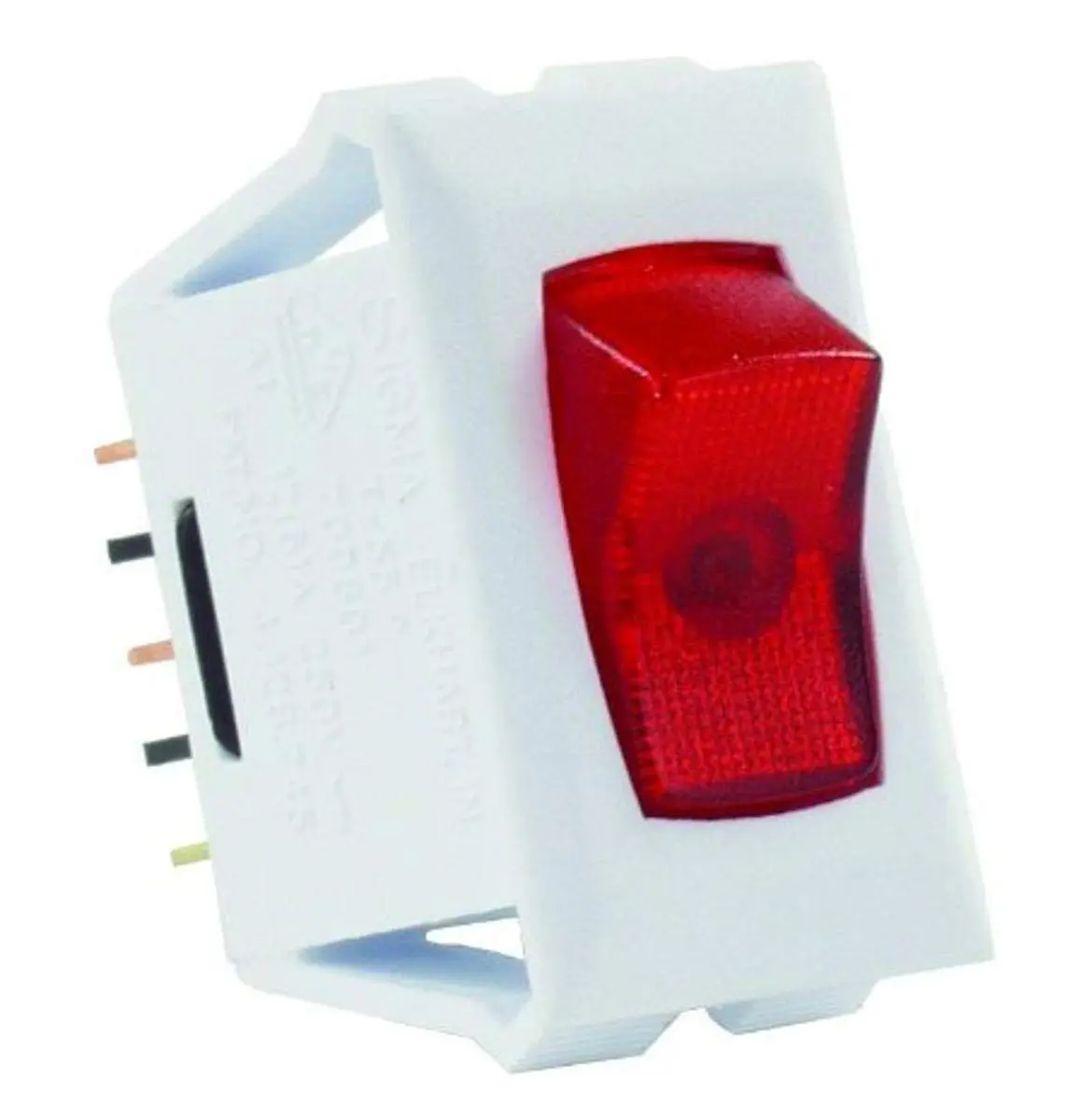

JR Products 12505 Red/White SPST Illuminated On/Off Switch. This illuminated on/off rocker switch (red/white) is designed for 12-volt systems and commonly used for interior lighting and small appliance control. It is a single-pole, single-throw (SPST) switch rated for 16 amps at 125 VAC, 13 amps at 250 VAC, and 10 amps at 14 VDC (3/4 HP). The switch is UL/CSA/VDE approved and features a cut-out dimension of 1.125 x 0.550 inches and switch dimensions of 1.120 x 0.547 inches. Constructed with plastic housing and metal contact components, it includes crimp-type connectors and a rocker actuator for easy wall-mount installation. Item dimensions: 4.38 x 2.69 x 1 inches. Unit count: 1.0. Wattage listed as 559.5 watts per specification data. IP54 rated for protection. Includes: JR Products 12505 Red/White SPST Illuminated On/Off Switch. Manufacturer part/model: 12505.
- Switch Dimensions = 1.120 x .547
- Cut Out Dimensions = 1.125 x .550
- Cutout: 1.125” x 0.550”; Switch: 1.120” x 0.547”
- Red/White
- UL/CSA/VDE/RoHS approved
- SPST, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
- Illuminates when switch is in the “on” position
Specifications:
| Materials & Construction | |
| Color | Red/White |
| Contact Material | Metal |
| Material | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Type | Spst |
| Control Method | Push Button |
| Current Rating | 16 Amps |
| Included Components | JR Products 12505 Red/White SPST Illuminated On/Off Switch |
| International Protection Rating | IP54 |
| Model | 12505 |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 250 Volts |
| Operation Mode | ON-OFF |
| Specification Met | approved |
| Switch Type | SPST |
| Unit Count | 1.0 Count |
| Wattage | 559.5 watts |
| Sizing & Dimensions | |
| Height | 1.00 inches |
| Item Dimensions | 4.38 x 2.69 x 1 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 2.69 x 1 inches |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Lower Temperature Rating | 1 Degrees Celsius |
| Terminal | Spst |
| Upper Temperature Rating | 1 Degrees Celsius |
