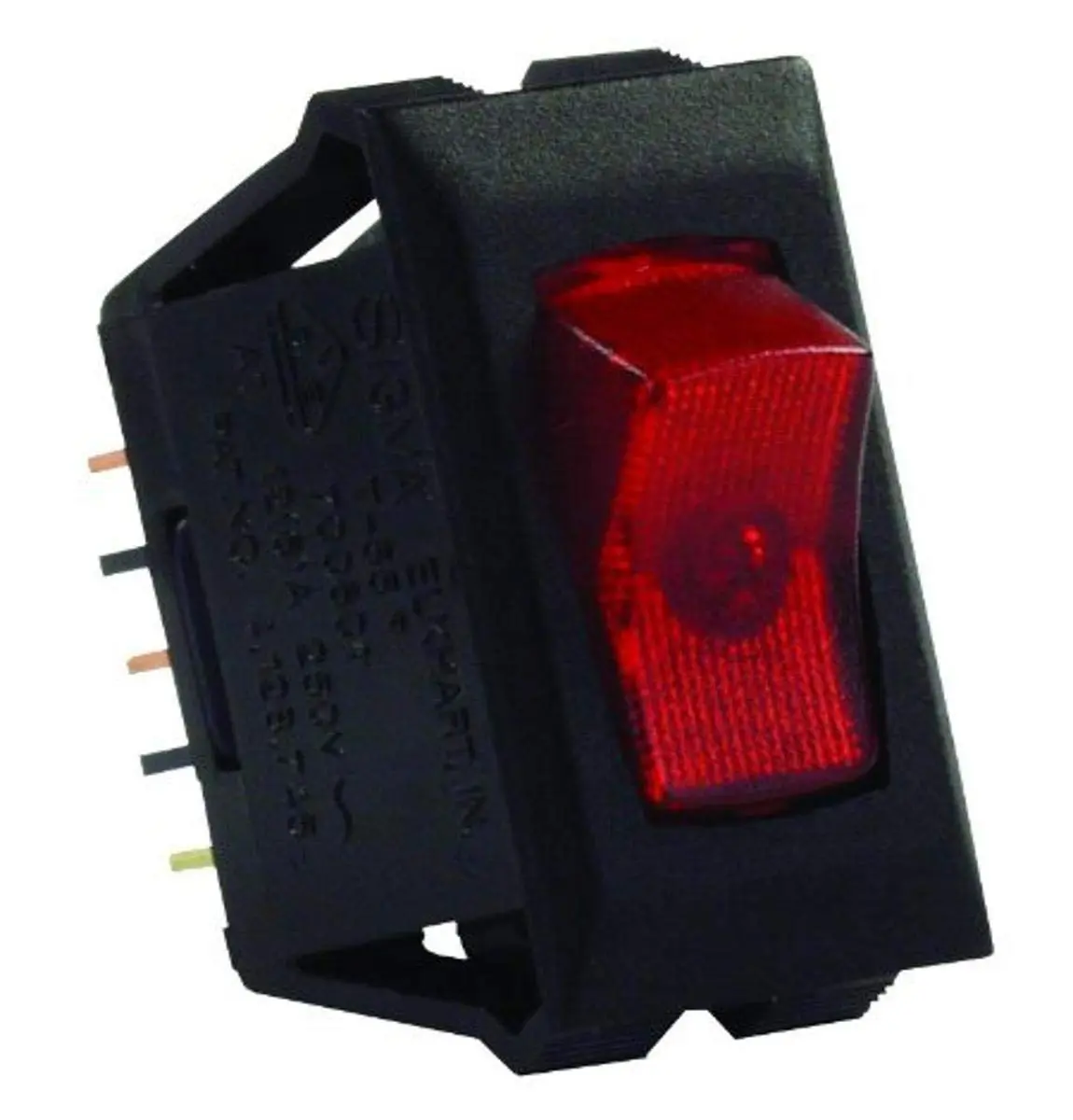

JR Products 12515 Red/Black SPST Illuminated 120V On/Off Switch
JR Products 12515 illuminated SPST rocker On/Off switch in red/black — 120V, 16A rating, screw terminals, wall-mount, IP54 protection; ideal for interior lighting and appliances.
Non-returnable
$7.88
Customize
UPC
756815125154 Available Quantity
19 GSA Item
No GSA Compliant
Yes Product Details
Illuminated On/Off switches Red/black 120 Volt. This standard switch is commonly used for interior lighting and appliances. It becomes illuminated when in the inchon inch position. SPST, 16 AMP at the rate of 125 VAC, 13 AMP at the rate of 250 VAC, 3/4 HP 10 AMP at the rate of 14 VDC. UL/CSA/VDE approved. 120 volt Pack of 1. Features cut out dimensions = 1.125 x .550 switch dimensions = 1.120 x .547 5 per bag. Product & item details: Model 12515; SPST rocker-type on/off switch; screw terminals; red/black actuator; IP54 rated; 2000W rating; connectivity protocol X-10. Measurements: item dimensions 4.38 x 1 x 0.04 inches. Manufacturer part number: 12515. UPC/GTIN: 756815125154. Pack count: 1.
- Illuminates when switch is in the “on” position
- SPST, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
- UL/CSA/VDE/RoHS approved
- 120V Red/Black
- Cutout: 1.125” x 0.550” Switch: 1.120” x 0.547”
- Cut Out Dimensions = 1.125 x .550
- Switch Dimensions = 1.120 x .547
Specifications:
| Materials & Construction | |
| Color | Red/Black |
| Contact Material | Metal |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connector Type | Screw |
| Contact Type | Normally Open |
| GTIN | 756815125154 |
| Included Components | JR Products 12515 Red/Black SPST Illuminated 120V On/Off Switch |
| Item Count | 1.0 Count |
| Model | 12515 |
| Mounting Type | Wall Mount |
| Number of Positions | 2 |
| Switch Type | SPST |
| Terminal | Spst |
| Sizing & Dimensions | |
| Height | 0.04 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 1 x 0.04 inches |
| Weight | 0.71 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Current Rating | 16 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 120 Volts |
| Specification Met | Approved |
| Warranty | Please contact us if you experience any issues within 30 days of receipt. |
| Wattage | 2000 watts |
