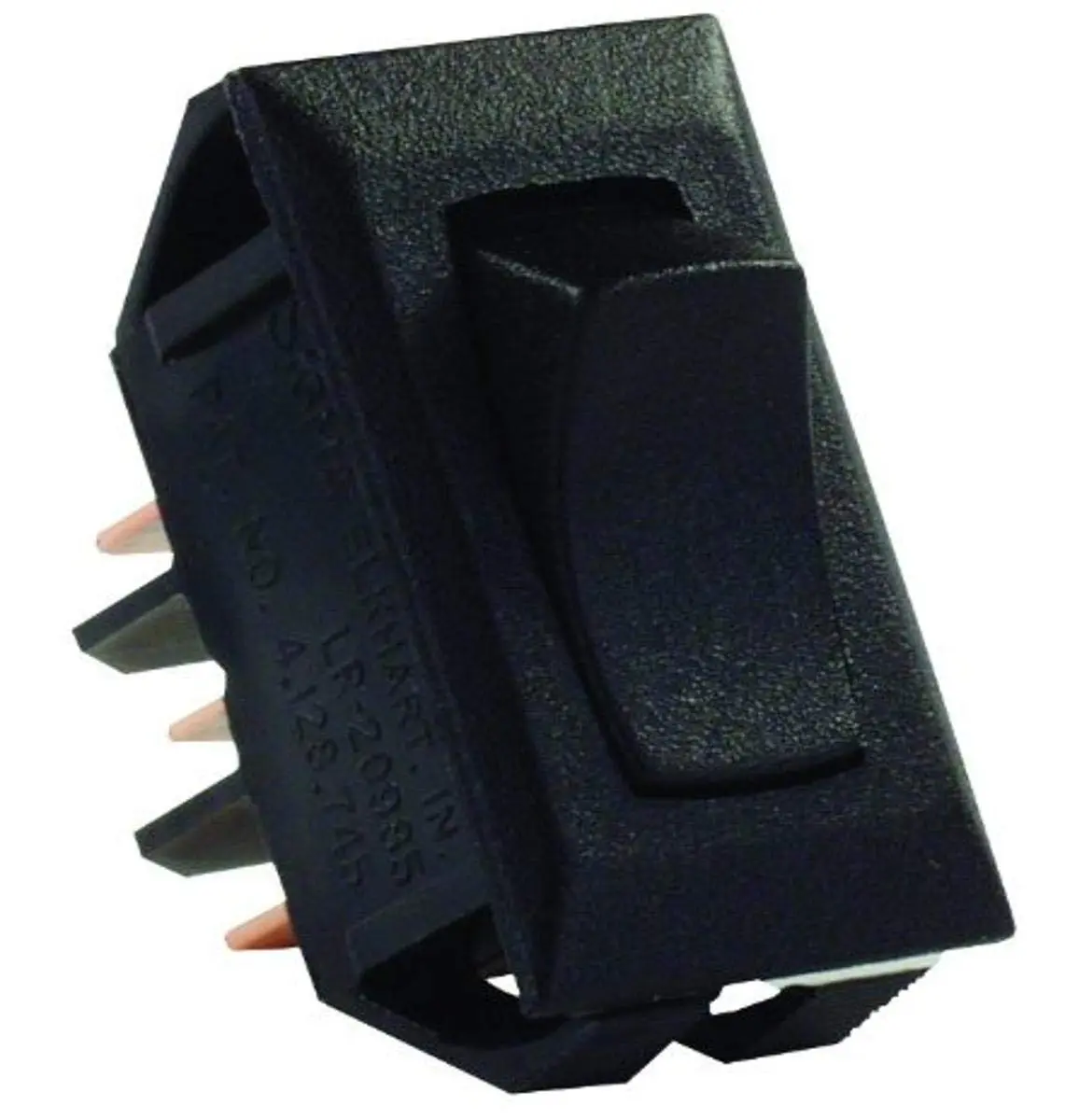

JR Products 12625 Black SPDT On/On Switch 1 Count (Pack of 1)
JR Products 12625 Black SPDT On/On panel-mount switch with plastic body and brass contacts; rated up to 16A@125VAC and 10A@14VDC. UL/CSA/VDE/RoHS approved. 1 count.
Non-returnable
$5.09
Customize
UPC
756815126250 Available Quantity
88 GSA Item
No GSA Compliant
Yes Product Details
JR Products 12625 Black SPDT On/On Switch — This standard momentary On/Off (On/On) switch is panel-mount and commonly used for interior lighting and appliances. It features a plastic body with brass contact material and quick-connect terminals. Electrical ratings include 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 HP (125-250 VAC), and 10 Amp @ 14 VDC. The switch meets RoHS and UL specifications and carries IP00 rating. Cutout dimensions: 1.125 x 0.550 inches; switch dimensions: 1.120 x 0.547 inches. Includes 1 count per package. UPC: 756815126250. Manufacturer: JR Products. Model/Part: 12625.
- Switch Dimensions = 1.120 x .547
- Cut Out Dimensions = 1.125 x .550
- Switch: 1.120” x 0.547”
- Cutout: 1.125” x 0.550”
- Black
- UL/CSA/VDE/RoHS approved
- SPDT, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Brass |
| Material | Plastic |
| Product Details | |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Type | Changeover |
| Control Method | Push Button |
| Control Type | Manual |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Switch Type | SPDT |
| Terminal | Spdt |
| Sizing & Dimensions | |
| Height | 0.69 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.380 x 2.690 x 0.690 inches |
| Product Weight | 0.0600 |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Current Rating | 16 Amps |
| GTIN | 756815126250 |
| Included Components | JR Products 12625 Black SPDT On/On Switch |
| International Protection Rating | IP00 |
| Maximum Current | 16 Amps |
| Model | 12625 |
| Operating Voltage | 125 Volts (AC) |
| Specification Met | RoHS, UL |
| Unit Count | 1.0 Count |
| UPC | 756815126250 |
| Voltage | 125250 Volts |
