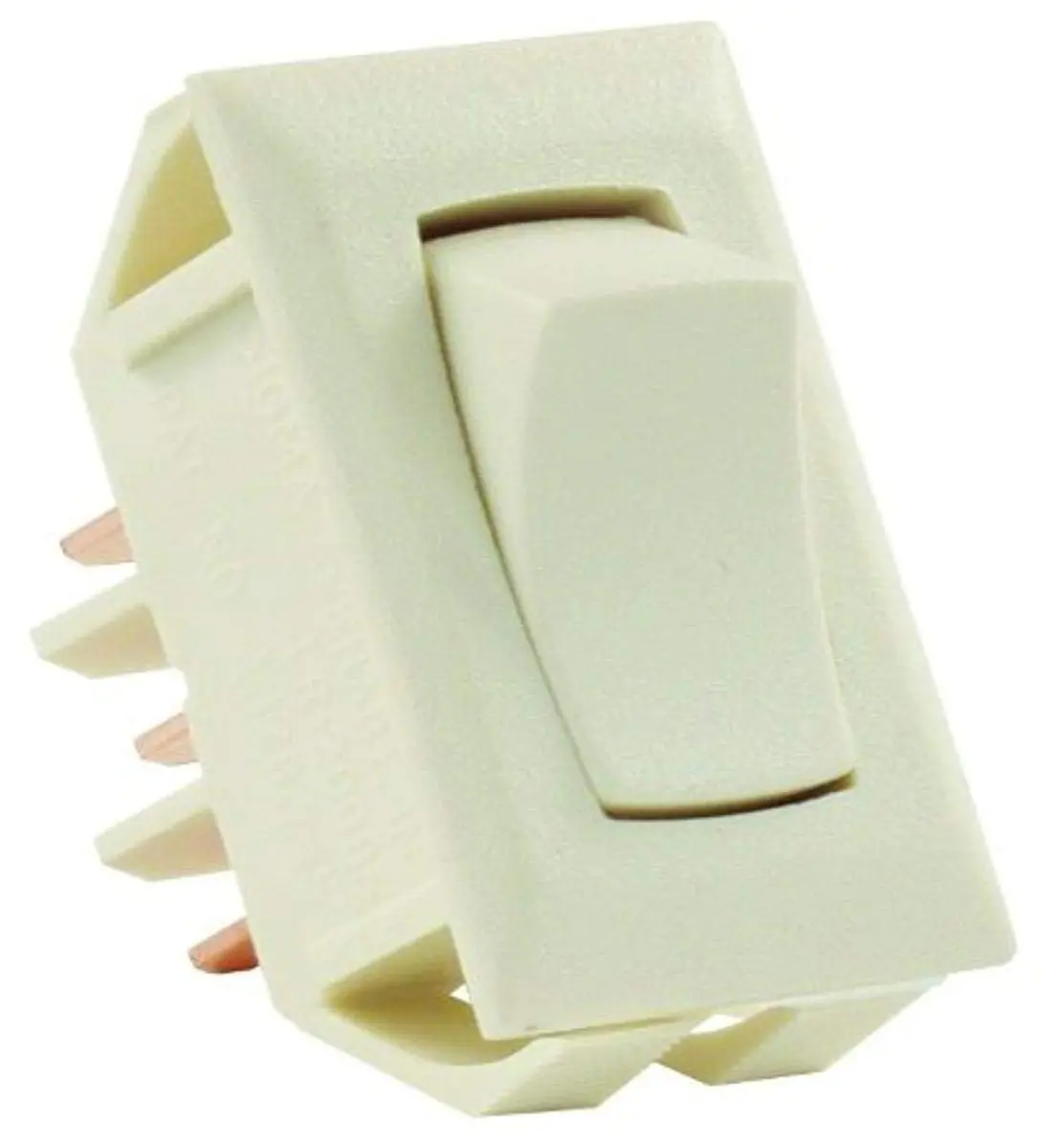

JR Products 12655 Ivory SPDT On/On Switch
JR Products 12655 Ivory SPDT on/on toggle switch — 12V panel-mount rocker with brass contacts, 16A rating; UL/CSA/VDE/RoHS approved. Ideal for interior lighting and appliance control.
Non-returnable
$5.09
Customize
UPC
756815126557 Available Quantity
10 GSA Item
No GSA Compliant
Yes Product Details
JR Products 12655 Ivory SPDT On/On Switch. This standard, panel-mount rocker/toggle switch features a durable plastic body with brass contact material and quick-connect terminals. Rated for 16 Amps at 125 VAC and suitable for 12V operation, the switch is UL/CSA/VDE/RoHS compliant and commonly used for interior lighting and appliance controls. Cut-out dimensions: 1.125 x .550 inches; switch dimensions: 1.120 x .547 inches. Item dimensions: 4.38 x 2.69 x 0.69 inches. Unit count: 1. Included components: main component only. Model: 12655. UPC/GTIN: 756815126557.
- SPDT, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
- UL/CSA/VDE/RoHS approved
- Ivory
- Cutout: 1.125” x 0.550”
- Switch: 1.120” x 0.547”
- Cut Out Dimensions = 1.125 x .550
- Switch Dimensions = 1.120 x .547
Specifications:
| Materials & Construction | |
| Color | Ivory |
| Contact Material | Brass |
| Material | Plastic |
| Material Type | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Control Method | Push Button |
| Current Rating | 16 Amps |
| Global Trade Identification Number | 00756815126557 |
| GTIN | 756815126557 |
| Included Components | Main component only |
| Insulation Resistance | 1000 Megaohms |
| International Protection Rating | IP00 |
| Model | 12655 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Specification Met | RoHS, UL |
| Switch Type | SPDT |
| Terminal | Spdt |
| Unit Count | 1 Count |
| UPC | 756815126557 |
| Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
| Sizing & Dimensions | |
| Height | 0.69 inches |
| Item Dimensions | 4.38 x 2.69 x 0.69 inches |
| Item dimensions L x W x H | 4.38 x 2.69 x 0.69 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 2.69 x 0.69 inches |
| Product Weight | 0.0600 |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Current Rating | 16 Amps |
| Insulation Resistance | 1000 Megaohms |
| International Protection Rating | IP00 |
| Operating Voltage | 12 Volts |
| Specification Met | RoHS, UL |
