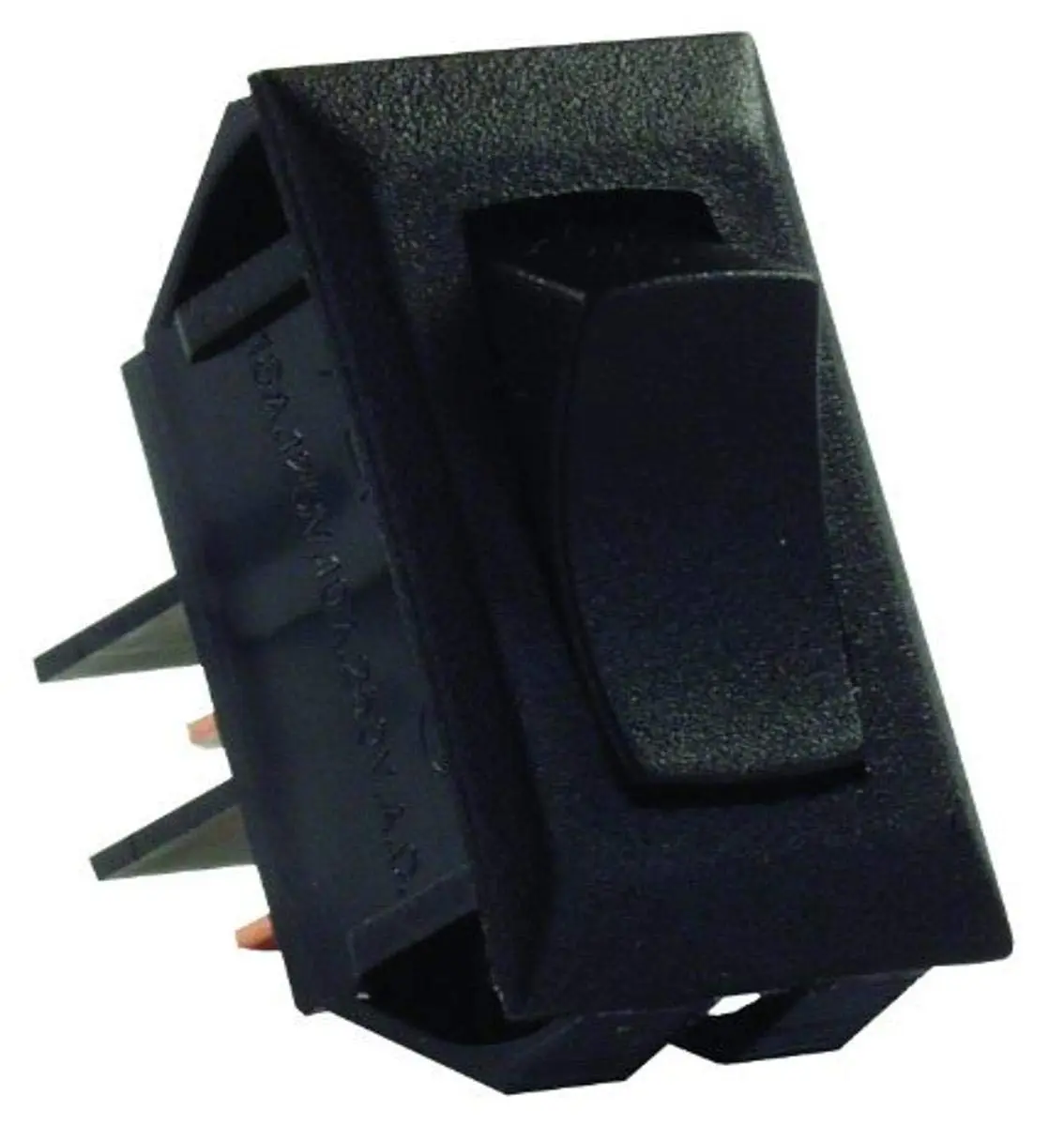

JR Products 12705 Black SPST Mom-On/Off Switch Black 1 Count (Pack of 1)
Customize
JR Products 12705 black SPST momentary On/Off switch (pack of 1). This standard switch is commonly used for interior lighting and appliances. SPST configuration provides a single-pole single-throw control. Ratings: 13 AMP @ 125 VAC, 10 AMP @ 250 VAC, 1/2 HP, 5 AMP @ 14 VDC. Constructed with metal contact material and a combination of metal and plastic components for durability. Approved to UL, CSA and VDE standards. Features include cut out dimensions 1.125 x 0.550 and switch dimensions 1.120 x 0.547 inches. Typical uses include automotive, appliance, and industrial control applications. Mounting type: wall mount. Connector: 2-pin terminal. Contact type: normally open. IP54 rated for limited dust ingress and splash resistance. Unit count: 1.
- Switch Dimensions = 1.120 x .547
- Cut Out Dimensions = 1.125 x .550
- Switch: 1.120” x 0.547”
- Cutout: 1.125” x 0.550”
- Black
- UL/CSA/RoHS approved
- SPST, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 1/2 H.P., 5 Amp @ 14 VDC
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal, Plastic |
| Material Type | Metal, Plastic |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | 2 Pin |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| International Protection Rating | IP54 |
| Model | 12705 |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Specification Met | approved |
| Switch Type | SPST |
| Unit Count | 1 Count |
| Sizing & Dimensions | |
| Height | 0.04 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 0.69 x 0.04 inches |
| Product Weight | 0.0500 |
| Weight | 0.01 ounces |
| Width | 0.69 inches |
| Technical Specifications | |
| Current Rating | 13 Amps |
| Operating Voltage | 250 Volts |
| Switch: Rating Details | 13 AMP at the rate of125 VAC, 10 AMP at the rate of 250 VAC, 1/2HP, 5 AMP at the rate of 14 VDC |
| Wattage | 1250 watts |
