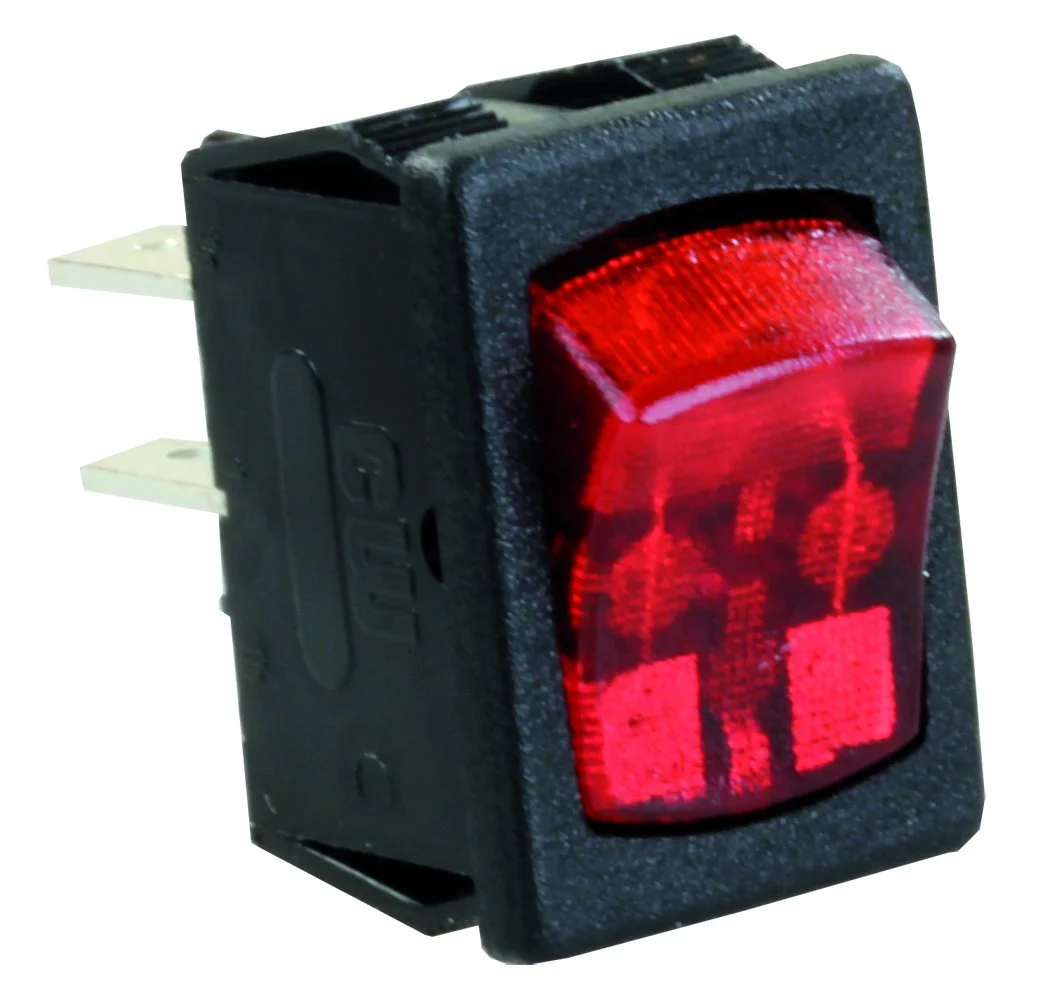

JR Products 12765 Red/Black SPST Mini-Illuminated On/Off Switch
JR Products 12765 mini illuminated SPST on/off panel switch (red/black). Compact panel-mount design with 2 positions, 2-pin connector, copper contacts, IP54, UL/CSA approved.
Non-returnable
$6.57
Customize
UPC
756815127653 Available Quantity
39 GSA Item
No GSA Compliant
Yes Product Details
JR Products 12765 Red/Black SPST Mini-Illuminated On/Off Switch. Mini illuminated switch designed for panel mounting in automotive and electronics applications. Illuminates when in the ON position. SPST circuit, panel-mount push-button actuator, 2 positions, 2-pin connector and copper contact material. UL, CSA and VDE approvals; IP54 rated. Typical cut-out and switch dimensions provided for easy installation. Specifications include 10 Amp @ 125 VAC, 6 Amp @ 250 VAC, 15 Amp @ 12 VDC (per listing); 1 count per package. Item dimensions approx. 4.38 x 0.69 x 0.03 inches; very low profile and lightweight for compact panels.
- Illuminates when switch is in the “on” position
- SPST, 10 Amp @ 125 VAC, 6 Amp @ 250 VAC, 15 Amp @ 12 VDC
- UL/CSA approved
- Red/Black
- Cutout: 0.756” x 0.508”, Switch: 0.745” x 0.500”
- Cut Out Dimensions = .756 x .508
- Switch Dimensions = .745 x .500
Specifications:
| Materials & Construction | |
| Color | Red/Black |
| Material | Copper |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | 2 Pin |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| GTIN | 756815127653 |
| International Protection Rating | IP54 |
| Model | 12765 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Specification Met | CSA, UL |
| Switch Type | SPST |
| Terminal | Spst |
| Unit Count | 1 Count |
| UPC | 756815127653 |
| Sizing & Dimensions | |
| Height | 0.03 inches |
| Item Dimensions | 4.38 x 0.69 x 0.03 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 0.69 x 0.03 inches |
| Product Weight | 0.03 pounds |
| Size | 4.38 x 0.69 x 0.03 inches |
| Weight | 0.48 ounces |
| Width | 0.69 inches |
| Technical Specifications | |
| Contact Material | Copper |
| International Protection Rating | IP54 |
| Operating Voltage | 250 Volts |
| Specification Met | CSA, UL |
