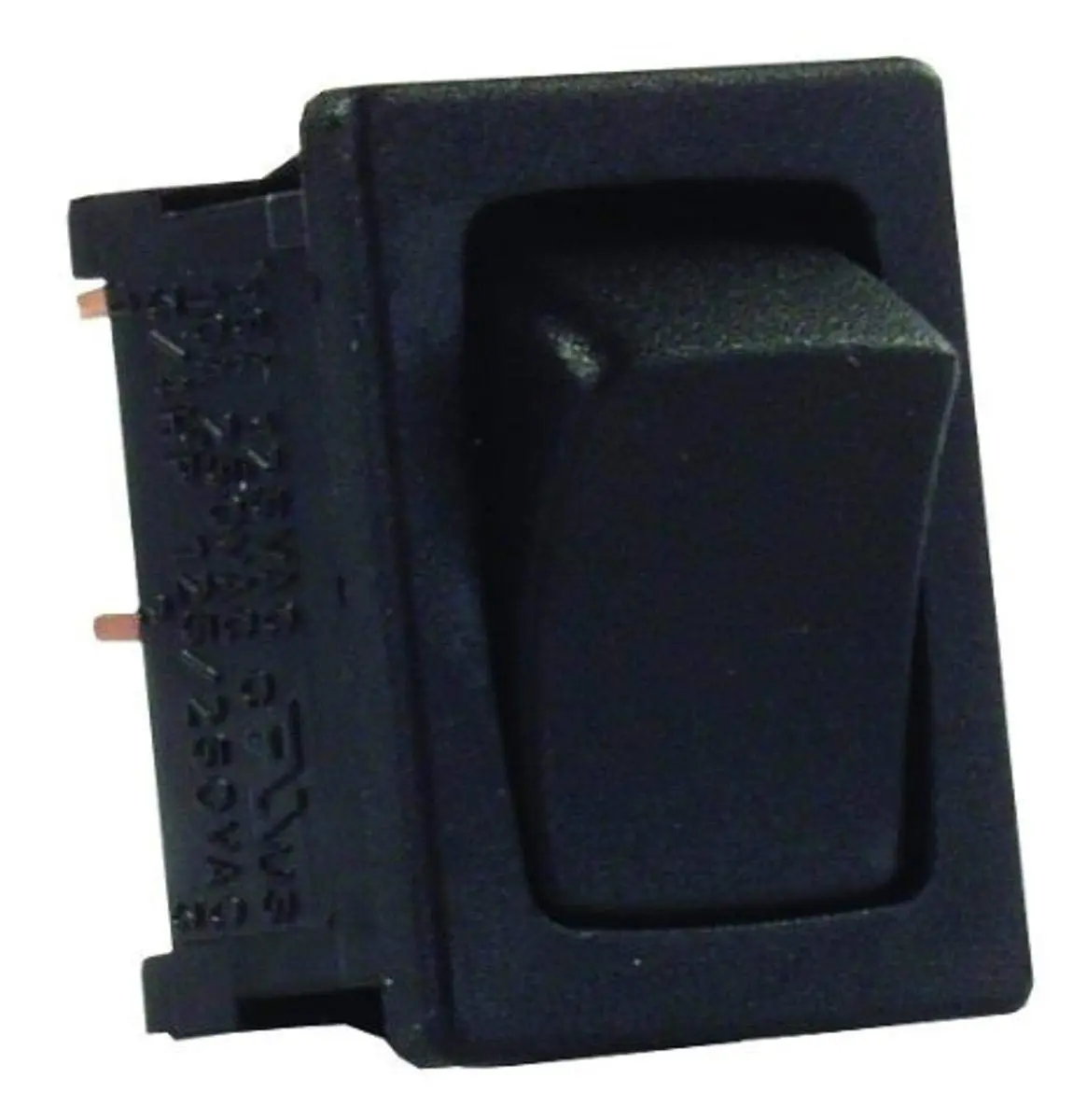

JR Products 12785 Black/Black SPST Mini On/Off Switch
JR Products 12785 SPST mini on/off panel switch in black/black. Panel-mount push-button with quick-connect terminals; 16A @125VAC, 10A @14VDC. UL/CSA/VDE approved. Compact dimensions for appliance and automotive panels.
Non-returnable
$5.01
Customize
UPC
756815127851 Available Quantity
70 GSA Item
No GSA Compliant
Yes Product Details
JR Products 12785 Black/Black SPST Mini On/Off Switch — compact panel-mount SPST on/off switch designed for appliance, automotive and monitor panels. Rated 16 Amp at 125 VAC, 13 Amp at 250 VAC, 3/4 HP, and 10 Amp at 14 VDC. UL/CSA/VDE approved for safety. Features quick-connect terminals and push-button actuator for reliable operation. Cut-out and switch dimensions make it suitable for standard panel installations: cut out dimensions = .756 x .508 inches; switch dimensions = .745 x .500 inches. Constructed with metal contact material and metal housing components for durability. Includes one switch per package. Model 12785. UPC/GTIN: 756815127851.
- SPST, 16 Amp @ 125 VAC, 16 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
- UL/CSA/VDE approved
- Black
- Cutout: 0.756” x 0.508”
- Switch: 0.745” x 0.500”
- Cut Out Dimensions = .756 x .508
- Switch Dimensions = .745 x .500
Specifications:
| Materials & Construction | |
| Color | Black/Black |
| Contact Material | Metal |
| Material | Metal |
| Material Type | Metal |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Type | Normally Open |
| Control Method | Push Button |
| Included Components | JR Products 12785 Black/Black SPST Mini On/Off Switch |
| International Protection Rating | IP54 |
| Model | 12785 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 1 |
| Specification Met | CSA, UL |
| Switch Type | SPST |
| Terminal | Spst |
| Unit Count | 1.0 Count |
| Wattage | 4000 watts |
| Sizing & Dimensions | |
| Height | 0.69 inches |
| Item dimensions L x W x H | 4.38 x 0.69 x 0.03 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 0.69 x 0.03 inches |
| Product Weight | 0.0500 |
| Weight | 0.8 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Connector Type | Quick Connect |
| Current Rating | 16 Amps |
| Operating Voltage | 250 Volts |
| Operation Mode | ON-OFF |
| Switch: Cut Out Dimensions | .756 x .508 |
| Switch: Switch Dimensions | .745 x .500 |
| Wattage | 4000 watts |
