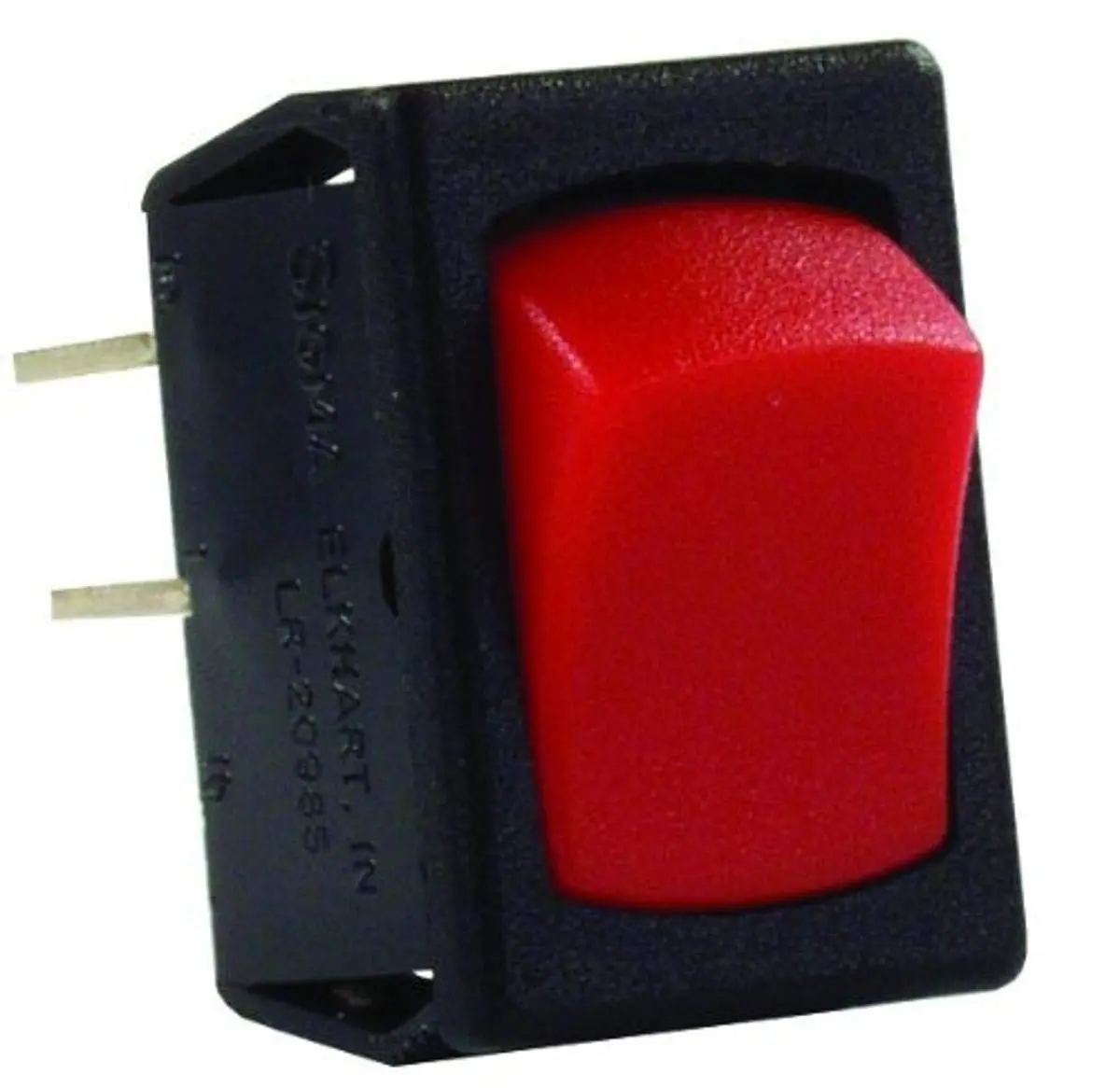

JR Products 12795 Red/Black SPST Mini On/Off Switch. Compact, panel-mount rocker switch designed for appliance and monitor panels. Features brass contact material and quick-connect terminals for easy installation. Rated 16 Amps at 125 VAC, 16 Amps at 250 VAC (per some specs), and 10 Amps at 14 VDC; UL/CSA/VDE approvals noted. Cutout dimensions are .756 x .508 in; switch dimensions approx .745 x .500 in. Item dimensions: 3.6 x 2.6 x 0.6 in. Ideal for industrial, automotive and electrical control applications where a small, reliable on/off SPST switch is needed. Includes one JR Products 12795 Red/Black SPST Mini On/Off Switch per package.
| Materials & Construction | |
| Color | Red/Black |
| Material | Metal |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 16 Amps |
| Included Components | JR Products 12795 Red/Black SPST Mini On/Off Switch |
| Insulation Resistance | 16 Megaohms |
| International Protection Rating | IP00 |
| Model | 12795 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Voltage | 250 Volts |
| Operation Mode | ON-OFF |
| Specification Met | UL |
| Switch Type | SPST |
| Wattage | 2000 watts |
| Sizing & Dimensions | |
| Height | 0.6 inches |
| Length | 3.6 inches |
| Product Dimensions | 3.6 x 2.6 x 0.6 inches |
| Weight | 0.48 ounces |
| Width | 2.6 inches |
