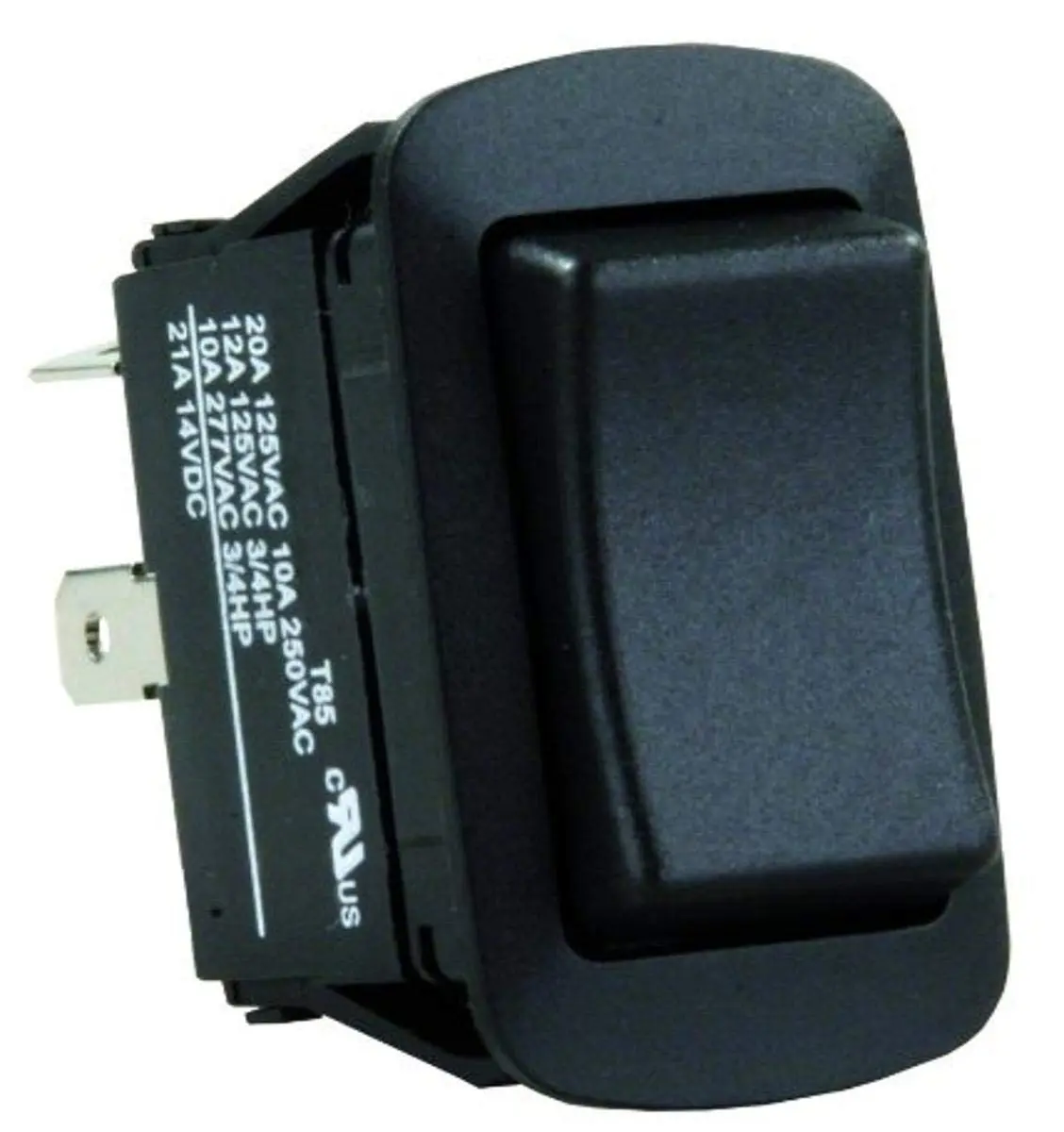

JR Products 13865 Water Resistant Mom-On/Off/Mom-On Reversing Switch. DPDT, 20 Amp @ 125 VAC, 10 Amp @ 250 VAC, 12 Amp @ 125 VAC 3/4 H.P., 10 Amp @ 277 VAC 3/4 H.P., 30 Amp @ 12 VDC. UL/CSA/RoHS/IP66 approved. Cutout: 0.835" x 1.457". Switch: 0.984" x 0.500". Panel-mount DPDT reversing switch ideal for automotive and industrial replacement applications. Constructed with an ABS housing and alloy steel contact material, IP66 rated for water resistance. Includes main component only; model 13865 and GTIN/UPC 756815138659. Specifications include operating voltage up to 250V, current rating 20 Amps, clamp connector, 2 positions, touch control method, and CSA/UL/RoHS compliance.
| Materials & Construction | |
| Color | Black |
| Contact Material | Alloy Steel |
| Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Material | Alloy Steel |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Included Components | Main component only |
| International Protection Rating | IP66 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | Off |
| Specification Met | CSA, RoHS, UL |
| Switch Type | DPDT |
| Terminal | Dpdt |
| Wattage | 2500 watts |
| Sizing & Dimensions | |
| Height | 1.7 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 0.2 x 1.7 inches |
| Weight | 0.32 ounces |
| Width | 0.2 inches |
| Technical Specifications | |
| Current Rating | 20 Amps |
| Lower Temperature Rating | 1 Degrees Celsius |
| Operating Voltage | 250 Volts |
| Upper Temperature Rating | 1 Degrees Celsius |
| Warranty | Please contact us if you experience any issues within 30 days of receipt. |
