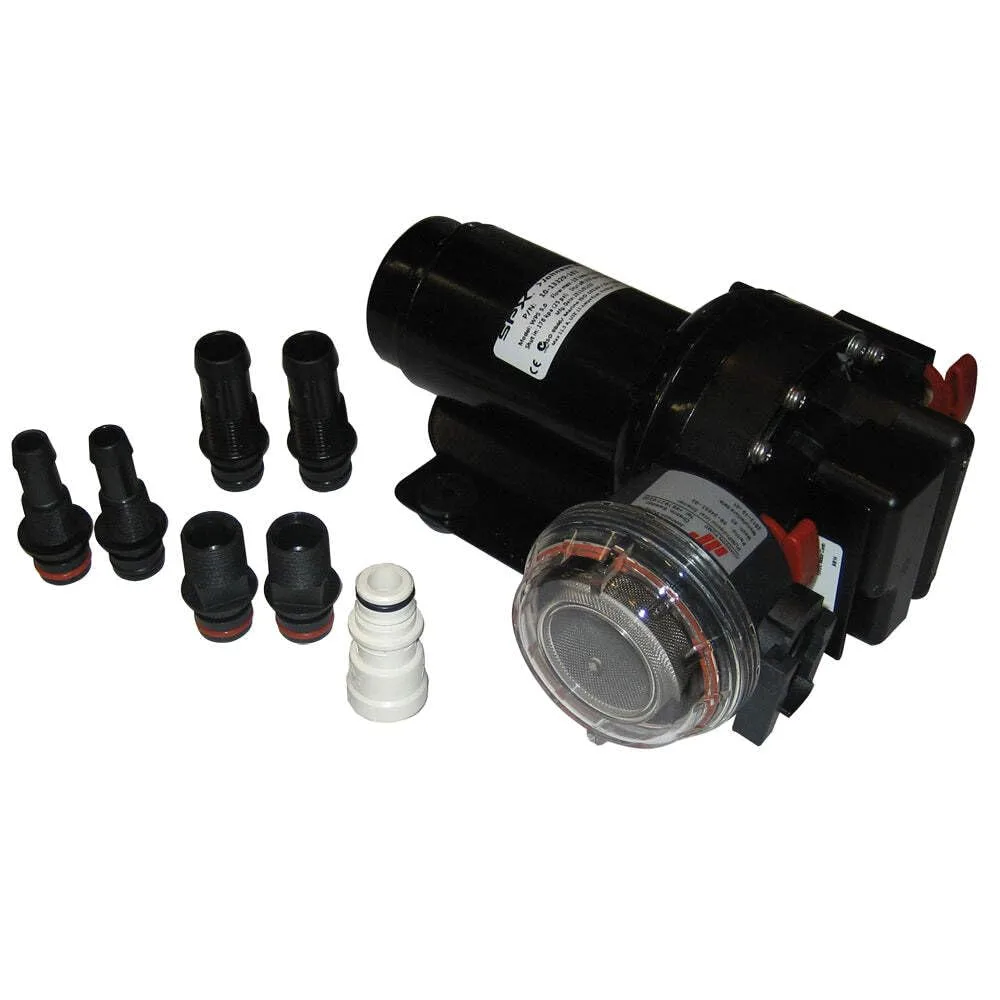

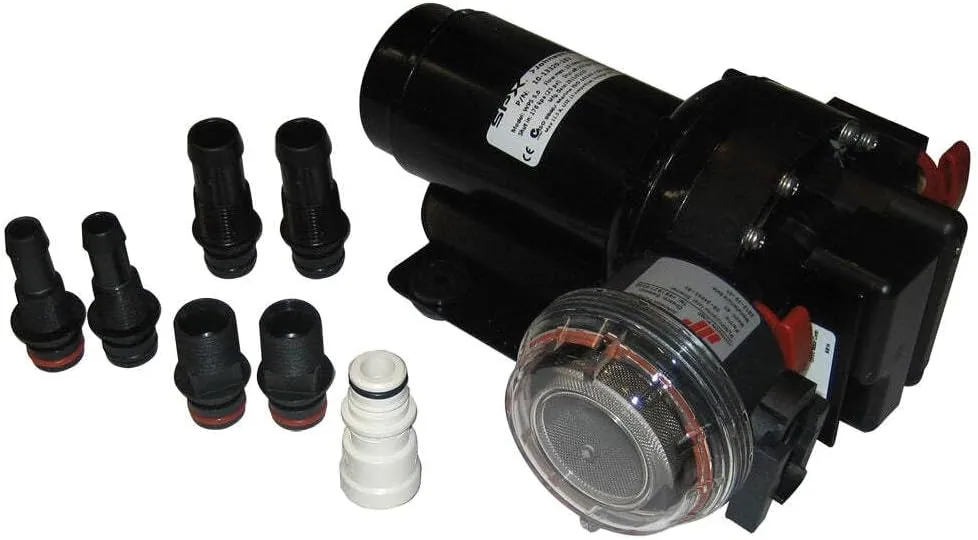

Johnson Pumps - 10-13329-103 Aqua Jet Flow MSTR Pump 5 GPM, 12v
Customize
The ideal choice for pressurizing water in a closed system. The digital controller adjusts water flow as the demand is increased and decreased while maintaining a very smooth flow. The unique variable flow feature of the Flow Master pump allows the pump to be mounted without an accumulator tank and still maintain an even flow regardless if one or multiple taps are being used. WPS 5.0 motor, 150 Watts. Nylon/polypropylene body with santoprene/EPDM valves and santoprene diaphragm. Dimensions: 9.4" L x 8.22" W x 4.49" H / Weight: 4.5 lb. / Capacity: 5 GPM / Pressure Cut-Off: 50 psi / Fuse Size: 15 A / Connection: 3/8" NPT / hose 1/2";1/2" NPT / hose 3/4"; 1/2" NPT 3/4" hose 1/2 CTS. From ProductDatabase: FLWMASTR VARIABLE FRSH WTR PUMP 12V / Johnson Pump Flow Master 5.0 GPH Variable Flow Demand Pump 12V. Features include variable flow demand (mount without accumulator), digital controller for smooth flow, 5 GPM capacity, 50 PSI pressure cut-off, built-in thermal protection, body constructed of nylon/polypropylene, Santoprene/EPDM valves and Santoprene diaphragm. ProductDatabase item dimensions: Height: 5.5 in, Width: 7.0 in, Length: 11.0 in. Product weight (db): 7.0 (units consistent with package). Package dimensions (db): 5.0 x 7.0 x 11.0 inches; package weight (db): 7.3 pounds.
- Can be mounted without an accumulator tank and maintain an even flow
- Maintains a very smooth flow
- 5 GPM capacity
- Digital controller adjusts water flow as demand is increased and decreased
- Flow Master pump maintains an even flow regardless if one or multiple taps are being used
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Global Trade Identification Number | 00729321332934 |
| Maximum Flow Rate | 5 Gallons Per Minute |
| Model Name | JOHNSON PUMP - SPX FLOW |
| Number of Items | 1 |
| Power Source | DC power supply |
| Style | Diaphragm |
| UPC | 729321332934 |
| Voltage | 12 Volts (DC) |
| Sizing & Dimensions | |
| Height | 5.5 inches |
| Item Dimensions Lx Wx H | 11 x 7 x 5.5 inches |
| Item Package Dimensions | 10.9 x 7.4 x 5.5 inches |
| Length | 11.0 inches |
| Product Dimensions | 9.41"L x 8.23"W x 4.45"H |
| Weight | 7 pounds |
| Width | 7.0 inches |
| Technical Specifications | |
| Connection | 3/8" NPT / hose 1/2"; 1/2" NPT / hose 3/4"; 1/2" NPT 3/4" hose 1/2 CTS |
| Fuse Size | 15 A |
| Gallons Per Minute | 5 Gpm |
| Max Psi | 50 |
| Motor | WPS 5.0 - 150 W, 12/24V DC (with built-in thermal protection) |
| Volts | 12v |
