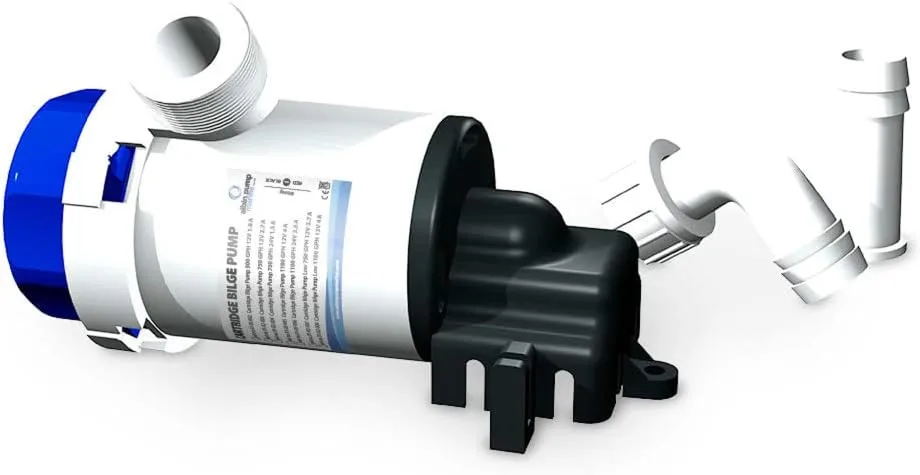

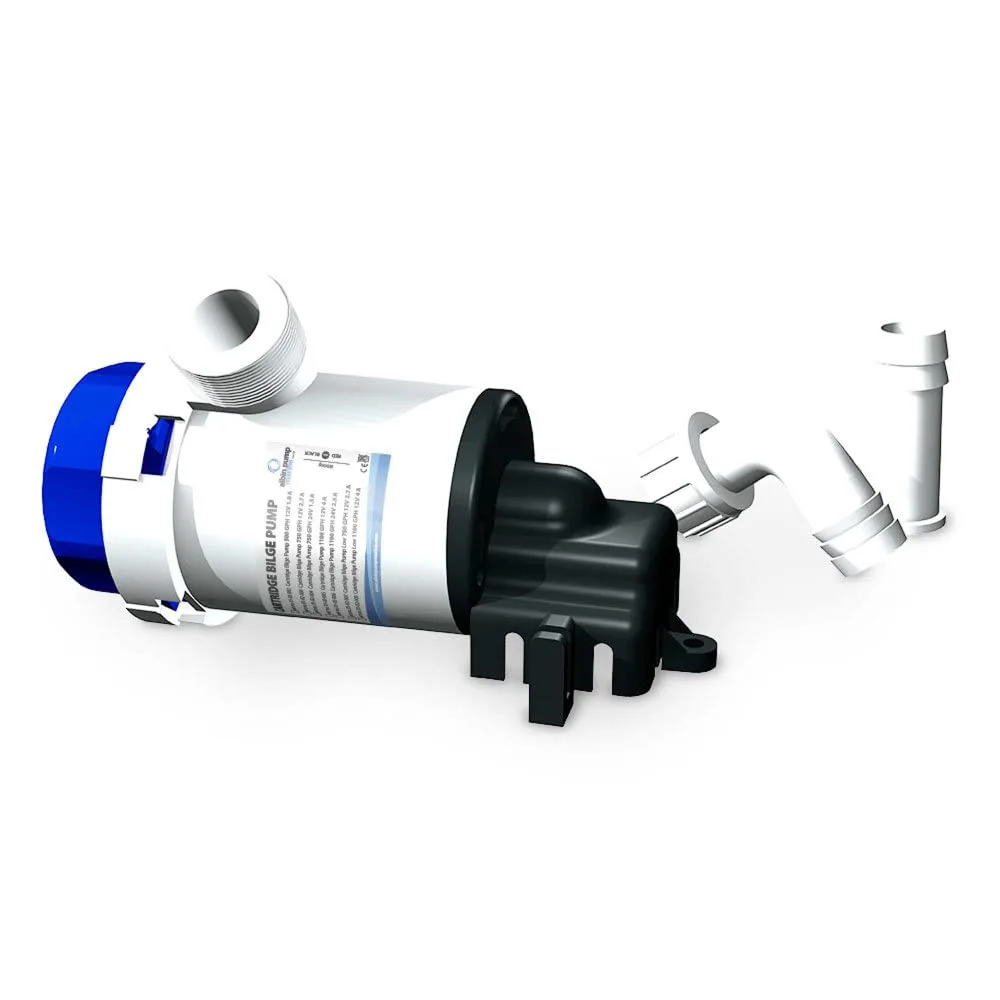

Albin 01-02-007 Low Profile Cartridge Bilge Pump - 12V, 750 GPH
Customize
Submersible low bilge pump 12V with pump capacity 50 L/min (750 GPH) and 42 L/min (660 GPH) at 0,9m (3') head. Stainless steel shaft, compact and easy to install. Tough thermoplastic ABS housing with detachable universal base plate with strainer and pin (for “T-slot”) to attach a level switch for automatic operation. Replaceable cartridge motor. Easy maintenance and low power consumption. Including 19 mm (3/4") straight and elbow detachable discharge ports. Amperage 2,7 A, fuse size 5A. For pleasure boats from 6m (18') to 8m (25') length. Cartridge Bilge Pump Low 1100GPH - 12V Submersible low bilge pump 12V with pump capacity 75 L/min (1100 GPH) and 65 L/min (1000 GPH) at 0,9m (3ft) head. Stainless steel shaft, compact and easy to install. Features: Tough thermoplastic ABS housing with detachable universal base plate with strainer and pin (for "T-slot") to attach a level switch for automatic operation Replaceable cartridge motor Easy maintenance and low power consumption Specifications: Fixed 29 mm (1,15") straight discharge port Amperage: 4A Fuse Size: 5A Length: For pleasure boats from 8m (25 Ft) to 10m (30 Ft), Gallons Per Minute: 18 GPM , Outlet Size: 1-1/8" , Gallons Per Hour: 1100 GPH , Operation: Non-Automatic , Type: Electric , Volts: 12v
- For pleasure boats from 6m (18') to 8m (25') length
- Replaceable cartridge motor
- Tough thermoplastic ABS housing with detachable universal base plate
- Stainless steel shaft
- Submersible low bilge pump
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Thermoplastic ABS |
| Outer Material | Thermoplastic ABS |
| Product Details | |
| Gallons Per Hour | 1100 Gph |
| Gallons Per Minute | 18 Gpm |
| Item model number | 01-02-007 |
| Manufacturer Part No | 01-02-007 |
| Model | 01-02-007 |
| Operation | Non-Automatic |
| Outlet Size | 1-1/8" |
| Power Source | Corded Electric |
| Style | Bilge Pump |
| Type | Electric |
| Voltage | 12 Volts (DC) |
| Sizing & Dimensions | |
| Height | 2.76 inches |
| Length | 9.84 inches |
| Product Dimensions | 9.84 x 7.09 x 2.76 inches |
| Weight | 10.1 ounces |
| Width | 7.09 inches |
| Technical Specifications | |
| Amperage | 2,7 A |
| Fuse Size | 5A |
