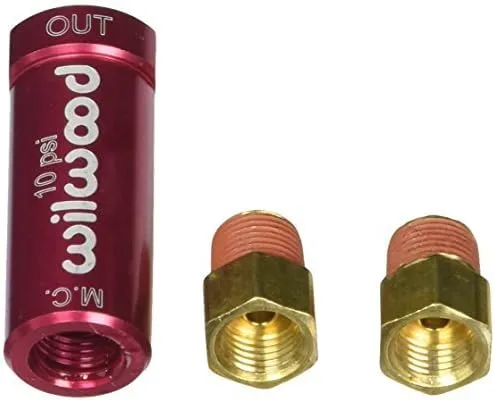

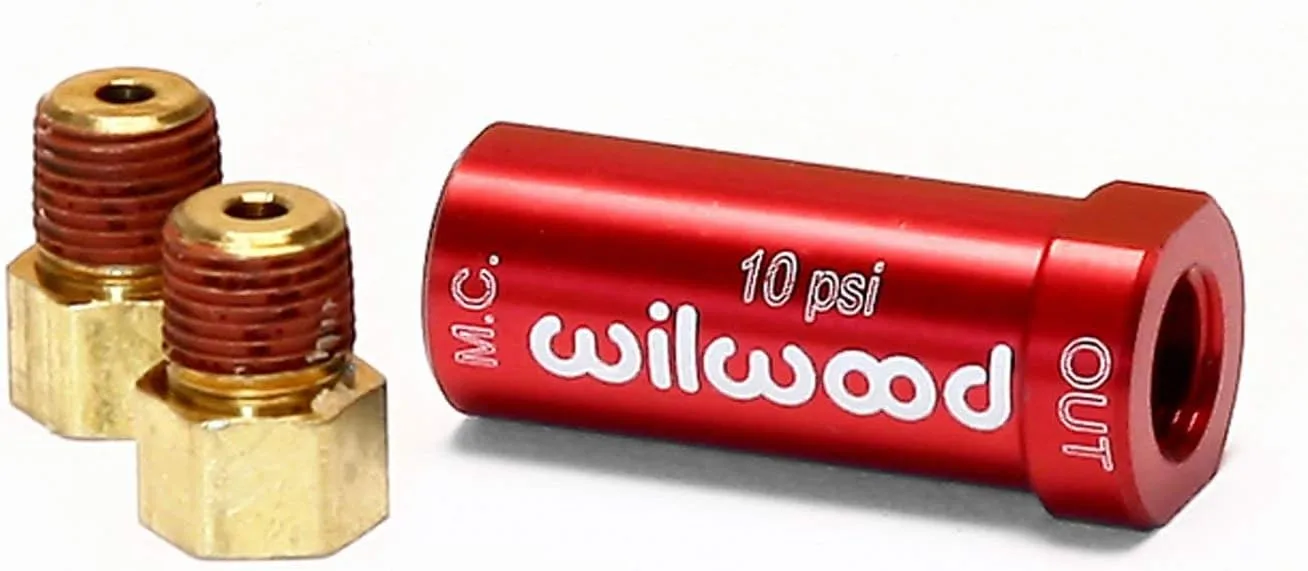

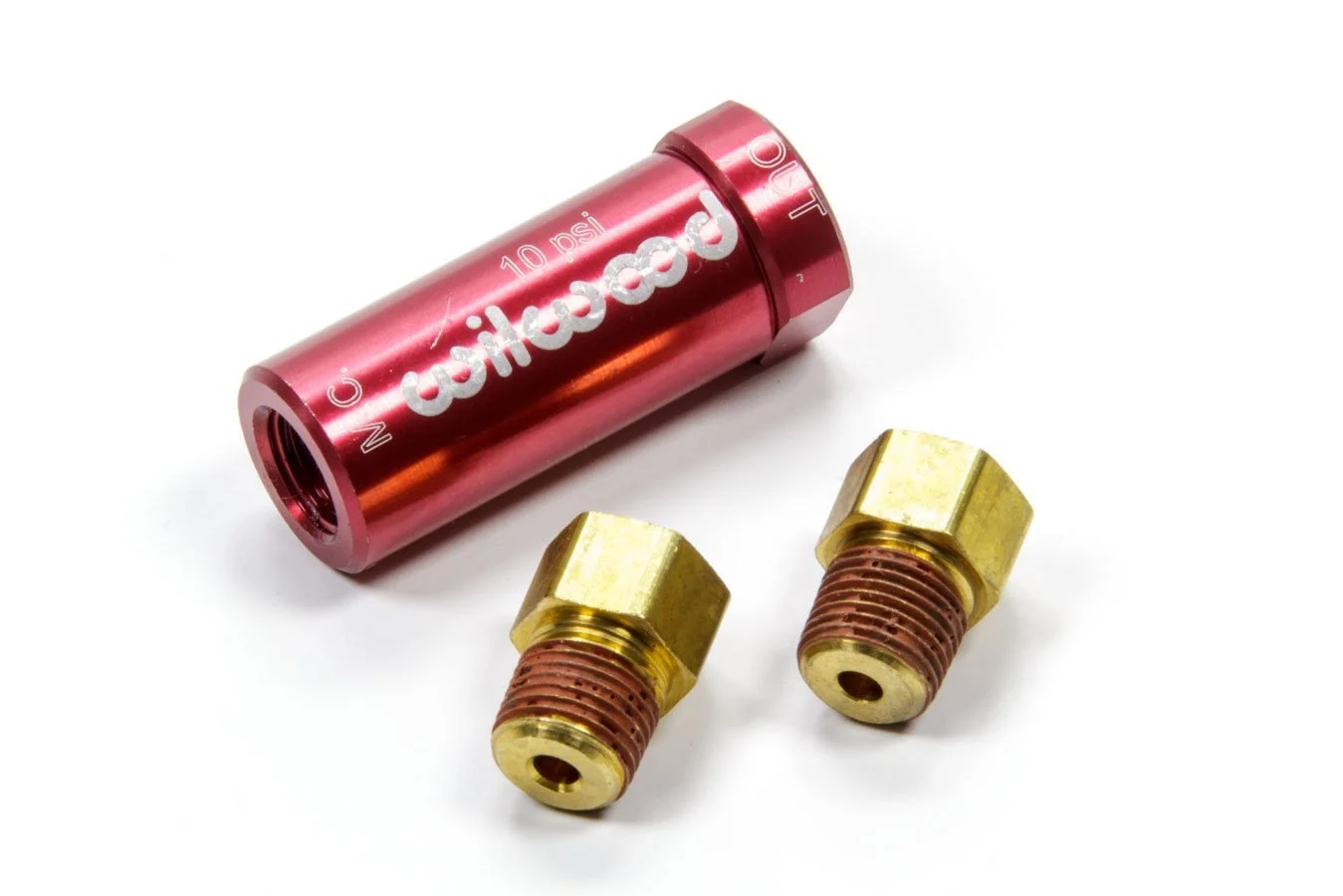

Wilwood 260-13784 10lb Residual Pressure Valve Kit with Fittings, Red

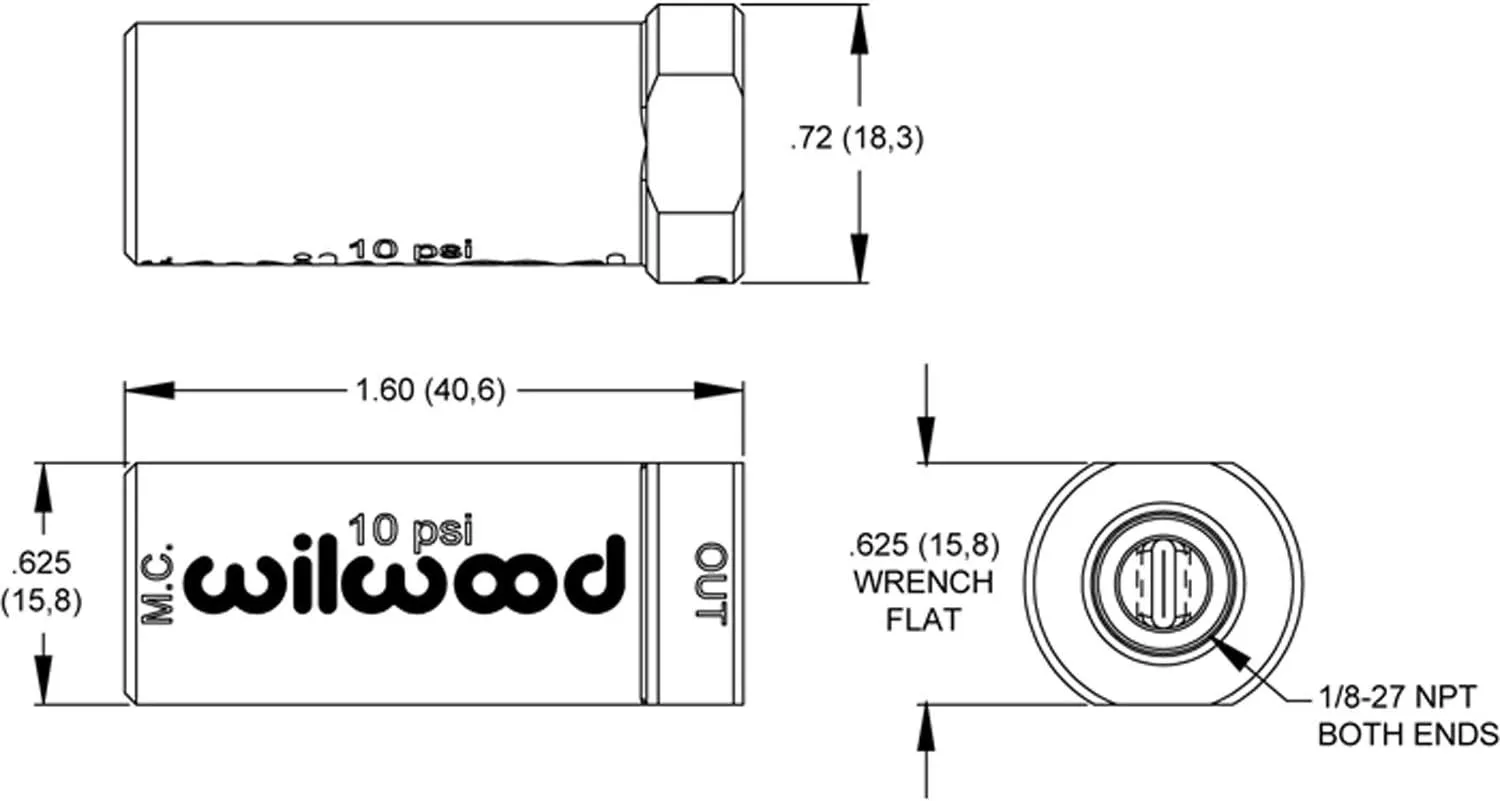

Wilwood two pound and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves with fittings are supplied with two 1/8-27 NPT to 3/-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines. Product summary and highlights: Wilwood 10lb residual pressure valve kit (260-13784) with fittings. Red anodize finish on billet aluminum body for corrosion resistance and easy identification. Includes fittings (two 1/8-27 NPT to 3/16-24 inverted flare female) and is vehicle specific fit. Unit Count: 1.0. Item weight (retail listing): 0.1 Pounds. Ideal for drag racing, street rods and many off-road or performance brake applications.

• W/ fittings
• Pressure Valve
• Ideal for drag racing, street rods, and many off-road applications
• Red anodize finish
