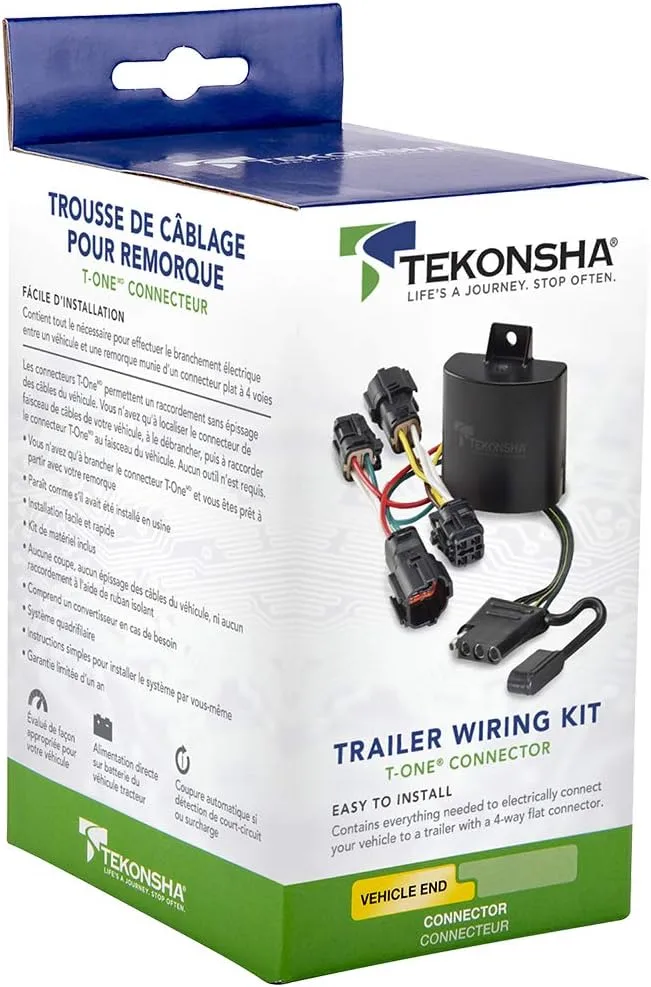

Tekonsha T-One® T-Connector Harness, 4-Way Flat, Compatible with Select Ford Escape
Customize

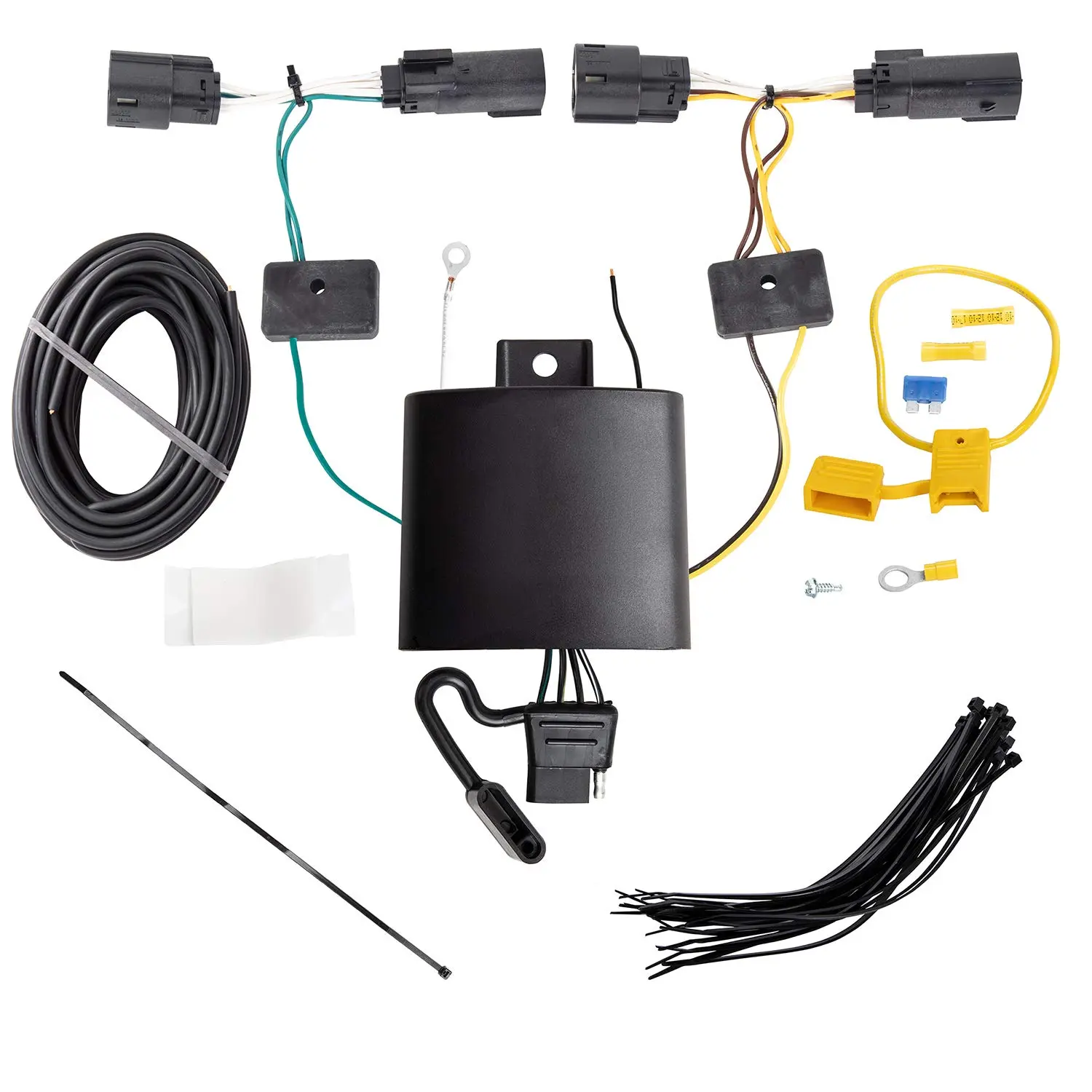

The Tekonsha T-One® T-Connector Harness (Model 118802 / UPC 016118153972) is a plug-and-play 4-way flat wiring harness engineered for trailer wiring on select Ford Escape models. Constructed with durable Polyvinyl Chloride (PVC) insulation and 16-gauge bonded wire, the harness provides solid, weatherproof one-piece construction and no cutting, splicing, or taping of vehicle wires. Electrical capacities include a taillight circuit capacity of 7.5 amps and a stop/turn circuit capacity of 5 amps. The kit includes the wiring harness and a Modulite HD module (Unit Count: 1), and offers a 1-year warranty. Item dimensions are approximately 8 x 5 x 3.72 inches with an item weight around 1.5 pounds, making installation straightforward and reliable for towing and trailer wiring applications.
- 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
- Stop/Turn Circuit Capacity Of 5 Amps
- Taillight Circuit Capacity Of 7.5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
Specifications:
| Materials & Construction | |
| Material | Polyvinyl Chloride (PVC) |
| Outer Material | Polyvinyl Chloride (PVC) |
| Product Details | |
| Cable Type | Flat Ribbon |
| Included Components | Wiring Harness, Modulite HD Module |
| Item Type Name | Wiring Harness |
| Recommended Uses For Product | trailer wiring |
| Unit Count | 1.0 Count |
| Warranty Description | 1 Year |
| Sizing & Dimensions | |
| Height | 3.9 inches |
| Length | 8.0 inches |
| Product Dimensions | 8 x 5 x 3.72 inches |
| Product Weight | 1.5500 |
| Weight | 1.55 pounds |
| Width | 5.1 inches |
| Technical Specifications | |
| Stop/Turn Circuit Capacity | 5 Amps |
| Taillight Circuit Capacity | 7.5 Amps |
