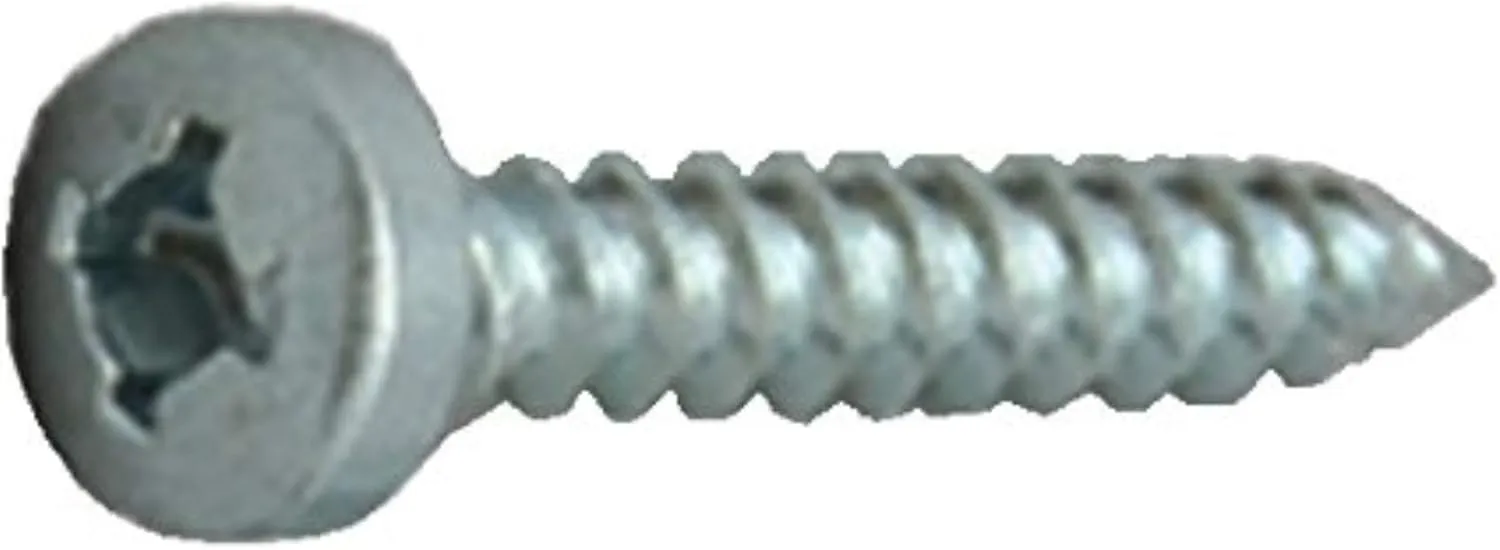

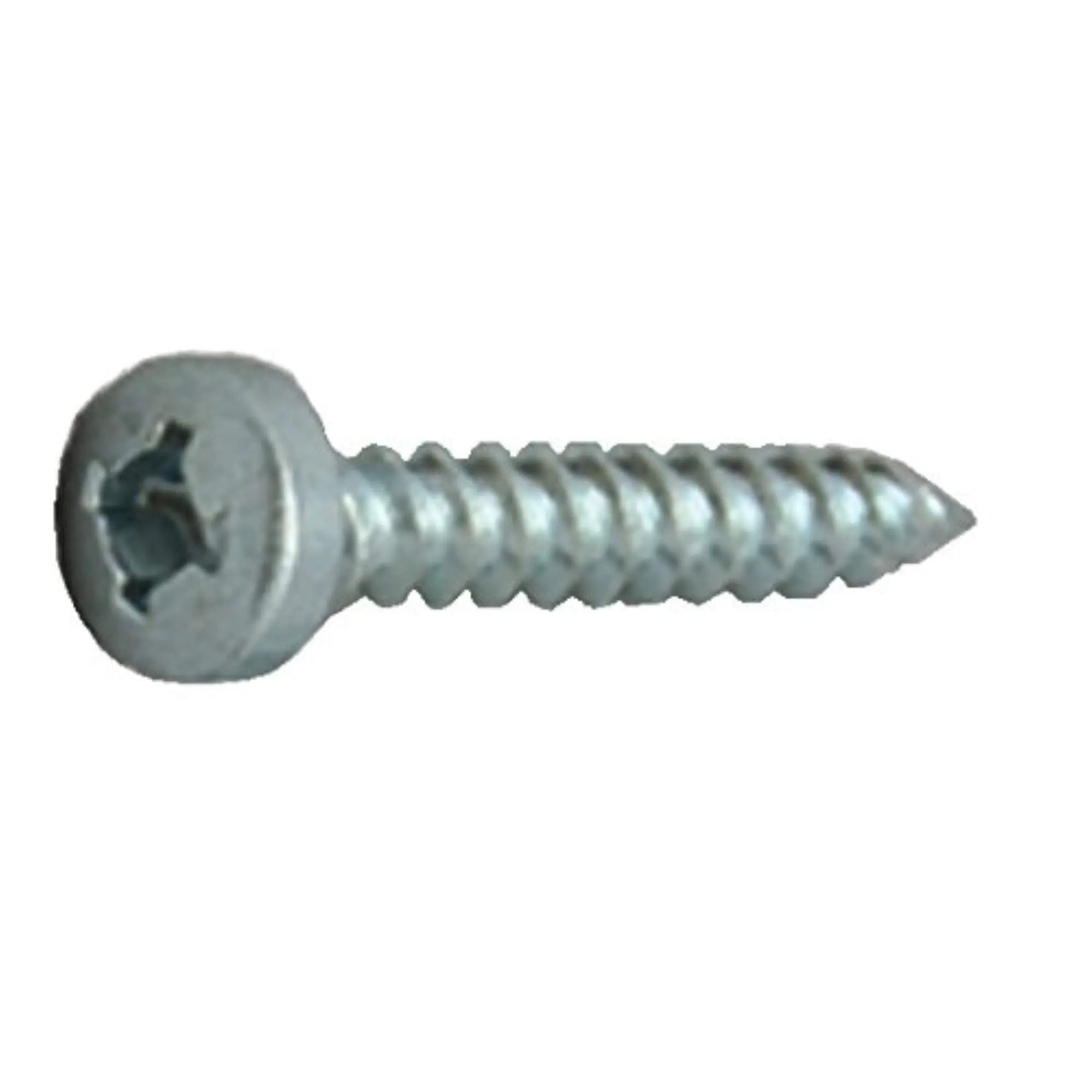

AP Products (012-PSQ500 8X1) Square Recess Pan Head Screw, Pack of 500
Customize
AP Products 012-PSQ500 8X1 Square Recess Pan Head Screws (Pack of 500). These No. 8 x 1 inch self-tapping sheet metal screws feature a square recess drive and pan head for a secure fit and clean finish. Constructed from alloy steel with a zinc/metal exterior finish, they are commonly used in the RV and mobile home industry and general sheet metal applications. Includes 500 screws per pack. Item dimensions (package): 4 x 3 x 6.5 inches. Item weight (single screw): 0.01 ounces; package weight (ProductDatabase): 2.7200 (package weight as recorded in ProductDatabase). Drive system: Square. Thread type: Self-tapping; thread style: Right Hand; thread coverage: Fully Threaded. Head type/style: Pan. Point style: Flat Point. Finish types: Uncoated / Zinc metal type. Included components: AP Products 012-PSQ500 8 X 1 Pan Head Square Recess Screw, Pack of 500 - 1", Zinc.
- This is a commonly used steel sheet metal screw in the RV/mobile home industry
- 8 x 1 Inch
Specifications:
| Materials & Construction | |
| Color | Natural |
| Material | Alloy Steel |
| Outer Material | Alloy Steel |
| Product Details | |
| Drive System | Square |
| Exterior Finish | Alloy Steel |
| Fastener Size | No. 8 |
| Fastener Type | Sheet Metal Screws |
| Finish Types | Uncoated |
| GTIN | 711217112324 |
| Head Style | Pan |
| Head Type | Pan |
| Included Components | AP Products 012-PSQ500 8 X 1 Pan Head Square Recess Screw, Pack of 500 - 1", Zinc |
| Item Type Name | AP Products 012-PSQ500 8 X 1 Pan Head Square Recess Screw, Pack of 500 - 1", Zinc |
| Material | Alloy Steel |
| Material Type | Alloy Steel |
| Metal Type | Zinc |
| Number of Pieces | 500 |
| Point Style | Flat Point |
| Screw Head Style | Pan |
| Screw Point Style | Flat Point |
| Set Name | AP Products 012-PSQ500 8X1 Pan Head Square Recess Screw Set (Pack of 500) |
| Size Name | 8 Inch x 1 Inch |
| Thread Class | Standard |
| Thread Coverage | Fully Threaded |
| Thread Style | Right Hand |
| Thread Type | Self-tapping |
| Sizing & Dimensions | |
| Height | 6.5 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 6.5 inches |
| Size | No. 8 x 1 Inch |
| Weight | 0.01 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Drive System | Square |
| Point Style | Flat Point |
| Thread Type | Self-tapping |
