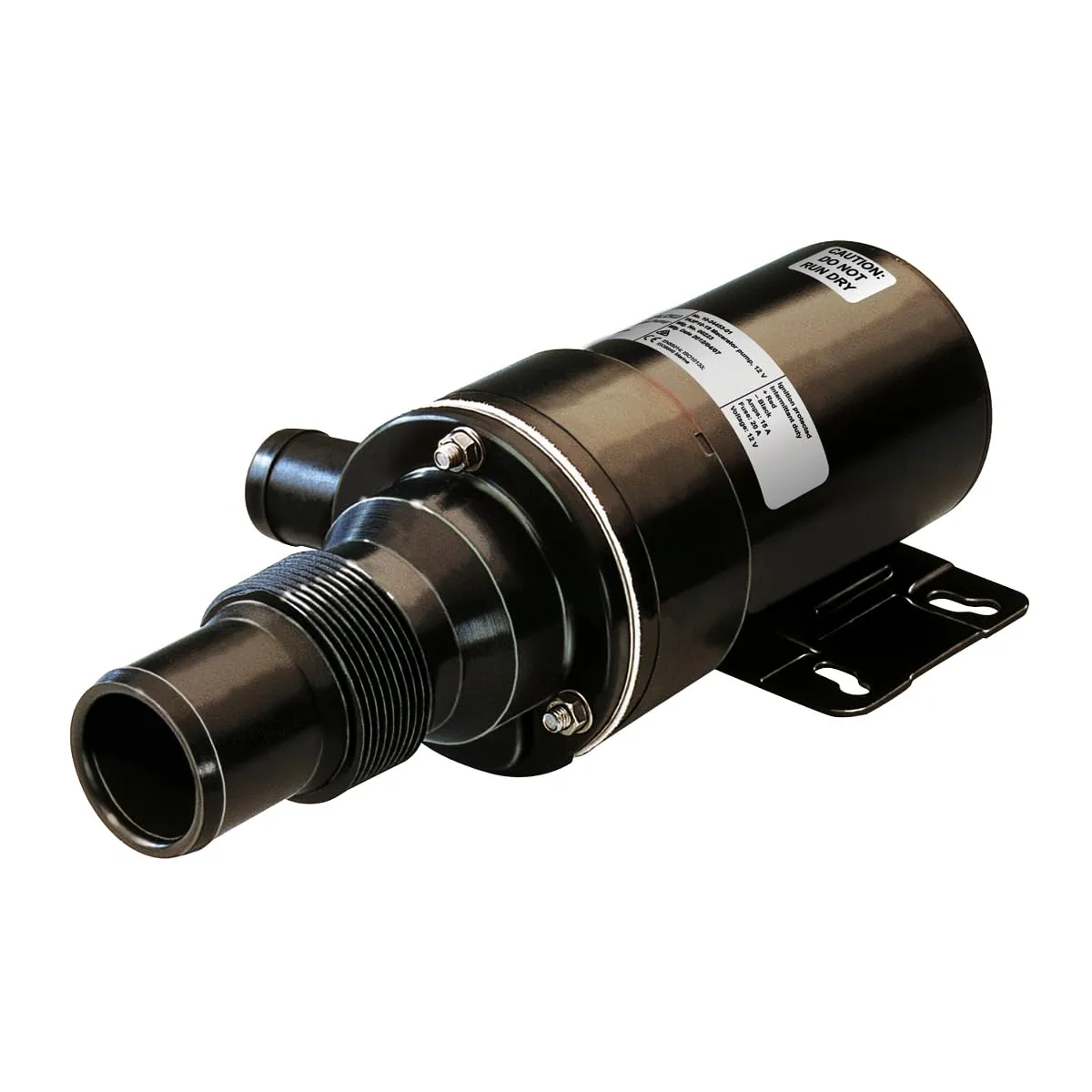

Johnson Pumps 10-24453-01 Macerator Pump

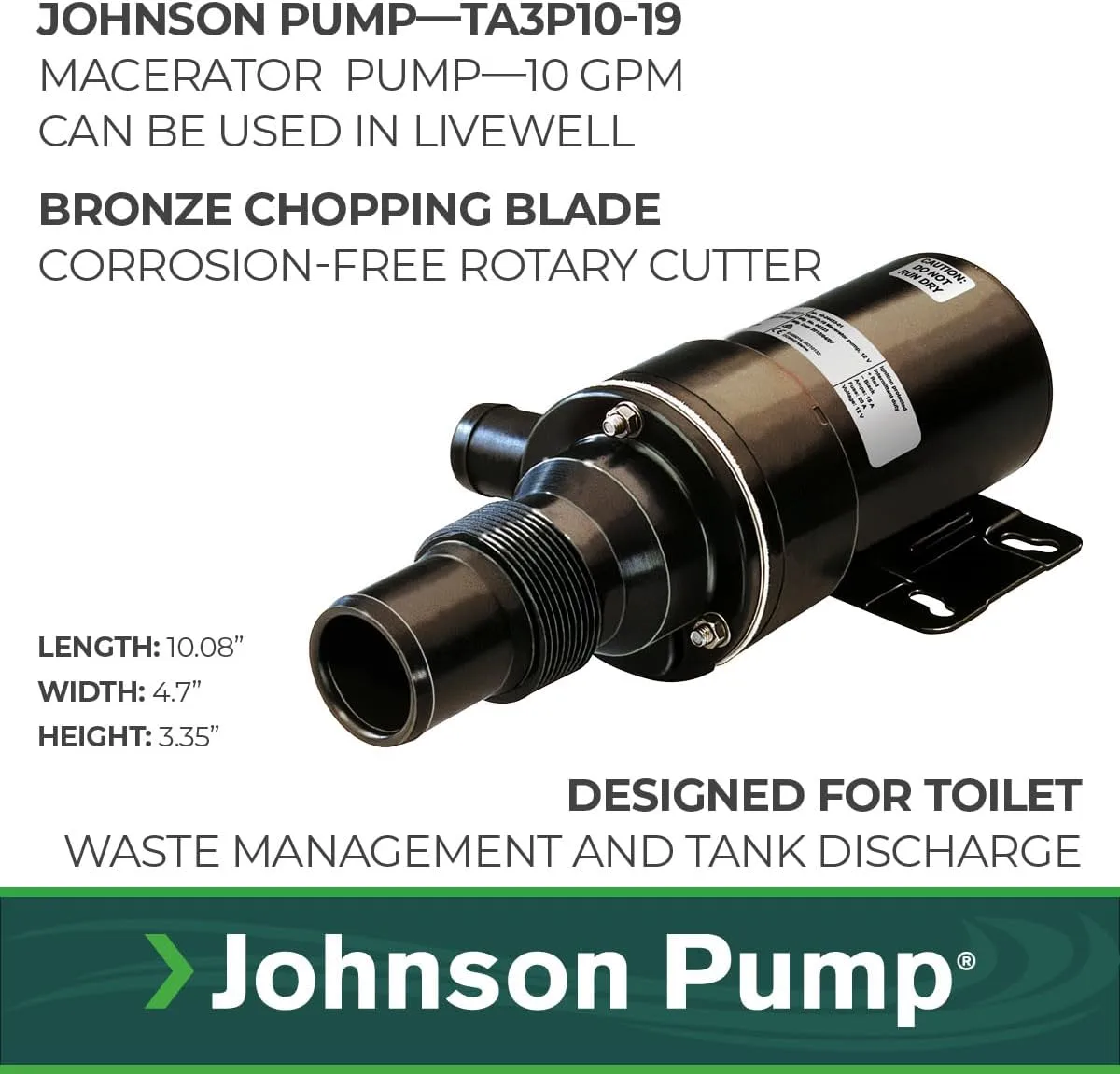

The Johnson Pumps 10-24453-01 Macerator Pump provides efficient waste management by grinding and pumping solids with ease. Designed for marine and RV applications, it ensures reliable, clog-free operation for clean and safe handling of wastewater. The TA3P10-19 Macerator pump takes care of the toilet/livewell waste, shredding it before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Note! Use unbleached lavatory paper only. Features: Ignition protected motor, conforming with ISO 8846. Mounting bracket for easy replacement. Extremely energy efficient. Rotary cutter casing of PET (thermoplastic polyester). Directly connected to sewage line or holding tank. Performance & Connections: Capacity at 0.2 bar (6.7 ft): 37 l/min - 10 GPM. Inlet Connection: 1-1/2" (dia 38 mm) hose or 1-1/2" NPT. Outlet Connection: 1" (25.4 mm) hose. Amperage: 15 A. Fuse Size: 20 A. Motor: 12V DC (with built-in thermal protection). Construction: Pump Body: Phenol Plastic (PF). Impeller: Nitrile. Cutter Casing: Thermoplastic Polyester (PET). Shaft: Stainless Steel. Seal: Lip Seal. Dimensions & Weight (from ProductDatabase and manufacturer data): Length: 11.22" (ProductDatabase). Width: 5.70" (ProductDatabase). Height: 3.74" (ProductDatabase). Manufacturer-listed length/width/height in description: 230 mm - 9.06" (Length), 108 mm - 4.25" (Width), 82 mm - 3.23" (Height). Item Weight approx 4.2-4.87 pounds depending on source. Included: JOHNSON PUMPS 10-24453-01 Macerator Pump, documentation. Manufacturer warranty: 1 Year Limited.

• Macerator Pump
• TA3p10-1907, 12 V.
• Rotary cutter shreds waste before it is pumped into or out from the holding tank.
• Included components: document
