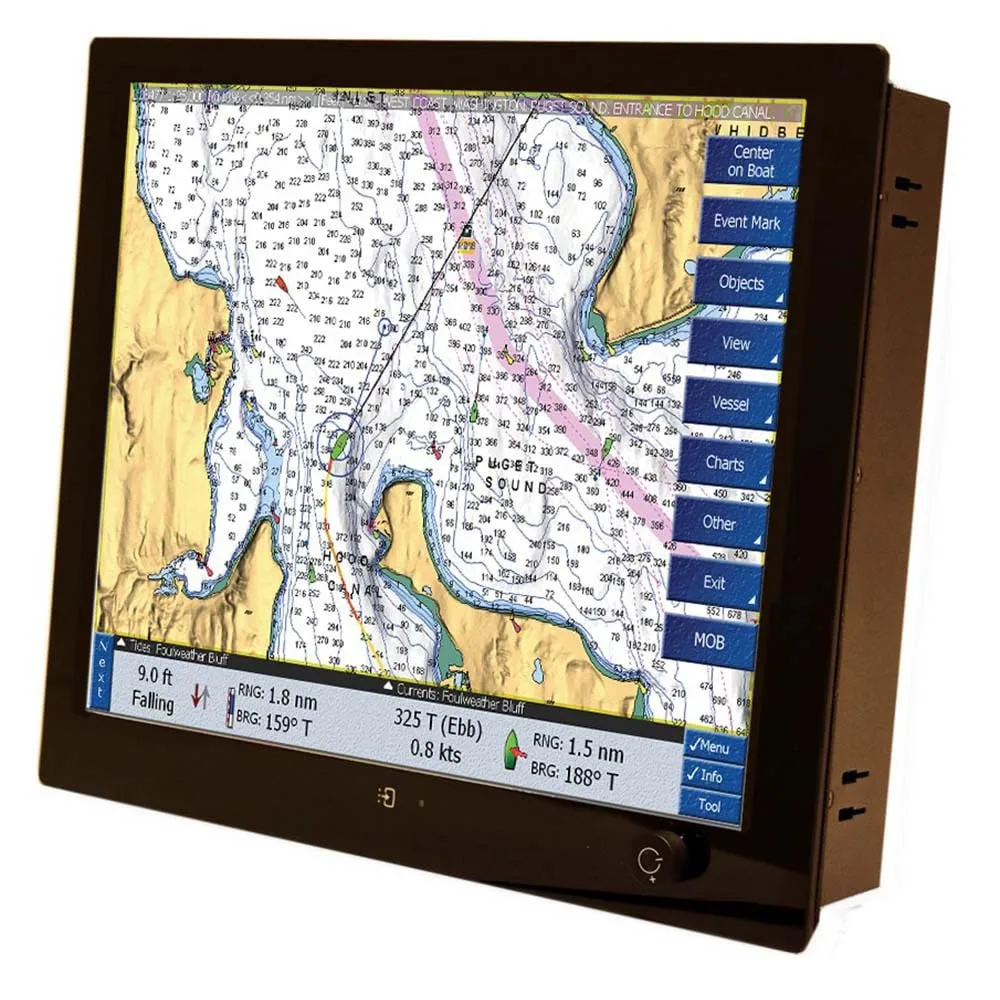

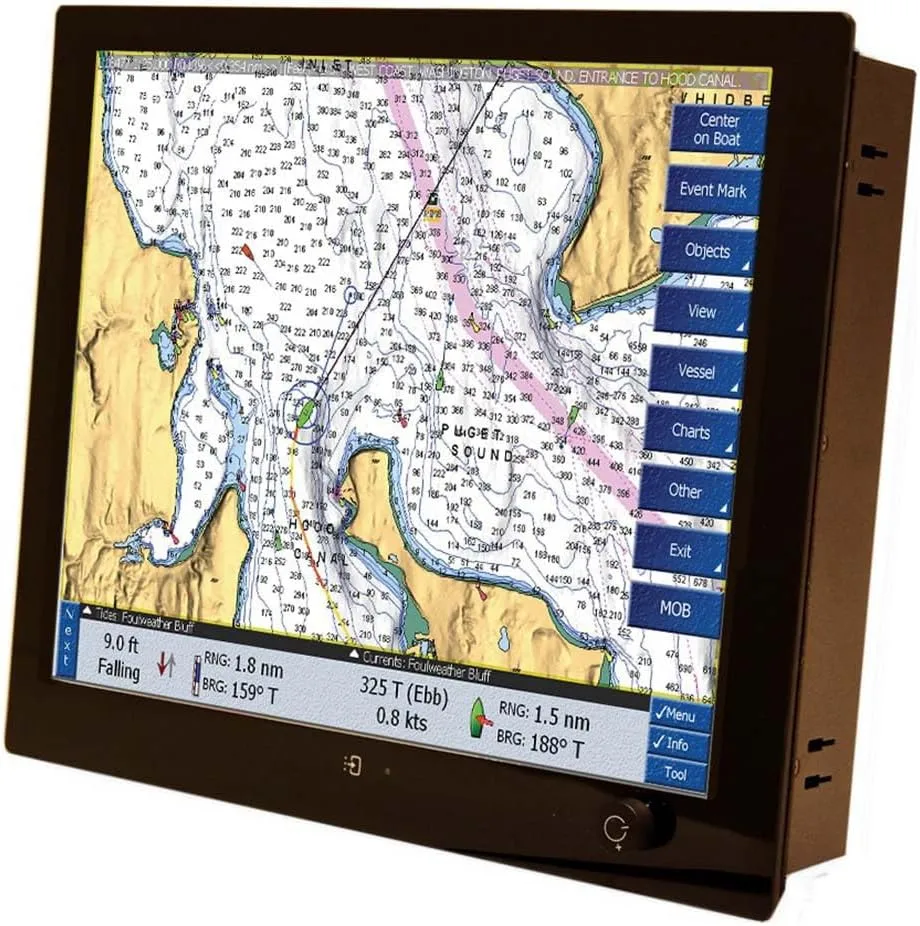

Seatronx 19" Pilothouse Touch Screen Display
Customize
Seatronx PHT-19 Pilothouse Touch Screen Display is a rugged 19" touchscreen monitor designed for marine and pilothouse use. The glass-bridge style display combines a ruggedized design with attractive styling and features projected capacitive touch with optional optical bonding and optional remote control. The display provides up to 300 nits of low-power LED backlighting (dimmable to 0 for nighttime use) and a contrast ratio of 1000:1 with wide viewing angles (89° left/right/up/down). Native resolution is 1280 x 1024 on a 19" active area. Mounting options include panel mount and VESA mount; it is front-sealed to IP68 with potentiometer control. Inputs include HDMI, DVI, VGA, and component; power options support 9–34V DC (screw terminal), with typical power consumption listed at approximately 3.5A @ 24VDC. Operating temperature range 0 to 70°C and storage -20 to 70°C. The product ships with package dimensions approximately 31 x 22 x 7 inches and package weight ~22 pounds. Ideal for navigation displays, pilothouse installations, and rugged marine electronics applications.
- Model name: PHT-19
- Type: Navigation Display
- Special feature: Touchscreen
- Product type: NAVIGATION COMPASS
- Material: Plastic
- Mounting type: Panel Mount or Vesa
- Weight: 22 pounds
- Dimensions: 19 x 16.43 inches
Specifications:
| Materials & Construction | |
| Color | Multicolor |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Ac/dc | Dc |
| Amperage | 1.5 |
| Included Components | Great Product |
| Mounting Type | Panel Mount, Wall Mount |
| Resolution (Vxh) | 1280x1024 |
| Screen Size | 19" |
| Special Feature | Touchscreen |
| Touchscreen | Yes |
| UPC | 850036822141 |
| Sizing & Dimensions | |
| Height | 7.09 inches |
| Length | 31.5 inches |
| Product Dimensions | 31"L x 22"W x 7"H |
| Size | 19" |
| Weight | 22 pounds |
| Width | 21.65 inches |
| Technical Specifications | |
| Ac/dc | Dc |
| Amperage | 1.5 |
| Warranty | Warranty |
