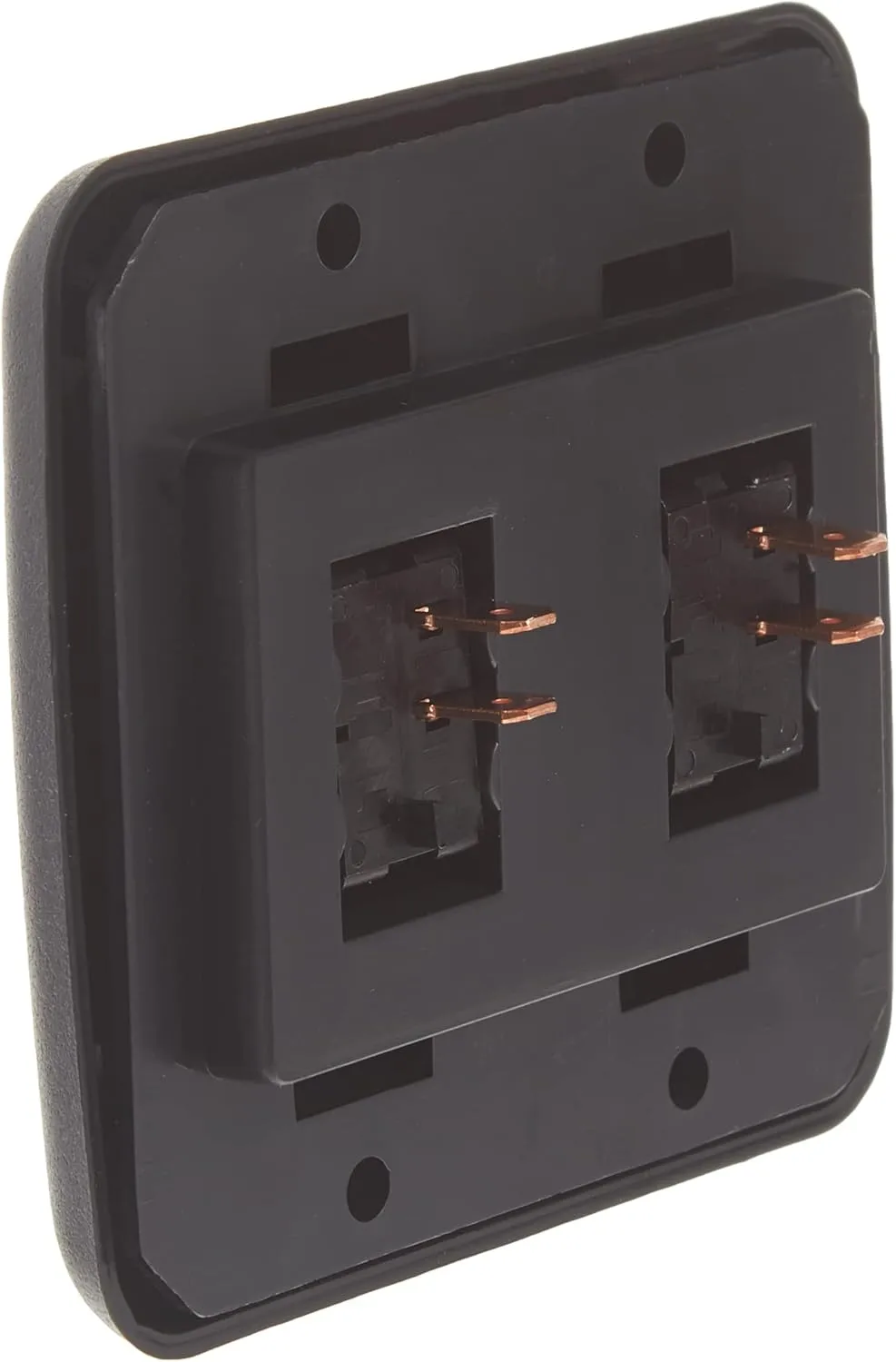

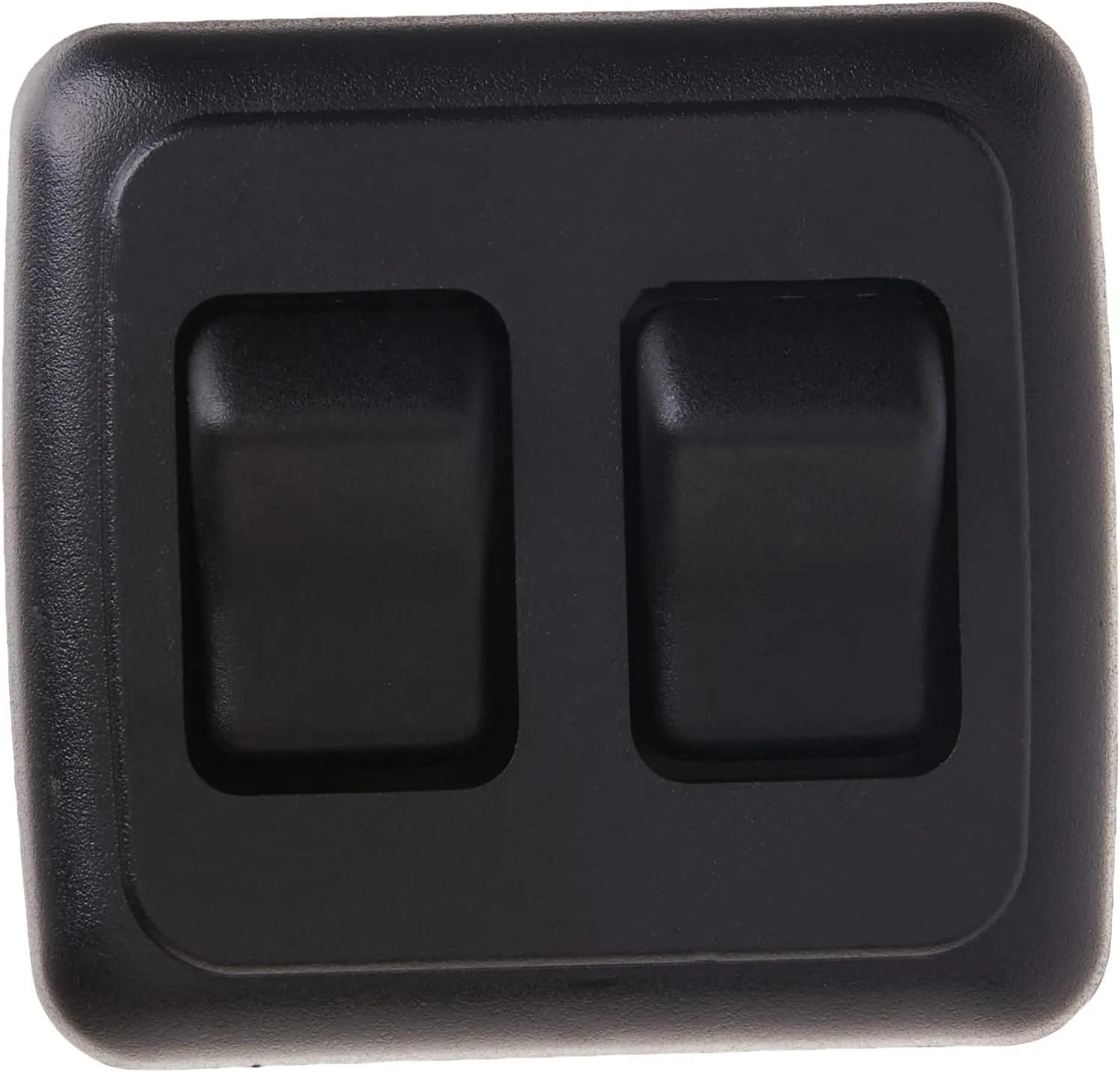

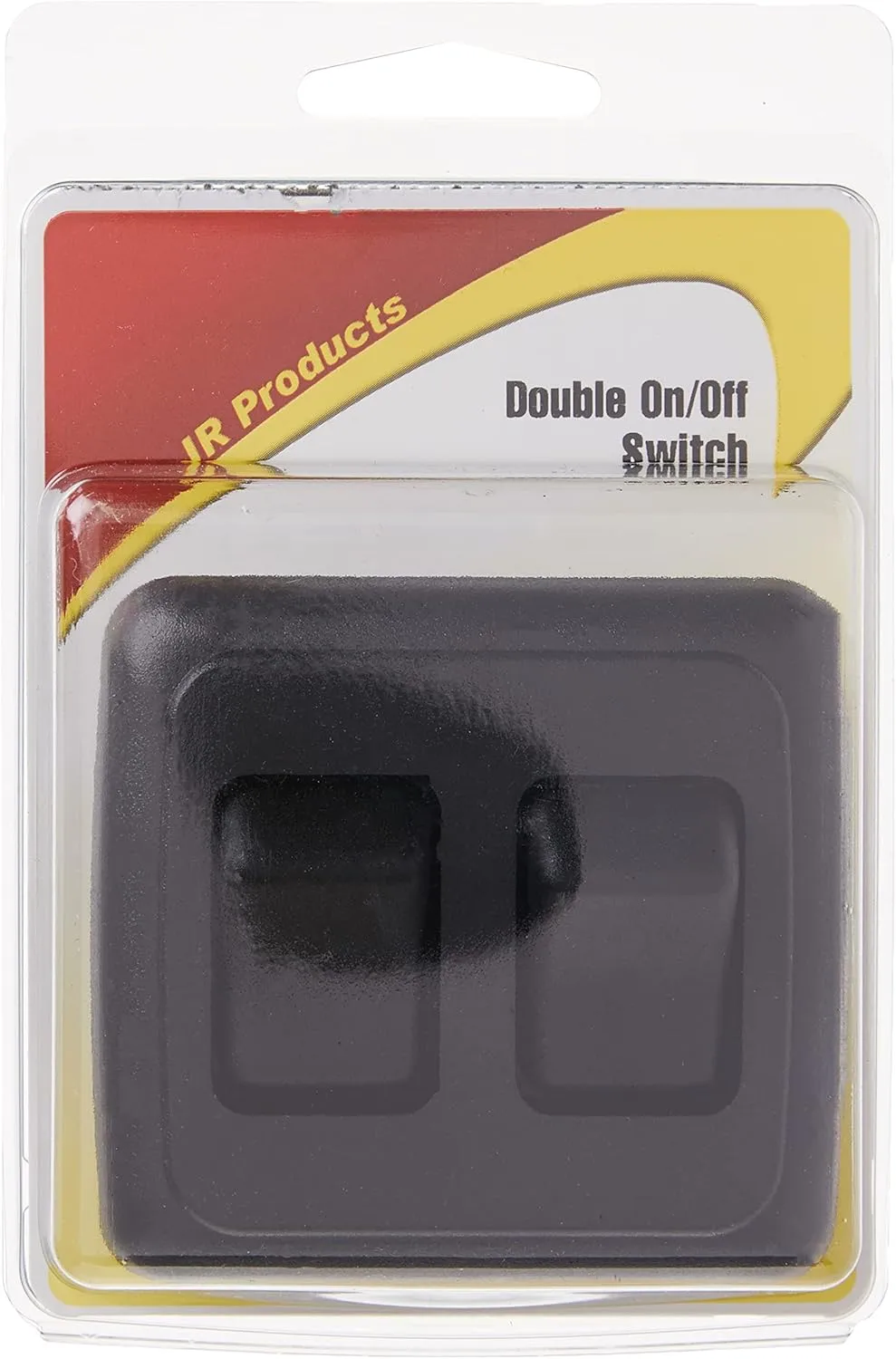

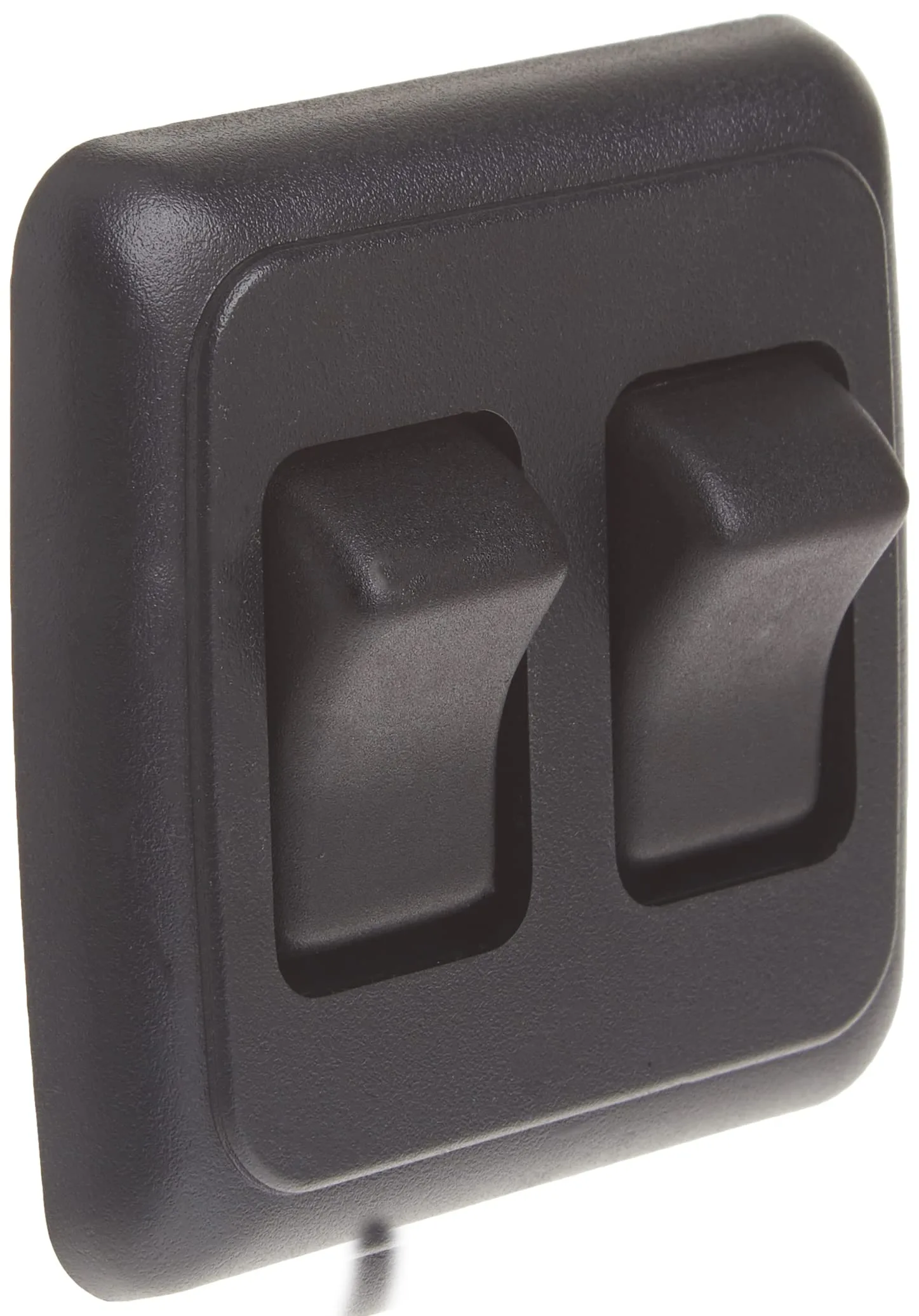

JR Products 12235 Black Double SPST On-Off Switch with Bezel
Customize
These 12 volt wall mount light switches are designed for interior aesthetics and functionality. They are built with one of the lowest profiles available today while maintaining a shallow mounting depth. The new, larger switch panel provides easier use with a rounded contour for comfort. The switches and housing are constructed of durable nylon for a long life and the terminals are made of copper alloy and/or silver plated copper alloy. Included components: 2 ON/OFF SPST Switches, Mounting Plate, and Faceplate. Item type: ON/OFF Switch. Model: 12235. Item dimensions: 5.5 x 3.5 x 1.2 inches. Item weight (display): 0.32 ounces. Ratings: 16 Amp @ 125-250 VAC; 3/4 H.P. @ 125-250 VAC; 10 Amp @ 14 V (T); 3 Amp @ 125V(L). Operating voltage: 12 Volts. Contact material: Copper Alloy. International Protection Rating: IP54. Mounting: Panel mount. Connector type: Screw. Actuator type: Push button. Number of positions: 2. Warranty: Please contact us if you experience any issues within 30 days of receipt.

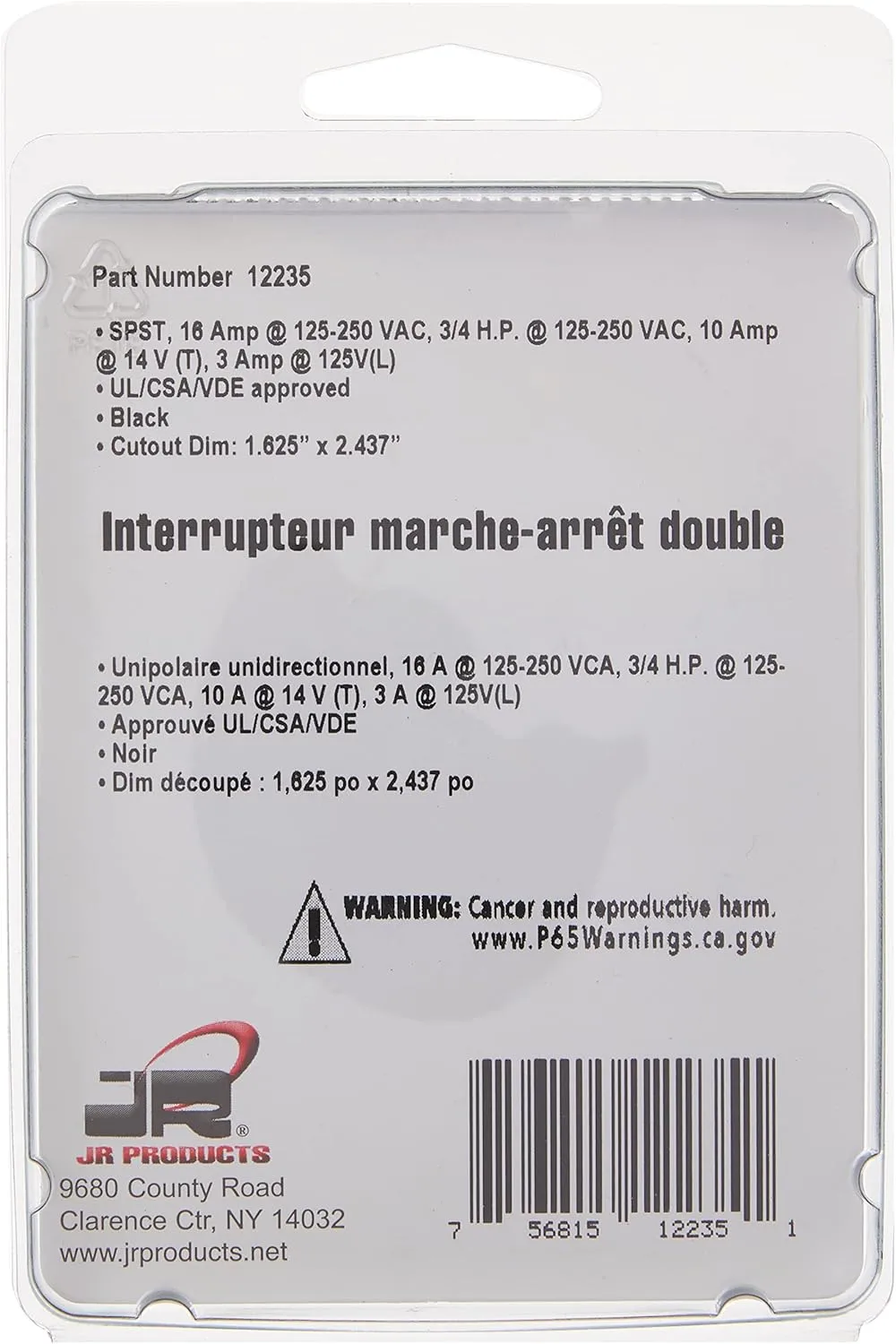

- SPST, 16 Amp @ 125-250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 V (T), 3 Amp @ 125V(L)
- UL/CSA/VDE approved
- Black
- Cutout Dim: 1.625” x 2.437”
- ATC Automotive Fuses, 5/Card, 15 Amp
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper Alloy |
| Outer Material | Nylon |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Copper Alloy |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 16 Amps |
| Included Components | 2 ON/OFF SPST Switches, Mounting Plate, and Faceplate |
| International Protection Rating | IP54 |
| Item Type Name | ON/OFF Switch |
| Material Type | Copper Alloy |
| Model | 12235 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Operation Mode | Off,On Off |
| Switch Type | SPST |
| Wattage | 140 watts |
| Sizing & Dimensions | |
| Height | 1.13 inches |
| Length | 5.50 inches |
| Product Dimensions | 5.5 x 3.5 x 1.2 inches |
| Product Weight | 0.32 ounces |
| Weight | 2.88 ounces |
| Width | 3.63 inches |
| Technical Specifications | |
| International Protection Rating | IP54 |
| Lower Temperature Rating | 30 Degrees Celsius |
| Upper Temperature Rating | 70 Degrees Celsius |
| Warranty | Please contact us if you experience any issues within 30 days of receipt. |
