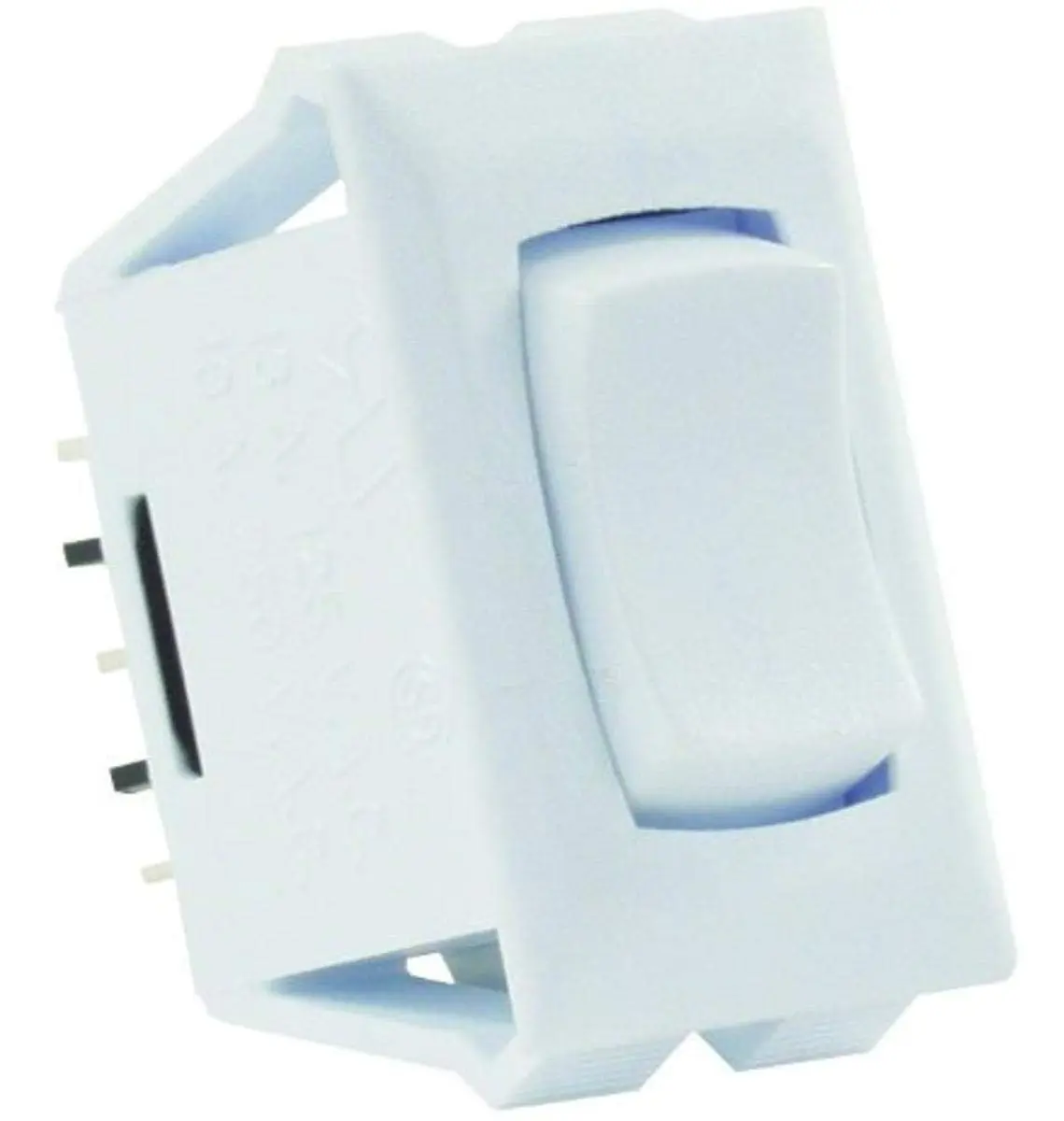

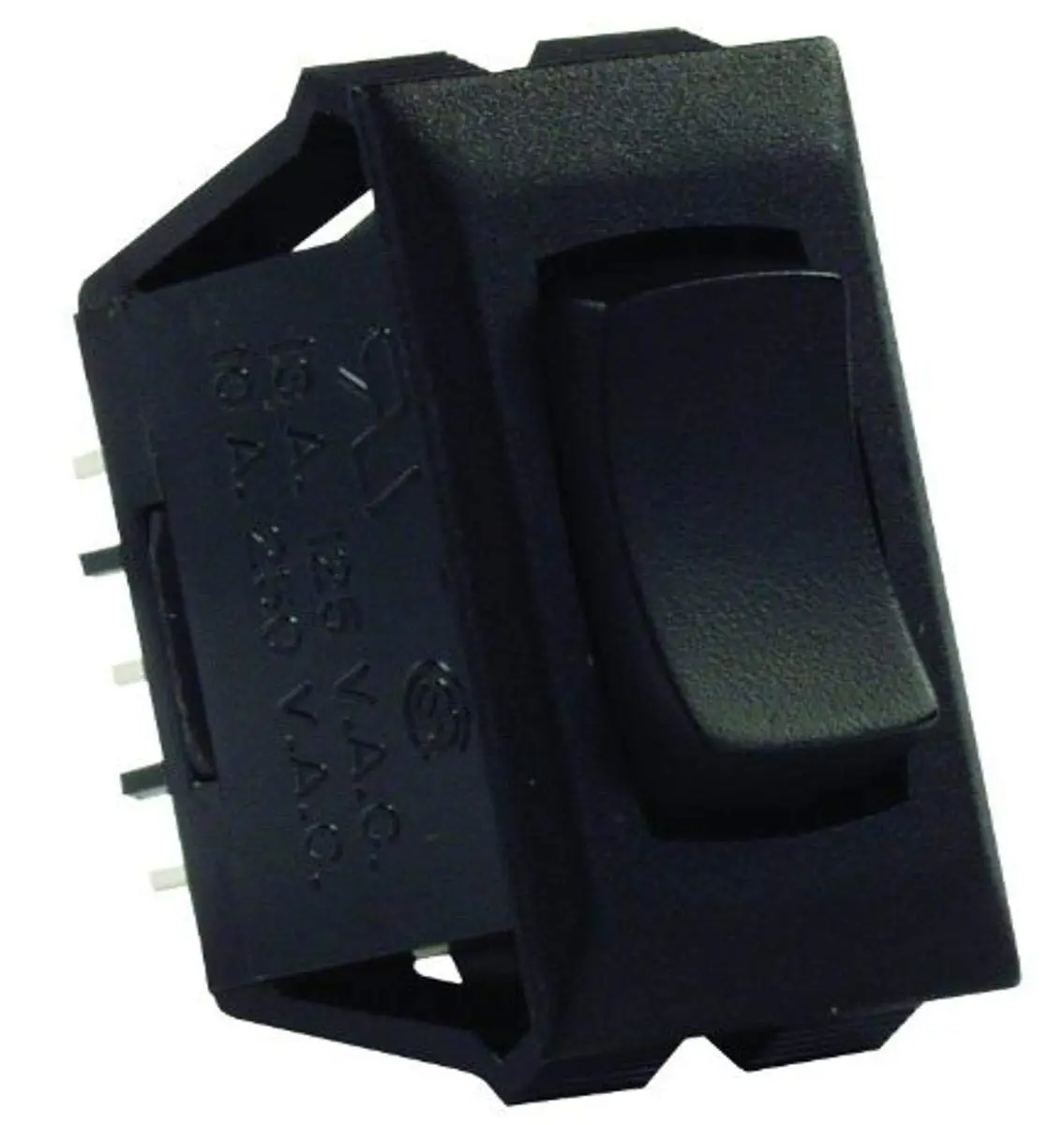

JR Products SPDT Mom-On/Off/Mom-On Panel-Mount Toggle Switch
Panel-mount SPDT Mom-On/Off/Mom-On toggle switch with metal construction and quick-connect terminals. Rated 13A@125VAC, 10A@250VAC and 5A@14VDC with industry certifications.
Non-returnable
Out of stock Out of stock
$6.57
$6.57
$6.57
Color
material
Select material
Customize
UPC
756815126953 Available Quantity
31 GSA Item
No GSA Compliant
Yes UPC
756815126755 Available Quantity
68 GSA Item
No GSA Compliant
Yes Product Details
This JR Products family is a panel-mount SPDT momentary (Mom-On/Off/Mom-On) toggle switch designed for automotive and industrial electrical applications. Common features across the variants include metal construction, quick-connect terminals, and robust contact materials (brass in some listings) for dependable conductivity and long service life. Electrical ratings are 13 AMP at 125 VAC, 10 AMP at 250 VAC and 5 AMP at 14 VDC (1/2 HP). The switches meet UL, CSA, RoHS and VDE specifications and carry an IP54 protection rating. Cut-out dimensions are 1.125 x 0.550 inches with switch dimensions of 1.120 x 0.547 inches. Each item ships 1 per package and is intended for panel-mount installation in control and automotive environments.
- SPDT, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 5 Amp @ 14 VDC
- UL/CSA/RoHS approved
- White
- Cutout: 1.125” x 0.550”
- Switch: 1.120” x 0.547”
- Cut Out Dimensions = 1.125 x .550
- Switch Dimensions = 1.120 x .547
Specifications:
| Materials & Construction | |
| Material Type | Metal |
| Product Details | |
| Actuator Type | Hinge Lever |
| Circuit Type | 1-way |
| Connector Type | Quick Connect |
| Contact Type | Spst |
| GTIN | 756815126953 |
| Included Components | ..... |
| Model | 12695 |
| Number of Items | 1 |
| Operation Mode | Off |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1.00 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 1 x 0.04 inches |
| Product Weight | 0.0600 |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Current Rating | 13 Amps |
| International Protection Rating | IP54 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Mounting/Use | Panel-mount; quick-connect terminals; suitable for automotive and industrial control |
| Operating Current/Performance Note | 13 AMP at the rate of125 VAC, 10 AMP at the rate of 250 VAC, 1/2 HP, 5 AMP at the rate of 14 VDC |
| Operating Voltage | 250 Volts |
| Specification Met | CSA, RoHS, UL |
| Upper Temperature Rating | 1 Degrees Celsius |
| Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
