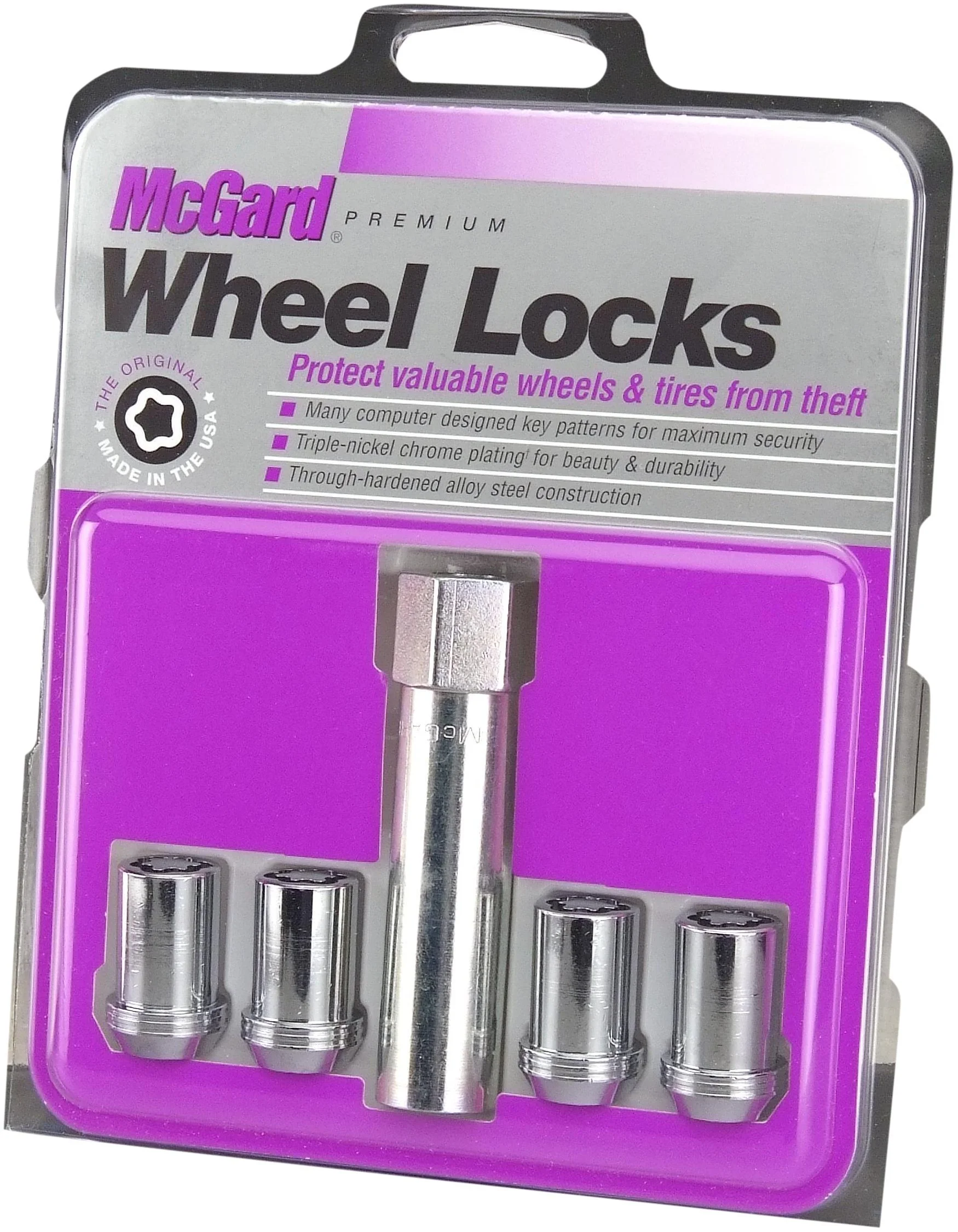

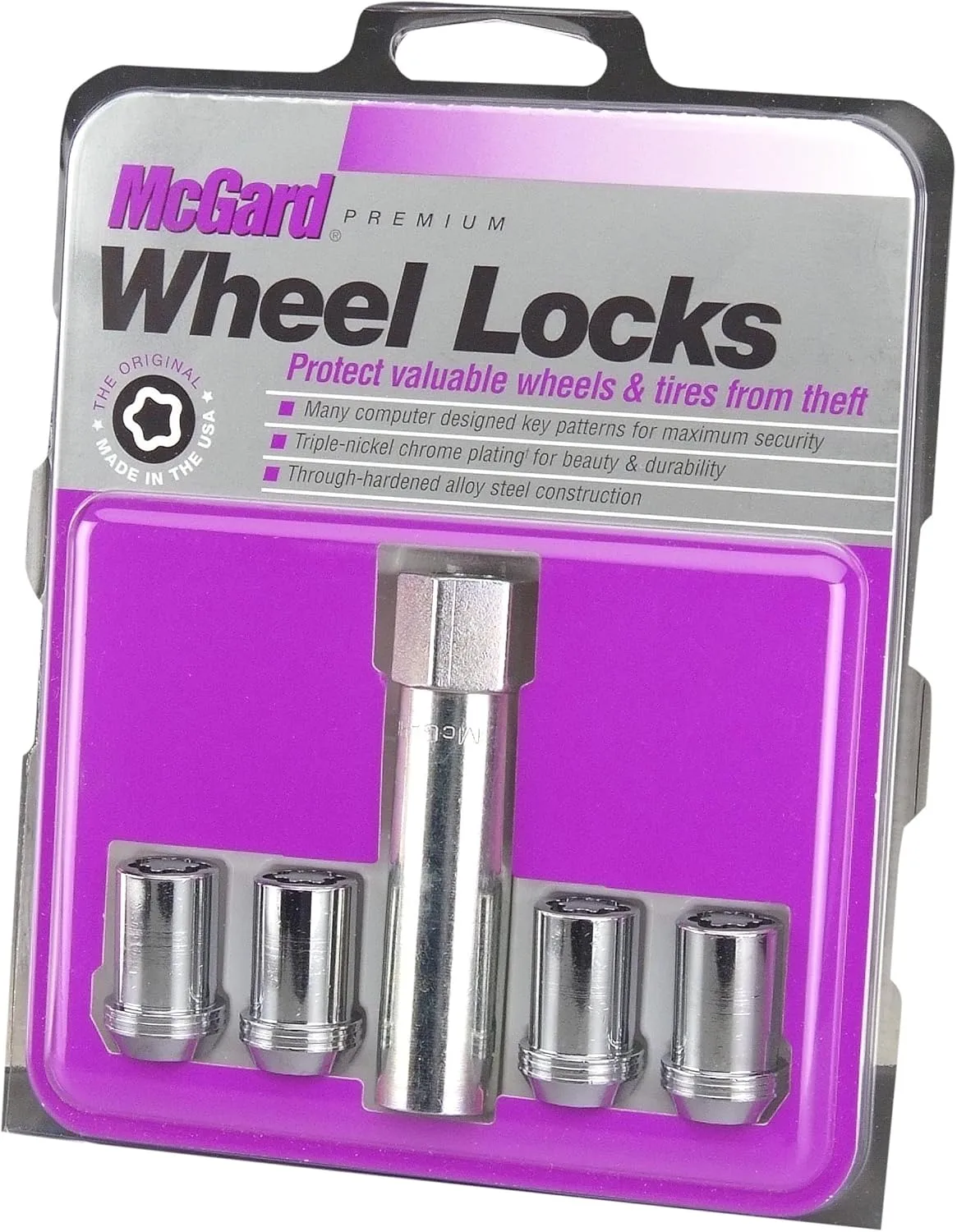

McGard Tuner-Style Cone Seat Wheel Locks M12 x 1.5 – Set of 4 with Key
Customize
Protecting wheels and tires from theft since 1964, McGard manufactures tuner-style cone seat wheel locks in the USA to meet or exceed OEM standards. These one-piece wheel locks function like regular lug nuts but require a special unique key; the steel collar on the key guides and holds the key in alignment for easy installation and removal. Computer-generated key designs allow for an infinite number of key patterns and the extra narrow pattern groove resists the intrusion of removal tools. Every lock is fully machined from restricted chemistry alloy steel and through-hardened for an unsurpassed level of security. McGard’s plating process includes layers of nickel and microporous chrome producing a superior finish while protecting against rust. For use on tuner wheels or wheels with very small lug nut holes; for alloy wheels only. Set includes 4 locks and 1 unique key. This product may contain globally sourced materials/components.
- Due to the unique key patterns, the pattern shown in images will differ from the pattern on the locks you receive. If ordering multiple lock sets, the keys will not match. McGard keys will not match OEM locks installed by the factory or dealership.
- Please note that tuner wheel locks are application-specific products. You must confirm proper fitment for your vehicle by using the Amazon part finder or consulting our website. Please review important fitment notes provided. Also note the type of seating your tuner wheel locks require they can be either radius, flat or cone seat this has to be done visually by the customer to insure a proper fit before purchase and install along with correct shank length and thread size that matches your current lug nuts
- McGard’s plating process includes several layers of nickel and one layer of microporous chrome producing a superior finish while protecting against rust. Every lock is through-hardened and tempered. Manufactured in the USA to meet or exceed OEM standards.
- Tuner Cone Seat wheel locks are a no-compromise design engineered to fit into close tolerance lug hole recesses in Tuner style wheels. Weight matched to our SplineDrive lug nuts. For alloy wheels only. Set Includes Tuner wheel locks and 1 Unique key
- Seat Style Cone Seat Nut; Thread Size M12 x 1.5; Overall Length 1.24; Hex Size 13/16; Includes 4 Locks & 1 Key. For aluminum wheels only
Specifications:
| Materials & Construction | |
| Exterior Finish | Painted |
| Finish Types | Nickel |
| Outer Material | Alloy Steel |
| Product Details | |
| Fastener Type | Lock |
| Grade Rating | aerospace |
| Included Components | 4 Locks, 1 Key |
| Item Diameter | 12 Millimeters |
| Item Type Name | Wheel Lock Set |
| Model | 25257 |
| Part Number | 25257 |
| Set Name | 4 Locks / 1 Key |
| Unit Count | 4.0 Count |
| Sizing & Dimensions | |
| Weight | 1.0 pounds |
| Technical Specifications | |
| Compatible Groove Diameter | 12 Millimeters |
| Inside Thread Size | M12 |
| Screw Head Style | Locking |
| Thread Class | Class 2A |
| Thread Style | Metric Coarse |
| Thread Type | Iso Metric |
