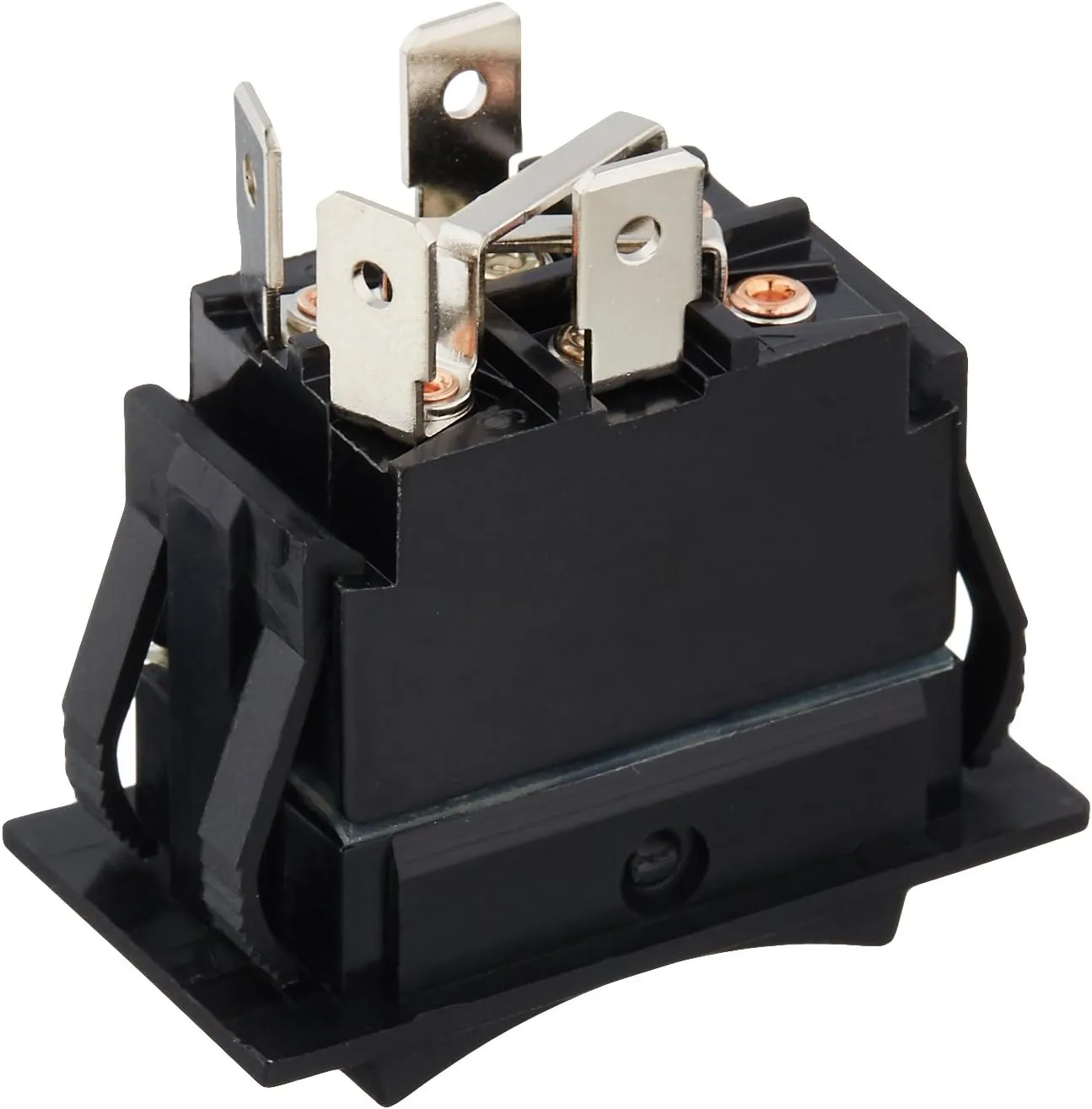

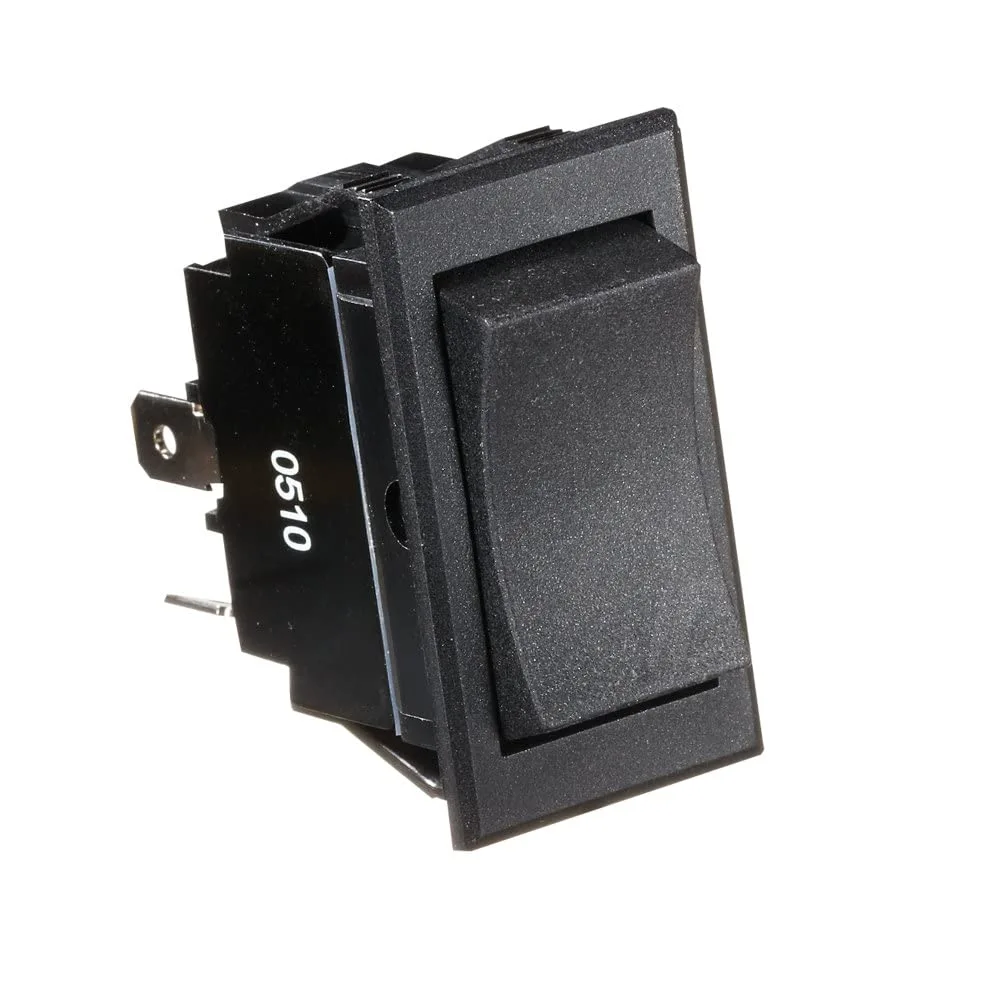

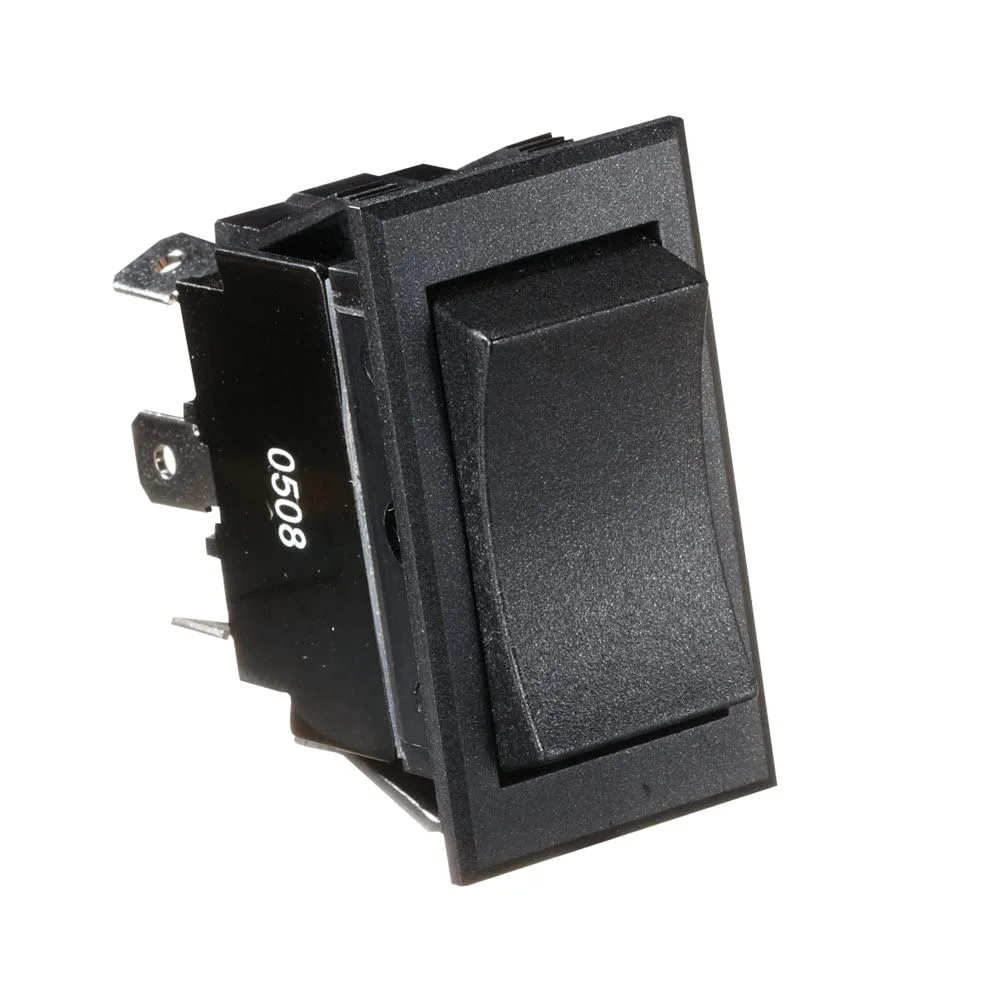

RV DESIGNER Rocker Switch DPDT 20A Panel Mount
DPDT rocker switch rated 20 Amp with ON-OFF-ON momentary action, designed for panel-mount installation. Commonly used for RV slide-outs, power sofas and generators.
Non-returnable
Out of stock Out of stock
$14.18 - $21.65
$21.65
$14.18
Color
material
Select material
Customize
UPC
601320112215 Available Quantity
87 GSA Item
No GSA Compliant
Yes UPC
601320112253 Available Quantity
29 GSA Item
No GSA Compliant
Yes Product Details
This RV DESIGNER family of DPDT rocker switches provides 20 Amp switching for DC electrical applications and is intended for panel-mount installation. Models in the family feature ON-OFF-ON (momentary) operation and are commonly used to control RV slide-outs, power sofas and generators. Cut-out dimensions are approximately 1.46" x 0.83" and unit dimensions are listed as 4.81 x 2.66 x 1.25 inches. Variants are available with 4 or 6 terminals and with different operating voltages (6V or 12V) and connector types; construction and contact materials vary by model (metal or plastic housings with copper or alloy steel contacts).

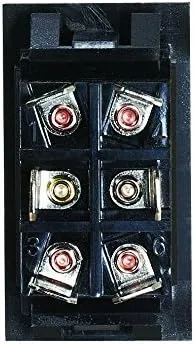

- 4 Terminals
- Typical Applications: Slide Out, Power Sofas, Generator
- DPDT
- Cut out 1.46” x 0.83”
- Momentary On/Off/ Momentary On
Specifications:
| Materials & Construction | |
| Contact Material | Metal |
| Outer Material | Copper |
| Product Details | |
| Connectivity Protocol | X-10 |
| Contact Material | Metal |
| Control Method | Touch |
| GTIN | 601320112215 700115569293 |
| Included Components | Momentary On/Off/ Momentary On. Cut out 1.46” x 0.83” DPDT. 4 Terminals. 1 pack |
| International Protection Rating | 20 amp |
| Item Type Name | RV Designer S221, Black Rocker Switch, 20A, 4 X Terminal, Momentary On/Off/Momentary On, Cut-Out 1.46" x 0.83" |
| Material Type | Copper |
| Model | S221 |
| Number of Items | 1 |
| Specification Met | Dpdt |
| Unit Count | 1.0 Count |
| Warranty Description | Manufacturer |
| Wattage | 120 watts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 1.25 inches |
| Product Weight | 0.08 |
| Weight | 1.28 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Actuator Type | Rocker |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Lower Temperature Rating | 100 Degrees Celsius |
| Operating Voltage | 6 Volts |
| Operation Mode | ON-OFF |
| Switch Type | Rocker, Slide |
| Terminal | Dpdt |
| Upper Temperature Rating | 100 Degrees Celsius |
