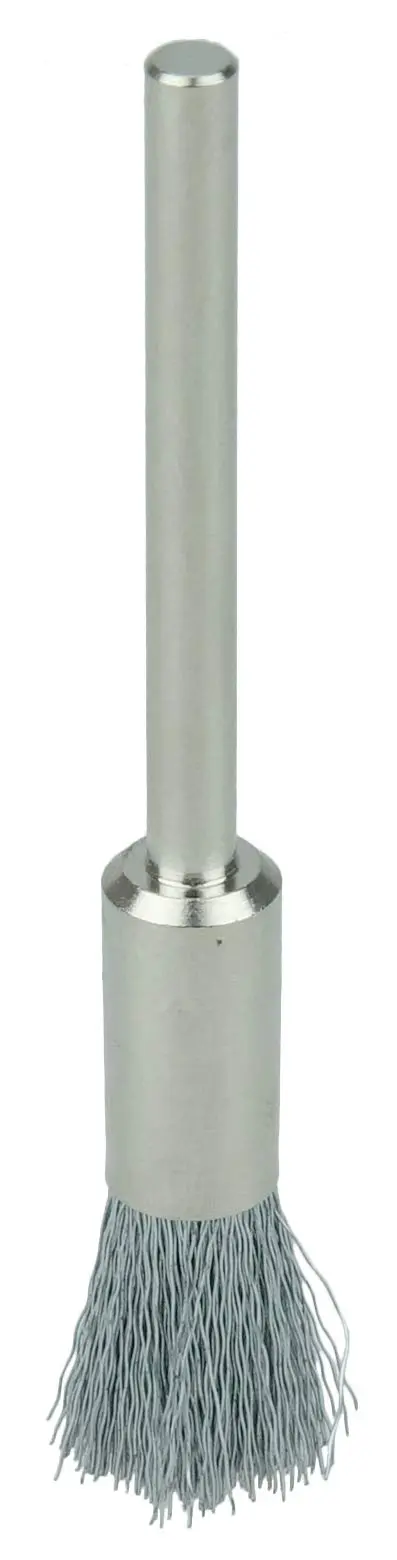

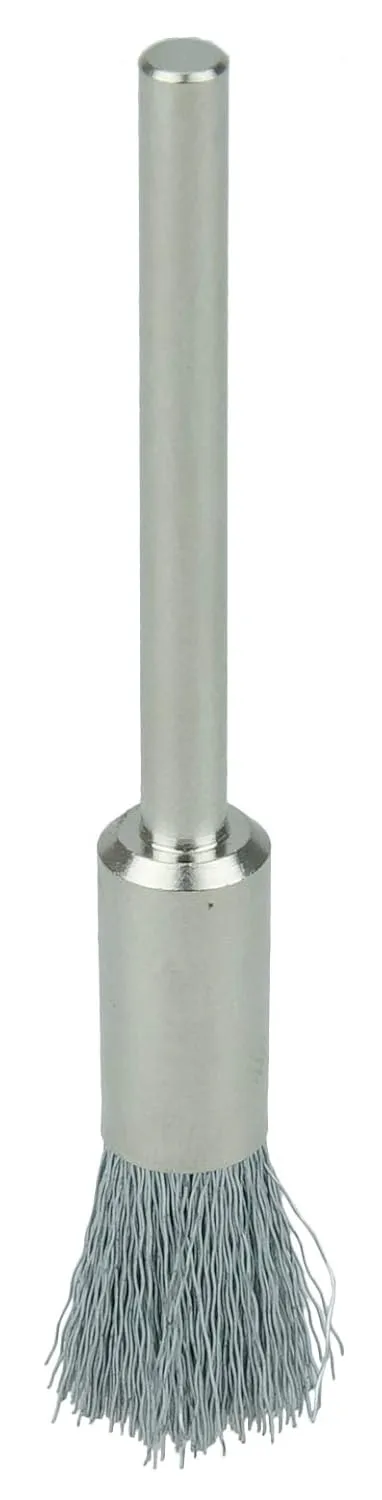

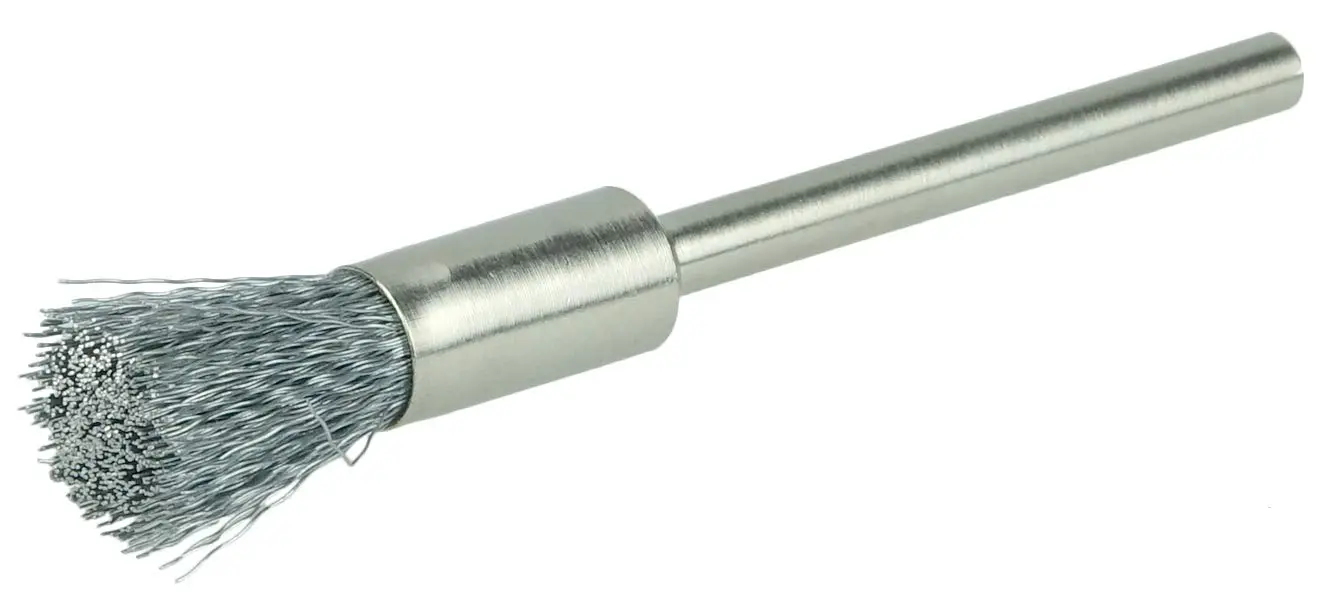

Weiler 26098 Miniature End Wire Brush, 3/16" Dia, 1/8" Stem
Customize
Weiler 3/16 inch Miniature Wire End Brush contains fine crimped wire fill for light-duty cleaning and deburring very small recessed areas or ID's. 1/8 inch stem for use on flexible shaft tool and high speed pencil grinders. THE WEILER FAMILY began producing miniature brushes for the jewelry industry in 1898, and their tradition of providing the highest quality, most cost-effective products continues to this day. Weiler's line of miniature brushes are designed for precision cleaning, light deburring, and finishing applications in a variety of crafts, trades, and industries.They are permanently mounted on 1/8 inch or 3/32 inch stems for quick mounting and efficient use on high-speed electric rotary tools and air-powered pencil die grinders. Engineered and manufactured to maximize performance and minimize operating costs in the most demanding surface conditioning applications. The use of superior construction, the highest quality materials and the most stringent manufacturing processes deliver the lowest cost-of-use and most consistent performance in heavy production environments. Made in the USA. Brush Diameter (Decimal Inch): 3/16; Filament/Wire Diameter (Decimal Inch): 0.0030; Fill Material: Steel; Wire Type: Crimped; Trim Length (Inch): 1/4; Shank Diameter (Inch): 1/8; Maximum Rpm: 37000.000; Overall Length (Inch): 1-7/8; Shank Material: Steel; Shank Included: Yes; Material Application: Steel; Piloted: No; Flared: No.
- Specifications: 3/16 inch Miniature Wire End Brush, .003 inch Steel Fill, 1/8 inch Stem, Made in the USA
- Weiler's line of miniature brushes are designed for precision cleaning, light deburring, and finishing applications in a variety of crafts, trades, and industries
- Permanently mounted on 1/8 inch stem stems for quick mounting and efficient use on high-speed electric rotary tools and air-powered pencil die grinders
- 1/8 inch stem for use on flexible shaft tool and high speed pencil grinders
- Ideal for light-duty cleaning and deburring very small recessed areas or ID's
Specifications:
| Materials & Construction | |
| Bristle Type | Crimped Wire |
| Material | Alloy Steel |
| Outer Material | Alloy Steel |
| Product Details | |
| Brush Diameter (Decimal Inch) | 3/16 |
| Filament/Wire Diameter (Decimal Inch) | 0.0030 |
| Fill Material | Steel |
| Flared | No |
| Material Application | Steel |
| Maximum Rpm | 37000.000 |
| Piloted | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Included | Yes |
| Shank Material | Steel |
| Trim Length (Inch) | 1/4 |
| Unspsc Code | 31191521 |
| Wire Type | Crimped |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.25 inches |
| Product Dimensions | 4.25 x 4.25 x 1.25 inches |
| Size | 3/16 inch |
| Weight | 0.8 ounces |
| Width | 4.25 inches |
| Technical Specifications | |
| Grit Material | Steel |
| Grit Type | Fine |
