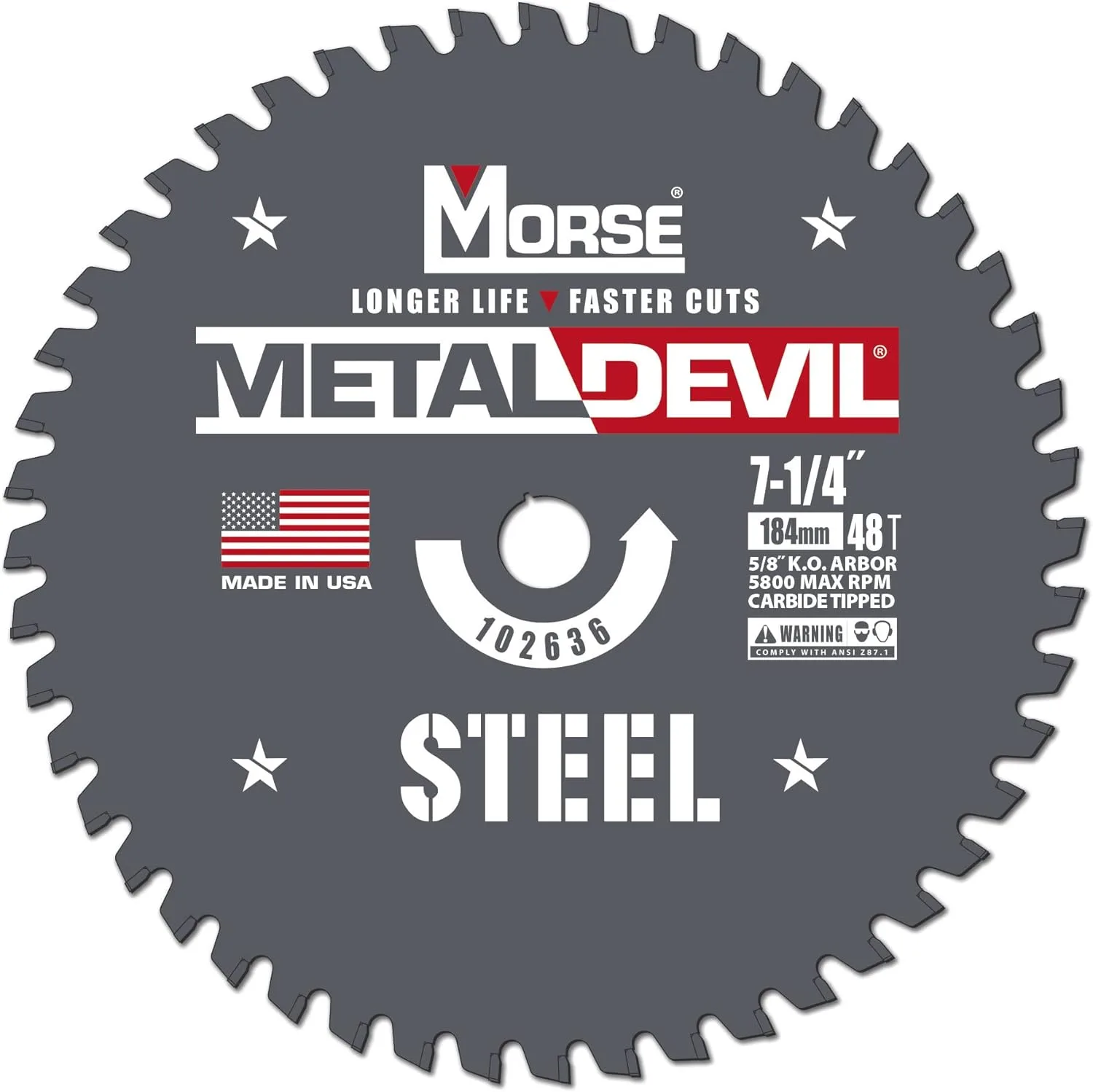

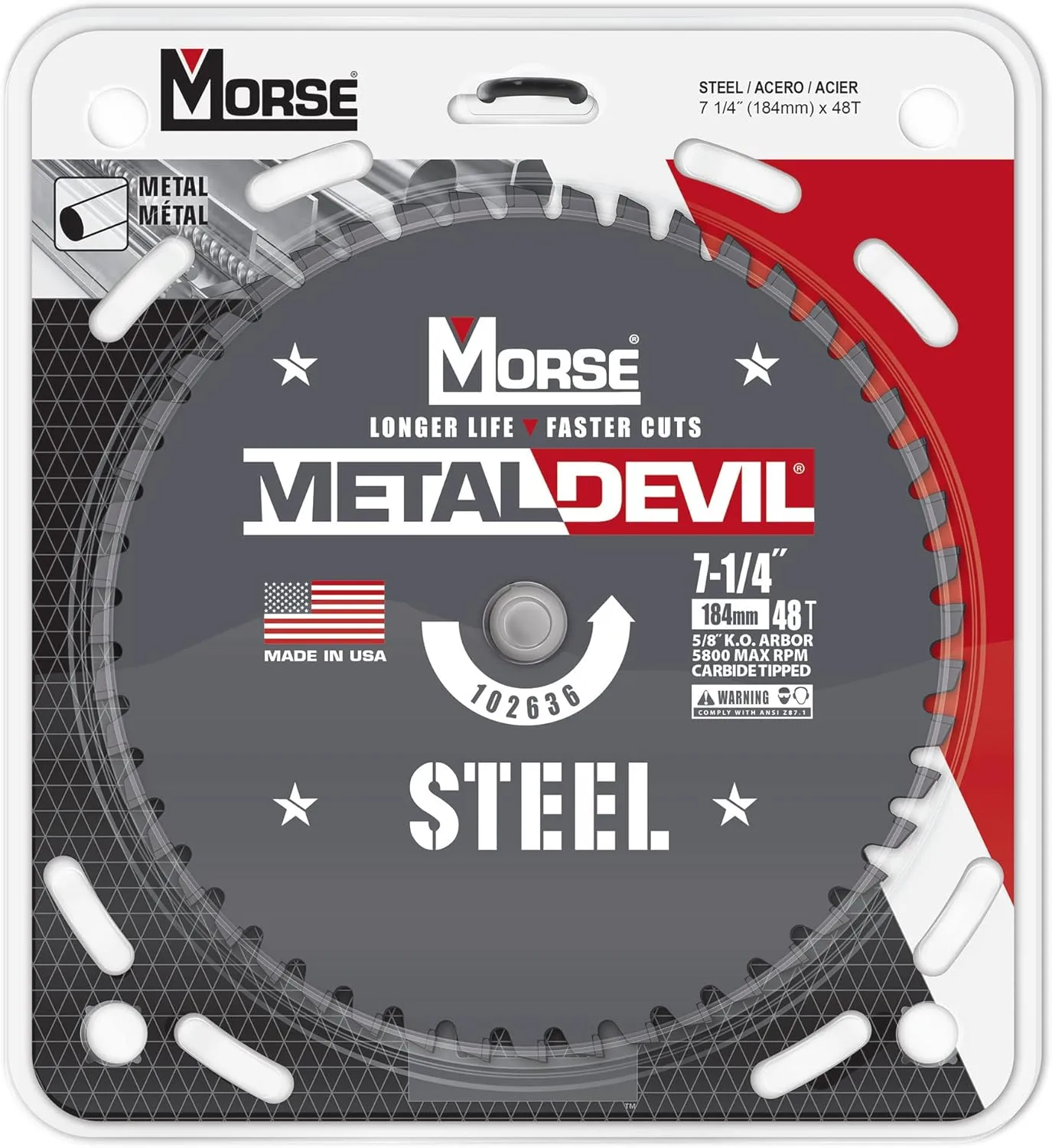

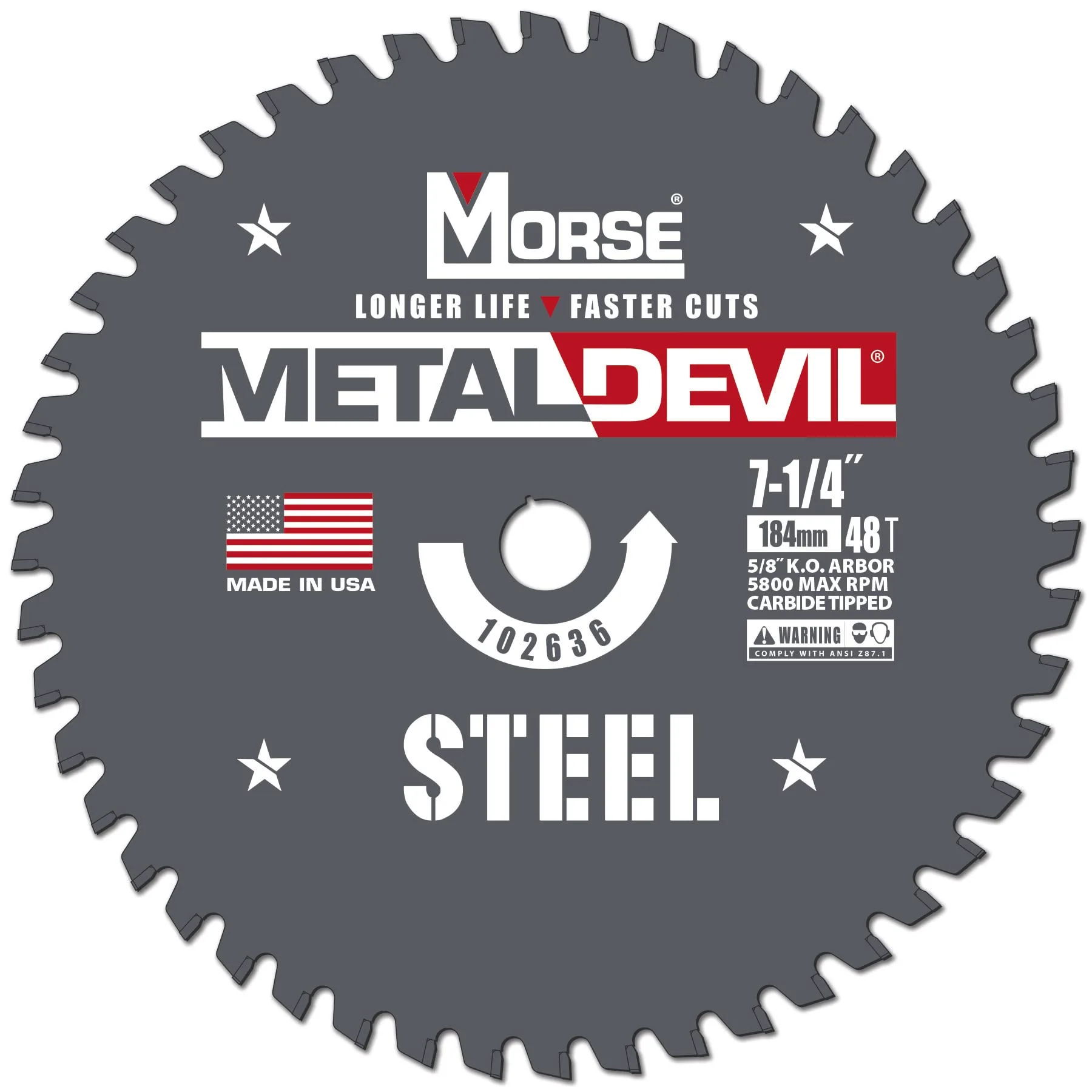

Morse Metal Devil CSM7254858FSC Circular Saw Blade, Carbide Tipped, Steel Cutting, 7-1/4 inch
Customize
The Morse Metal Devil carbide tipped, circular saw blade (CSM7254858FSC) is the professional's choice for cutting through steel bars, plate, and various structural shapes up to 3/8" thick. Use on any 7-1/4", corded or cordless circular saw machine supporting a 5/8" diameter arbor. Cut metal with ease. Wet & Dry Cut Saw Blade: 7-1/4" Dia, 5/8" Arbor Hole, 0.079" Kerf Width, 48 Teeth. Solid Carbide Teeth. Blade Diameter (mm): 184.00. Blade Diameter (Inch): 7-1/4. Blade Material: Carbide Tipped. Blade Thickness (Decimal Inch): 0.0630. Arbor Hole Diameter (Inch): 5/8. Number of Teeth: 48. Arbor Hole Diameter (mm): 15.88. Arbor Style: Round. Application: Steel. Tooth Configuration: Triple Chip Grind. Hook Angle: 0. Kerf Width (Decimal Inch): 0.0790. Tooth Material: Solid Carbide. Blade Type: Metal Cutting. Additional Information: Replaces Sku 84899087. Made in the USA; optimized tooth count and geometry for steel cutting, cooler cutting for longer blade life, precision-ground carbide teeth for faster, cleaner cuts.
- Faster, cleaner, accurate cutting from precision-ground, carbide teeth, minimizing the need for secondary machining
- Cooler cutting for longer blade life and increased cuts per blade
- Optimized tooth count and geometry for steel cutting - up to 3/8" thickness; other Morse blades available for cutting stainless, non-ferrous and other metal types
- Maximum cutting performance when matched with saw machine speed, no exceeding 5800 rpm
- Made in the USA, in Canton, Ohio, from premium materials and the latest manufacturing technology
Specifications:
| Materials & Construction | |
| Blade Material | Carbide Tipped |
| Color | Gray |
| Material | Metal |
| Product Details | |
| Additional Information | Replaces Sku 84899087 |
| Application | Steel |
| Arbor Style | Round |
| Blade Type | Metal Cutting |
| Compatible Material | Metal |
| Hook Angle | 0 |
| Included Components | CIRC BLADE 7-1/4" 48T ST 5/8 |
| Number Of Teeth | 48 |
| Style | Industrial |
| Tooth Configuration | Triple Chip Grind |
| Tooth Material | Solid Carbide |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | One Size |
| Weight | 0.8 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Arbor Hole Diameter (Inch) | 5/8 |
| Arbor Hole Diameter (Mm) | 15.88 (0.626 inches) |
| Blade Diameter (Inch) | 7-1/4 |
| Blade Diameter (Mm) | 184.00 (7.244 inches) |
| Blade Thickness (Decimal Inch) | 0.0630 |
| Kerf Width (Decimal Inch) | 0.0790 |
