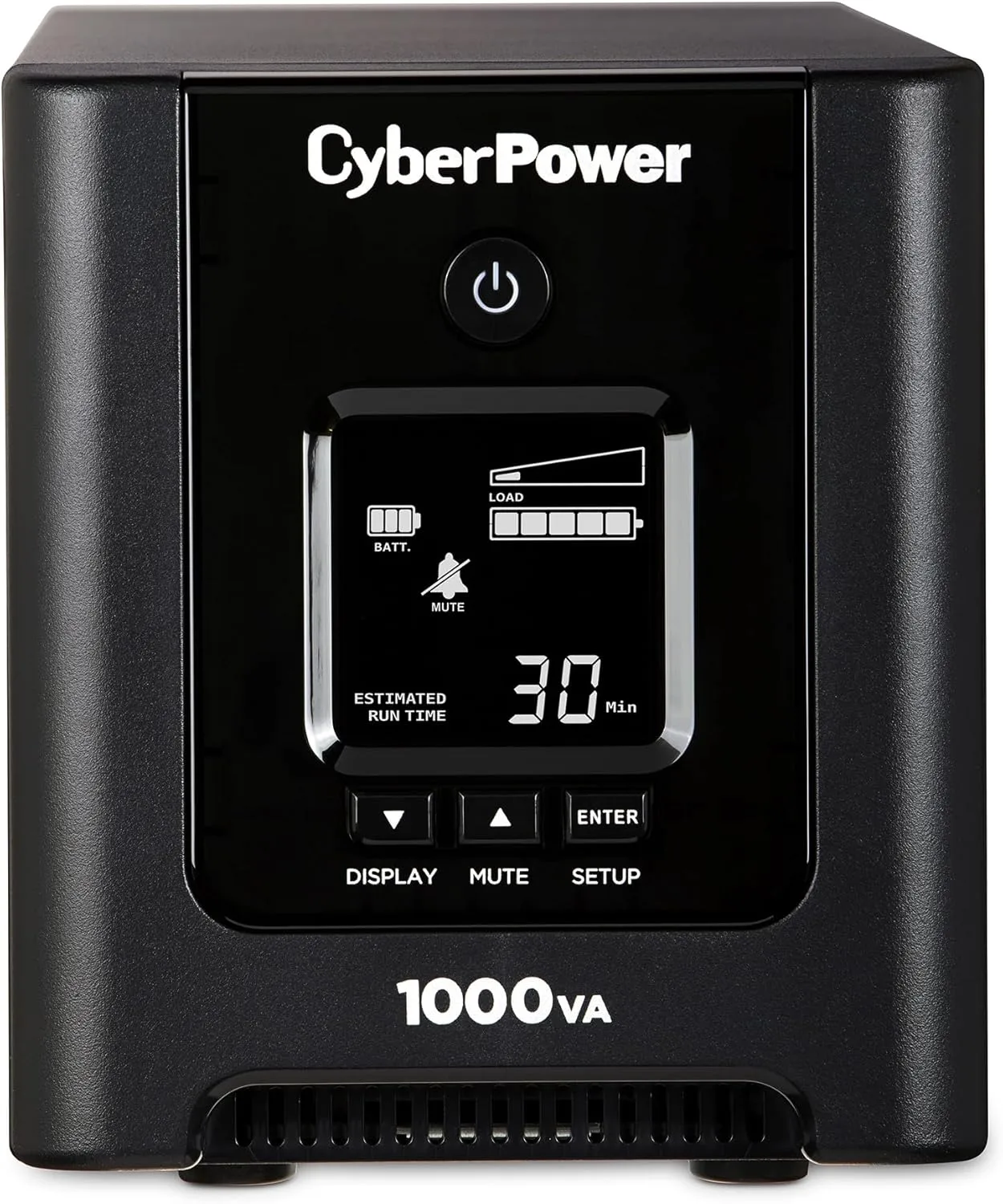

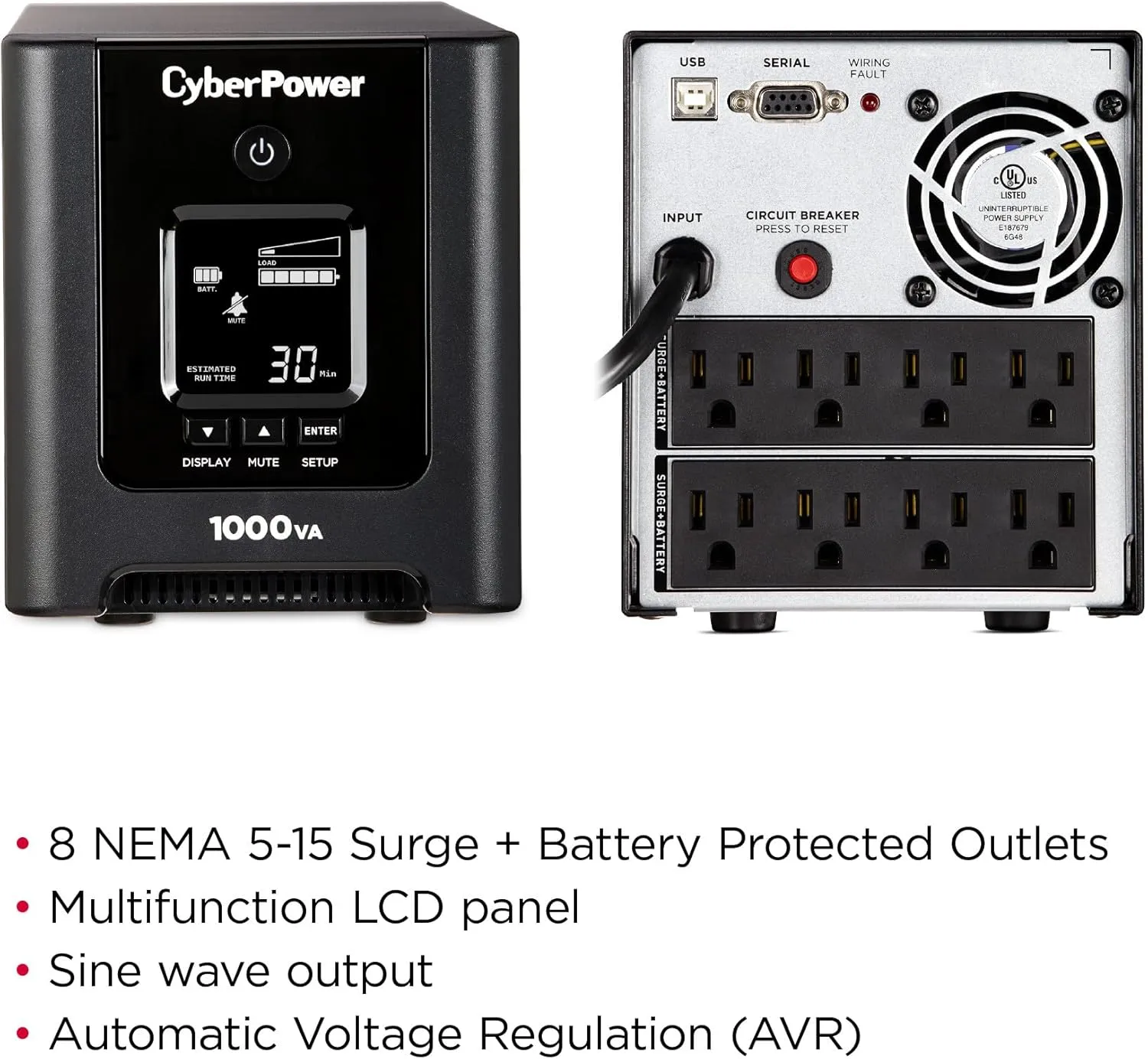

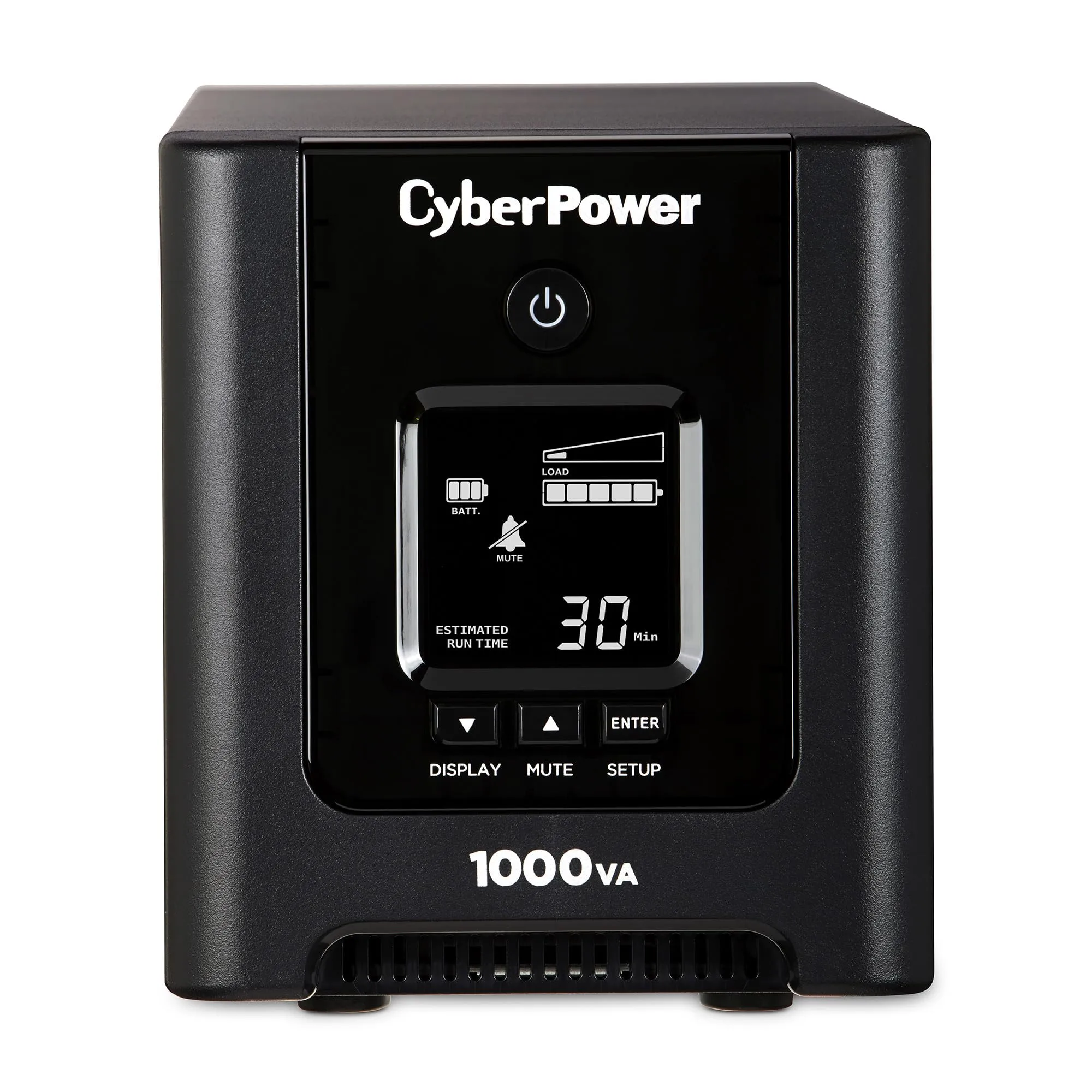

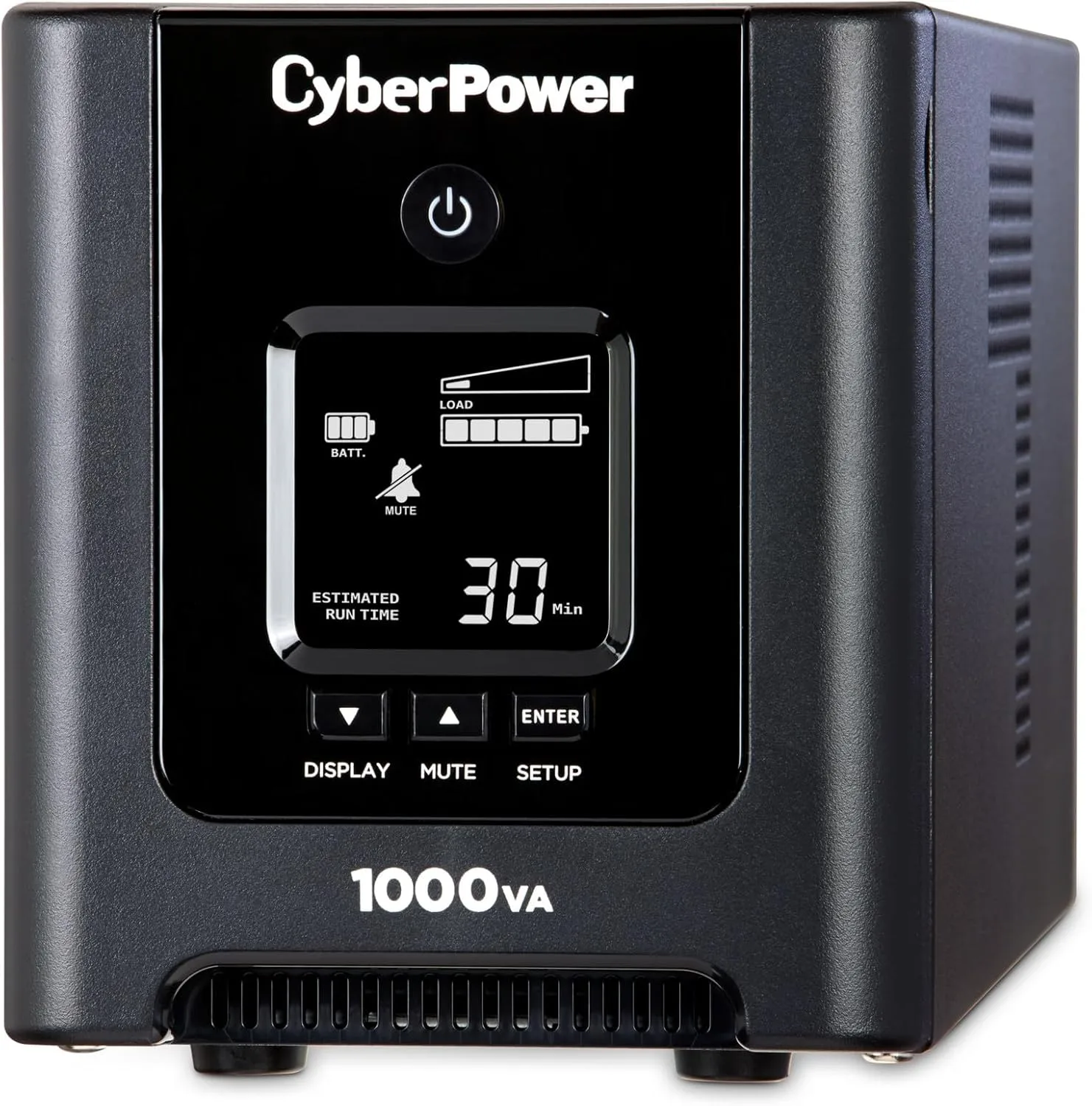

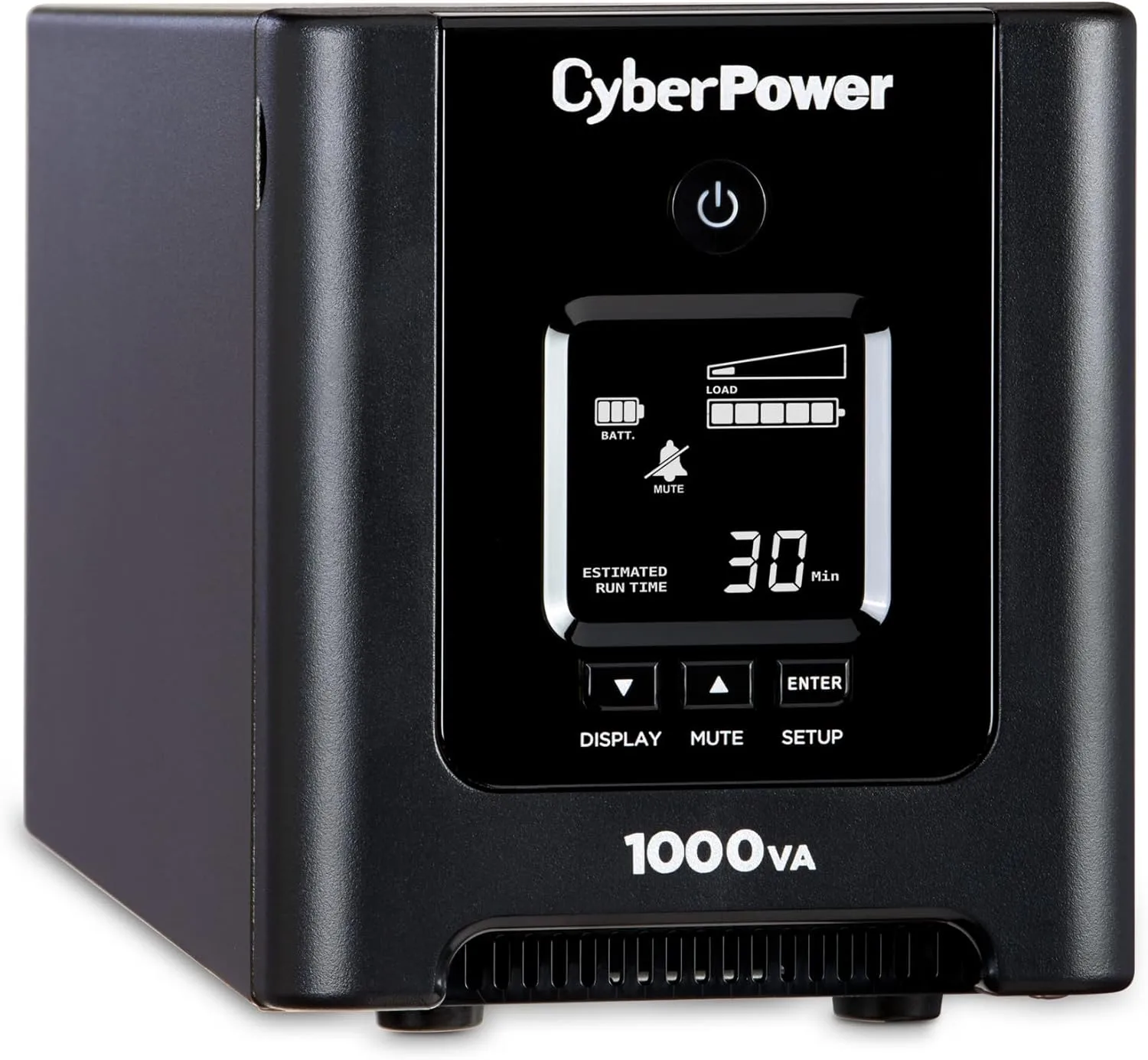

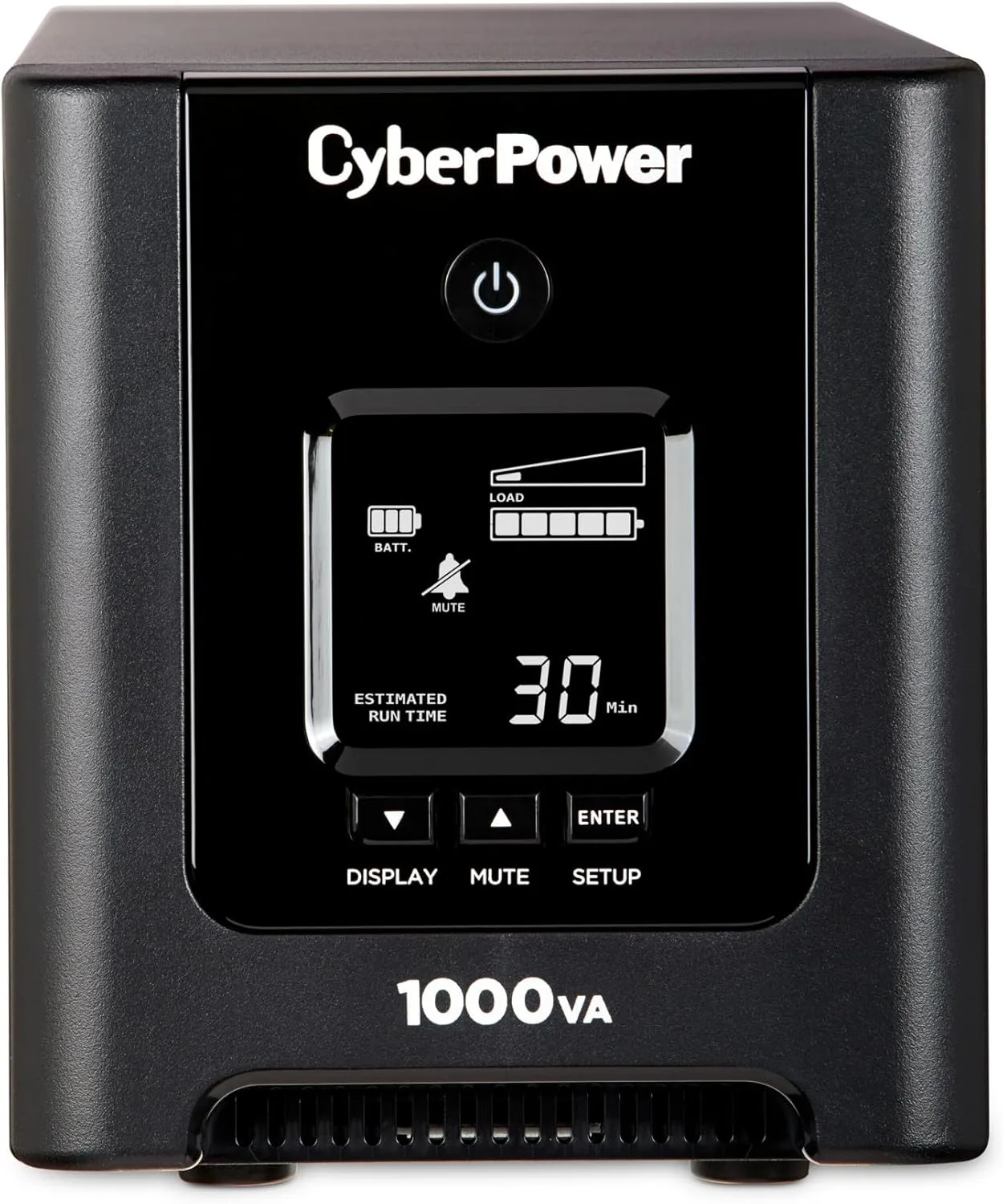

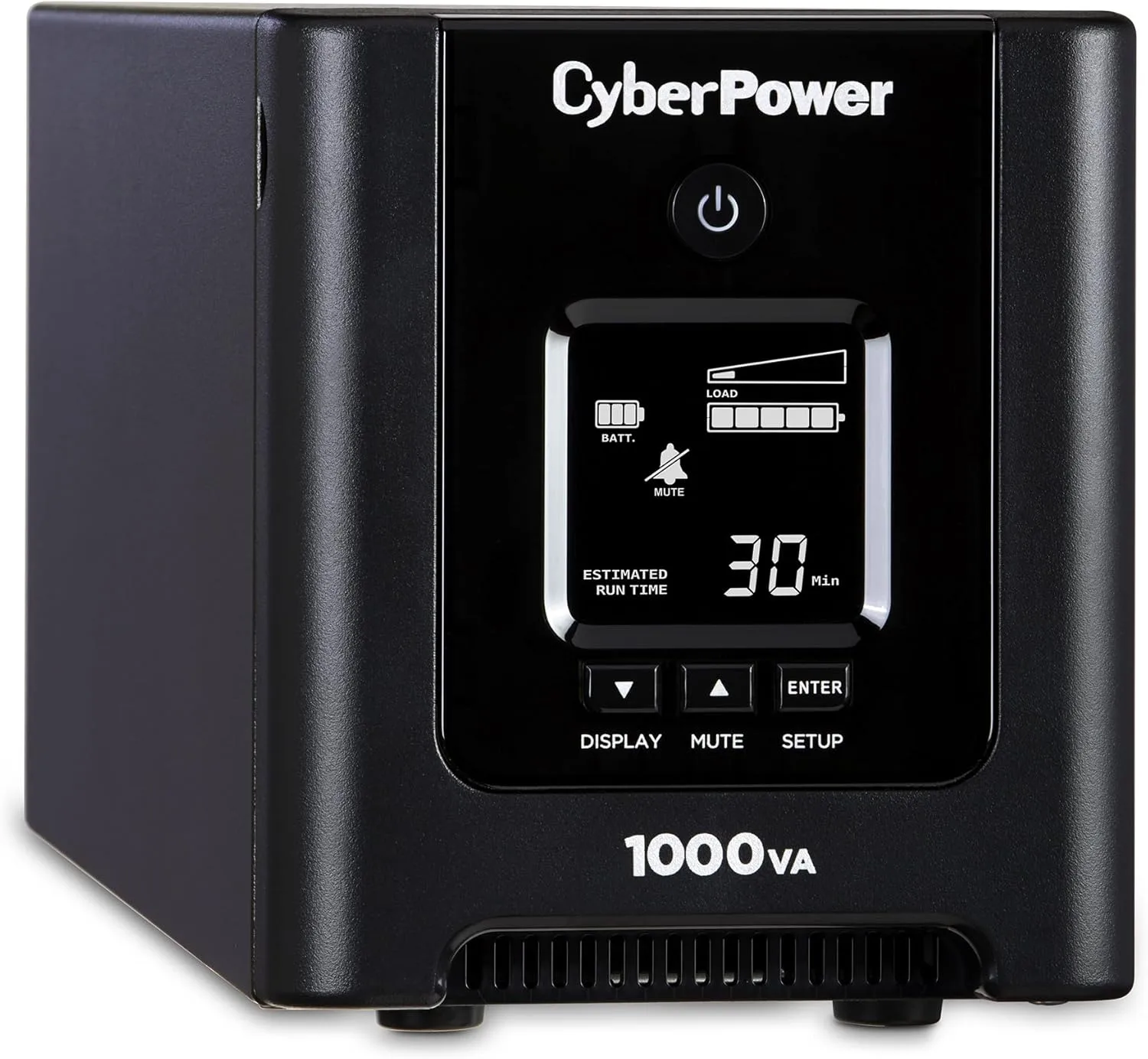

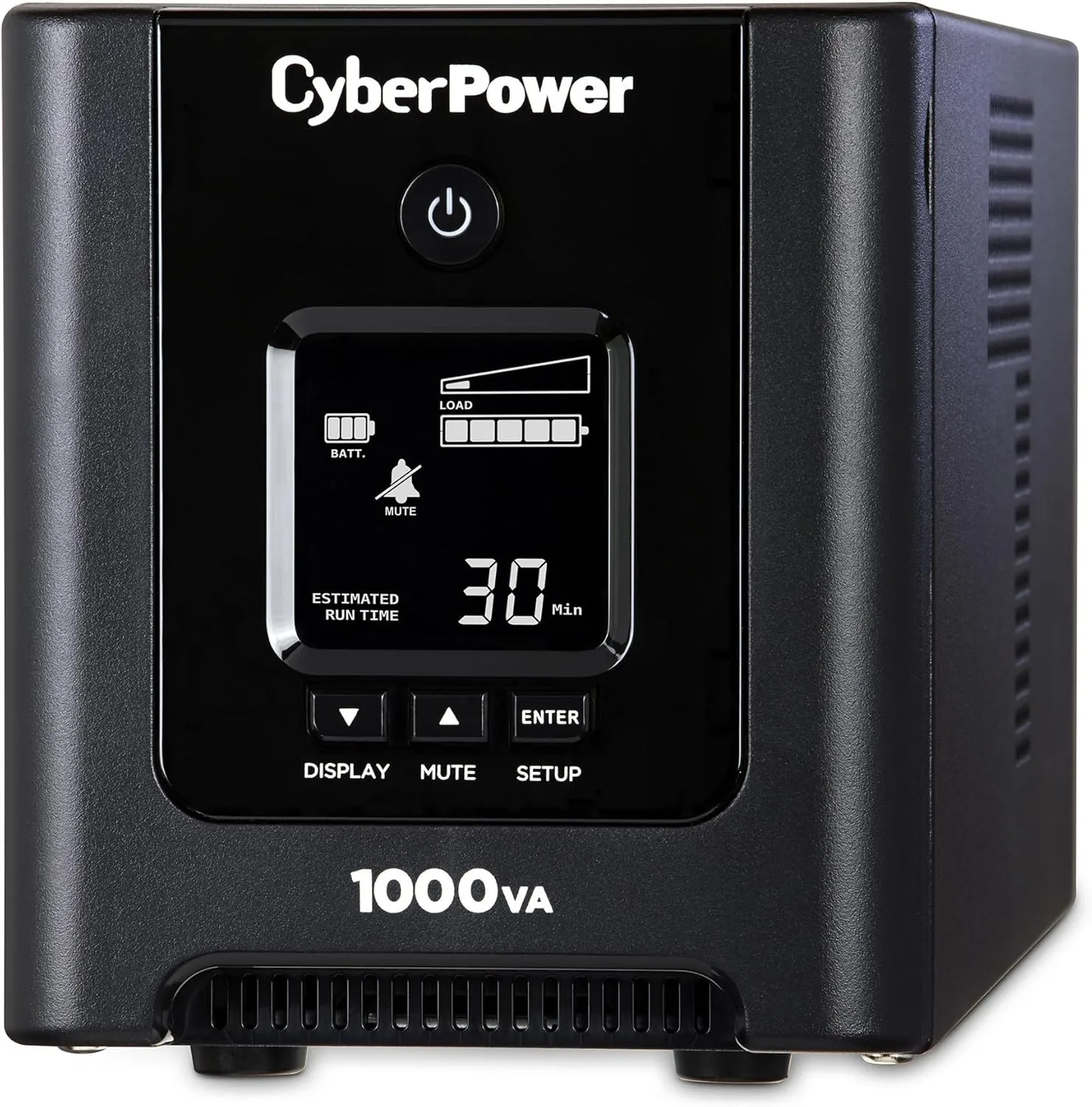

CYBERPOWER OR PFC Sinewave UPS System, Line-Interactive, AVR, LCD, 8 Outlets
Customize
The CYBERPOWER OR series PFC Sinewave UPS systems provide line-interactive power protection for department and workgroup servers, network devices, telecom appliances and high-end audio/video systems that require PFC compatibility. Each unit delivers sine wave output with Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery, helping extend battery life. The multifunction LCD panel displays estimated runtime, battery capacity and load status. Units include eight NEMA 5-15R outlets, a 6 ft power cord (NEMA 5-15P), sealed lead-acid batteries (2 × 12V), surge protection (1030 Joules), and compatibility with PowerPanel Business Edition management software. Product packaging and support include a 3-year limited warranty and a $200,000 Connected Equipment Guarantee; typical mini-tower dimensions are approximately 13.8 x 5.4 x 6.4 inches with package weight around 25–26 lb.
- 3-YEAR WARRANTY – INCLUDING THE BATTERY; $200,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
- MULTIFUNCTION LCD PANEL: Displays immediate, detailed information on battery and power conditions, including: estimated runtime, battery capacity, load capacity, etc.

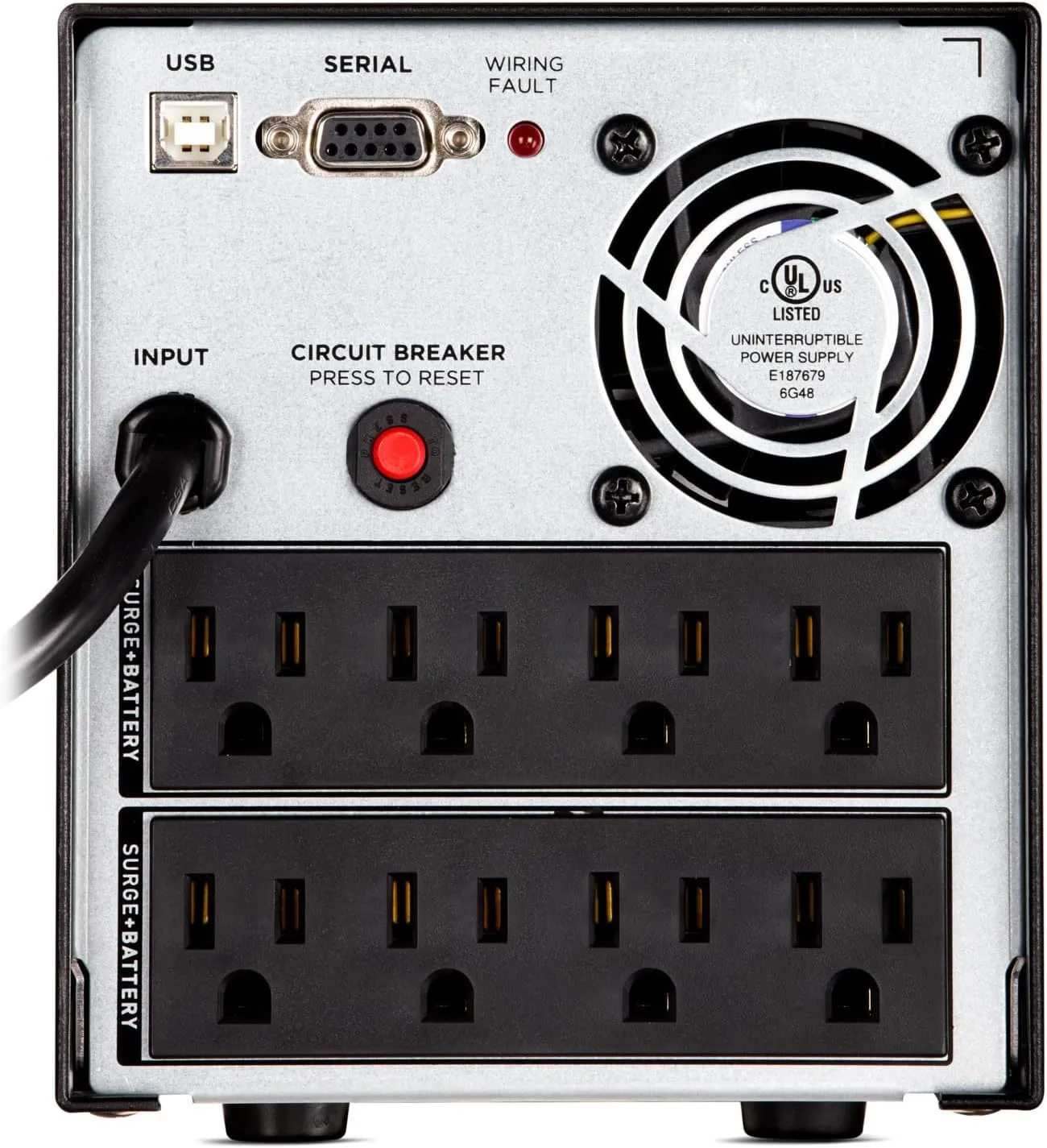

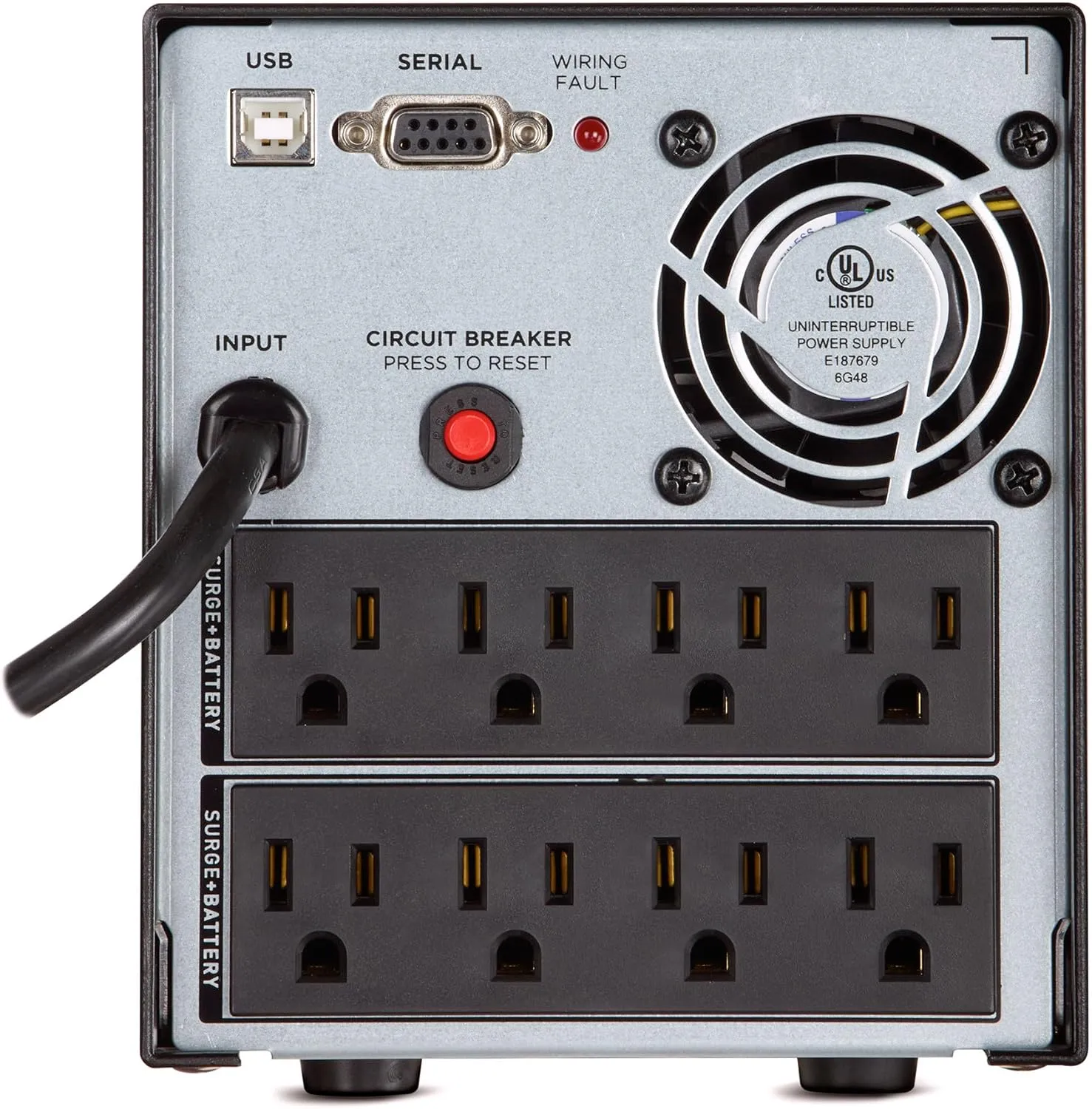

- EIGHT NEMA 5-15R OUTLETS: Provide battery backup and surge protection; INPUT: NEMA 5-15P straight plug with six foot power cord
- 1000VA/700W PFC Sine Wave Battery Backup Uninterruptible Power Supply (UPS) System designed to support Active PFC and conventional power supplies; Safeguards computers, workstations, department servers, networking hardware, and A/V equipment
Specifications:
| Product Details | |
| Batteries | 2 12V batteries required. (included) |
| Battery Cell Composition | Sealed Lead Acid |
| Battery Run Time | 6 Min |
| Cable Included | Yes |
| Charge Time (Approx) | 8 hr |
| Eco-Conscious | Helps Save Energy |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Frequency Response | 50Hz to 20kHz |
| Item model number | OR1000PFCLCD |
| Surge Rating | 1030 Joule |
| UPS Battery Type | Lead-Acid |
| UPS Type | Line Interactive |
| Sizing & Dimensions | |
| Height | 6.4 inches |
| Length | 13.8 inches |
| Product Dimensions | 13.8 x 5.4 x 6.4 inches |
| Ups Weight | 25 lb |
| Weight | 26.05 pounds |
| Width | 5.4 inches |
| Technical Specifications | |
| Automatic Voltage Regulation | Yes |
| Load Capacity (Va) | 1000 |
| Load Capacity (Watt) | 700 |
| Power Capacity | 1000 va |
