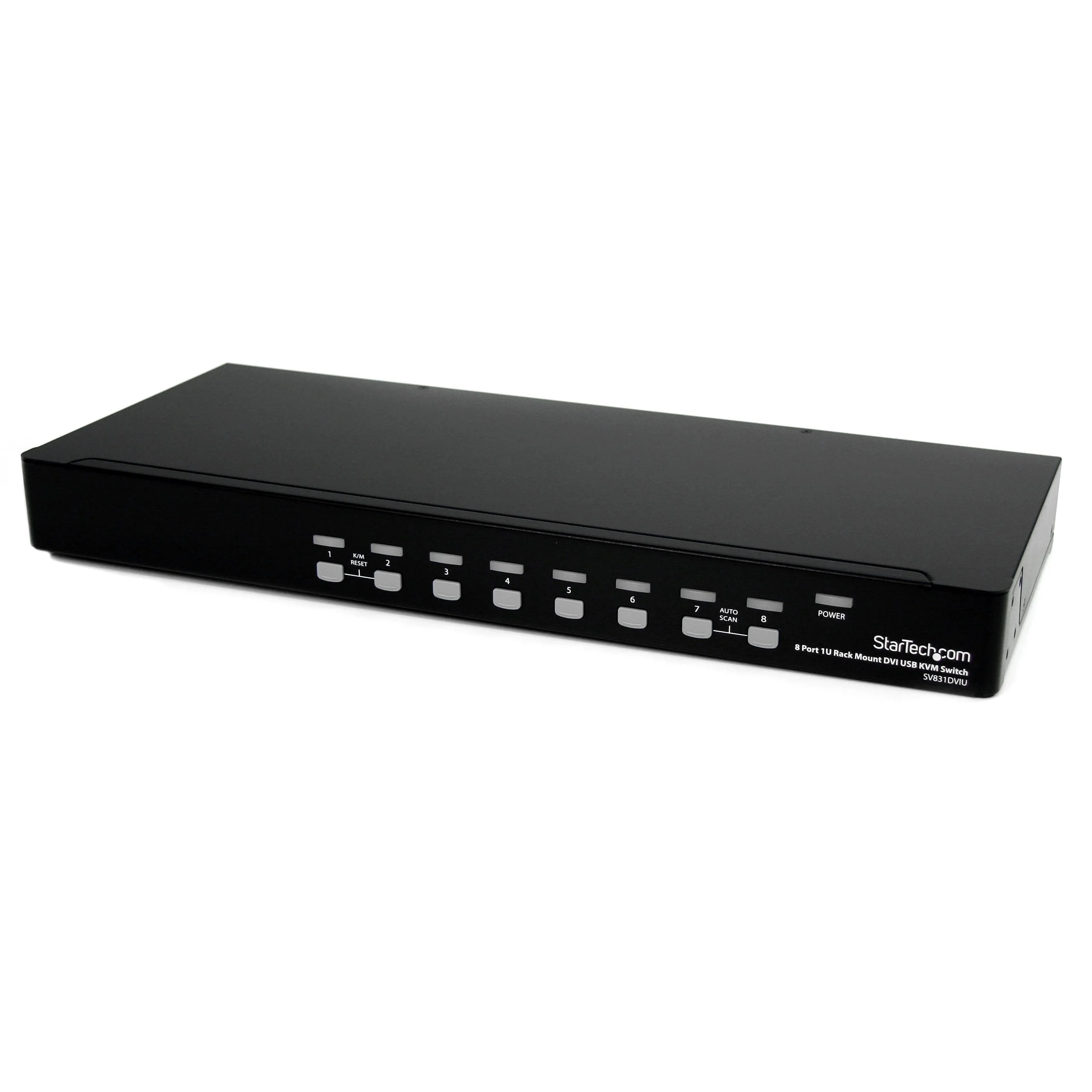

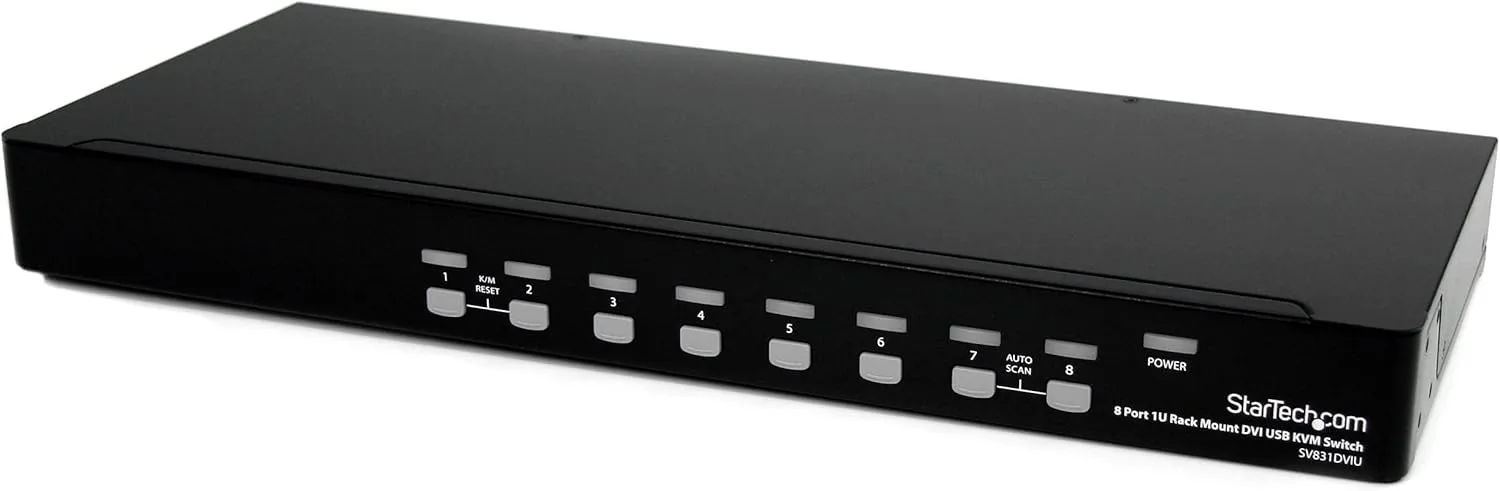

StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch (SV831DVIU)
Customize
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor. The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability. A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters. Auto-scan function cycles through computers sequentially. USB console interfaces for keyboard and mouse. Front panel push-buttons and Hot-key functions allow for easy switching. Can be used with DVI to HDMI adapters to connect HDMI based systems. Supports Mac and Sun keyboard mapping; keyboard states automatically saved. Support for most combo/wireless keyboard and mice and restored when switching. OS independent — No software or drivers required. Connects to USB-based computer systems. Supports DVI/HDMI resolutions up to 1920x1200. Color: Black. Warranty: 3-Year Limited. Number Of Computers Supported: 8.

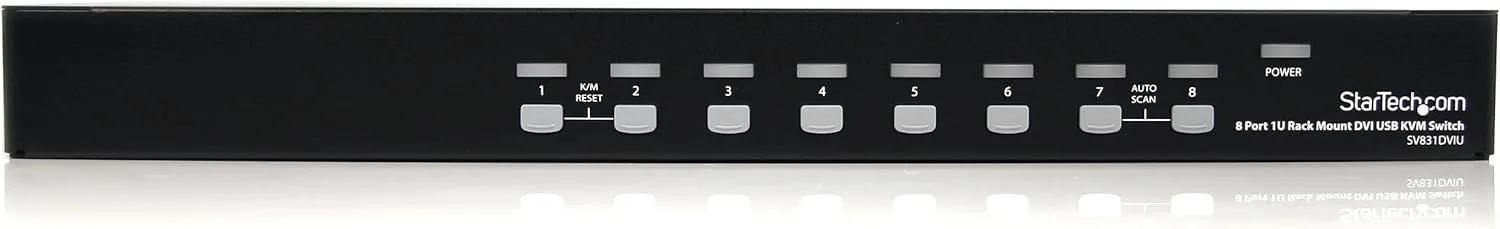

- Front panel push-buttons and Hot-key functions allow for easy switching
- OS independent – No software or drivers required
- Support for most combo/wireless keyboard and mice
- Can be used with DVI to HDMI adapters to connect HDMI based systems
- Supports DVI/HDMI resolutions up to 1920x1200
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Item model number | SV831DVIU |
| Model | Sv831dviu; 1u |
| Model Number | SV831DVIU |
| Number Of Computers Supported | 8 |
| Series | 8 Port 1U Rack Mount DVI USB KVM Switch |
| Video Input Type | Dvi |
| Video Resolution | 1920 X 1200 |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 1.73 inches |
| Length | 7.09 inches |
| Product Dimensions | 7.09 x 17.24 x 1.73 inches |
| Weight | 7.7 pounds |
| Width | 17.24 inches |
| Technical Specifications | |
| Actuator Type | Push Button |
| Circuit Type | 8-way |
| Connectivity Protocol | Usb |
| Connector Type | Hdmi,usb,wireless |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | USB |
| Current Rating | 15 Amps |
| International Protection Rating | IP541 IP |
| Number of Items | 1 |
| Number of Positions | 8 |
| Number of USB 2.0 Ports | 10 |
| Operating Voltage | 12 Volts |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 40 Degrees Celsius |
| Voltage | 12 Volts |
| Wattage | 48 watts |
