StarTech.com Industrial Gigabit PoE Splitter - 90W PoE++ Splitter (POESLT1G48V)
Customize
Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion) Straightforward Deployment Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A). The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- ROBUST DESIGN: Industrial Power over Ethernet Splitter w/MTBF of 600,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C
- TECH SPECS: High Speed 1 Gbps | 1 x RJ45 PoE In | 1 x RJ45 Data Out | 12V-48VDC 1.5A power output | 4 pin Terminal Block Power Out | 10/100/1000 Mbps Auto Negotiation | DIN or Wall Mountable
- 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
- HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available | Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
Specifications:
| Materials & Construction | |
| Case Material | Aluminum |
| Color | Black |
| Product Details | |
| Compatible Devices | Camera |
| Data Transfer Rate | 1 Gigabits Per Second |
| Environmental Compliance | Waste Electrical And Electronic Equipment Directive (Weee); Restriction Of Hazardous Substances (Rohs) |
| Included Components | Model: Poeslt1g48v; Brand Name: Startech.com; Environmental Compliance: Waste Electrical And Electronic Equipment Directive (Weee); Restriction Of Hazardous Substances (Rohs) |
| Included Components | Industrial-Grade Hardened PoE Splitter Terminal Block Hardware Mounting Kit Quick-Start Guide |
| Interface Type | RJ45 |
| Number of Ports | 2 |
| Series | POESLT1G48V PoE Splitter |
| Voltage | 48 Volts |
| Sizing & Dimensions | |
| Height | 1.3 inches |
| Length | 4.1 inches |

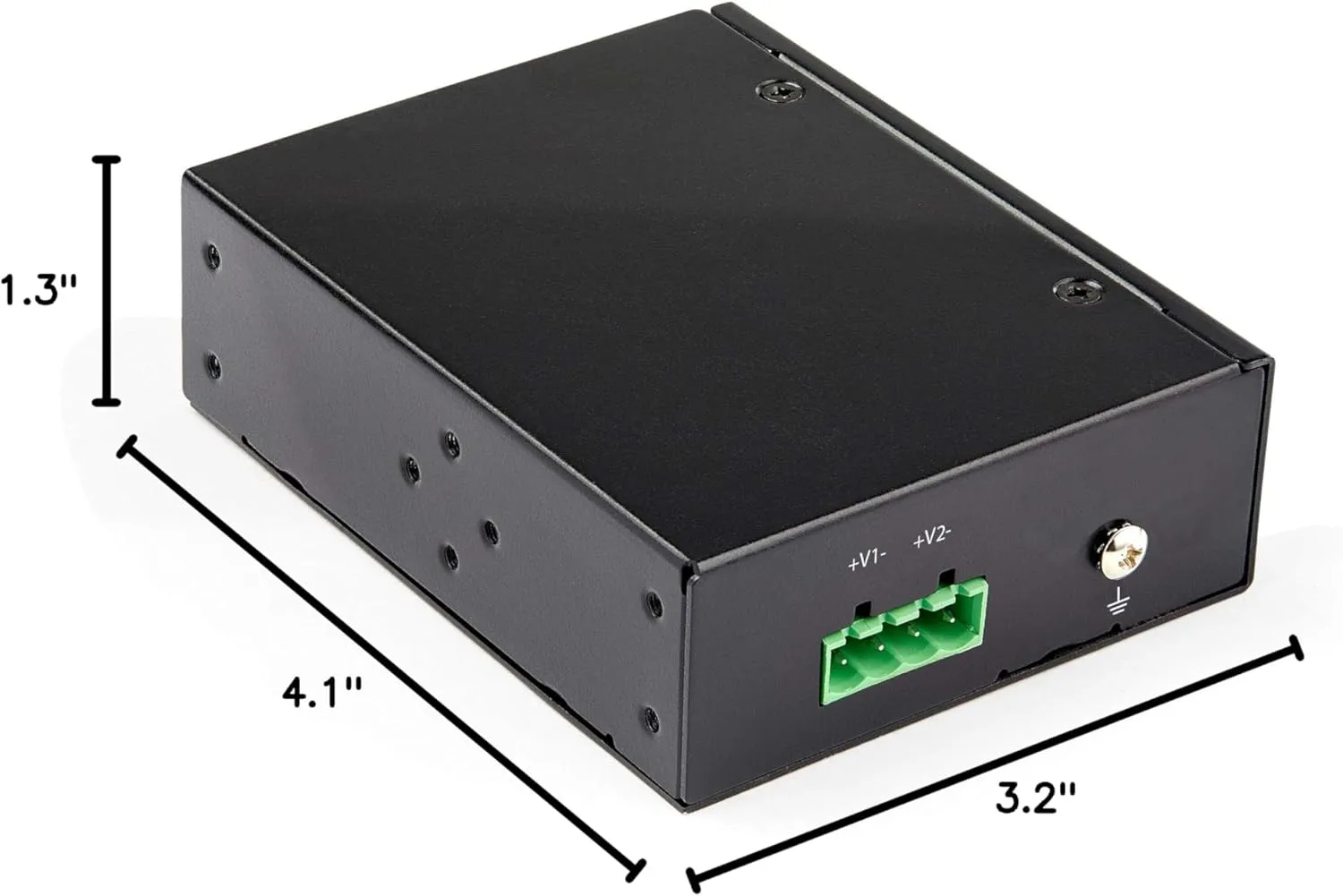

| Product Dimensions | 4.1"L x 3.2"W x 1.3"H |
| Weight | 5.3 ounces |
| Width | 3.2 inches |
| Technical Specifications | |
| Batteries | 1 A batteries required. |
| Is Discontinued By Manufacturer | No |
| Upper Temperature Rating | 75 Degrees Celsius |
