StarTech.com 10m (32.8ft) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC
Customize

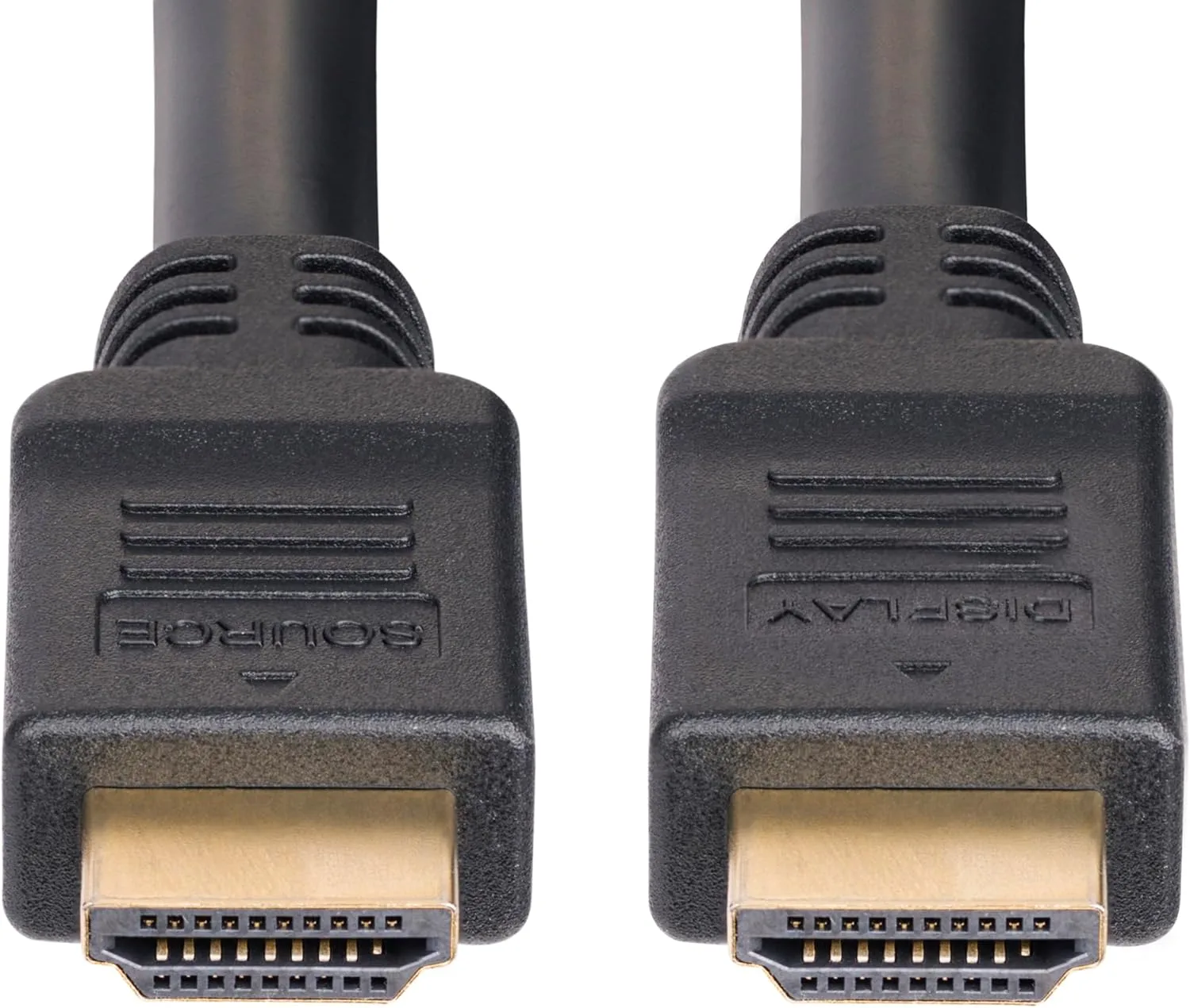

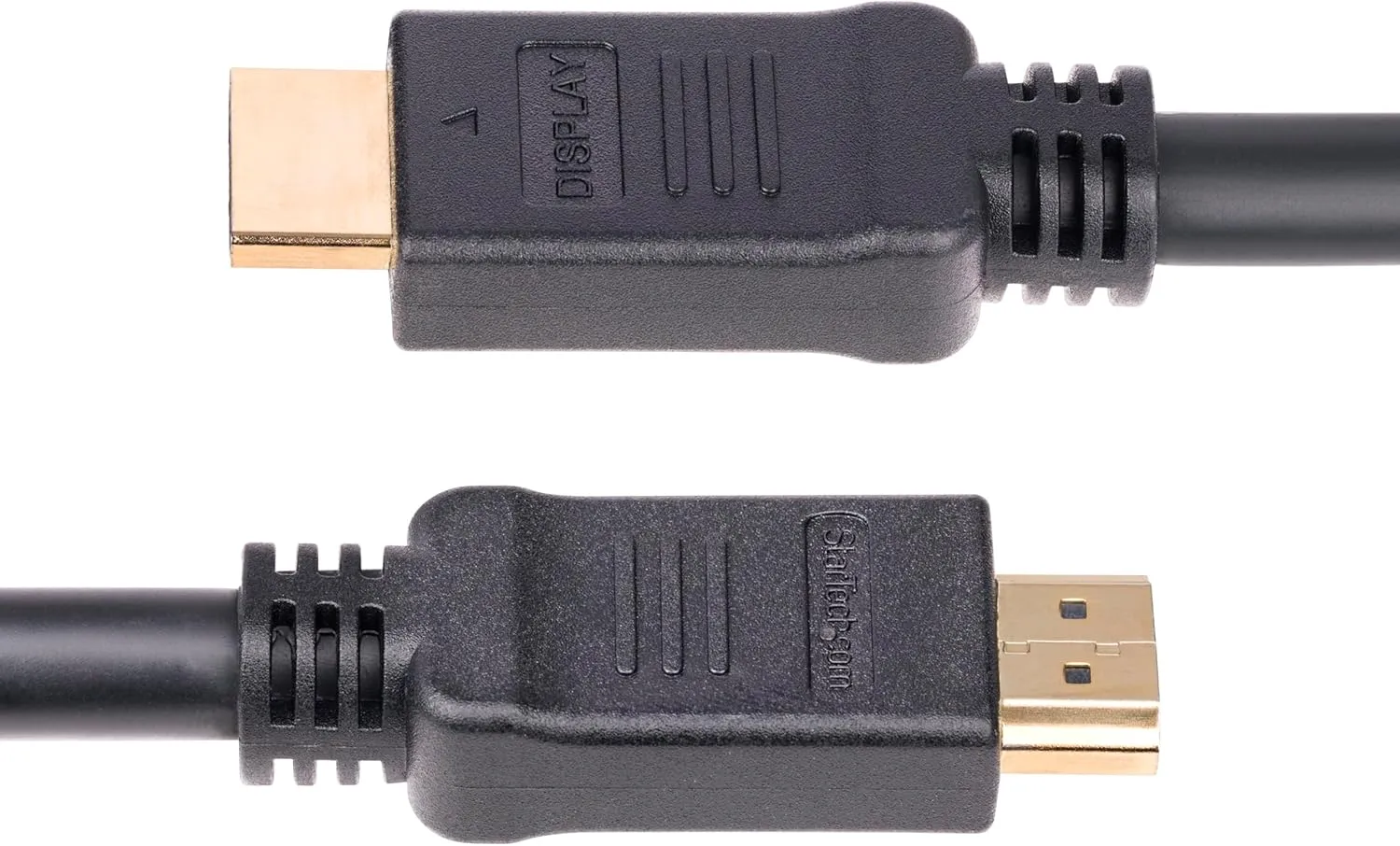

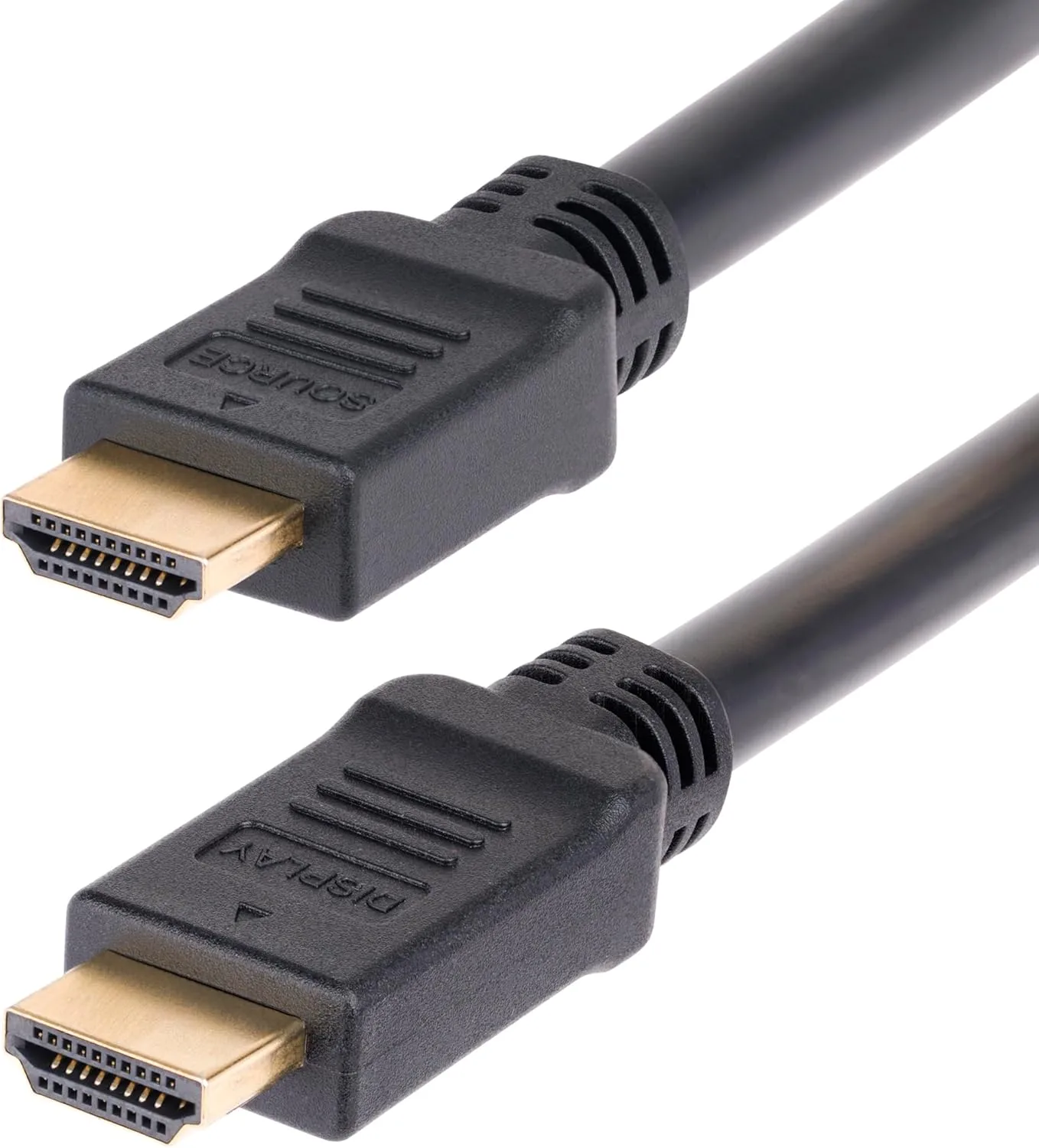

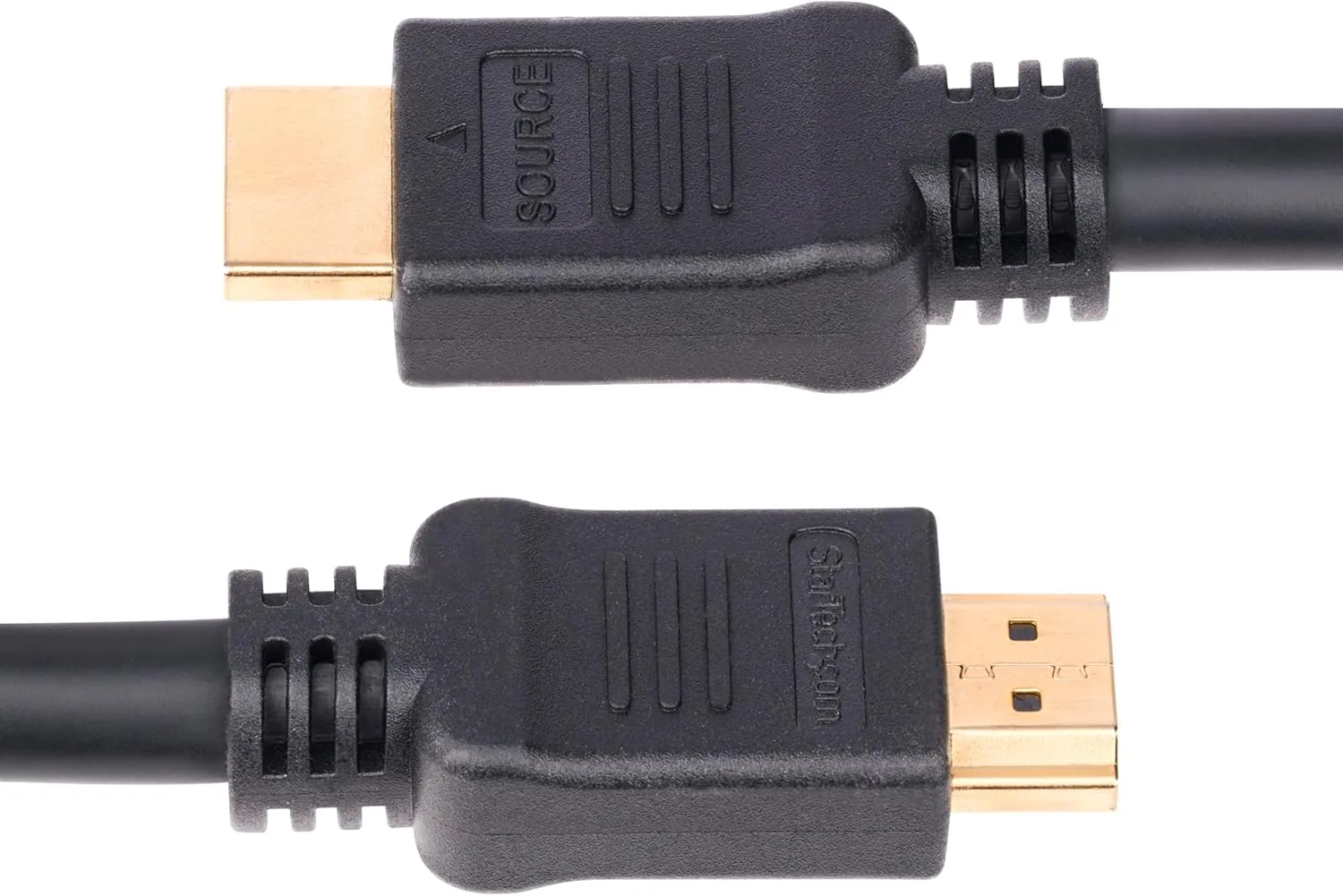

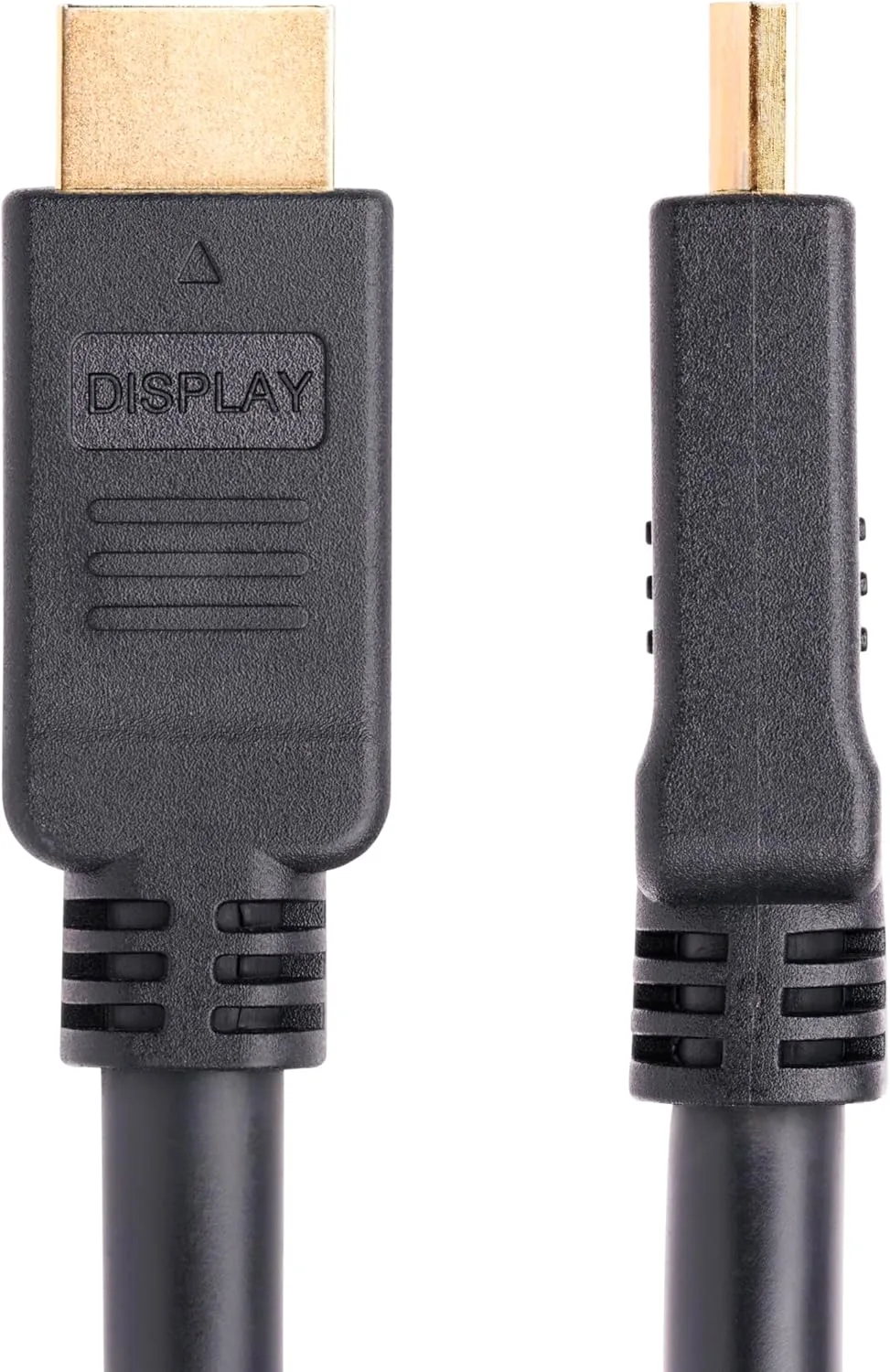

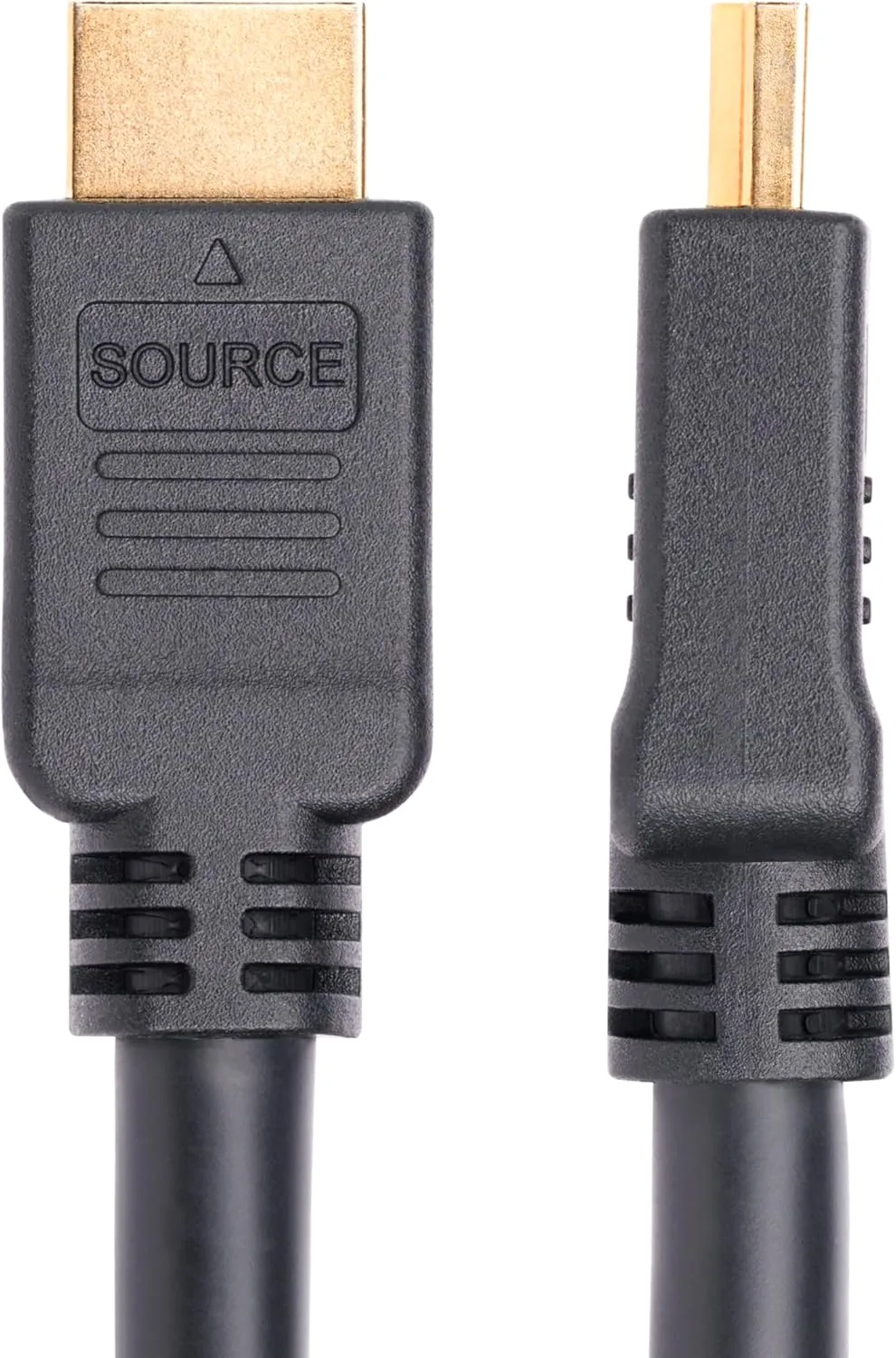

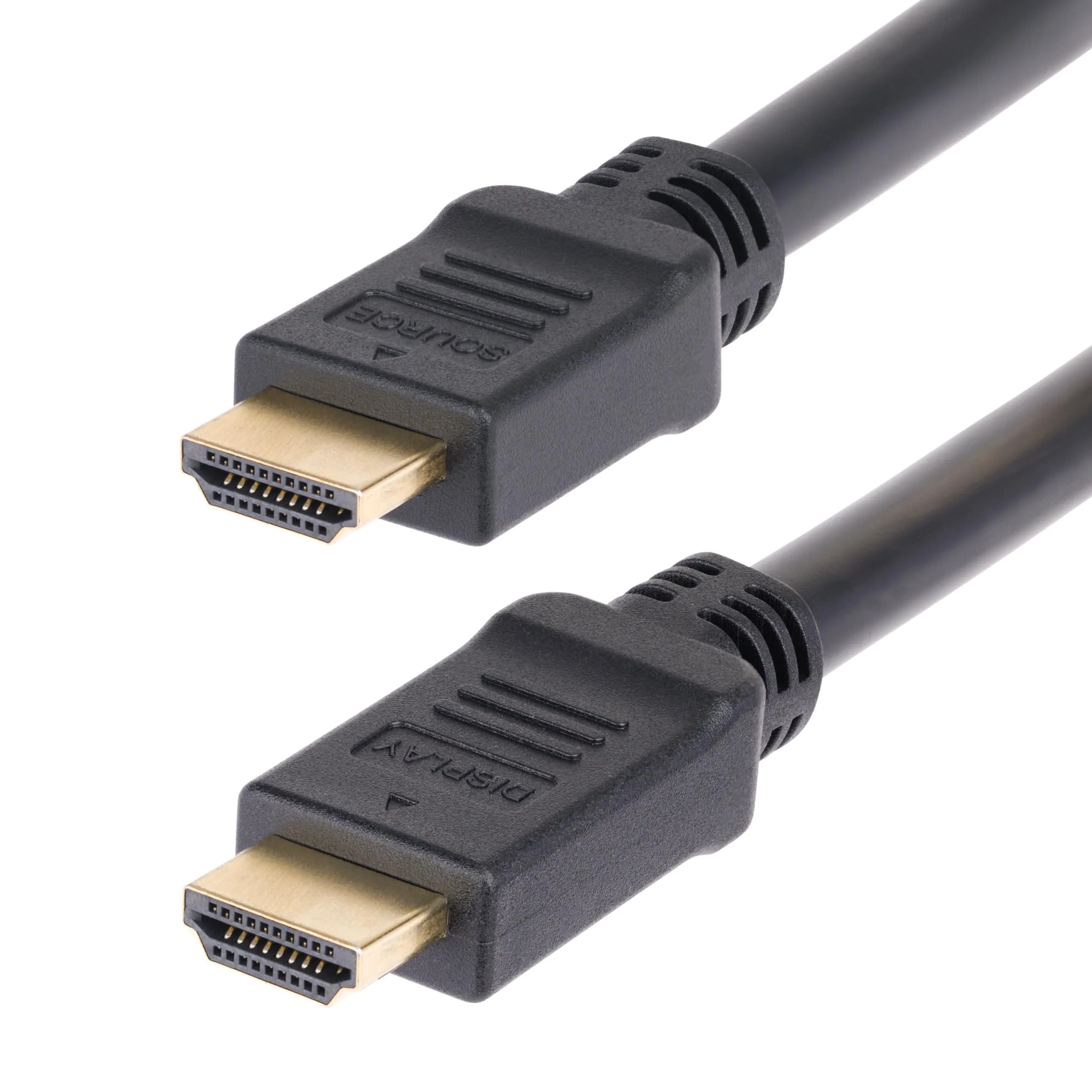

Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio. The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire construction maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths. This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends. Note: This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.
- DESIGNED FOR LONG RANGE: Active HDMI 2.0 Cable delivers 4K 60Hz beyond the length of passive copper cables; An integrated active chipset enables consistent performance without requiring an external booster or power source; Note: Cable is unidirectional
- PLENUM RATED: CMP-rated Active HDMI Cable Jacket for safe installation in plenum spaces; Suitable for ceiling, conduit, and in-wall cable runs; For use in commercial environments where compliance with fire codes
- APPLICATIONS: Full-featured HDMI 2.0 enables Dynamic HDR10 w/10-bit processing for vibrant picture quality; Ideal for UHD/4K monitors/projectors/large displays, conference rooms, and video walls; 7.1 and 32-ch audio w/ARC; Compatible w/HDMI 1.4/1.2
- QUALITY CONSTRUCTION: Gold-plated connectors rated beyond 10,000 insertion cycles; Durable plenum jacket with robust strain reliefs; Tested beyond 1,000 bending cycles at -/+ 60° Embossed markings on connectors for Source and Display
- SPECS: Black; 10-meter (32.8-foot); Unidirectional; CMP (Plenum-Rated); High Speed HDMI 2.0; Supports HDR10/HDCP 2.2/7.1 & 32-ch audio; 18Gbps; 4K 60Hz; 9mm (0.35in) O.D.; Ideal for long cable runs
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Polyvinyl Chloride (Pvc, #3) |
| Outer Material | Teflon or LSZH |
| Product Material | Copper |
| Product Details | |
| Cable Type | HDMI |
| Compatible Devices | Docking Station, Gaming Console, Laptop, Monitor, Television |
| Connector Gender | Male-to-Male |
| Connector On First End Details | 1 X Hdmi 2.0 Digital Audio/Video - Male |
| Connector On Second End Details | 1 X Hdmi 2.0 Digital Audio/Video - Male |
| Connector Type | HDMI |
| Cord Length | 32-13/16 ft |
| Customer Package Type | rigid box |
| Device Supported | Monitor; Projector; Display; Video Wall; Audio/Video Device |
| Jacket Type | Plenum |
| Number of Items | 1 |
| Number of Pins | 19 |
| Packaged Quantity | 1 |
| Recommended Uses For Product | connecting UHD/4K displays in commercial settings, long cable runs, and plenum-rated installations |
| Shape | Round |
| Shielding | Yes |
| Special Feature | High Speed |
| Sizing & Dimensions | |
| Height | 8 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 1.5 x 8 inches |
| Size | 32-13/16 ft |
| Weight | 2 pounds |
| Width | 1.5 inches |
| Technical Specifications | |
| Data Transfer Rate | 18 Gigabits Per Second |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Model Name | HD2AP-10M-HDMI-CABLE |
| Specification Met | UL |
| Supported Resolution | 3840.000216 |
| Warranty | Full Lifetime |
