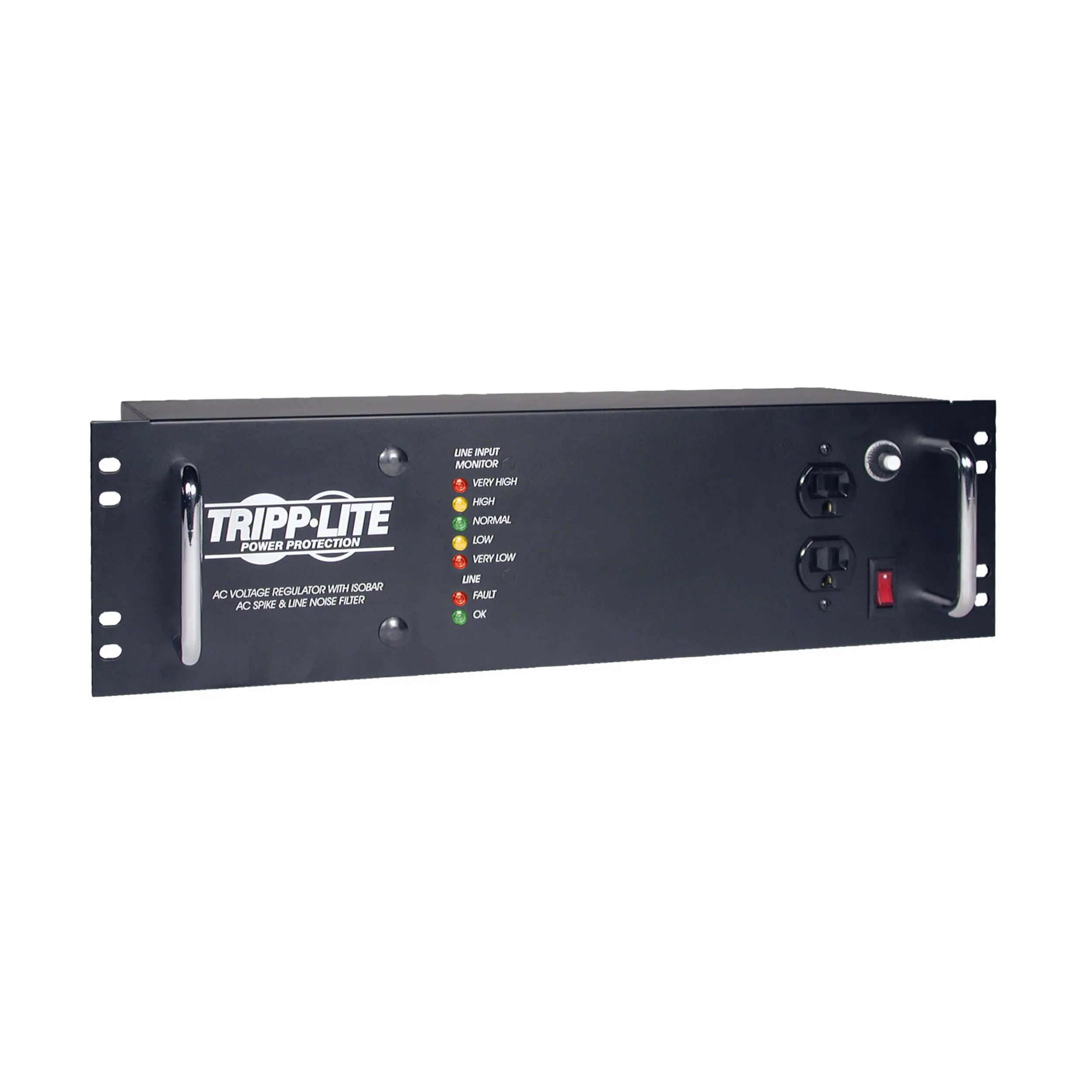

Tripp Lite LCR2400 2400W Rackmount Line Conditioner with AVR
Customize
The Tripp Lite LCR2400 is a 2400W, 3U rackmount line conditioner with automatic voltage regulation (AVR) and network-grade surge suppression. Designed for IT, AV and sensitive electronics, it maintains a usable 120V nominal output across brownouts and overvoltages (operating range 89V–147V). The unit supports loads up to 2400 watts (20A) and features 14 NEMA 5-15R outlets arranged in two isolated filter banks, a 12 ft AC cord, front panel LEDs indicating incoming voltage, surge suppression and line fault status, and a 1440-joule surge suppression rating. Rackmount form factor fits standard 19-inch enclosures. Includes diagnostic LEDs, 2-year limited warranty and $25,000 connected equipment insurance (USA & Canada only). Ideal for protecting servers, routers, modems, home theater components and other sensitive electronics.

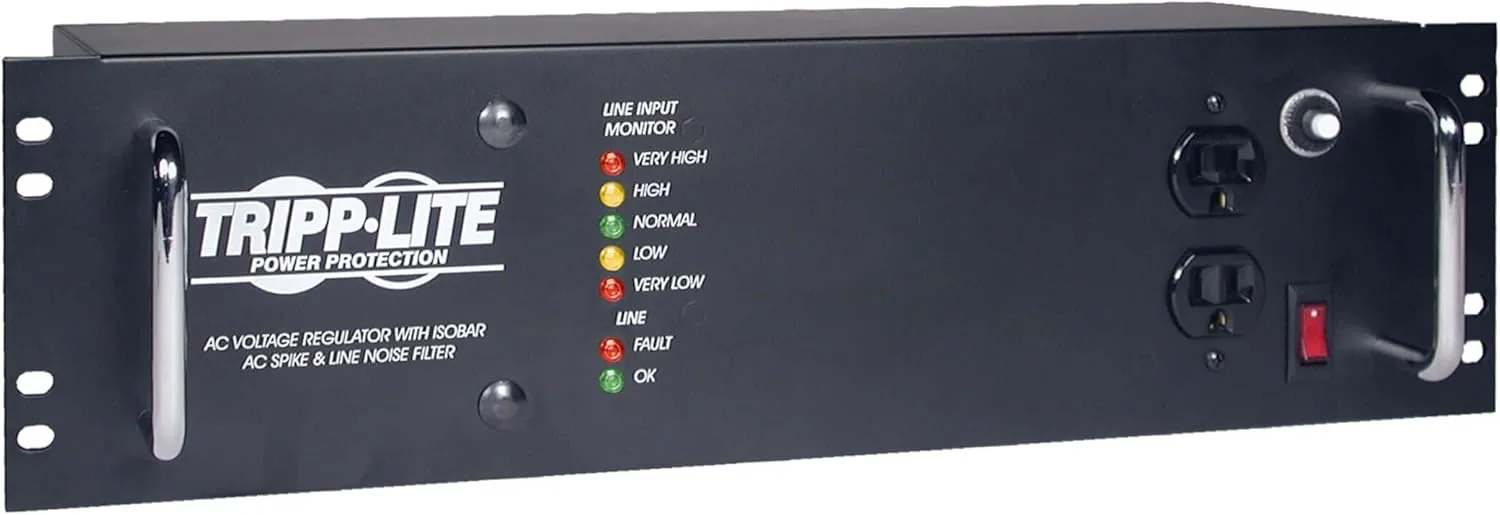

- LEDs display incoming voltage range

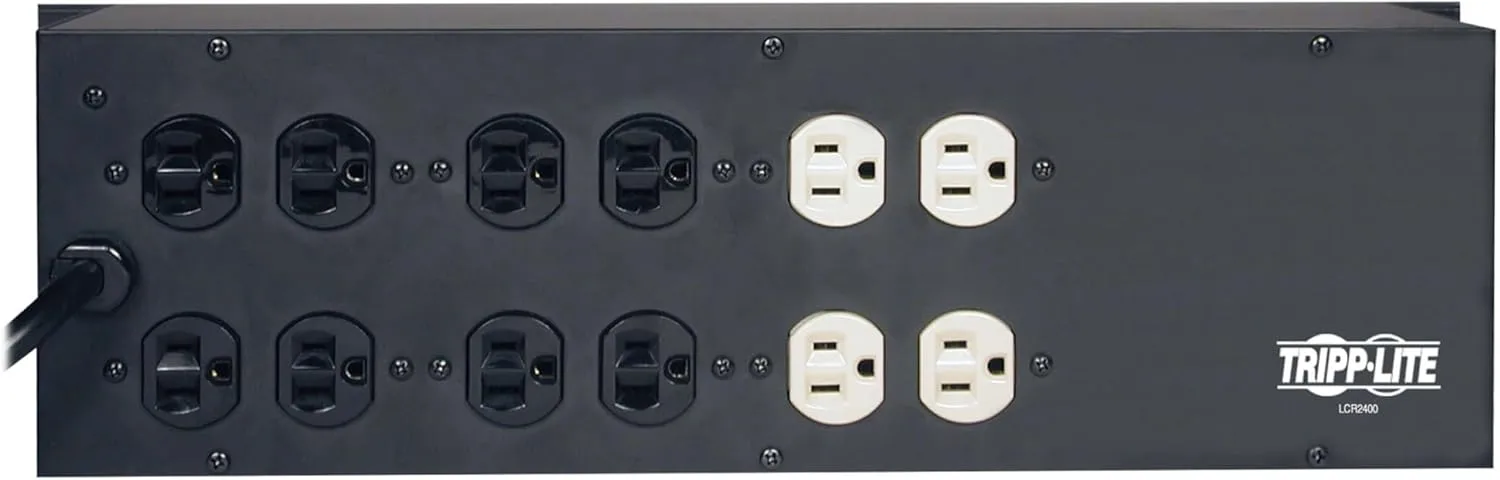

- 2400 Watt, 20-Amp capacity with 14 NEMA 5-15R outlets and 12-foot AC cord
- 3U, 19-inch rackmount form factor
- Maintains regulated 120V nominal output over an input range of 89 to 147V
- Premium automatic voltage regulation (AVR), power conditioning and AC surge suppression
- $25,000 Ultimate Lifetime Insurance; 2-year warranty
- Rackmount cabinet fits standard 19-inch rack enclosures
- 2400W power capacity; 14 AC outlets; 2 isolated filter banks; 12-ft cord
- Powerful 1440-joule surge protection rating
- Advanced automatic voltage regulation corrects brownouts and overvoltages
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Lead Acid |
| Color | black |
| Product Details | |
| Depth | 7-3/4 In. |
| Model Number | LCR2400 |
| Quantity | 1 |
| Receptacle Type | Nema 5-15r |
| Receptacles Detail | 14 X Nema 5-15r |
| Style | Rackmount |
| Total Quantity | 1 Line Conditioners |
| Sizing & Dimensions | |
| Height | 8.5000 inches |
| Length | 22.0000 inches |
| Product Dimensions | 30 x 8 x 6 inches |
| Size | 3U 19-inch |
| Weight | 20.5000 pounds |
| Width | 10.3000 inches |
| Technical Specifications | |
| Max Amps | 20A |
| Output Watts | 2400 |
| Power Rating | 2.4Kva |
| Voltage | 120 Volts |
