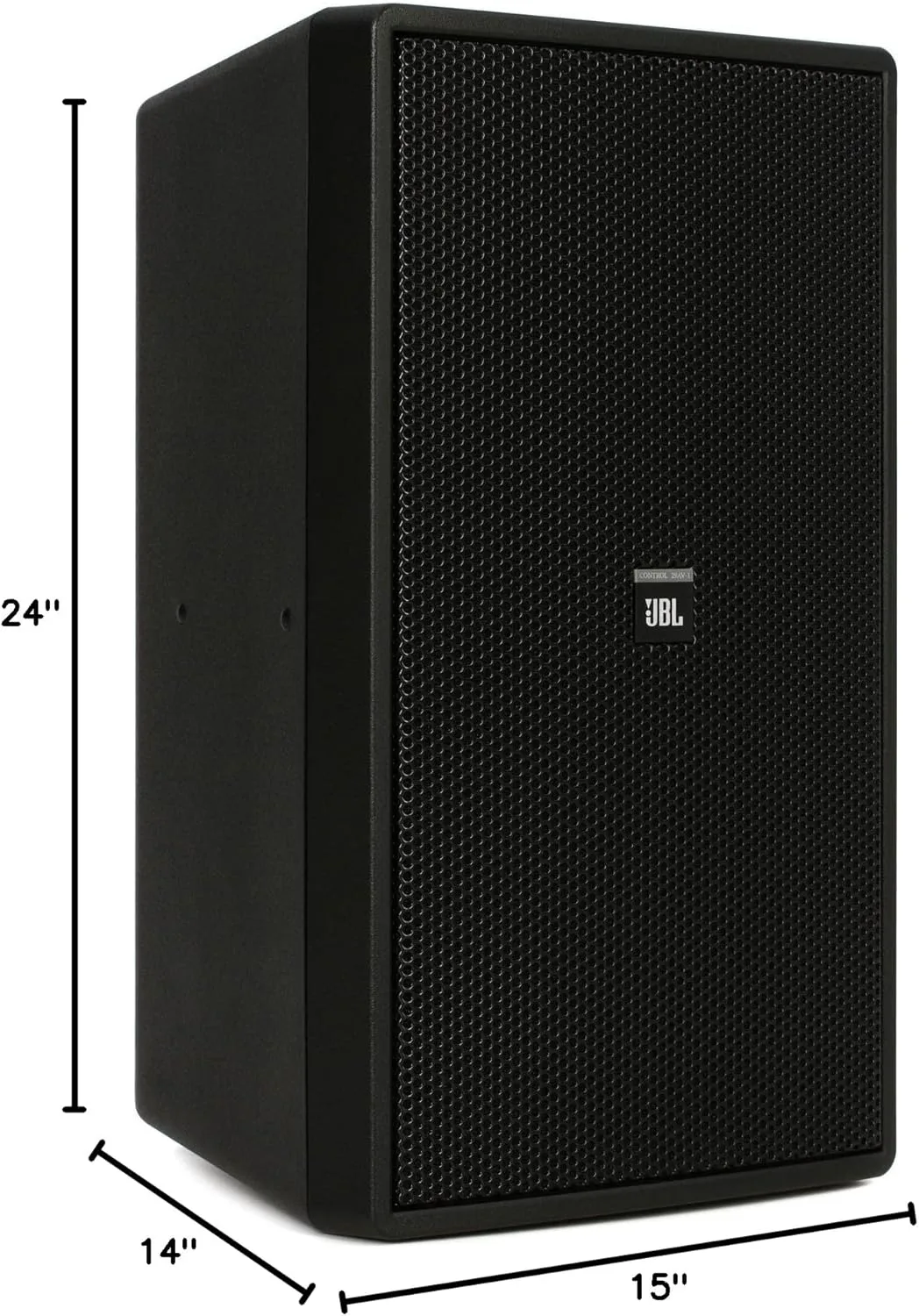

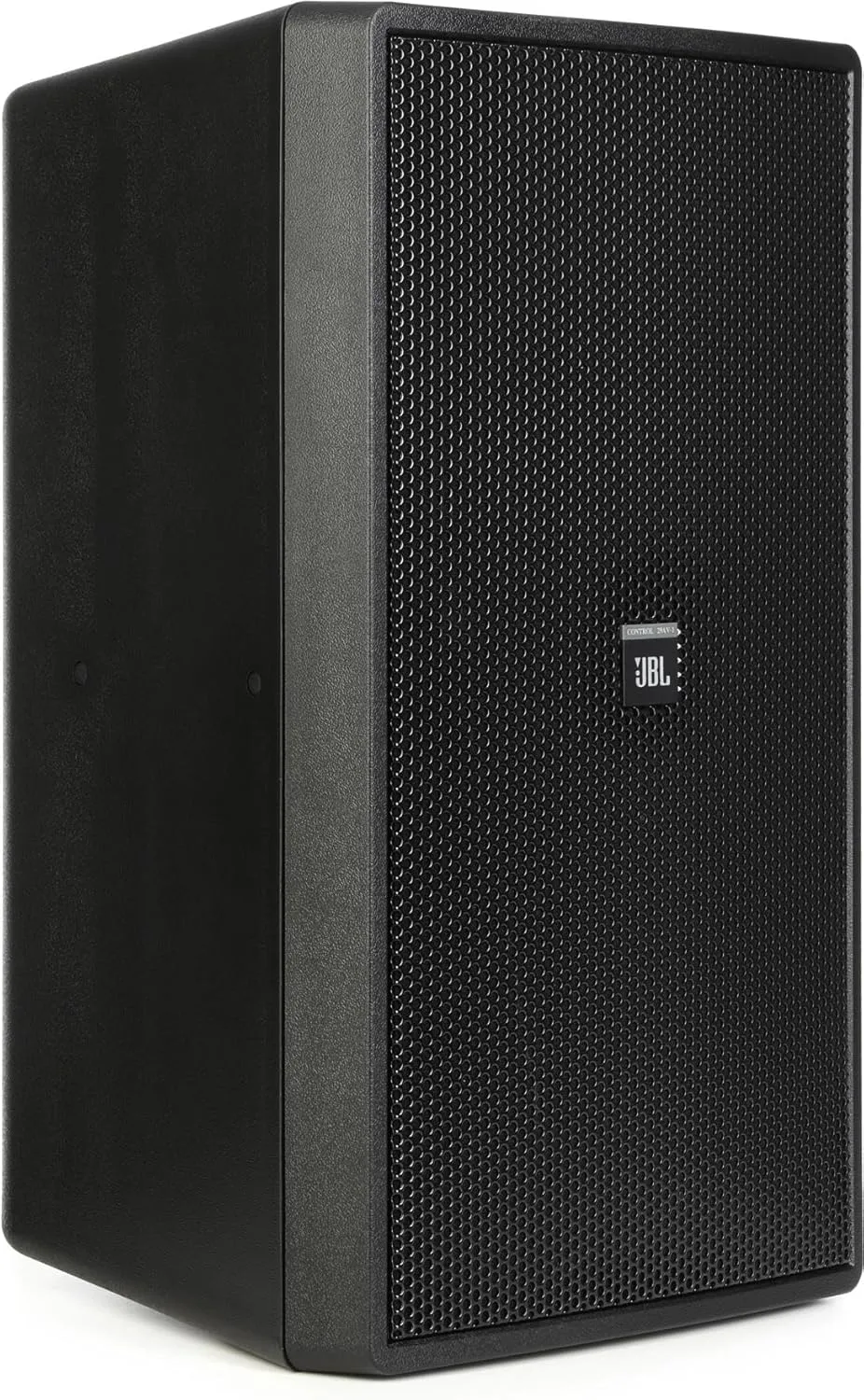

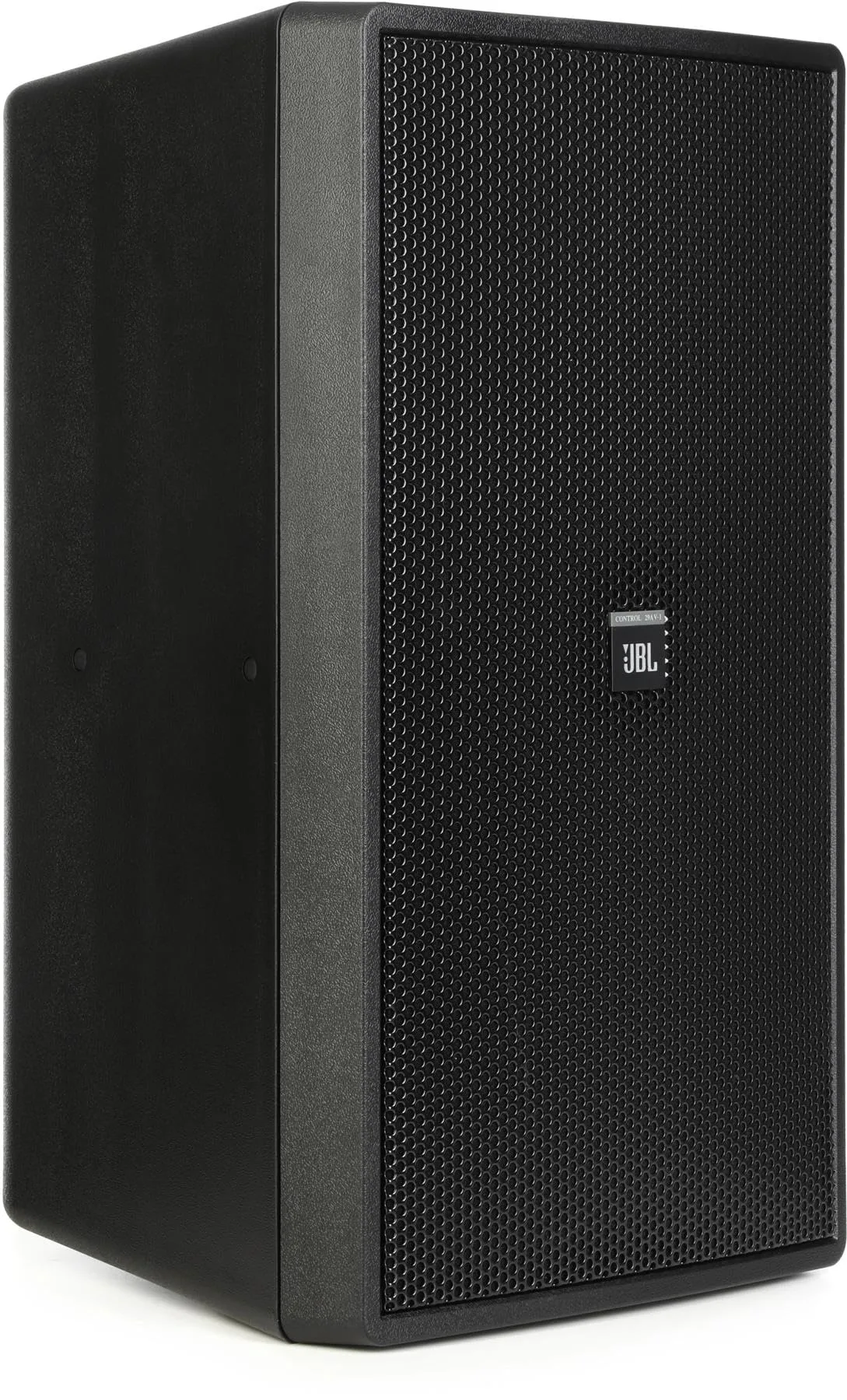

JBL Professional C29AV-1 2-Way Premium 8-Inch Indoor Outdoor Monitor Speaker, Black, 300-Watt
Customize
The JBL Professional Control 29AV-1 provides improved voicing for extremely flat, high-fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker. The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm (9) to video monitors. The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8Ω impedance allows use of multiple speakers on a loudspeaker line. The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-29UB U-bracket allows for compact installation.
- Available in Black or White (C29AV-WH-1)
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
- 110-Watt transformer for 70 V or 100 V lines, with 8 ohm thru.
- 110° x 85° HF coverage, rotatable horn
- Extended bandwidth, extremely smooth frequency response
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Product Details | |
| Audio Driver Size | 8 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Mono |
| Compatible Devices | Personal Computer |
| Connectivity Technology | Wired |
| Control Method | Touch |
| Customer Package Type | Standard Packaging |
| Frequency Response | 37 Hz |
| Impedance | 8 Ohm |
| Is Waterproof | FALSE |
| Item model number | C29AV-1 |
| Model Name | C29AV-1 |
| Model Number | C29AV-1 |
| Mounting Type | Wall Mount |
| Number Of Circuits | 2 |
| Number of Power Levels | 4 |
| Power Source | Corded Electric |
| Recommended Uses For Product | Indoor |
| Set Name | 1 |
| Shape | Rectangular Prism |
| Speaker Maximum Output Power | 110 Watts |
| Speaker Size | 7.87 Inches |
| Speaker Type | Outdoor |
| Special Feature | Built In Microphone |
| Style | With Multi-Tap Transformer |
| Subwoofer Connectivity Technology | Wired |
| Subwoofer Diameter | 8 Inches |
| UPC | 050036903387 |
| Warranty Type | Standard |
| Water Resistance Level | Water Resistant |
| Woofer Diameter | 7.87 Inches |
| Sizing & Dimensions | |
| Height | 24 inches |
| Length | 14 inches |
| Product Dimensions | 14"D x 15"W x 24"H |
| Size | 8 Inches |
| Weight | 27 pounds |
| Width | 15 inches |
| Technical Specifications | |
| Connectivity Technology | Wired |
| Frequency Response | 37 Hz |
| Impedance | 8 Ohm |
| Input Voltage | 100 Volts |
| Power Source | Corded Electric |
| Speaker Maximum Output Power | 110 Watts |
