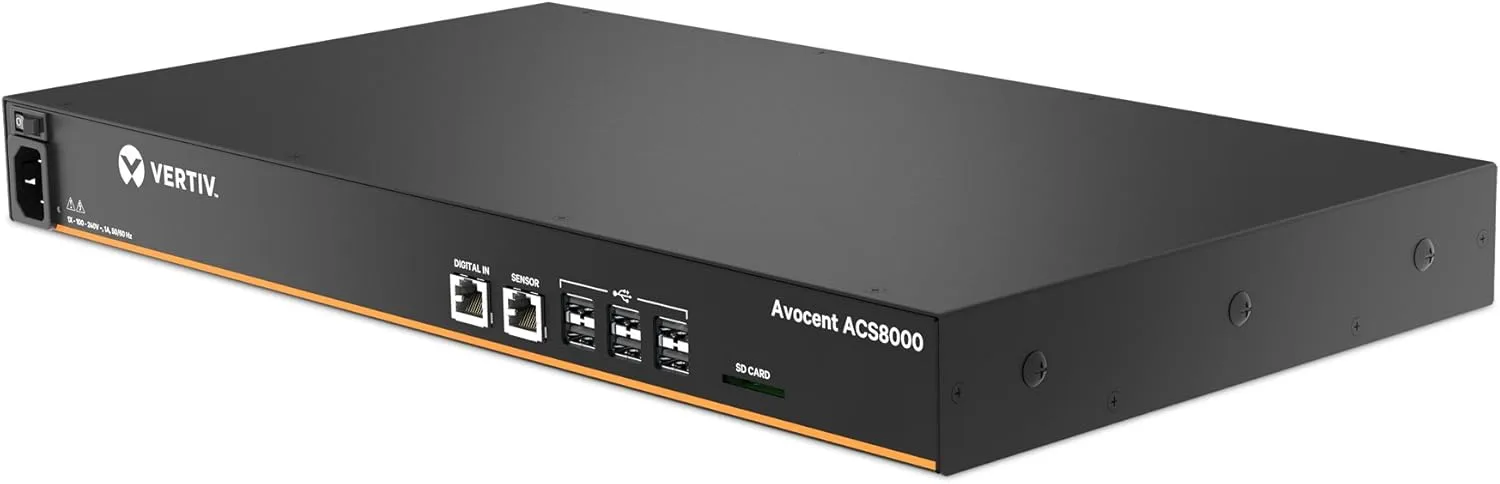

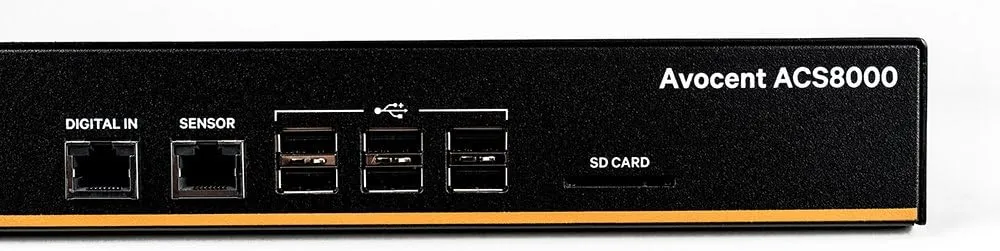

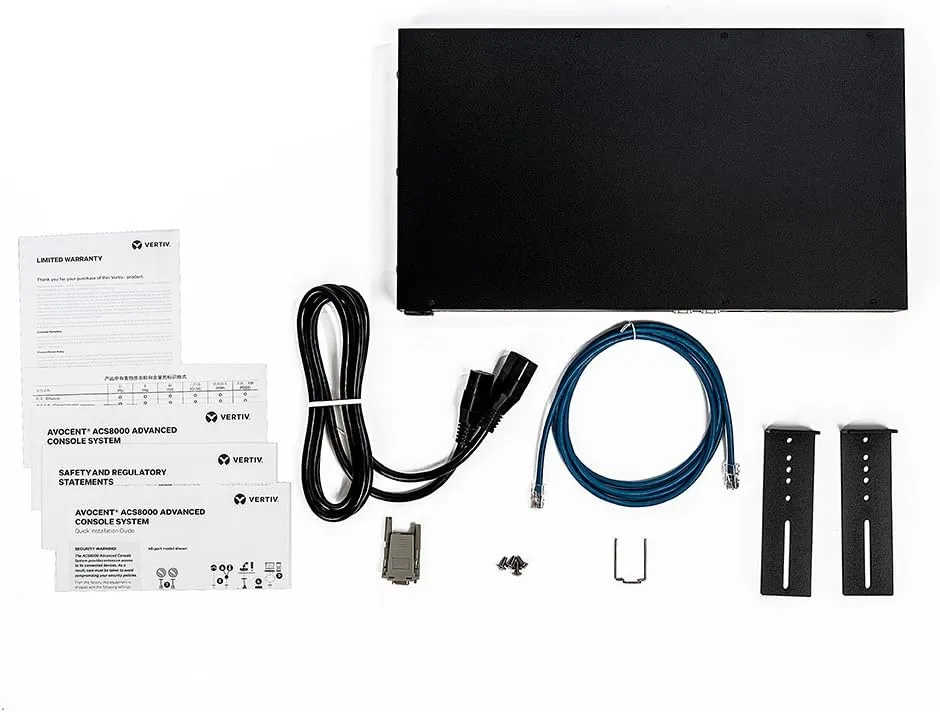

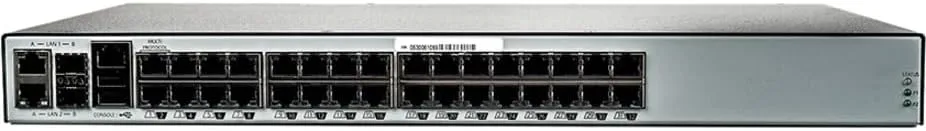

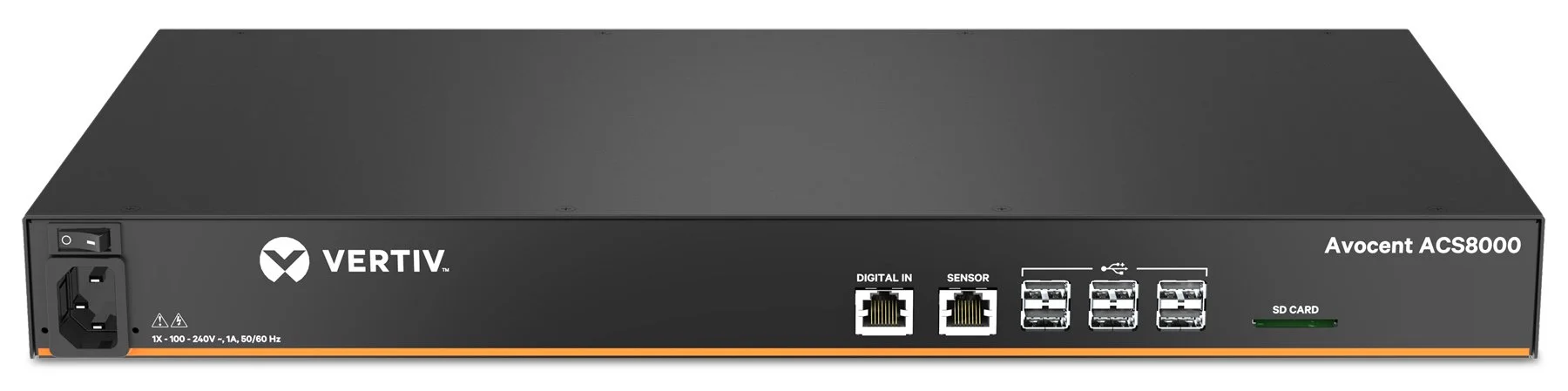

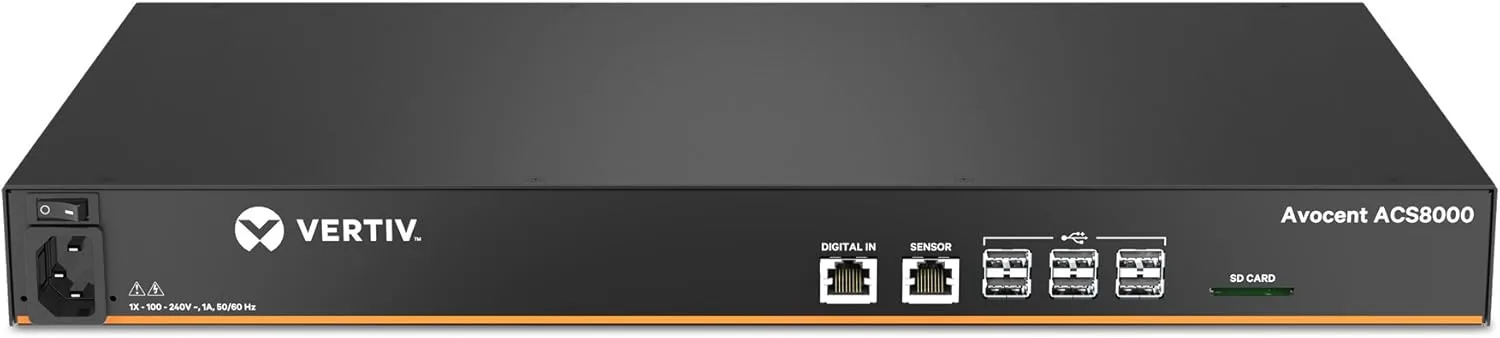

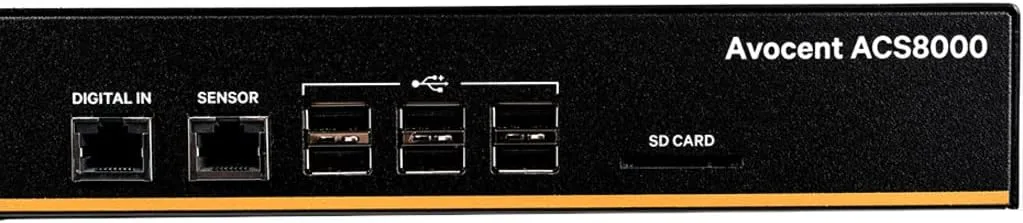

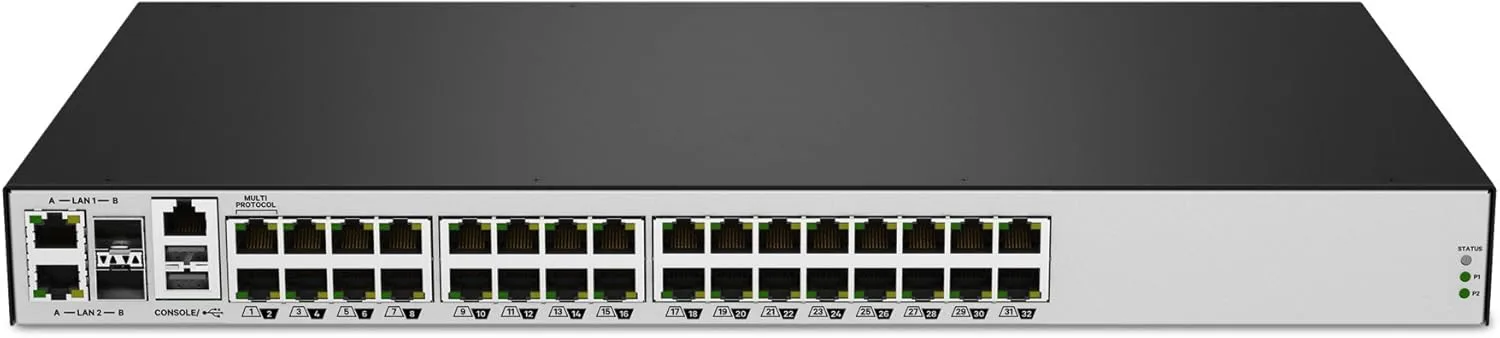

Vertiv Avocent ACS 8000 32-Port Serial Console Server, Single Internal AC Power Supply (ACS8032SAC-400)
Customize
The Vertiv Avocent ACS 8000 32-Port Console Server (ACS8032SAC-400) provides enterprise-class out-of-band management for distributed IT assets. Rack-mountable and engineered for data center environments, the ACS 8000 integrates environmental sensor ports (temperature, humidity, differential pressure, leak, door-pin sensors), 32 RJ45 serial ports, 8 USB 2.0 ports and dual 1 Gigabit Ethernet for network connectivity and failover. It supports automated provisioning with zero-touch configuration, robust security policies, a dual-core ARM processor, expanded memory for automation scripting and broad support for Rack PDUs and UPS integrations. The single internal AC power supply variant delivers the core features needed for remote troubleshooting, secure in-band management and remote remediation across a range of industries. Warranty: 2-Year Limited.
- ENVIRONMENTAL SENSOR PORT: To connect temperature, humidity, differential pressure, leak, door pin sensors
- POWER DEVICE MANAGEMENT: Dual 1 gigabit Ethernet port for network connectivity and failover and secure in band management for daily networking management; Expanded support for Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton along with Vertiv GXT4 UPS systems
- 8 USB 2.0 PORTS: Support external devices, IoT products and IT equipment; Features digital input / output & sensor ports
- AUTOMATED PROVISIONING: Offers fast, automated configuration with zero touch provisioning; compliant with data center access and security policies; powerful Dual-core ARM processor and 16GB of flash memory to support automation scripting
- REMOTE MANAGEMENT: Avocent ACS 8000 32-Port Advanced Terminal Management Serial Console Server with Single AC Power Supply allows users to access and troubleshoot remote locations using automatic network failover to cellular (and failback)
Specifications:
| Materials & Construction | |
| Contact Material | Copper |
| Product Details | |
| Cpu Brand | Arm |
| Cpu Series | Cortex-A9 Mpcore |
| Depth | 9-1/2 In. |
| Memory | 1024 mb |
| Memory Capacity | 1 gb |
| Memory Type | Ddr3 Sdram |
| Model | Acs8032sac-400 |
| Rack Mountable | Yes |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Height | 1.75 inches |
| Length | 9.5 inches |
| Product Dimensions | 9.5 x 17.25 x 1.75 inches |
| Weight | 6.6 pounds |
| Width | 17.25 inches |
| Technical Specifications | |
| Connectivity Protocol | Ethernet |
| Connector Type | Plug In |
| Contact Type | Normally Open |
| Control Method | Remote |
| Controller Type | Push Button, Mechanical knob |
| Current Rating | 0.29 Amps |
| Global Trade Identification Number | 00636430079028 |
| International Protection Rating | IP40 |
| Item model number | ACS8032SAC-400 |
| Lower Temperature Rating | 14 Degrees Fahrenheit |
| Number of Items | 1 |
| Number of Positions | 1 |
| Number of USB 2.0 Ports | 8 |
| Operating Voltage | 48 Volts (DC) |
| Operation Mode | ON-ON |
| RAM | 1000 MB |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 140 Degrees Fahrenheit |
| Voltage | 240 Volts |
| Wattage | 11 watts |
