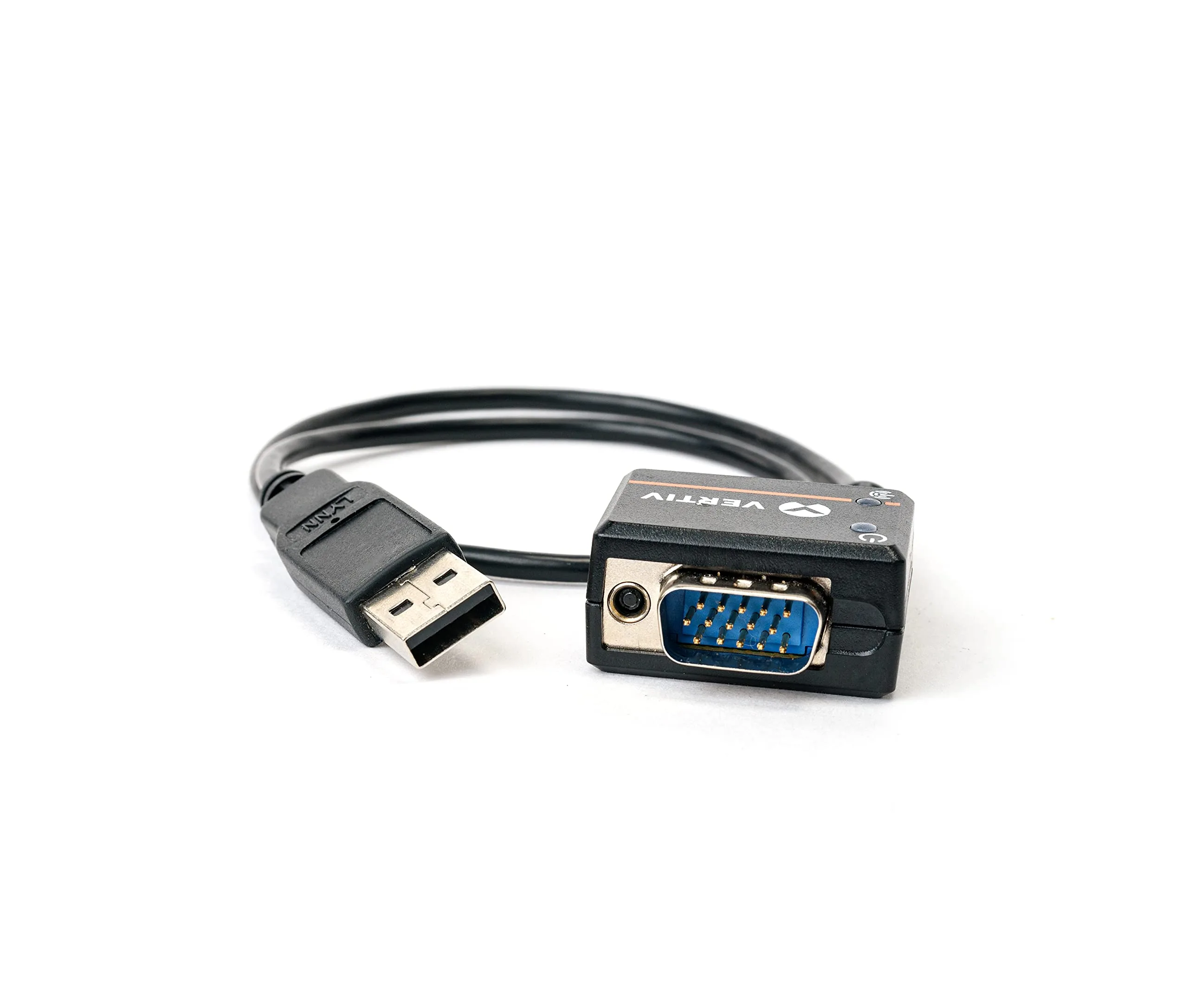

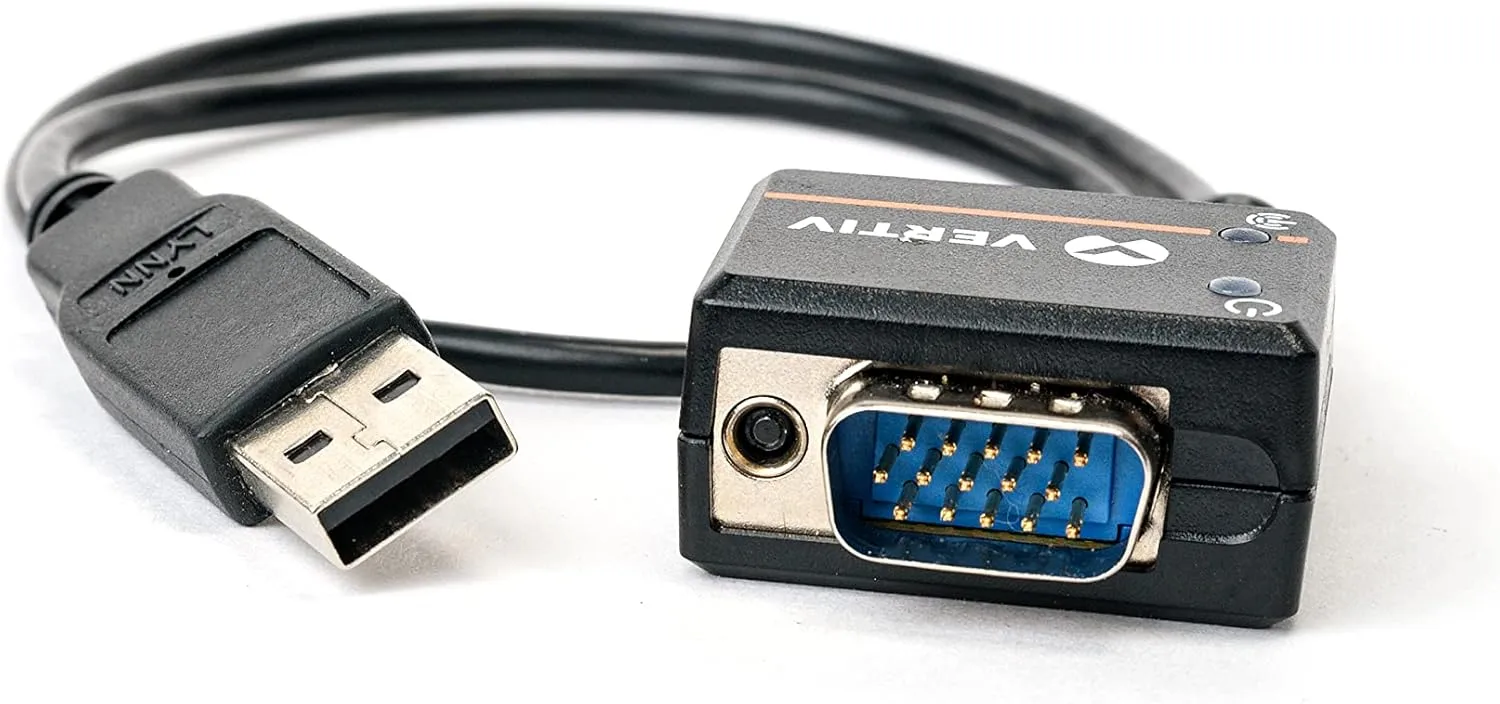

VERTIV SFIQ-VGA Server Interface Module Access Cable for KVM switches
Customize
The Vertiv Avocent SFIQ-VGA Server Interface Module (SFIQ-VGA) is a small form factor server interface module for VGA, USB keyboard and mouse and supports virtual media, Common Access Card (CAC) and USB 2.0. The VGA interface provides easier and cleaner cable management with the rack connecting to the server. It connects to the Avocent MergePoint Unity MPU and AutoView AV3000 series KVM switches using standard CAT5 cable and provides a VGA video and USB 2.0 interface for connecting to the server. The access cable allows the administrator to use virtual media for remote ISO loads and troubleshooting as well as having smartcard/CAC authentication support. One cable is required for each server connected to the KVM Switch. Additional product details: Connector types include 1 x 15-pin HD-15 VGA (male) and 1 x USB 2.0 (male). Cable type: USB; VGA. Device compatibility: KVM Switch, Keyboard/Mouse, Common Access Card (CAC) Reader, Server. Supports virtual media and CAC, supports USB 2.0 and VGA video with supported resolution up to 1920x1080. Contact materials: Copper, Silver, Gold. Rated IP54; UL specification met. Item dimensions and packaging are compact for streamlined cable management in rack environments.
- The SFIQ-VGA server interface module supports virtual media, CAC and USB 2.0.
- The access cable is compatible with the Avocent MergePoint Unity MPU and AV3000 series KVM switches.
- It is a small form factor server interface module for VGA, USB keyboard and mouse.
- The VGA interface provides easier and cleaner cable management compared to existing modules.
Specifications:
| Materials & Construction | |
| Circuit Type | multi-way |
| Color | Black |
| Contact Material | Copper, Silver, Gold |
| Material | Copper, Silver, Gold |
| Outer Material | Copper, Silver, Gold |
| Terminal | Quick-connect |
| Product Details | |
| Cable Type | Usb; Vga |
| Connector On First End Details | 1 X 15-Pin Hd-15 Vga - Male |
| Connector On Second End Details | 1 X Usb 2.0 - Male |
| Connector Type On First End | Hd-15 Vga - Male |
| Connector Type On Second End | Usb 2.0 - Male |
| Device Supported | Kvm Switch; Keyboard/Mouse; Common Access Card (Cac) Reader; Server |
| Series | Server Interface Module |
| Supported Resolution | 1920.000108 |
| Sizing & Dimensions | |
| Height | 0.7000 inches |
| Length | 9.6000 inches |
| Product Dimensions | 1 x 4 x 1 inches |
| Product Weight | 1.76 ounces |
| Weight | 1.92 ounces |
| Width | 3.9000 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Contact Type | Normally Open |
| Control Method | Remote |
| Current Rating | 0.01 Amps |
| International Protection Rating | IP54 |
| Number of Positions | 1 |
| Operation Mode | ON-OFF |
| Specification Met | UL |
